TP-Link AXE5400 үч тилкелүү тор Wi-Fi 6E диапазон кеңейткичи (RE815XE) колдонуучунун колдонмосу

1. Киришүү

Welcome to the user manual for your TP-Link AXE5400 Tri-Band Mesh Wi-Fi 6E Range Extender, model RE815XE. This device is designed to expand your existing Wi-Fi network coverage, providing a stable and high-speed wireless connection throughout your home or office. The RE815XE utilizes Tri-Band Wi-Fi 6E technology to deliver enhanced performance and reduce network congestion.

2. Продукт бүтүп калдыview

The TP-Link RE815XE is equipped with four external antennas and 6x high-power FEMs to ensure maximum Wi-Fi performance and extended coverage. It supports Beamforming technology, which detects device locations and concentrates Wi-Fi signals for stronger, more reliable connections.

1-сүрөт: Фронт view of the TP-Link RE815XE Range Extender, showing the power, 2.4G, 5G, and 6G LED indicators.

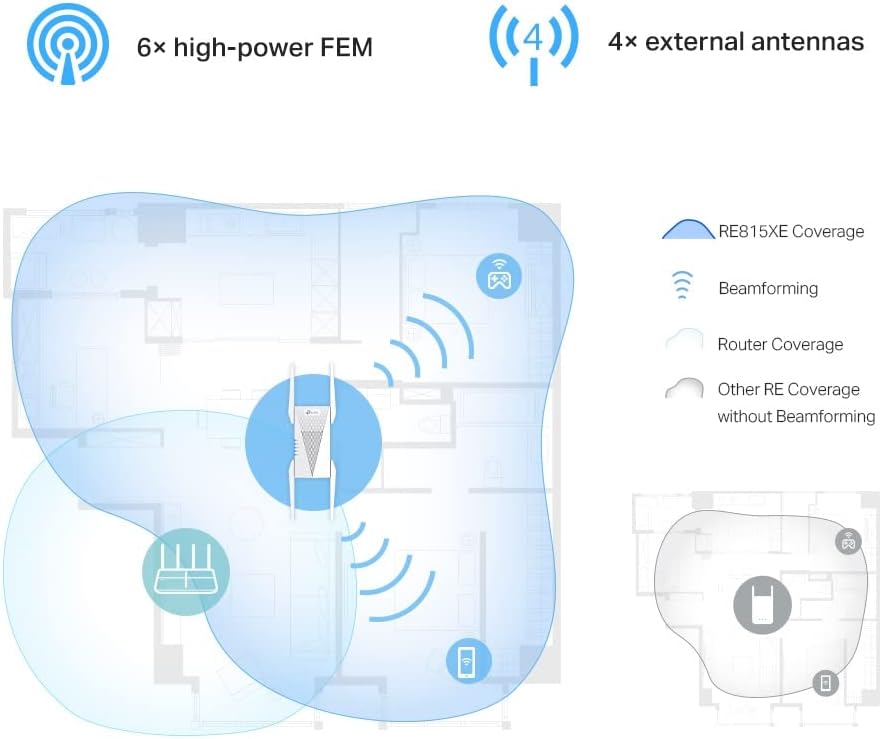

2-сүрөт: Illustration of the RE815XE's extended coverage and Beamforming technology.

3. Негизги өзгөчөлүктөрү

• AXE5400 Tri-Band Wi-Fi: Boosts overall speeds up to an incredible 5400 Mbps across 2.4 GHz, 5 GHz, and 6 GHz bands.
• 6 ГГц диапазону: Provides a dedicated, clearer band to prevent Wi-Fi interference and congestion, ideal for Wi-Fi 6E compatible devices.
• 160 MHz Channel Bandwidth: Expands bandwidth to double the network speed of traditional 80 MHz channels, enhancing data throughput.
• Үзгүлтүксүз роуминг: Part of the OneMesh™ system, allowing your devices to automatically switch to the router or extender that provides the fastest connection as you move around your home.
• Improved Capacity, Less Lag: Supports more connected devices simultaneously, ensuring smooth streaming and gaming experiences.
• Жөнөкөй орнотуу: Easy setup via the TP-Link Tether App or a web браузер.

3-сүрөт: Бүттүview of the RE815XE's Wi-Fi capabilities, including speed distribution across bands and key technologies.

4. Пакеттин мазмуну

Upon opening the package, verify that you have received the following items:

• TP-Link AXE5400 Tri-Band Mesh Wi-Fi 6E Range Extender (RE815XE)
• Ыкчам орнотуу колдонмосу
• Ethernet Cable (optional, may vary by region)

5. Орнотуу жана орнотуу

5.1. Жайгаштыруу боюнча көрсөтмөлөр

For optimal performance, place the range extender between your main router and the area where you need improved Wi-Fi coverage. Avoid placing it near large metal objects, concrete walls, or other sources of interference such as microwave ovens or cordless phones.

4-сүрөт: Recommended placement for the range extender to maximize coverage.

5.2. Күйгүзүү

1. Plug the RE815XE into an electrical outlet near your main router.
2. Wait for the Power LED to turn solid blue, indicating the device is ready.

5.3. Configuration via TP-Link Tether App (Recommended)

1. жүктөп алыңыз TP-Link Mother App App Store же Google Play дүкөнүнөн.
2. Connect your smartphone or tablet to the RE815XE's default Wi-Fi network (e.g., "TP-Link_Extender").
3. Open the Tether App and follow the on-screen instructions to set up your range extender. This typically involves selecting your main Wi-Fi network and entering its password.
4. Once configured, the Signal LED on the extender should turn solid blue, indicating a successful connection to your router.

5.4. аркылуу конфигурациялоо Web Браузер

1. Plug the RE815XE into an electrical outlet.
2. Connect your computer to the RE815XE's default Wi-Fi network (e.g., "TP-Link_Extender") or via an Ethernet cable.
3. ачуу а web браузер жана түрү tplinkrepeater.net or 192.168.0.254 дарек тилкесине.
4. Суралган учурда кирүү сырсөзүн түзүңүз.
5. Follow the on-screen instructions to select your main Wi-Fi network and enter its password.
6. Once configured, the Signal LED on the extender should turn solid blue.

6. Иштөө нускамалары

6.1. OneMesh™ Functionality

The RE815XE supports TP-Link OneMesh™, which creates a unified Wi-Fi network with a single Wi-Fi name (SSID) when paired with a compatible TP-Link OneMesh™ router. This allows your devices to automatically switch to the router or extender that provides the fastest connection as you move around your home.

6.2. LED көрсөткүчтөрү

7. Техникалык тейлөө

• Программалык камсыздоонун жаңыртуулары: Regularly check for and install firmware updates via the Tether App or the web оптималдуу иштөөнү жана коопсуздукту камсыз кылуу үчүн башкаруу интерфейси.
• Тазалоо: Түзмөктү таза жана чаңсыз кармаңыз. Тазалоо үчүн жумшак, кургак чүпүрөк колдонуңуз. Суюк тазалоочу каражаттарды же аэрозольдорду колдонбоңуз.
• Вентиляция: Ашыкча ысып кетпеши үчүн, узартуучу түзүлүш жакшы желдетилген жерге коюлганын текшериңиз. Желдетүүчү тешиктерди жаппаңыз.
• Кайра жүктөлүүдө: If you experience intermittent connectivity or performance issues, try rebooting the extender by unplugging it from the power outlet for 10 seconds and then plugging it back in.

8. Кыйынчылыктарды

8.1. Extender is not connecting to the router.

• Ensure your main router is powered on and broadcasting a Wi-Fi signal.
• Verify that you have entered the correct Wi-Fi password for your main network during setup.
• Relocate the extender closer to your main router. The Signal LED should turn solid blue for a good connection.
• Роутериңизди да, кеңейтүүчүнү да кайра иштетип көрүңүз.

8.2. Wi-Fi signal is weak or drops frequently.

• Adjust the position of the extender. It should be within the range of your main router but also close enough to the areas needing coverage.
• Check for sources of interference (e.g., microwaves, cordless phones, thick walls).
• Ensure the extender's antennas are properly oriented.
• Update the firmware of both your router and the extender to the latest version.

8.3. Cannot access the web башкаруу барагы.

• Ensure your device is connected to the extender's Wi-Fi network or via an Ethernet cable.
• Туура даректи колдонуп жатканыңызды текшериңиз: tplinkrepeater.net or 192.168.0.254.
• Браузериңиздин кэшин жана cookie файлдарын тазалаңыз же башкасын байкап көрүңүз web браузер.
• Temporarily disable any VPN or firewall software on your computer.

9. Техникалык шарттар

10. Кепилдик жана колдоо

Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, расмий TP-Link сайтына кайрылыңыз website or contact TP-Link customer service directly. The specific warranty period may vary by region and retailer. Keep your purchase receipt for warranty claims.

TP-Link колдоо Webсайт: https://www.tp-link.com/support/
