ATTACK SHARK X66 Wireless Mechanical Gaming Keyboard

Introduction

Thank you for choosing the ATTACK SHARK X66 60% Wireless Mechanical Gaming Keyboard. This keyboard is designed for optimal performance and customization, featuring a compact layout, versatile connectivity options, and dynamic RGB lighting. This manual will guide you through the setup, operation, and maintenance of your new keyboard to ensure a seamless user experience.

The ATTACK SHARK X66 keyboard, showing its compact design, coiled USB-C cable, and 2.4G wireless receiver.

Продукт өзгөчөлүктөрү

• 60% компакттуу жайгашуусу: Features 66 essential keys to maximize desk space while maintaining full functionality.
• CNC Metal Volume Knob: High-quality anodized metal knob for easy volume adjustment and mute function.
• Tri-Mode туташуу: Supports Bluetooth 5.0, 2.4G wireless, and wired USB-C connections for versatile use across multiple devices.
• Hot-Swappable Design: Compatible with 3-pin or 5-pin switches, allowing for easy customization of typing feel.
• Pre-Lubricated Linear Strawberry Switches: Provides a light touch and crisp sound for a smooth typing experience.
• Gasket Structure with 5-Layer Sound Dampбүтүрүү: Reduces noise from key impacts, delivering a pure and pleasant typing sound.
• Бышык PBT баскыч капкактары: Triple-color OEM height PBT keycaps are abrasion and oil resistant, designed for long-term comfort.
• Жандуу RGB жарыгы: 16.8 million colors with 18 dynamic lighting effects, including music-synced modes.
• 3000мАч жогорку кубаттуулуктагы батарея: Ensures long-lasting wireless operation.
• Custom Software Support: Allows for customized key functions, macro editing, and lighting effects.
• N-Key Rollover: Ensures accurate registration of multiple simultaneous key presses without ghosting.

An overview of the ATTACK SHARK X66 keyboard highlighting its mini 60% layout, 3 modes, full RGB backlight, knob design, 3000mAh battery, gasket structure, hot-swap capability, and custom driver support.

Detailed diagram illustrating the 5-layer gasket-mounted structure of the keyboard, including the upper cover, volume knob, PBT keycaps, mechanical switch, fog through positioning plate, PORON filled cotton, shaft underpad, PET singing pad, single key slotted PCB, silica gel, and bottom casing.

Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• ATTACK SHARK X66 Mechanical Gaming Keyboard
• USB-C Coiled Cable
• 2.4G зымсыз кабыл алгыч
• Колдонуучунун Колдонмосу (бул документ)

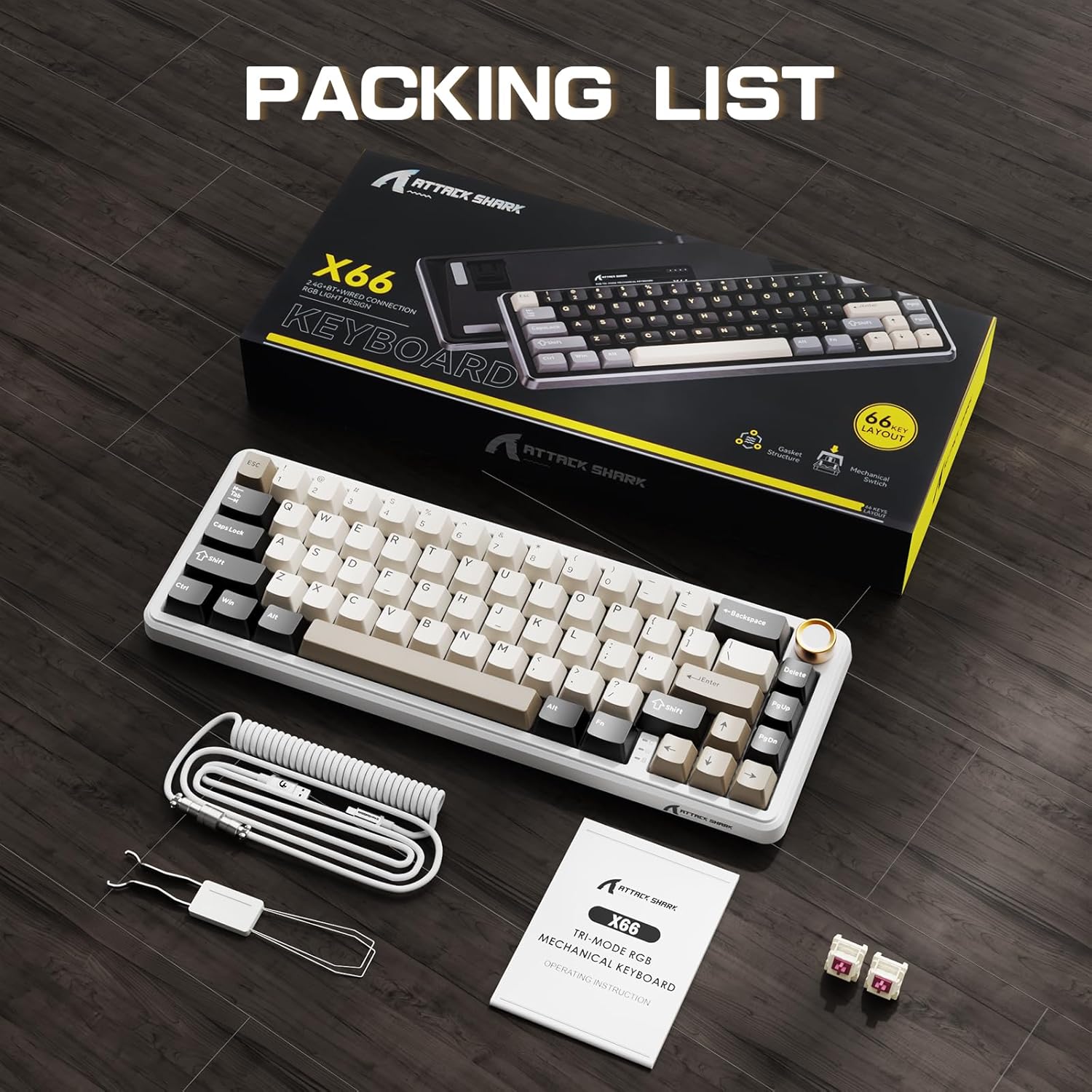

The ATTACK SHARK X66 keyboard, its packaging, coiled cable, and user manual, as found in the box.

Жайгашуу

Байланыш режимдери

The ATTACK SHARK X66 keyboard supports three connection modes:

• 2.4G зымсыз режими: For a stable and low-latency wireless connection.
• Bluetooth режими: For connecting to multiple devices simultaneously.
• Зымдуу режим (USB-C): For a direct and reliable connection, also charges the keyboard.

Жакын план view of the keyboard's side, showing the 2.4G wireless receiver slot, USB-C port, and switches for Bluetooth (BT), 2.4G, and system compatibility (Win/Mac).

Visual representation of the three connection modes: 2.4G Wireless (FN+R), Wired (Type-C USB), and Bluetooth 5.0 (FN+Q/W/E), along with compatible devices such as Mac, Windows, iOS, Android, Tablet, Laptop, PC, and Xbox.

2.4G зымсыз байланыш:

1. Locate the 2.4G wireless receiver stored in the slot on the back of the keyboard.
2. 2.4G кабыл алгычын компьютериңиздеги жеткиликтүү USB портуна сайыңыз.
3. Switch the keyboard to 2.4G mode using the toggle switch on the side/back of the keyboard.
4. Клавиатура автоматтык түрдө туташышы керек.

Bluetooth байланыш:

1. Switch the keyboard to Bluetooth mode using the toggle switch.
2. Басып кармап туруңуз FN + Q, FN + W, же FN + E to enter pairing mode for one of the three Bluetooth channels. The indicator light will flash.
3. On your device (computer, tablet, smartphone), search for Bluetooth devices and select "ATTACK SHARK X66".
4. Once paired, the indicator light will become solid. You can switch between paired devices by pressing FN + Q/W/E.

Зымдуу туташуу:

1. Connect the provided USB-C coiled cable to the keyboard's USB-C port.
2. Кабелдин экинчи учун компьютериңиздеги жеткиликтүү USB портуна туташтырыңыз.
3. Баскычтоп автоматтык түрдө зымдуу режимге өтүп, кубаттай баштайт.

Системанын шайкештиги

The keyboard is compatible with Windows and Mac operating systems. Use the dedicated switch on the side/back of the keyboard to select the appropriate system mode for optimal key mapping.

A close-up of the keyboard's underside, showing the adjustable feet for ergonomic positioning and the system compatibility switch (Win/Mac).

Иштөө нускамалары

Үн көлөмү баскычынын иштеши

• Саат жебеси боюнча айлантуу: Үнүн жогорулатуу.
• Сааттын жебесине каршы айландыруу: Үнүн азайтуу.
• Төмөн басыңыз: Аудиону үнсүз кылуу/үнсүз кылуу.

А деталдуу view of the high-quality CNC metal volume knob, illustrating its functions: clockwise for volume up, counter-clockwise for volume down, and pressing to mute/unmute sound.

An image highlighting the functional aluminum metal knob, detailing its press-to-mute/unmute, counter-clockwise volume down, and clockwise volume up capabilities.

RGB арткы жарыкты башкаруу

The keyboard features 16.8 million color RGB LEDs with 18 dynamic lighting effects. Use the following key combinations to control the backlight:

• FN + PgDn: Switch Backlight Effect (Cycle through 18 effects).
• FN + \|: Turn on/off Backlight.
• FN + ↑: Арткы жарыктын жарыктыгы+
• FN + ↓: Арткы жарыктын жарыктыгы -
• FN + ←: Арткы жарык ылдамдыгы -
• FN + →: Арткы жарык ылдамдыгы+

The keyboard displaying various RGB backlight effects, with instructions for controlling them using FN key combinations.

Сүрөт шоуcasing the 16 million RGB backlight, supporting gorgeous RGB backlight and dancing with music rhythm, along with key combinations to adjust 18 backlight effects, turn on/off backlight, adjust brightness, and adjust speed.

Battery Level Check (Wireless Mode)

Зымсыз режимде батареянын деңгээлин текшерүү үчүн басыңыз FN + BackSpace. The backlight will temporarily turn off, and the number keys 1 to 0 will light up to indicate the remaining battery percentage (e.g., 1-5 for low, 6-10 for high).

An illustration of the 3000mAh high-capacity battery and how to check its level in wireless mode by pressing FN+BackSpace, with number keys 1-10 indicating battery percentage.

Индикатор жарыктары

The keyboard features smart indicator lights for various statuses:

• Caps Lock көрсөткүчү: Caps Lock абалын көрсөтөт.
• Win Lock көрсөткүчү: Indicates Windows key lock status.
• Заряддоо көрсөткүчү: Заряддоо абалын көрсөтөт.

A close-up of the keyboard's smart indicator lights, showing the Caps Lock (C), Win Lock (W), and Charging Indicator.

Ыңгайлаштырылган программалык камсыздоо

Enhance your keyboard experience with the custom software. It allows you to:

• Customize key functions for all buttons.
• Edit and assign macros.
• Create customized lighting effects.
• Customize 16 million light colors.
• Support music rhythm lighting effects.
• Set sleep time for power saving.

The software can typically be downloaded from the official ATTACK SHARK website or via the link provided in the product packaging/description (e.g., Driver link: bit.ly/X66SOFT).

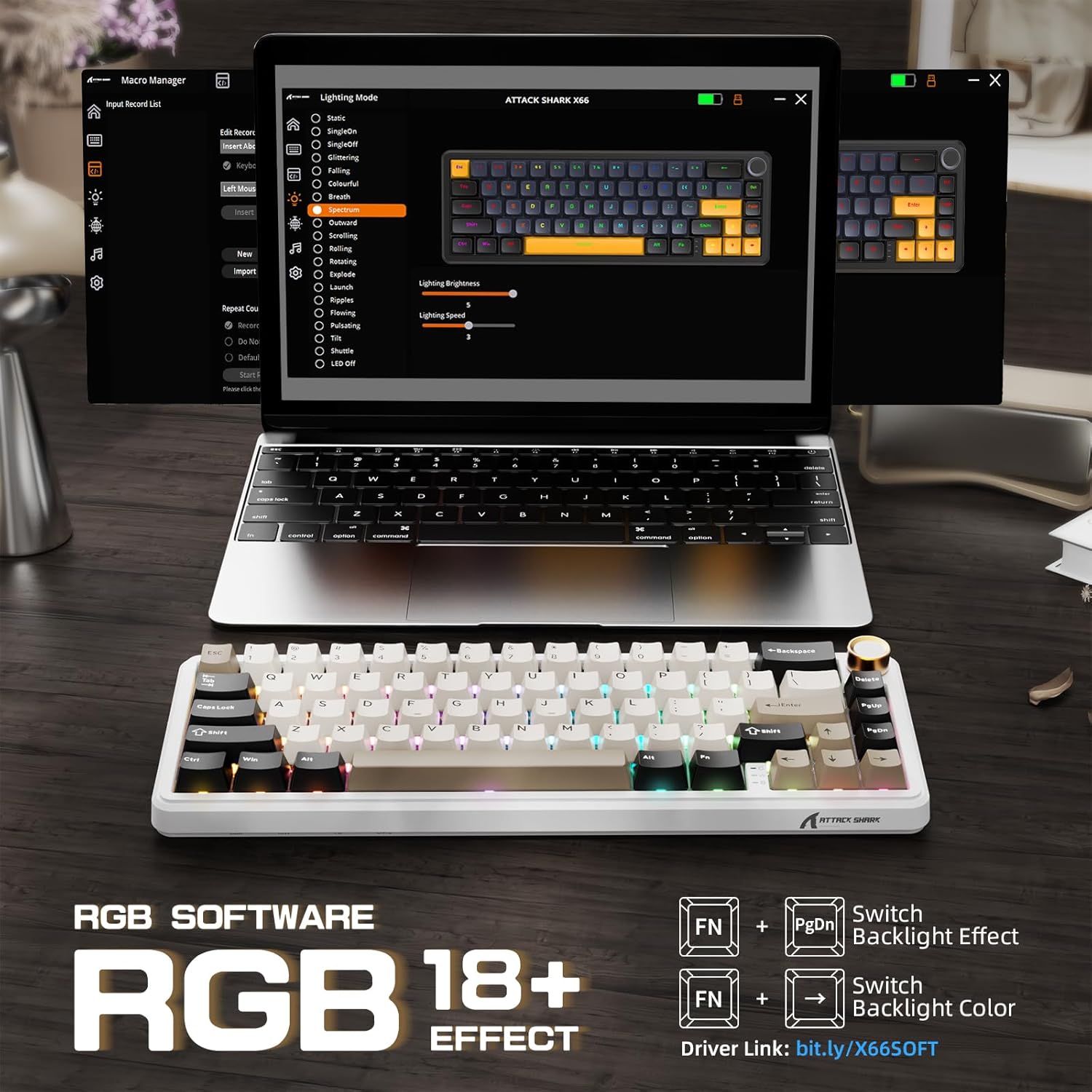

Screenshots of the custom software interface, demonstrating options for macro management, lighting mode selection, and various customization features for the keyboard.

Техникалык тейлөө

Баскычтопту тазалоо

• Тазалоодон мурун клавиатураны түзмөгүңүздөн ажыратыңыз.
• Жумшак, түксүз кездемени колдонуңуз dampened with a small amount of water or a mild cleaning solution to wipe the keycaps and chassis.
• Ачкычтардын ортосундагы чаң жана таштанды үчүн кысылган абаны же кичинекей щетканы колдонуңуз.
• Avoid using harsh chemicals or abrasive materials, as they may damage the keyboard's finish.

Ысык алмаштыруучу которгучтар

The hot-swappable design allows you to change switches without soldering. Use the included switch puller tool:

1. Gently grip the switch with the switch puller and pull upwards to remove it.
2. Жаңы 3 же 5 иштиктүү которгучтун төөнөгүчтөрүн ПХБдагы тешиктерге тууралаңыз.
3. Жаңы которгучту чыкылдаган үн чыкканча бекем басыңыз. Төөнөгүчтөрдүн ийилип калбаганын текшериңиз.

A close-up demonstrating the hot-swappable feature, showing a linear switch being removed from the keyboard, with other switches and keycaps visible.

An image illustrating the hot-swappable capability of the keyboard, compatible with both 3-pin and 5-pin mechanical switches, showing switches being inserted and removed.

Жакын план view of the keyboard's stabilizers, which ensure smooth and consistent key presses for larger keys like the spacebar and shift keys.

Проблемаларды чечүү

• Баскычтоп жооп бербей жатат: Ensure the keyboard is charged. Check the connection mode (wired, 2.4G, Bluetooth) and ensure it matches your device's connection. Try restarting the keyboard or your device.
• 2.4G connection issues: Ensure the 2.4G receiver is securely plugged in. Try a different USB port. Ensure the keyboard is in 2.4G mode.
• Bluetooth жупташтыруу көйгөйлөрү: Ensure the keyboard is in Bluetooth pairing mode (indicator flashing). Delete previous pairings on your device and try re-pairing. Ensure your device's Bluetooth is enabled.
• RGB жарыктандыруу иштебейт: Check if the backlight is turned off (FN + \|). Adjust brightness (FN + ↑/↓).
• Катталбаган ачкычтар же эки жолу терүү: Ensure switches are properly seated. If a specific switch is faulty, consider hot-swapping it with a new one.
• Volume knob not working: Ensure the keyboard is powered on and connected. Check for any physical obstructions.

Техникалык шарттар

Detailed dimensions of the 60% layout keyboard, showing its length, width, and height.

Кепилдик жана колдоо

ATTACK SHARK products are manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official ATTACK SHARK webсайт. Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
