HAPPYGRILL 4-Piece Outdoor Rattan Conversation Set

Маанилүү коопсуздук маалыматы

Сураныч, чогултуу жана колдонуу алдында бардык нускамаларды окуп жана түшүнүү. Бул колдонмону келечекте маалымат алуу үчүн сактаңыз.

• Салмак сыйымдуулугу: Do not exceed the specified weight limits for each component:
  • Loveseat: 800 lbs (360 kg)
  • Each Chair: 400 lbs (180 kg)
  • Coffee Table: 110 lbs (50 kg)
• Ассамблея: Ensure all screw holes are perfectly aligned before tightening any screws. Improper alignment and tightening can lead to instability and potential damage.
• Жайгашкан жери: Эмеректи тегиз, туруктуу бетке коюңуз, оодарылып калбашы үчүн.
• Балдар: Кырсыктардын алдын алуу үчүн эмеректердин айланасындагы балдарды көзөмөлдөңүз.
• Аба ырайы шарттары: While designed for outdoor use, extreme weather conditions (heavy winds, snow) may require additional protection or storage to prolong product life.

Пакеттин мазмуну

Монтаждоону баштоодон мурун төмөндө саналган бардык компоненттер бар экенин текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.

• 1 x Loveseat
• 1 x Loveseat Cushion
• 1 x Кофе үстөлү
• 2 х отургучтар
• 2 x отургуч жаздыктары
• 1 х Инструкция (бул документ)
• Монтаждоо жабдыктары (бурамалар, Аллен ачкычы ж.б.)

Орнотуу жана монтаждоо нускамалары

Follow these steps carefully for proper assembly. It is recommended to assemble the furniture on a soft, clean surface to prevent scratches.

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Lay them out on a protected surface and compare them with the package contents list to ensure everything is present.
2. Бөлүктөрдү аныктоо: Familiarize yourself with the different components (e.g., chair frames, loveseat frame, table frame, cushions, hardware).
3. Креслолорду чогултуу:
   • Attach the backrest to the seat frame using the provided screws.
   • Connect the armrests to the seat and backrest.
   • Secure all connections, ensuring screws are loosely fitted initially.
4. Loveseat чогултуу:
   • Follow a similar process as the chairs, attaching the backrest and armrests to the loveseat seat frame.
   • Ensure all screws are loosely fitted.
5. Кофе үстөлүн чогултуу:
   • Connect the table legs to the tabletop frame.
   • Place the tempered glass tabletop onto the frame, ensuring it sits securely on the anti-slip suction cups.
   • Loosely fit all screws.
6. Акыркы бекемдөө: Once all components are assembled and all screw holes are aligned, gradually tighten all screws using the provided Allen wrench. Do not overtighten.
7. Жаздыктарды тиркөө: Place the seat cushions onto the chairs and loveseat.
8. Бут жаздыкчаларын тууралоо: The furniture features adjustable foot pads. Adjust them as needed to ensure stability on uneven surfaces.

Маанилүү Ассамблея эскертүүсү: Do not tighten screws until all the holes are aligned. Otherwise, some screw holes may be misaligned, resulting in different lengths of furniture legs.

Image: The complete HAPPYGRILL 4-piece outdoor rattan conversation set, featuring a loveseat, two single chairs, and a coffee table, all with red cushions, ready for assembly.

Image: A diagram illustrating various possible arrangements for the 4-piece furniture set, demonstrating its modular design and versatility for different outdoor spaces.

Сүрөт: жакын план view of the coffee table, highlighting its spacious tempered glass tabletop secured by anti-slip suction cups.

Сүрөт: деталдуу views of key features including the ergonomically designed backrest, curved armrests, reinforced structural connections, and adjustable foot pads for stability on uneven surfaces.

Иштөө нускамалары

This outdoor conversation set is designed for comfortable relaxation and social gatherings in outdoor environments.

• Жалпы колдонуу: Use the loveseat and chairs for seating. The coffee table is suitable for placing beverages, snacks, books, or decorative items.
• Салмагын бөлүштүрүү: Distribute weight evenly on seating surfaces. Avoid standing on the furniture.
• Жаздык жайгаштыруу: Ensure cushions are properly seated on the furniture frames for optimal comfort and stability.
• Температуралуу айнек үстөл: The tempered glass tabletop is durable but should be handled with care. Avoid placing extremely hot items directly on the glass without protection.

Image: The HAPPYGRILL outdoor rattan conversation set, featuring a loveseat, two chairs, and a coffee table with red cushions, positioned beside a swimming pool, demonstrating its intended use in a leisure setting.

Техникалык тейлөө жана кам көрүү

Proper care will extend the life and appearance of your HAPPYGRILL outdoor furniture set.

• PE Rattan Frame: The hand-woven PE rattan is fade-resistant and sun-protective. Clean the rattan with a soft cloth dampened with mild soap and water. Rinse thoroughly and allow to air dry. Avoid harsh chemicals or abrasive cleaners.
• Жаздыктар: The cushions are equipped with smooth zippers for easy removal. The polyester fabric covers can be spot cleaned with mild soap and water. For deeper cleaning, remove covers and hand wash or machine wash on a gentle cycle with cold water. Air dry only; do not tumble dry. Ensure cushions are completely dry before storing or replacing to prevent mildew.
• Температуралуу айнек үстөл: Clean the glass with a standard glass cleaner and a soft cloth. Avoid using abrasive materials that could scratch the surface.
• Металл рамка: The heavy-duty metal frame is designed for durability. Periodically check all bolts and connections to ensure they remain tight. If rust appears on any metal parts, clean it with a wire brush and apply a rust-inhibiting primer and paint.
• Сактагыч: During prolonged periods of non-use or in harsh weather conditions, it is recommended to cover the furniture with a protective cover or store it indoors to prevent damage and prolong its lifespan.

Сүрөт: деталдуу view of the mix brown PE rattan material, highlighting its hand-woven texture and properties such as anti-fading, sun-protective, and breathable, which contribute to its durability and suitability for outdoor use.

Image: A close-up shot of a red cushion, illustrating its soft and resilient sponge filling and the convenient zipper for easy removal and cleaning.

Проблемаларды чечүү

If you encounter any issues with your HAPPYGRILL outdoor furniture set, refer to the following common solutions:

• Туруксуздук/Толкулуу:
  • Ensure the furniture is placed on a flat, even surface.
  • Check and adjust the adjustable foot pads on each leg to compensate for uneven ground.
  • Verify that all assembly screws are securely tightened. If any were overtightened before full alignment, loosen them, realign, and then retighten gradually.
• Ассамблея учурундагы кыйынчылыктар:
  • Review the assembly instructions carefully.
  • Ensure you are not tightening screws fully until all parts are loosely connected and aligned. This is a common cause of misalignment.
  • If a part seems forced, recheck the orientation and ensure you have the correct parts for that step.
• Жылма жаздыктар:
  • Ensure the cushions are placed correctly on the rattan base.
  • Consider adding non-slip pads or Velcro strips (not included) to the underside of the cushions if sliding persists.
• Glass Tabletop Movement:
  • Verify that the tempered glass tabletop is properly seated on the anti-slip suction cups.
  • Ensure the suction cups are clean and free of debris for maximum grip.

Техникалык шарттар

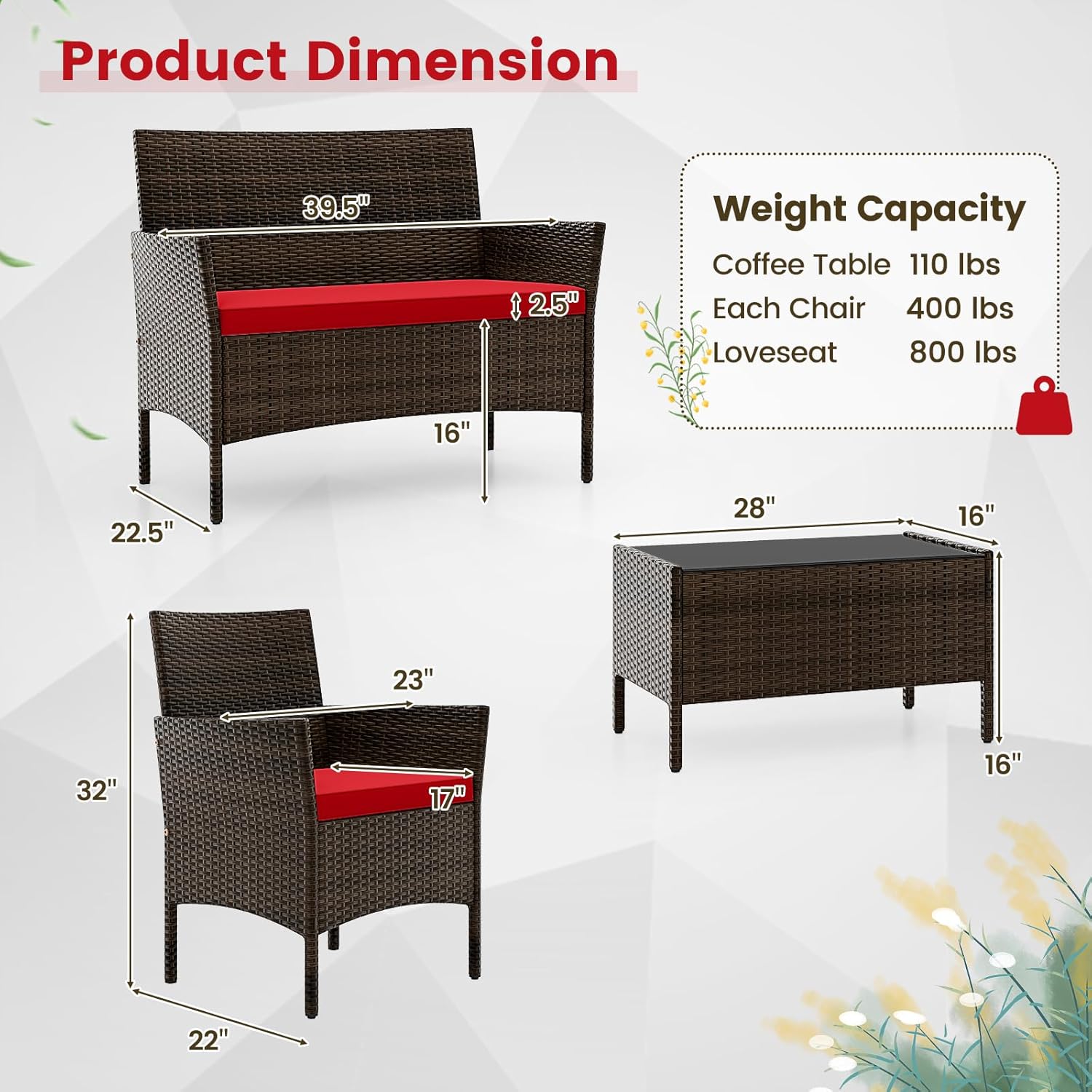

Image: A visual representation of the product dimensions for the loveseat, chair, and coffee table, along with their respective weight capacities.

Кепилдик жана Кардарларды колдоо

For warranty information or assistance with your HAPPYGRILL product, please contact our customer support team.

• Кардарларды колдоо: Refer to the contact information provided with your purchase or visit the official HAPPYGRILL webколдоо параметрлери үчүн сайт.
• Коргоо пландары: Additional protection plans may be available for purchase. Please refer to your retailer for details.
