Introduction
Thank you for choosing the Soundstream BX-26PS Bass Restoration Processor. This device is designed to enhance the low-frequency response of your audio system, providing deeper and more impactful bass. Its IP66 waterproof rating makes it suitable for various applications, including car, marine, motorcycle, ATV, and UTV audio systems. This manual provides essential information for proper installation, operation, and maintenance of your BX-26PS.
Коопсуздук маалыматы
- Always disconnect the vehicle's battery before beginning any installation.
- Кыска туташуунун алдын алуу үчүн бардык зымдар туура изоляцияланганын текшериңиз.
- Mount the unit securely to avoid damage from vibrations or movement.
- Do not operate the unit if it has been submerged in water beyond its IP66 rating or if any connections are compromised.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, профессионал орнотуучу менен кеңешиңиз.
Продукт бүттүview

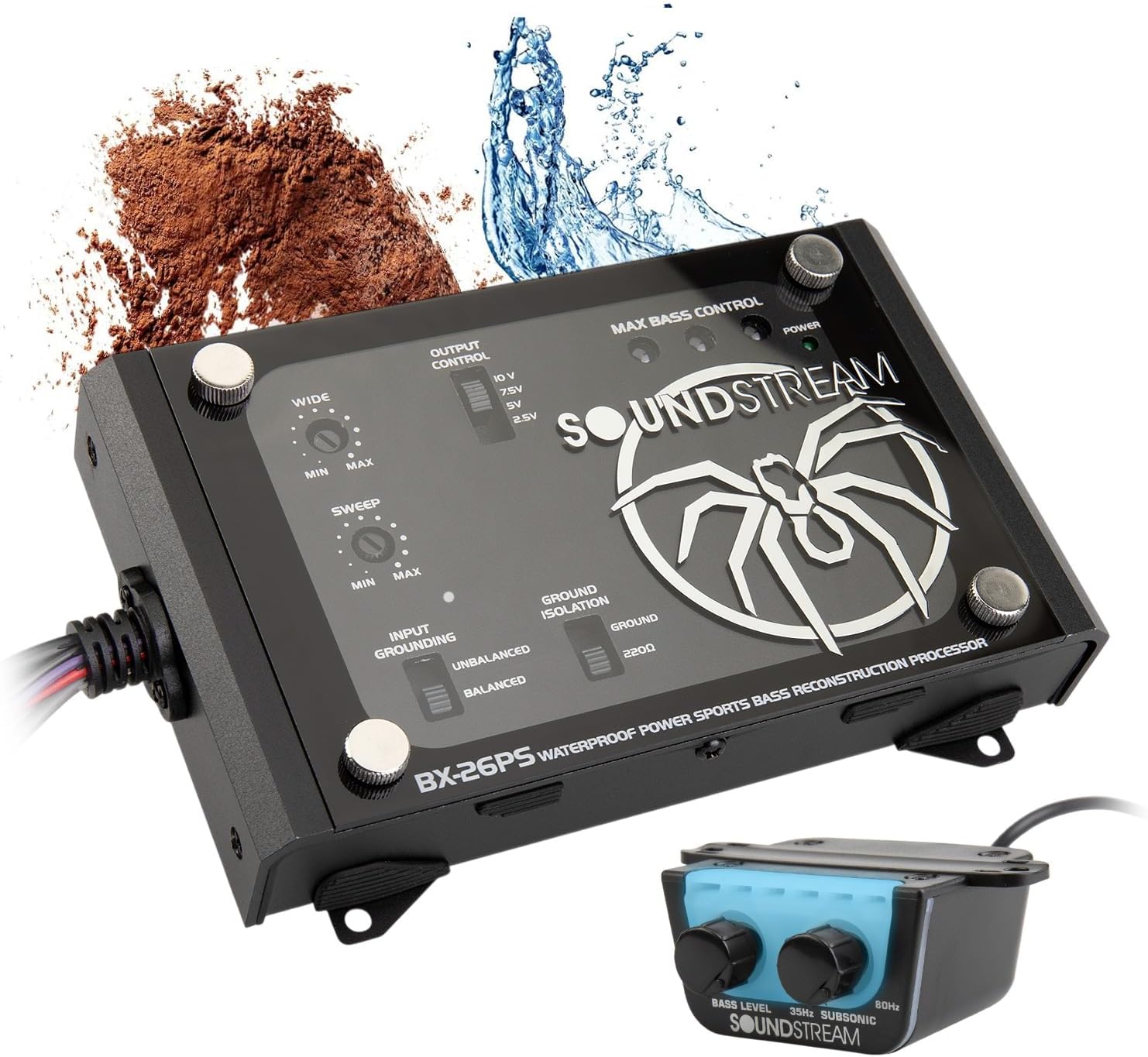

The Soundstream BX-26PS is a digital bass reconstruction processor designed to restore and enhance the low-frequency information often lost during the compression or transmission of audio signals. It features an IP66 waterproof and dustproof rating, making it ideal for harsh environments. The unit includes various controls for fine-tuning bass response and an external remote bass control knob for convenient adjustments.


Пакеттин мазмуну
- Soundstream BX-26PS Bass Restoration Processor Unit
- Кабели бар алыстан башкаруу баскычы
- Mounting Hardware (Screws, etc.)
- Электр зымдары
Орнотуу жана орнотуу
Mounting the BX-26PS Unit
Choose a secure, dry location for mounting the BX-26PS unit. While the unit is IP66 rated, protecting it from direct exposure to extreme elements will prolong its lifespan. Ensure adequate ventilation around the unit. Use the provided mounting hardware to secure the processor firmly to a flat surface.


Зымдарды туташтыруу
The BX-26PS requires power, ground, remote turn-on, audio input, and audio output connections. Refer to the wiring diagram below for detailed connections. Use appropriate gauge wiring for power and ground connections.
- Күч (B+): Connect to a constant +12V source from the vehicle's battery.
- Жер (GND): Connect to a solid chassis ground point. Ensure a clean, bare metal connection.
- Алыстан (REM): Connect to the remote turn-on output of your head unit or ampөмүрлүү.
- Киргизүү (RCA): Connect the RCA outputs from your head unit or signal processor to the BX-26PS input RCAs.
- Чыгаруу (RCA): Connect the BX-26PS output RCAs to the input of your ampөмүрлүү.
Remote Bass Control Knob Installation
Install the remote bass control knob in a convenient location within reach of the driver. Connect the remote knob's cable to the designated port on the BX-26PS unit.

Иштетүү жана тууралоо
The BX-26PS offers several controls to fine-tune your bass experience. Adjustments should be made carefully and incrementally to achieve optimal sound quality.
Негизги блокту башкаруу
- КЕҢИРИ КОНТРОЛДОО: Adjusts the Q (bandwidth) of the bass restoration circuit. A wider setting will affect a broader range of frequencies, while a narrower setting will focus on a more specific frequency band.
- SWEEP башкаруу: Selects the center frequency for the bass restoration. This allows you to target specific low frequencies for enhancement.
- ЧЫГЫШТЫ БАШКАРУУ: Sets the maximum output voltage of the bass processor (10V, 7.5V, 5V, 2.5V). Match this to the input sensitivity of your amplifier to prevent clipping.
- ЖЕРДИН ИЗОЛЮЦИЯСЫ: Switch between UNBALANCED, BALANCED, and GROUND settings. Use this to eliminate ground loop noise. Start with UNBALANCED, and if noise persists, try BALANCED or GROUND.
- MAX BASS CONTROL: This is the primary gain control for the bass restoration circuit. Adjust this to set the overall level of bass enhancement.
- POWER LED: Indicates when the unit is powered on.

Remote Bass Control Knob
The remote bass control knob provides convenient, on-the-fly adjustment of the bass level from your listening position. It typically controls the overall bass output or a specific frequency range, depending on the main unit's settings.
- БАС ДЕҢгээли: Adjusts the intensity of the bass restoration.
- 30Hz / SUBSONIC / 60Hz: This knob likely controls a variable low-pass filter or a specific frequency boost, allowing you to tailor the bass response to your preferences and speaker capabilities.
Сунушталган колдонмолор
The Soundstream BX-26PS is designed for versatility across various vehicle types, thanks to its robust IP66 waterproof and dustproof construction.


Техникалык тейлөө
The Soundstream BX-26PS is designed for durability and requires minimal maintenance.
- Тазалоо: жумшак колдонуу, damp cloth to clean the exterior of the unit. Avoid harsh chemicals or abrasive cleaners.
- Суу өткөрбөйт рейтинги: The IP66 rating protects against powerful water jets and dust ingress. While robust, avoid prolonged submersion or high-pressure washing directly on the unit. Ensure all cable glands and covers are properly sealed.
- Байланыштары: Мезгил-мезгили менен бардык зымдарды байланыштарды текшерип туруңуз, алар бекем жана коррозиядан таза.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кубат жок / Түзмөк күйбөйт |
|
|
| Бассты күчөтүү жок |
|
|
| Бурмаланган бас |
|
|
| Engine Noise / Ground Loop Hum |
|
|
Техникалык шарттар
| Модель аты | BX-26PS |
| Киргизүү көлөмүtage | 12 вольт (ток) |
| Power Source | 12VDC |
| Байланыш технологиясы | RCA |
| Аудио чыгаруу режими | Стерео |
| Frequency Response | 63 KHz (Note: This typically refers to the upper limit of the processor's frequency range.) |
| Өзгөчө өзгөчөлүк | Waterproof, IP66, Power Sport |
| Сууга туруктуулук деңгээли | Суу өткөрбөйт (IP66) |
| Сунушталган Колдонуулар | For Vehicles, For Marine Applications, Power Sports, Motorcycle, Car Audio |
| Материал | Metal, Plastic, Silicone |
| Түс | Кара |
| Продукт өлчөмдөрү (W x D x H) | 6.5"W x 4"D x 1.5"H |
| Элемент Салмагы | 2.2 фунт |
| Камтылган компоненттер | Бас башкаруу баскычы |
| UPC | 709483072367 |
Кепилдик маалымат
The Soundstream BX-26PS Bass Restoration Processor comes with a Чектелген Кепилдик. For specific terms, conditions, and duration of the warranty, please refer to the warranty card included with your product or visit the official Soundstream webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо
If you encounter any issues not covered in this manual or require further assistance, please contact Soundstream customer support. Contact information can typically be found on the Soundstream official webсайтында же продуктунун таңгагында.
