1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your JMANCE 13-inch Android 13 Car Stereo. Please read this manual thoroughly before using the product to ensure proper functionality and safety. This unit is designed for specific vehicle models: Chevy Tahoe, Suburban, and GMC Yukon manufactured between 2008 and 2012.
2. Продукт бүтүп калдыview
The JMANCE 13-inch Android 13 Car Stereo is an advanced multimedia system featuring a QLED touch screen, Octa-Core processor, 6GB RAM, and 128GB ROM. It offers seamless integration with your vehicle's electrical system and provides a range of functionalities including navigation, multimedia playback, and communication tools.
Негизги өзгөчөлүктөрү:
- 13-inch QLED Touch Screen display.
- Android 13 Operating System with Octa-Core CPU, 6GB RAM, 128GB ROM.
- Built-in Wireless CarPlay and Android Auto for smartphone integration.
- Integrated GPS navigation with support for online and offline maps.
- Advanced Digital Sound Processor (DSP) with adjustable EQ bands.
- Support for Steering Wheel Control (SWC).
- Unique 3D User Interface (UI) with customizable themes.
- AM/FM/RDS Radio tuner.
- Bluetooth 5.0 колсуз чалуулар жана аудио агымы үчүн.
- Includes front and rear 1080P AHD cameras with dual-camera recording capability.
- Integrated intelligent cooling fan for optimal performance.
3. Кутуда эмне бар
Сураныч, орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- 13-inch QLED 6+128GB Octa Core Android GPS Stereo for GMC
- Wires and Harnesses (Power, RCA, USB, GPS Antenna, Radio Antenna)
- Алдыңкы камера
- Камера
- Car Radio Flat Pry Bar
- Колдонуучунун Колдонмосу (бул документ)
Image: Main unit, front camera, rear camera, and pry tool included in the package.
4. Орнотуу жана орнотуу
Professional installation is recommended. Ensure the vehicle's battery is disconnected before starting installation. Refer to your vehicle's service manual for specific dashboard disassembly instructions.
4.1 Унаа шайкештиги
This unit is specifically designed for:
- Chevy Tahoe (2008-2012)
- Chevy Suburban (2008-2012)
- GMC Юкон (2008-2012)
Image: Visual comparison of the vehicle dashboard before and after the stereo installation.
4.2 Электр өткөргүч схемасы
Carefully follow the wiring diagram provided. Incorrect wiring can damage the unit or the vehicle's electrical system.
Image: Comprehensive wiring diagram illustrating all necessary connections for the car stereo system.
4.3 Камераны орнотуу
Install the front and rear cameras according to the included camera instructions. Ensure proper routing of cables to avoid interference and damage.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
Press and hold the power button on the unit or use the vehicle's ignition to turn the stereo on or off.
5.2 Wireless CarPlay & Android Auto
Connect your iPhone or Android device wirelessly via Bluetooth and Wi-Fi, or use a USB cable for wired connection. Once connected, your phone's interface will be mirrored on the stereo screen, allowing access to navigation, music, messages, and voice assistants.
Image: Demonstration of wireless CarPlay and Android Auto functionality on the stereo display.
5.3 GPS навигациясы жана Wi-Fi
The unit comes with pre-installed navigation capabilities. Connect to a Wi-Fi hotspot (e.g., from your smartphone) to download online maps or update existing ones. You can also download various navigation apps from the Android Market.
Image: GPS navigation interface and Wi-Fi connectivity options.
5.4 Digital Sound Processor (DSP) & Equalizer
Access the built-in DSP settings to customize audio output. The adjustable EQ band allows fine-tuning of sound frequencies to match your preferences and vehicle acoustics.
Image: Digital Sound Processor (DSP) and Equalizer settings interface.
5.5 Рулду башкаруу (SWC)
If your vehicle supports it, the stereo can be configured to work with your existing steering wheel controls. This allows you to manage audio playback, volume, and calls without taking your hands off the steering wheel. Refer to the system settings for SWC learning and configuration.

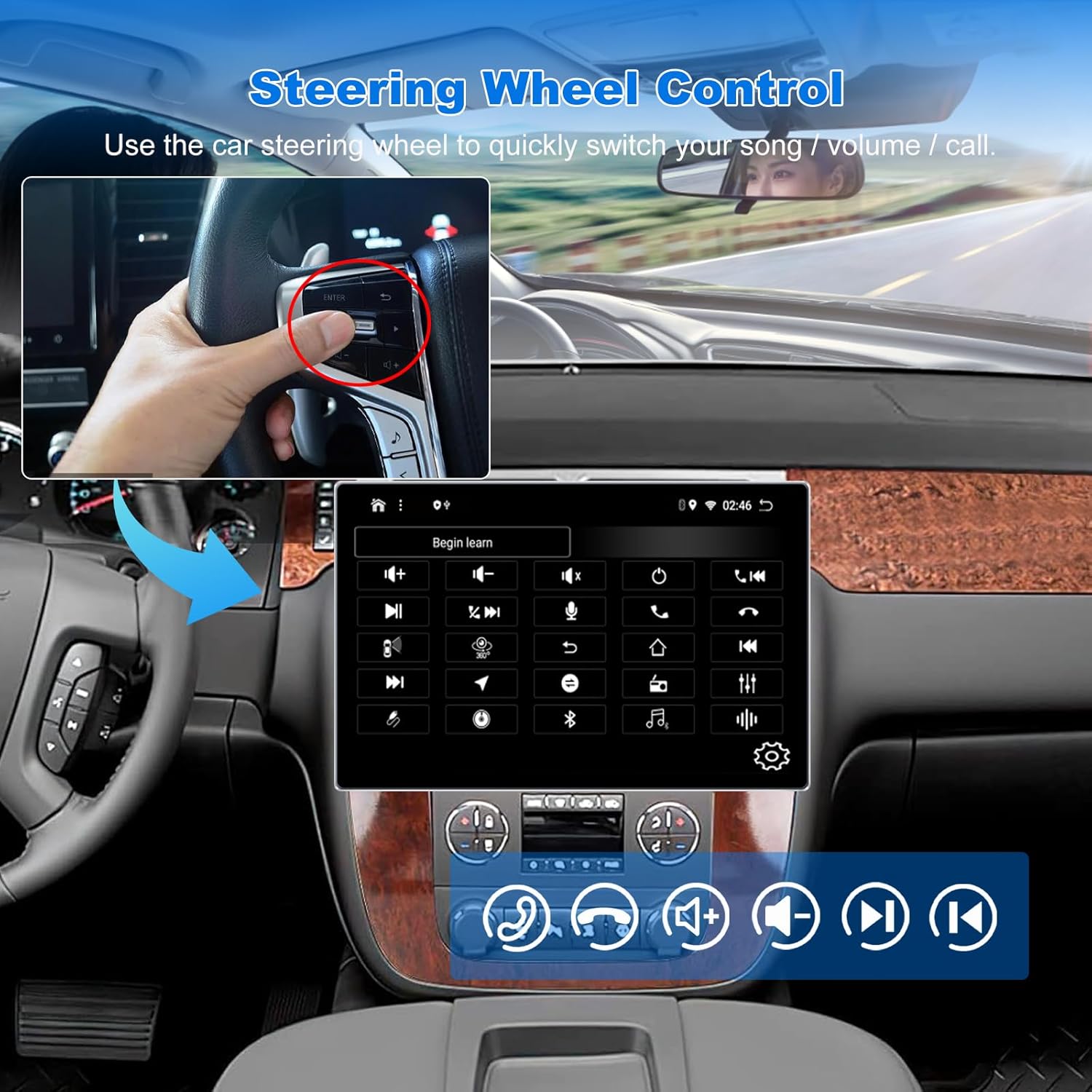

Image: Illustration of Steering Wheel Control functionality and setup.
5.6 3D User Interface (UI)
The stereo features a unique 3D UI. You can switch between applications using a 3D sphere display effect, or choose from 12 planetary themes for a personalized visual experience.
Сүрөт: Мисample of the 3D User Interface on the car stereo.
5.7 FM/AM/RDS Radio & Bluetooth
Tune into your favorite FM or AM radio stations. The RDS (Radio Data System) feature provides additional information like station name and traffic updates where available. Use Bluetooth 5.0 for hands-free calling and to stream music from your paired smartphone.
Image: FM/AM/RDS radio interface and Bluetooth connectivity for calls and music.
5.8 Кош камера менен жаздыруу
The included front and rear 1080P AHD cameras support simultaneous recording. You can view real-time feeds from either camera on the stereo screen, enhancing driving safety and providing recording capabilities for incidents.

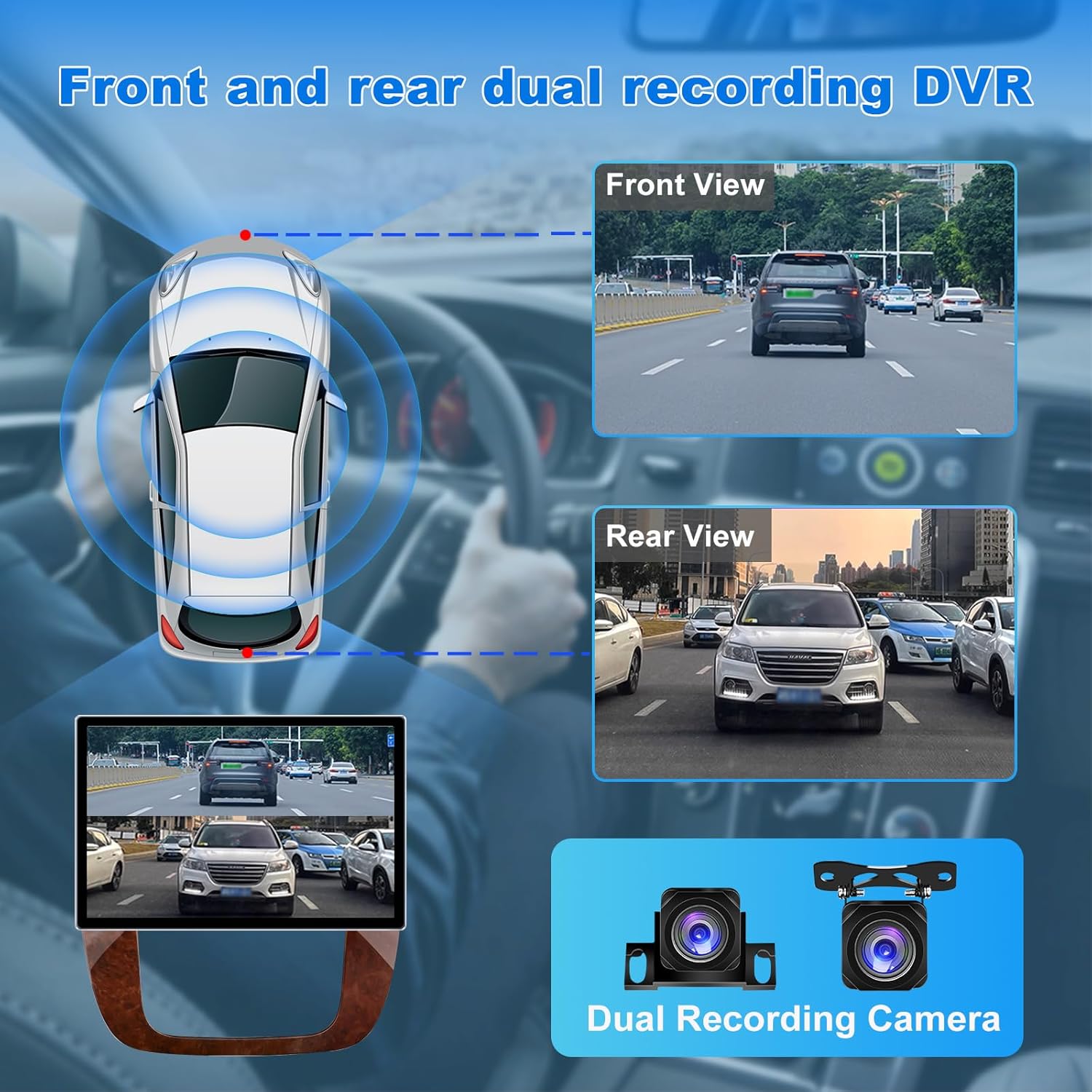

Image: Dual camera recording system with front and rear camera views displayed on the stereo.
6. Техникалык тейлөө
To ensure the longevity and optimal performance of your JMANCE car stereo, follow these maintenance guidelines:
- Экранды тазалоо: Экранды акырын сүртүү үчүн жумшак, түксүз чүпүрөктү колдонуңуз. өжөр тактар үчүн, бир аз гampчүпүрөккө суу же экранды тазалоочу каражат. Катуу химиялык заттардан же абразивдүү материалдардан алыс болуңуз.
- Программалык камсыздоо жаңыртуулары: Мезгил-мезгили менен системанын жөндөөлөрү же өндүрүүчүнүн жаңыртууларын текшерип туруңуз webакыркы функцияларды жана каталарды оңдоону камсыз кылуу үчүн сайт.
- Экологиялык шарттар: Аппаратты экстремалдык температурага, түз күн нуруна узак убакытка же ашыкча нымдуулукка дуушар кылуудан алыс болуңуз.
- Кабелдик байланыштар: Бардык кабелдер коопсуз туташтырылганын текшериңиз. Бошоң байланыштар үзгүлтүксүз көйгөйлөргө алып келиши мүмкүн.
7. Кыйынчылыктарды
Эгерде сиз унааңыздын стереосу менен көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | No power supply; Blown fuse; Incorrect wiring | Check power connections; Inspect vehicle fuses; Verify wiring against diagram. |
| Үн чыгышы жок | Volume too low; Mute activated; Speaker wiring issue; DSP settings | Increase volume; Deactivate mute; Check speaker connections; Reset DSP settings. |
| GPS сигналы жоголду же так эмес | GPS антеннасы бөгөттөлгөн же ажыратылган; Спутниктин камтуусу начар | GPS антеннасынын таза болушун текшериңиз view асмандан; Антеннанын туташуусун текшериңиз; Ачык жерге жылыңыз. |
| CarPlay/Android Auto туташпай жатат | Bluetooth/Wi-Fi off; Incorrect pairing; USB cable issue; Phone software issue | Enable Bluetooth/Wi-Fi on phone and stereo; Re-pair device; Try a different USB cable; Restart phone and stereo. |
| Сенсордук экран жооп бербейт | Системанын токтоп калышы; Программалык камсыздоонун бузулушу | Restart the unit (press and hold power button); Perform a factory reset if issue persists (data will be lost). |
Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.
8. Техникалык шарттар
- Модель номери: 13GMC1846
- Операция системасы: Android 13
- CPU: Octa-Core
- RAM: 6 ГБ
- ROM: 128 ГБ
- Дисплей өлчөмү: 13 дюйм
- Дисплей түрү: QLED сенсордук экраны
- Байланыш: Wi-Fi, Bluetooth 5.0, USB
- Өзгөчөлүктөр: Wireless CarPlay, Android Auto, GPS Navigation, DSP, Cooling Fan, 3D UI, Dual Camera Recording
- Камтылган компоненттер: Main unit, Wiring Harnesses, Front Camera, Backup Camera, Pry Bar, User Manual
- Элемент Салмагы: 5.5 фунт
- Пакеттин өлчөмдөрү: 13.98 x 12.64 x 5.94 дюйм
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
The JMANCE 13-inch Android 13 Car Stereo comes with a бир жылдык өндүрүүчү кепилдик covering defects in materials and workmanship from the date of purchase. Additionally, өмүр бою техникалык колдоо is provided for the head unit.
This warranty does not cover damage caused by improper installation, accident, misuse, abuse, unauthorized modifications, or normal wear and tear.
9.2 Кардарларды колдоо
For technical assistance, warranty claims, or any questions regarding your product, please contact JMANCE customer support through the retailer where the product was purchased. You may also visit the official JMANCE store or webколдоо булактары үчүн сайт.
When contacting support, please have your product model number (13GMC1846) and proof of purchase readily available.
