1. Киришүү
This manual provides instructions for the Walfront Portable Air Cooler Humidifier, Model WALFRONTyqhx1gct4r. This device functions as a portable cooling fan, mini air conditioner, air humidifier, and features a 7-color night light. It is designed for personal use in various environments such as home, office, or during travel.
Фронт view of the Walfront Portable Air Cooler Humidifier, showcasing анын компакттуу конструкциясы жана башкаруу панели.
2. Коопсуздук нускамалары
Шайманды колдонуудан мурун бардык коопсуздук көрсөтмөлөрүн окуп чыгып, түшүнүп алыңыз. Бул көрсөтмөлөрдү аткарбоо электр тогуна урунууга, өрткө же олуттуу жаракат алууга алып келиши мүмкүн.
- Шайманды, электр шнурун же сууга же башка суюктуктарды розеткага салбаңыз.
- Use only the specified DC 5V, 2A power adapter. Using an incorrect power source may damage the device or pose a safety risk.
- Шайманды балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
- Түзмөктү оодарылып кетпеши үчүн, аны туруктуу, тегиз жерге коюңуз.
- Unplug the appliance from the power source before cleaning, refilling the water tank, or when not in use for an extended period.
- Do not block the air inlets or outlets. Ensure adequate space around the unit for proper airflow.
- Электр зымы же сайы бузулган болсо, шайманды колдонбоңуз.
- Do not attempt to repair or disassemble the appliance yourself. Contact qualified service personnel for repairs.
- Avoid placing the appliance near heat sources or in direct sunlight.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- 1 x Walfront Portable Air Cooler Humidifier
- 1 x USB кабели
- 1 x User Manual
4. Продукциянын өзгөчөлүктөрү
The Walfront Portable Air Cooler Humidifier offers multiple functionalities for enhanced comfort:
- 4-ин-1 Дизайн: Functions as a desktop cooling fan, mini air conditioner, air humidifier, and a 7-color night light.
- Чоң суу багы: Features a 700mL water tank, providing up to 8 hours of humidification.
- USB менен иштейт: Conveniently powered by adapters, PCs, power banks, or car chargers (requires ≥2A output).
- Жөнгө салынуучу шамал ылдамдыгы: Offers 3 wind speeds (low, medium, high) and manual adjustment of wind direction within 60°.
- Автоматтык таймерлер: Includes 3 automatic timer settings (2, 4, 6 hours) for energy saving and convenience.
- Сенсордук экранды башкаруу: Equipped with a touch screen interface for easy adjustment of settings.
- 7 түстүү түнкү жарык: Integrated night light with 7 color options for ambient lighting.
Images depicting the air cooler being used in an office, during yoga, while sleeping, and in a kitchen, highlighting its versatility.
An image showing the air cooler with its 7-color night light function active, indicating low noise operation (≤58dB).
5. Орнотуу
- Аппаратты таңгактан чыгаруу: Аба муздаткычын жана бардык аксессуарларды таңгактан этияттык менен алып чыгыңыз.
- Жайгашкан жери: Place the air cooler on a stable, level surface. Ensure there is sufficient space around the unit for proper air circulation.
- Суу резервуарын толтуруңуз:
- Rotate the lid on top of the unit counter-clockwise to open the water tank.
- Pour clean tap water into the 700mL water tank. For enhanced cooling, ice cubes can also be added. Do not exceed the maximum fill line.
- Close the lid by rotating it clockwise until securely fastened.

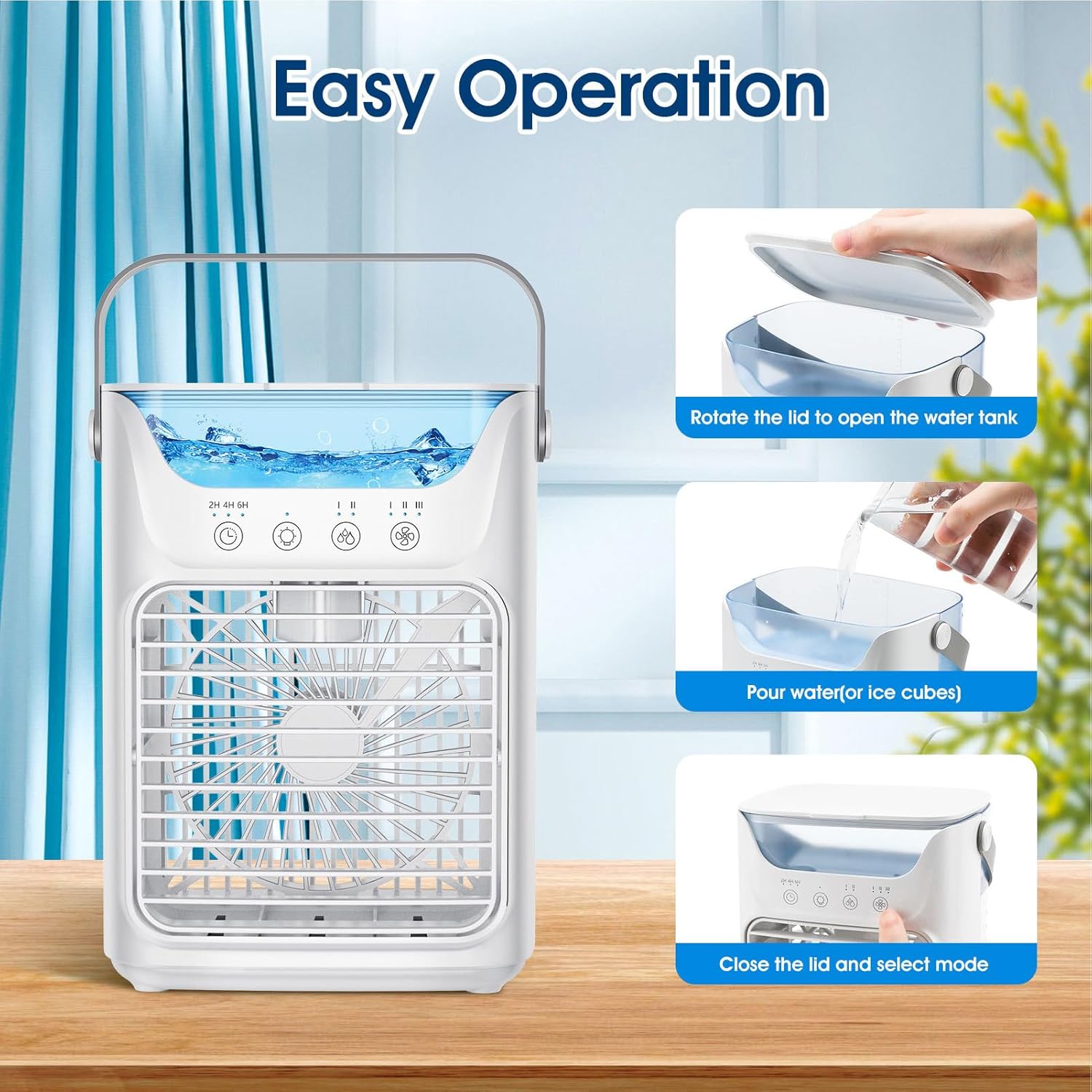

A visual guide demonstrating three simple steps for operating the cooler: rotating the lid to open the water tank, pouring water or ice cubes, and then closing the lid to select a mode.
An image highlighting the 700ml water tank capacity, suitable for adding both water and ice for extended cooling and humidification.
- Туташуу кубаты: Insert the USB cable into the power port on the back of the air cooler. Connect the other end of the USB cable to a compatible USB power source (DC 5V, 2A), such as a USB adapter, power bank, or computer USB port.
Illustration of various USB power supply methods for the air cooler, including power bank, USB adapter, and USB power strip, all requiring ≥2A output current.
6. Иштөө нускамалары
The air cooler features a touch screen control panel for easy operation.
- Күйгүзүү/өчүрүү: Touch the power button symbol on the control panel to turn the unit on or off.
- Желдетүүчү ылдамдыгын жөндөө: Touch the fan speed button (indicated by fan icons) to cycle through the 3 available wind speeds: Low, Medium, and High. The current speed setting will be indicated on the display.
- Шамалдын багытын тууралоо: Manually adjust the front louver up or down to direct the airflow within a 60° range.
- Humidification/Cooling Mode: If water is present in the tank, the unit will operate as a humidifier/evaporative cooler. For enhanced cooling, add ice cubes to the water tank. If no water is added, it functions as a standard fan.
Images showing the cooler's three operational modes: fan-only (no water/ice), humidification (add water), and enhanced cooling (add ice).
Visual representation of the three adjustable wind speed settings: Low, Middle, and High, for customized airflow.
- Таймерди коюу: Touch the timer button (indicated by a clock icon with 2H, 4H, 6H) to select an automatic shut-off time. The unit will turn off after 2, 4, or 6 hours.
- Түнкү жарык: Touch the light bulb icon to turn the 7-color night light on or off. Cycle through colors by touching the button again.
7. Техникалык тейлөө
Аба муздаткычыңыздын иштешин жана узакка кызмат кылуусун үзгүлтүксүз тазалоо жардам берет.
- Тазалоодон мурун: Always unplug the appliance from the power source before performing any cleaning or maintenance.
- Суу багын тазалоо:
- Танктан калган сууну бошотуңуз.
- Суу идиштин ичин жумшак менен сүртүңүз, гamp cloth. For stubborn deposits, a mild detergent can be used, followed by thorough rinsing.
- Толтуруунун же сактоонун алдында резервуарды толугу менен абада кургатып алыңыз.
- Тышкы тазалоо: Wipe the exterior surfaces of the unit with a soft, dry, or slightly damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Сактагыч: When not in use for an extended period, ensure the water tank is empty and dry. Store the appliance in a cool, dry place, away from direct sunlight.
8. Кыйынчылыктарды
If you encounter issues with your air cooler, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | No power supply; USB cable not connected; Power adapter insufficient (less than 2A) | Ensure USB cable is securely connected. Verify power adapter provides DC 5V, 2A. Try a different USB port or adapter. |
| No mist/humidification | Water tank is empty; Water level too low; Humidifier function not activated (if applicable) | Refill the water tank. Ensure water level is above the minimum mark. |
| Алсыз аба агымы | Fan speed set too low; Air inlets/outlets blocked | Increase fan speed. Clear any obstructions from air inlets and outlets. |
| Адаттан тышкаркы ызы -чуу | Unit not on a stable surface; Internal component obstruction | Place the unit on a flat, stable surface. If noise persists, discontinue use and contact support. |
9. Техникалык шарттар
Technical specifications for the Walfront Portable Air Cooler Humidifier:
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | WALFRONTyqhx1gct4r |
| Киргизүү көлөмүtage | DC 5V |
| Иштөө агымы | 2A (at 5V) |
| Ватtage | 10 Ватт |
| RGB Lights Current | ≤60mA |
| Желдетүүчү ылдамдык (RPM) | 1st Gear: 2150RPM±10%, 2nd Gear: 2750RPM±10%, 3rd Gear: 3200RPM±10% |
| Air Velocity (at 20cm) | 1st Gear: 2.8m/s±10%, 2nd Gear: 3.8m/s±10%, 3rd Gear: 4.2m/s±10% |
| Ызы-чуу деңгээли | ≤58дБ |
| Туман чыгаруу | High Gear: 60mL/H ±15mL/H, Low Gear: 40mL/H ±15mL/H |
| Суу резервуарынын сыйымдуулугу | 700 мл |
| Өлчөмдөрү (H x W x D) | 21.1cm (8in) x 16.5cm (6.5in) x 12.2cm (4.8in) |
| Элемент Салмагы | 1.72 фунт |
| Controls Type | Сенсордук экран |
| Өзгөчөлүктөр | Automatic Timers (2, 4, 6H), 7 Color Night Light |
Diagram illustrating the dimensions of the air cooler: 21.1cm (8 inches) height, 16.5cm (6.5 inches) width, and 12.2cm (4.8 inches) depth.
10. Кепилдик жана колдоо
For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
