Маанилүү коопсуздук маалыматы
Please read this instruction manual carefully before using your Karinear Electric Cooktop. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Ensure the cooktop is connected to a 110V-120V power supply with a proper outlet plug.
- ысык беттерге тийбеңиз. Дайыма меш колдорун же казан кармагычтарды колдонуңуз.
- Supervise children closely when the cooktop is in use or cooling down. Utilize the child safety lock feature.
- Бышыруучу плитаны сууга же башка суюктукка салбаңыз.
- Do not operate the cooktop if it has a damaged cord or plug, or if it malfunctions or has been damaged in any manner.
- Иштеп жатканда плитанын айланасында жакшы желдетүүнү камсыз кылыңыз.
- The cooktop is equipped with overheat protection and an automatic shut-off function for safety.
Продукт бүттүview
Компоненттер
The Karinear 2 Burners Electric Cooktop features a sleek ceramic glass surface with two radiant heating elements. The integrated touch control panel allows for easy operation. The unit is designed for both countertop use and built-in installation.
Image: The Karinear 2 Burners Electric Cooktop, showcasing its black ceramic glass surface and touch control panel.
Негизги өзгөчөлүктөрү
- 110V~120V Compatibility: Designed for standard US household voltage with a convenient plug.
- Бир нече тамак бышыруу функциялары: Offers 9 power levels (approx. 200°F to 800°F) and 8 pre-programmed functions including melt, simmer, steam, boil, fry, roast, stir fry, and fast heat.
- Коопсуздукту коргоо өзгөчөлүктөрү: Includes high temperature warning, child safety lock, overheat protection, and automatic shut-off.
- Ийкемдүү орнотуу: Can be used as a portable countertop unit or installed as a built-in cooktop.
- Universal Cookware Compatibility: Works with all heat-resistant cookware materials such as iron, stainless steel, copper, and ceramic.
- No Electromagnetic Radiation: Safe for all users, including pregnant women.
Image: Visual representation of the cooktop's key features, including power, voltage, timer, auto shut-off, child lock, and residual heat indicator.
Жайгашуу
Орнотуу параметрлери
Your Karinear Electric Cooktop offers versatile installation options to suit your kitchen layout.
Countertop колдонуу
For countertop use, simply attach the provided bottom bracket or feet to the cooktop. Ensure the cooktop is placed on a stable, flat, heat-resistant surface, away from flammable materials. Plug the cooktop directly into a standard 110V-120V outlet.
Камтылган орнотуу
For built-in installation, a cutout in your countertop is required. Refer to the dimensions below for precise measurements. Ensure adequate clearance for ventilation around the cooktop. Professional installation is recommended for built-in applications.

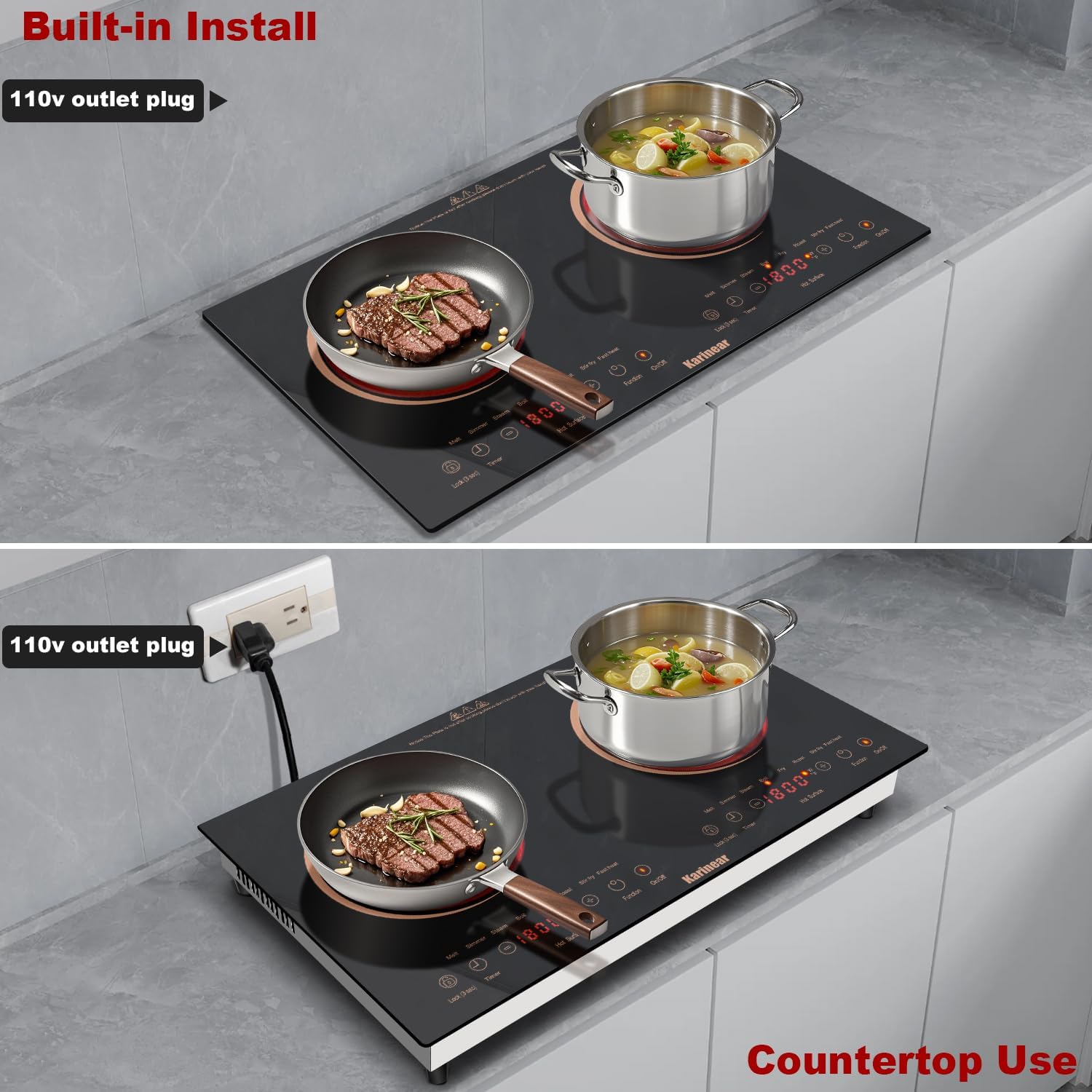

Image: The cooktop demonstrated in both built-in and countertop configurations, highlighting the 110V outlet plug.
Image: Detailed dimensions for drop-in installation, including overall product size and recommended cutout size for the countertop.
Баштапкы орнотуу
Биринчи жолу колдонуудан мурун, керамикалык айнек бетин лак менен сүртүңүзamp cloth to remove any dust or residue. Ensure the cooktop is dry before plugging it in. It is normal for a slight odor to be present during the first few uses as manufacturing residues burn off.
Операция
Башкаруу панелиview
The cooktop features a sensor touch control panel. Each burner has its own set of controls for power adjustment, function selection, and timer settings. The display shows the current power level or temperature.
Күйгүзүү/өчүрүү
Плитаны күйгүзүү үчүн, баскычын басыңыз On/Off button. The display will illuminate. To turn off, press the On/Off button again. The cooktop will automatically shut off after a period of inactivity or if a safety feature is triggered.
Кубаттын деңгээлин тууралоо
After selecting a burner, use the + жана - buttons to adjust the power level from P1 to P9. P1 is the lowest setting, and P9 is the highest, offering temperatures from approximately 200°F to 800°F.
Image: A user demonstrating cooking on the cooktop, highlighting the range of 9 power levels available for various cooking needs.
Бышыруу функциялары
The cooktop comes with 8 pre-programmed cooking functions. Press the Функция button to cycle through options such as melt, simmer, steam, boil, fry, roast, stir fry, and fast heat. Each function is optimized for specific cooking tasks.
Таймер функциясы
The timer can be set from 1 to 240 minutes. Press the Таймер баскычын басып, андан кийин + жана - buttons to set the desired cooking duration. The cooktop will automatically shut off once the timer expires.
Image: The cooktop displaying the timer function set to 120 minutes, illustrating its use in a countertop setting.
Балдардын коопсуздук кулпусу
Балдардын коопсуздугу кулпусун иштетүү үчүн, баскычын басып кармап туруңуз Lock (3 sec) button for a few seconds until 'LoC' appears on the display. This prevents accidental operation. To deactivate, press and hold the Lock (3 sec) button again until 'LoC' disappears.
Image: The cooktop's control panel indicating the 'LoC' (Lock) status, demonstrating the child safety lock feature in a kitchen environment.
Идиштин шайкештиги
The radiant heating technology of this cooktop makes it compatible with all types of heat-resistant cookware. This includes, but is not limited to, iron, stainless steel, copper, ceramic, glass, and aluminum pots and pans.
Image: An array of cookware types, including iron, stainless steel, and ceramic, demonstrating the cooktop's broad compatibility.
Техникалык тейлөө
Тазалоо нускамалары
Regular cleaning will maintain the appearance and performance of your cooktop. Always ensure the cooktop is cool and unplugged before cleaning.
- For daily cleaning, wipe the ceramic glass surface with a soft, damp кездеме жана жумшак жуугуч.
- For stubborn stains, use a ceramic cooktop cleaner and a scraper (often included with the package). Tilt the scraper at a 45-degree angle to gently remove burnt-on food.
- Абразивдүү тазалоочу каражаттарды, кыргыч губкаларды же катуу химиялык заттарды колдонбоңуз, анткени алар бетти чийип же зыян келтириши мүмкүн.
- Башкаруу панелин жумшак, гamp кездеме. Суунун башкаруу элементтерине кирип кетишине жол бербеңиз.
Image: A hand wiping the cooktop surface with a cloth, illustrating the ease of cleaning the ceramic glass.
Сактагыч
If storing the cooktop for an extended period, ensure it is clean and dry. Store it in a cool, dry place, protected from dust and moisture. If used as a portable unit, ensure the feet are securely attached for stability.
Проблемаларды чечүү
Кардарларды колдоо кызматына кайрылуудан мурун, жалпы маселелер жана аларды чечүү жолдору үчүн төмөнкү таблицага кайрылыңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ашкана күйбөйт. | Электр менен камсыздоо жок; Балдарды коргоо кулпусу иштетилген. | Check if the plug is securely in the outlet. Ensure the circuit breaker is not tripped. Deactivate the child safety lock by pressing and holding the 'Lock (3 sec)' button. |
| Uneven heating or slow heating. | Туура эмес идиш-аяк; Идиш-аяктар борборлоштурулган эмес. | Ensure you are using flat-bottomed, heat-resistant cookware. Center the cookware on the heating element. |
| Loud beeping noise from buttons. | Кадимки иштөө. | The beeping sound is an audible confirmation of touch input and is a normal function of the cooktop. |
| Loud fan noise during operation. | Normal cooling fan operation. | The cooktop uses internal fans to cool components during and after operation. This noise is normal and ensures proper functioning and longevity of the appliance. |
| Ката коду көрсөтүлдү. | Ички бузулуу же сенсор маселеси. | Плитадан 5 мүнөткө сууруп, андан кийин кайра сайыңыз. Эгерде ката кайталанса, кардарларды тейлөө кызматына кайрылыңыз. |
| Feet/stand screws are too short for countertop use. | Manufacturing variation or incorrect screws. | Ensure you are using the correct screws provided for the feet. If they are genuinely too short, contact customer support for replacement screws or source appropriate screws locally that match the thread and length required for secure attachment. |
Техникалык шарттар
| Бренд | Каринеар |
| Модел маалыматы | GD36BRAL-K |
| Бөлүмдүн номери | US-KNC-PF602SGB-GO-UL |
| Түс | Алтын |
| Материал | Керамикалык айнек |
| Жылытуу элементтери | 2 |
| Продукциянын өлчөмдөрү (D x W x Y) | 23.6" x 13.77" x 2.95" |
| Ватtage | 2000 ватт |
| Controls Type | тийүү |
| Тtage | 110-120 вольт (AC) |
| Күйүүчү түрү | Радиант |
| Элемент Салмагы | 15.57 фунт |
| Орнотуу түрү | Drop-In or Countertop |
| Өзгөчөлүктөр | Automatic Shut-Off, Safety Lock, Timer |
Кепилдик жана колдоо
Кепилдик маалымат
Karinear products are manufactured with high-quality materials and craftsmanship. For specific warranty details regarding your electric cooktop, please refer to the warranty card included in your product packaging or visit the official Karinear webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
Кардарларды колдоо
If you encounter any issues not covered in this manual or require further assistance, please contact Karinear customer support. You can often find contact information on the brand's official webсайты же продуктуну сатып алган сатуучу аркылуу.
