1. Киришүү
This manual provides essential information for the safe and efficient operation of your Karinear 2 Burners Electric Cooktop. Please read it thoroughly before installation and use, and retain it for future reference.
The Karinear Electric Cooktop is a versatile appliance designed for both countertop and built-in use, offering two radiant heating elements with touch controls and multiple safety features.
2. Коопсуздук боюнча маанилүү маалымат
ЭСКЕРТҮҮ: Шайманды колдонууда өрт, электр тогуна урунуу, адамдардын жаракат алуу же бузулуу коркунучун азайтуу үчүн, төмөнкүнү камтыган негизги сактык чараларын аткарыңыз:
- Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Ensure the power supply is 110V~120V as specified.
- ысык беттерге тийбеңиз. Туткаларды же туткаларды колдонуңуз.
- Кандайдыр бир шайманды балдар же алардын жанында колдонуп жатканда, катуу көзөмөл керек.
- Колдонбогондо жана тазалоодон мурун розеткадан ажыратыңыз. Бөлүктөрүн кийүүдөн же чечүүдөн мурун муздатыңыз.
- Эч бир шайманды зымы же сайы бузулган же шайман иштебей калгандан кийин же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз.
- The cooktop features a Child Safety Lock. Always engage it when not in use, especially if children are present.
- Overheat protection and automatic shut-off functions are integrated for safety.
- This appliance has no electromagnetic radiation and is harmless to humans, including pregnant women.

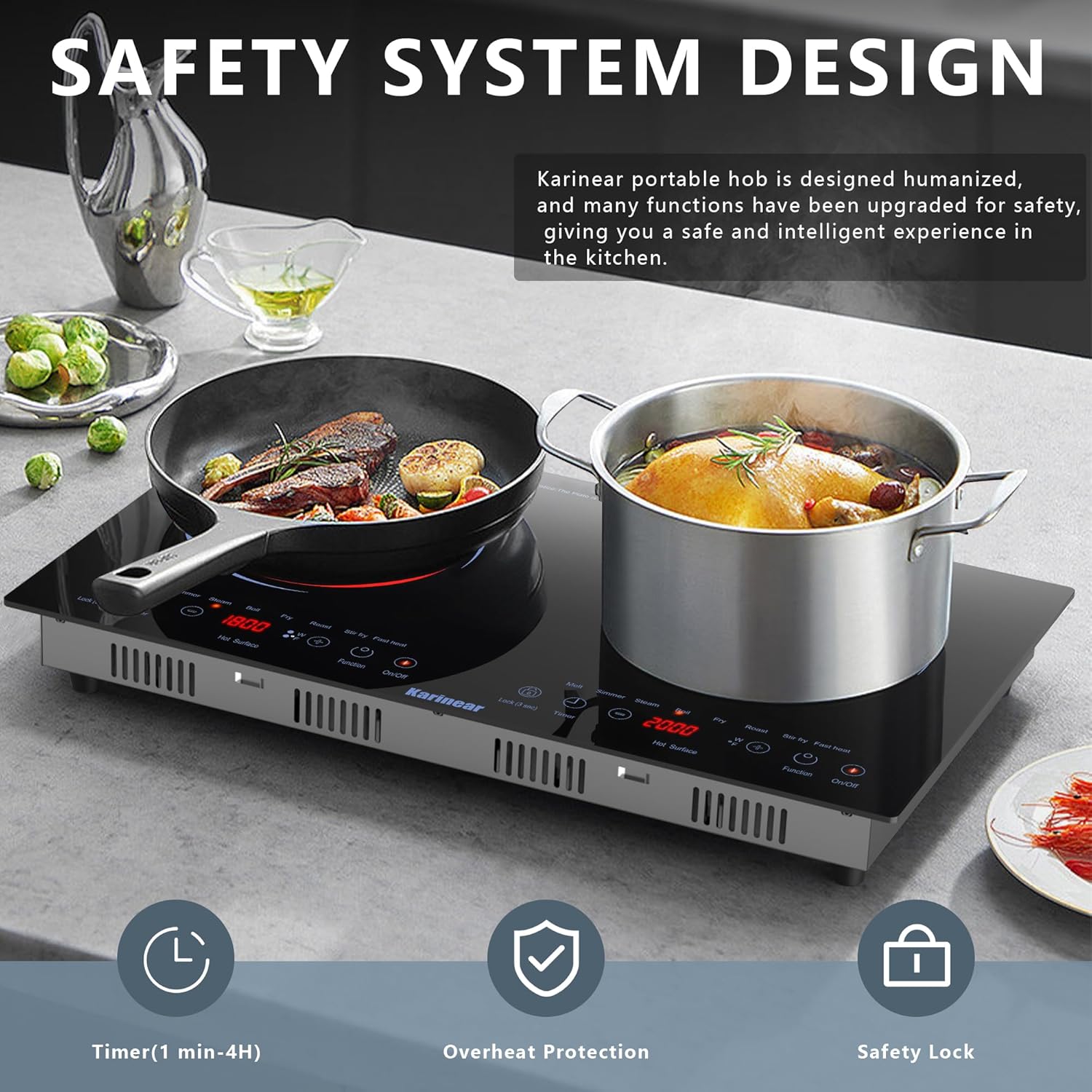

Сүрөт: бүттүview of the cooktop's safety features, including timer, overheat protection, and child safety lock.
3. Орнотуу жана орнотуу
3.1 Пакеттен чыгаруу
Carefully remove the cooktop from its packaging. Inspect for any damage. Retain packaging for future transport if needed.
3.2 Орнотуу параметрлери
Your Karinear Electric Cooktop can be used as a portable countertop unit or installed as a built-in appliance.
Үстөл үстүндө колдонуу:
For countertop use, attach the provided bottom bracket feet to the cooktop. Ensure the cooktop is placed on a stable, flat, heat-resistant surface, away from flammable materials.
Image: Demonstrates both built-in and countertop installation options for the cooktop, highlighting the 110V outlet plug.
Камтылган орнотуу:
If you choose built-in installation, ensure proper ventilation and follow the cutting dimensions provided in the diagram below. Professional installation is recommended for built-in applications.
Image: Detailed dimensions for drop-in installation, showing measurements in inches and millimeters.
3.3 Кубат туташтыруу
This cooktop is designed for 110V~120V household voltage and comes with a standard outlet plug. Simply plug it into a compatible electrical outlet. No special wiring is typically required.
Video: Demonstrates the simple process of attaching the feet for countertop use, highlighting the plug-and-play setup.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
басыңыз On/Off button to turn the cooktop on or off. The display will illuminate when powered on.
4.2 Temperature and Power Levels
The cooktop offers 9 adjustable power levels, providing a temperature range of approximately 200°F to 800°F. Use the + жана - buttons to adjust the power level for each burner.
Image: Visual representation of the 9 power levels available for precise cooking control.
4.3 Алдын ала программаланган бышыруу функциялары
The cooktop comes with 8 pre-programmed cooking functions for convenience:
- Эрит
- кайнатыңыз
- Steam
- Кайнатыңыз
- Fry
- Куурулган
- Stir Fry
- Fast Heat
басыңыз Функция бул режимдер аркылуу өтүү үчүн баскычты басыңыз.
4.4 Таймер функциясы
The integrated timer allows you to set cooking durations from 0 to 240 minutes. Once the set time expires, the cooktop will automatically shut off.
Таймерди коюу үчүн: басыңыз Таймер баскычын басып, андан кийин + жана - убакытты тууралоо үчүн баскычтар.
Image: Illustrates the timer function, allowing users to set cooking durations from 1 to 240 minutes for automatic shutdown.
4.5 Балдардын коопсуздук кулпусу
Балдардын коопсуздугу кулпусун иштетүү үчүн, баскычын басып кармап туруңуз Lock (3 sec) button for 3 seconds. This will lock all control buttons to prevent accidental operation. To unlock, press and hold the Lock (3 sec) баскычын кайра 3 секундага басыңыз.
Image: Instructions on how to engage and disengage the child safety lock by pressing and holding the lock button for 3 seconds.
4.6 Идиш идиштеринин шайкештиги
The electric ceramic cooktop is compatible with all types of heat-resistant cookware, including iron, stainless steel, copper, ceramic, glass, and aluminum. This offers great flexibility compared to induction cooktops.

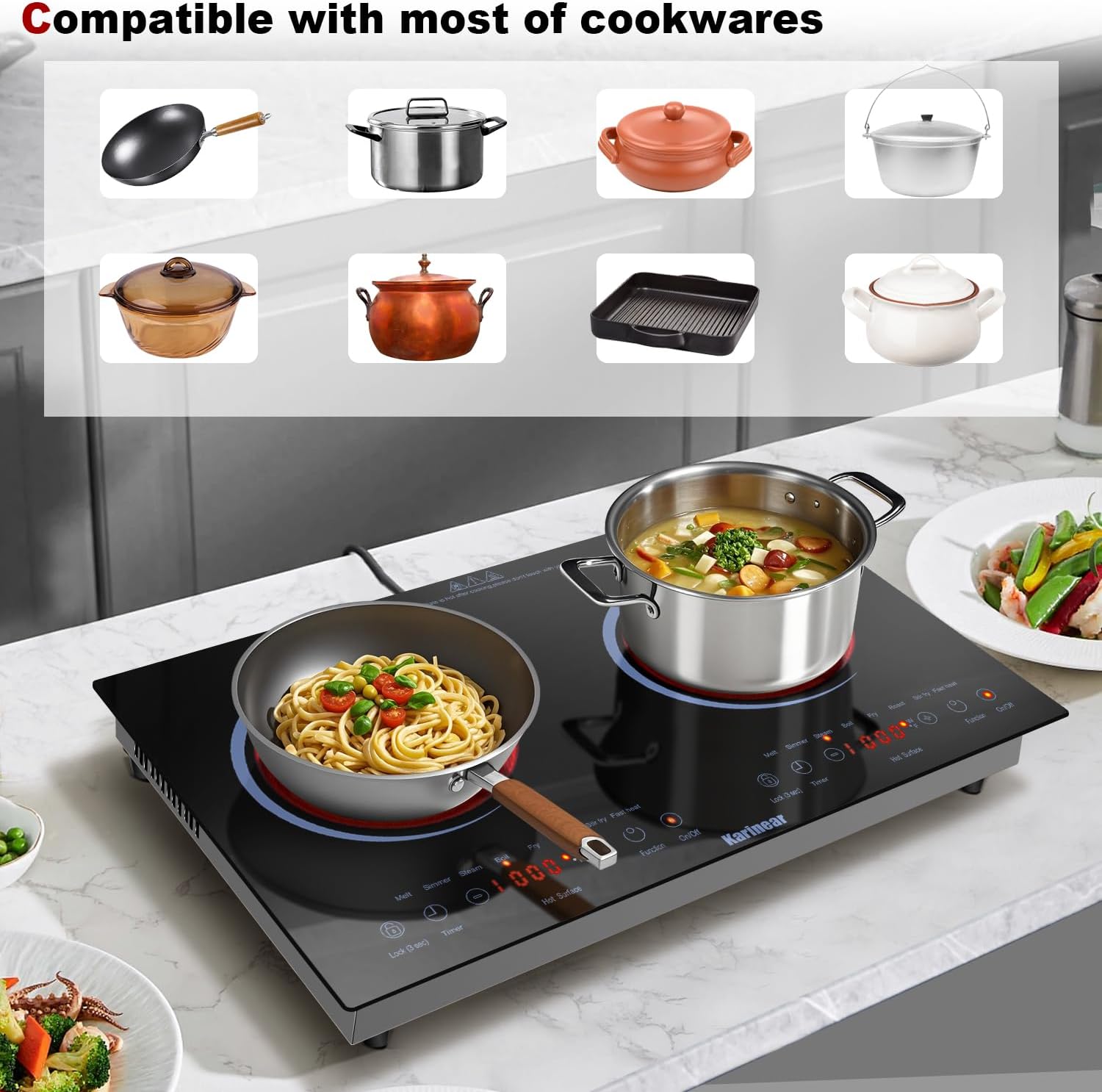

Image: Displays different types of cookware, such as iron, stainless steel, copper, ceramic, glass, and aluminum, all compatible with the cooktop.
4.7 Automatic Power Adjustment
When both burners are in use, the maximum combined power is 2000W. Increasing the power level of one burner will cause the other burner to self-adjust and decrease its power if needed, to ensure the total power does not exceed 2000W and to protect the power wire.
Image: Explains how the cooktop automatically adjusts power between the two burners to maintain a total power output of 2000W.
5. Техникалык тейлөө жана тазалоо
5.1 Ашкананы тазалоо
The black smooth ceramic glass surface is designed for easy cleaning. Allow the cooktop to cool completely before cleaning.
- For daily cleaning, use a wet rag to wipe the surface.
- For stubborn stains, use a scraper (often included with the package) tilted at a 45-degree angle to gently scrape them off.
- Avoid abrasive cleaners or scouring pads that could scratch the glass surface.
Image: Demonstrates the ease of cleaning the cooktop's smooth glass surface with a soft cloth.
5.2 Ысып кетүүдөн коргоо
The cooktop is equipped with an overheat protection system that will automatically reduce power or shut down the unit if it detects excessive temperatures. This helps prevent damage to the appliance and ensures user safety.
6. Кыйынчылыктарды
If you encounter issues with your cooktop, please refer to the following common problems and solutions before contacting customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ашкана күйбөйт. | No power supply; plug not fully inserted; circuit breaker tripped. | Check power outlet; ensure plug is secure; reset circuit breaker. |
| Башкаруулар жооп бербей жатат. | Child safety lock is engaged. | Deactivate the child safety lock by pressing and holding the Lock (3 sec) button. |
| Ашкана күтүлбөгөн жерден өчүп калат. | Overheat protection activated; timer expired. | Allow cooktop to cool down; check if timer was set. |
| One burner reduces power when both are on. | Automatic power adjustment feature. | This is normal operation to manage total wattage. Adjust power levels as needed. |
If the problem persists after trying these solutions, please contact Karinear customer support.
7. Продукттун спецификациялары
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Каринеар |
| Модель номери | KNC-PF602SGB-BU-UL |
| Түс | көк |
| Материал | Керамикалык айнек |
| Жылытуу элементтери | 2 |
| Продукциянын өлчөмдөрү (D x W x Y) | 23.6"D x 13.77"W x 2.95"H |
| Ватtage | 2000 ватт |
| Controls Type | тийүү |
| Тtage | 110 вольт (AC) |
| Күйүүчү түрү | Радиант |
| Өзгөчөлүктөр | Automatic Shut-Off, Safety Lock, Timer |
| Орнотуу түрү | Drop-In or countertop |
| Элемент Салмагы | 15.7 фунт |
8. Кепилдик жана Кардарларды колдоо
For warranty information, technical assistance, or any questions regarding your Karinear Electric Cooktop, please contact Karinear customer support through the retailer's platform or visit the official Karinear webсайт.
Please have your model number (KNC-PF602SGB-BU-UL) and purchase date available when contacting support.
