Introduction
The NEXTORCH P91 is a high-performance tactical flashlight designed for various applications, including night duty, breakout operations, and tactical training. It delivers an impressive 5000 lumens of output with a beam distance of up to 300 meters, combining powerful illumination with a compact and rugged design. This manual provides detailed instructions for the proper setup, operation, and maintenance of your P91 flashlight to ensure optimal performance and longevity.
Image: The NEXTORCH P91 Tactical Flashlight, showcasing its sleek black aluminum body, side switch, and front bezel.
Пакеттин мазмуну
Пакетти ачкандан кийин, төмөнкү нерселердин бардыгы камтылганын текшериңиз:
- P91 Кол чырак
- Multi-language Use Manual
- Type-C кабели
- Hand Strap
- Seal Ring (x2)
- Lithium Ion Battery (included inside the flashlight)
Продукт өзгөчөлүктөрү
The NEXTORCH P91 is engineered with advanced features for superior performance and durability:
Жогорку Люмен чыгаруу
Equipped with 4 high-performance LEDs, the P91 delivers an impressive 5000 lumens of brightness, perfect for law enforcement and search and rescue operations. It achieves a beam distance of up to 300 meters.
Image: Illustration showing the flashlight's 5000 lumen output and 300-meter beam distance, highlighting the 4 high-performance LEDs and integrated high-precision reflector.
Independent Dual Switches
The flashlight features both a tail-press switch and a side-press switch, which can be operated independently. This design allows for easy and efficient operation, whether holding the flashlight in a forehand or backhand grip. The side switch controls four lighting modes (Low, Medium, High, Turbo), while the tail switch provides momentary-on and one-step strobe functions for tactical operations.
Image: Depiction of the flashlight's dual switch system, showing how the side switch and tail tactical switch are used for different lighting modes and operations.
USB-C Direct Charging
The P91 features a hidden Type-C charging port for convenient and quick power renewal. This port is designed with waterproof and dustproof protection, ensuring durability in various environments. A full charge typically takes approximately 3.5 hours.
Сүрөт: Жакын план view of the flashlight's hidden USB-C charging port, illustrating how to rotate the bezel to access it for charging.
LED Батарея көрсөткүчү
A built-in LED battery level indicator lights up for 2 seconds when the flashlight is turned on or off, providing a clear indication of the remaining power. This feature helps users monitor battery status effectively.
Image: Diagram showing the LED battery indicator lights, with different colors and numbers of illuminated dots representing battery percentages (75%-100%, 50%-75%, 25%-50%, 10%-25%, <10%).
Нано-керамикалык сокку алкагы
The P91 is equipped with a nano-ceramic strike bezel, which is highly durable and effective for breaking windows in rescue or self-defense situations.
Image: Close-up of the flashlight's head with the nano-ceramic strike bezel, shown breaking a glass surface.
Температураны интеллектуалдык көзөмөлдөө
A built-in temperature control system automatically adjusts brightness based on usage and surface temperature, ensuring the flashlight stays below 50°C for long-lasting, safe, and comfortable operation without overheating.
Image: Graphic representation of the intelligent temperature control system (NTC chip) on a circuit board, highlighting its function.
Waterproof & Impact-Resistant
The P91 is designed to withstand harsh environments, featuring an IPX7 waterproof rating (1 meter submersible) and 2-meter impact resistance. Its hard anodized finish and aircraft-grade aluminum alloy material ensure ruggedness and reliability.
Image: The flashlight shown being splashed with water, illustrating its IPX7 waterproof rating and impact resistance.
Жайгашуу
Батарея орнотуу
- Кол чырактын куйрук капкагын сааттын жебесине каршы буруп чечиңиз.
- Кошумча 21700 литий-иондук батареяны оң (+) учу фонарь башына каратып салыңыз.
- Куйруктун капкагын сааттын жебеси боюнча кайра бекем орнотулганга чейин бураңыз.
Батареяны заряддоо
- Locate the hidden USB-C charging port near the head of the flashlight. Gently rotate the bezel to reveal the port.
- Connect the provided Type-C cable to the flashlight's charging port and the other end to a compatible USB power source (e.g., wall adapter, computer USB port).
- The battery indicator lights will show charging progress. A full charge typically takes approximately 3.5 hours.
- Once charging is complete, disconnect the cable and rotate the bezel back to cover the USB-C port, ensuring its waterproof and dustproof protection.
Операция
Side Switch Functions
- Күйгүзүү/өчүрүү: Press and hold the side switch for approximately 0.5 seconds to turn the flashlight on or off.
- Велосипед тебүү режими: With the flashlight on, short press the side switch to cycle through the lighting modes: Low (45 lm) → Medium (350 lm) → High (1100 lm) → Turbo (5000 lm).
- Режимдин эс тутуму: The side switch does not have a mode memory function; it will always start at the Low mode when turned on.
Tail Tactical Switch Functions
- Momentary On (Turbo): Lightly press and hold the tail switch for momentary activation of the Turbo mode (5000 lm). Release to turn off.
- Тактикалык Strobe: Fully press the tail switch to activate the tactical strobe mode. Press again to turn off.
Батарея деңгээлинин көрсөткүчү
When the flashlight is turned on or off, the LED indicator lights on the side of the flashlight will illuminate for 2 seconds to show the remaining battery power:
- Four blue lights: 75% - 100%
- Three blue lights: 50% - 75%
- Two blue lights: 25% - 50%
- One red light: 10% - 25%
- One flashing red light: Less than 10% (recharge immediately)
Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your NEXTORCH P91 flashlight:
- Тазалоо: Фонариктин корпусун дайыма жумшак, гamp кездеме. Линза үчүн, чийилип калбашы үчүн линзаны тазалоочу чүпүрөктү колдонуңуз.
- Майлоо: Apply a thin layer of silicone grease to the O-rings and threads periodically to maintain waterproof integrity and smooth operation. Avoid petroleum-based lubricants.
- Батареяга кам көрүү: Кол чырак узак убакыт бою колдонулбаса, потенциалдуу агып кетпеш үчүн батареяны алып салыңыз. Батареяны салкын, кургак жерде сактаңыз.
- Заряддоо порту: Always ensure the USB-C charging port is covered by rotating the bezel when not in use to protect it from water and dust.
- Таасирден качуу: While the flashlight is impact-resistant, avoid unnecessary drops or harsh impacts to prevent internal damage.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кол чырак күйбөйт. | Батарея аз же түгөнүп калган. Бошогон куйрук капкагы. Батарея туура эмес салынган. | Батареяны заряддаңыз. Куйрук капкагын бекем тартыңыз. Батареянын оң (+) учу башка каратып кайра салыңыз. |
| Жарыктын чыгышы күңүрт же бүлбүлдөп турат. | Батарея аз. Кир байланыштар. Бош компоненттер. | Батареяны кайра заряддаңыз. Clean battery contacts and flashlight contacts with a clean cloth. Бардык бөлүктөр бекем бекемделгенин текшериңиз. |
| Кол чырак тез ысып кетет. | Prolonged use on Turbo mode. Айлана-чөйрөнүн жогорку температурасы. | This is normal for high-lumen flashlights. The intelligent temperature control system will reduce brightness to prevent overheating. Use lower modes if prolonged use is required. |
| USB-C кубаттоо иштебей жатат. | Charging port not fully exposed. Кабель же кубат булагы маселеси. | Ensure the bezel is fully rotated to expose the charging port. Башка USB-C кабелин же кубат адаптерин колдонуп көрүңүз. |
Техникалык шарттар

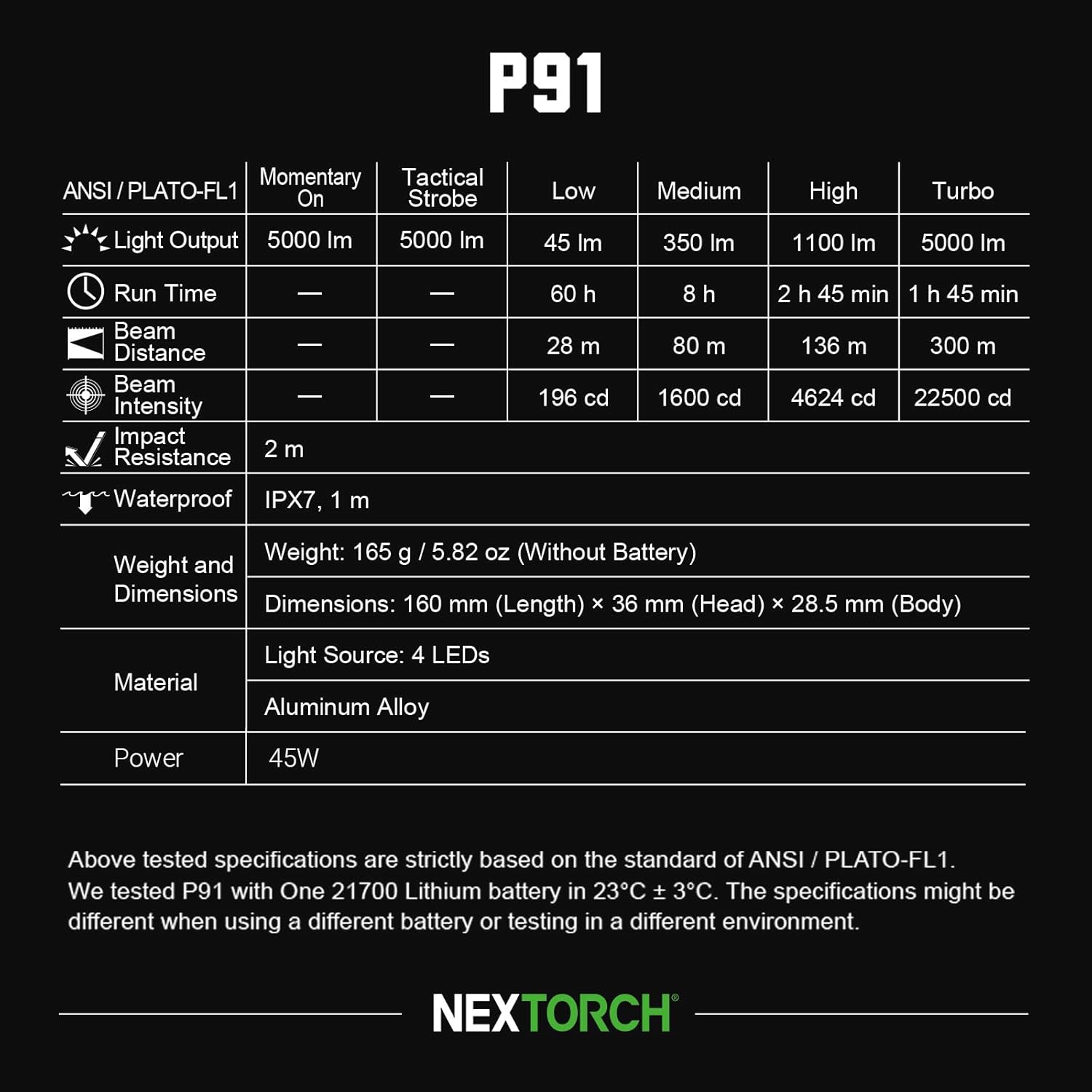

Image: Official specifications table for the NEXTORCH P91, detailing light output, run time, beam distance, beam intensity, impact resistance, and waterproof rating across different modes.
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | P91 |
| Жарык булагы | 4 High-performance LEDs |
| Max Output | 5000 Lumens |
| Макс нуру аралык | 300 метр |
| Материал | Учак классындагы алюминий эритмеси |
| Power Source | 1 x 21700 Lithium Ion Battery (included) |
| Max Runtime | 60 hours (Low mode) |
| Суу каршылык | IPX7 (1 метрге чейин сууга чөмүлүүгө болот) |
| Таасирге каршылык | 2 метр |
| Өлчөмдөр | 160 mm (L) x 36 mm (Head) x 28.5 mm (Barrel) |
| Салмагы | 165 г / 5.82 унция (батареясыз) |
| Заряддоо порту | Hidden USB-C |
Кепилдик жана колдоо
NEXTORCH stands behind the quality of its products. The P91 Tactical Flashlight comes with a беш жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүш кемчиликтерин жана нормалдуу колдонуудан келип чыккан маселелерди камтыйт.
For any questions regarding your P91 flashlight, technical assistance, or warranty claims, please do not hesitate to contact our professional support team. You can find contact information on the official NEXTORCH webсайт же сатып алуу пункту аркылуу.
Кепилдик тейлөө үчүн сатып алуу далилиңизди сактап коюңуз.
