Introduction
Welcome to the world of stand-up paddleboarding with your new Mistral VIVID 10'6" Inflatable Stand Up Paddle Board. This manual provides essential information for the safe and effective setup, operation, and maintenance of your iSUP. Please read these instructions carefully before first use to ensure optimal performance and longevity of your product.
Пакеттин мазмуну
Your Mistral VIVID 10'6" iSUP package includes the following items:
- 1 x Inflatable Paddle Board
- 1 x 9" SUP Fin
- 1 x 8' Coiled Knee Leash
- 1 x Dual-Action Hand Pump
- 1 х Рюкзак
- 1 x Repair Kit (Wrench & Patches)
- 1 x Dry Bag
Орнотуу нускамалары
1. Таңгактан чыгаруу жана жайып салуу
Remove the paddle board from its backpack. Find a clean, flat surface to unroll the board. Ensure the area is free of sharp objects that could damage the PVC material.
2. Инфляция
Locate the air valve on the top of the board. Ensure the valve pin is in the 'up' position for inflation (it should be flush with the valve opening). Attach the hose of the dual-action hand pump to the valve by twisting it clockwise until secure. Begin pumping air into the board. The recommended inflation pressure is 12-15 PSI. The pump includes a pressure gauge to monitor the PSI. Continue pumping until the desired pressure is reached. Once inflated, quickly remove the pump hose and replace the valve cap securely.
3. Фин орнотуу
Slide the 9" fin into the fin box located on the underside of the board. Secure it in place using the provided clip or locking mechanism. Ensure the fin is firmly seated to maintain stability and tracking in the water.
4. Калак монтажы
Assemble the 3-piece adjustable paddle. Connect the sections and adjust the paddle length to your height. A good starting point is to make the paddle approximately 6-8 inches taller than you when standing. Secure the adjustable clamp бекем.
5. Боону бекитүү
Attach the coiled knee leash to the D-ring at the tail of the board. Secure the other end of the leash around your ankle or calf. The leash is a crucial safety device that keeps you connected to your board if you fall off.
Иштөө нускамалары
1. General Use and Safety
Always wear a personal flotation device (PFD) when paddleboarding. Be aware of local regulations, weather conditions, and water currents. Avoid paddleboarding in strong winds or currents. Always inform someone of your paddleboarding plans and expected return time.
2. Калак сүзүү техникасы
Start by kneeling on the board to get a feel for its stability. Once comfortable, slowly stand up, placing your feet shoulder-width apart over the center handle. Keep your knees slightly bent and your core engaged. Use the paddle to propel yourself forward, backward, or to turn. For efficient paddling, use your core muscles, not just your arms.
3. Көп функциялуу колдонуу
The Mistral VIVID 10'6" iSUP is designed for various activities, including:
- All-Round Paddling: Ideal for general cruising on calm lakes, rivers, and coastal waters.
- Йога: The wide 33" platform and non-slip EVA deck pad provide excellent stability for on-water yoga sessions.
- Touring: Suitable for longer excursions, offering good glide and stability.
- Light Surfing: Can be used to catch small waves for recreational surfing.
Техникалык тейлөө
1. Тазалоо
After each use, rinse your paddle board with fresh water to remove salt, sand, and dirt. Use mild soap and water for stubborn stains. Avoid harsh chemicals or abrasive cleaners.
2. Кургатуу
Thoroughly dry the board before deflating and storing it. This prevents mildew and extends the life of the material.
3. Сактоо
Deflate the board by pressing down on the valve pin to release air (it should be in the 'down' position). Roll the board loosely, starting from the nose, towards the valve to expel remaining air. Store the board in its backpack in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the rolled board.
4. Оңдоо комплекти
The included repair kit contains patches and a valve wrench. For minor punctures, clean the area, apply adhesive (not included), and firmly press the patch. Use the valve wrench to tighten the air valve if you notice any air leakage around it.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Board not inflating | Valve pin in 'down' (deflate) position; pump hose not securely attached. | Ensure valve pin is in 'up' position. Re-attach pump hose securely. |
| Air leakage around valve | Loose valve. | Use the valve wrench from the repair kit to tighten the valve. |
| Такта туруксуз сезилет | Under-inflated; fin not properly installed. | Inflate to recommended 12-15 PSI. Ensure fin is fully inserted and locked. |
| Difficulty tracking straight | Fin not installed or damaged. | Verify fin installation. Inspect fin for damage and replace if necessary. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | VIVID 10'6" |
| Board Length | 10'6" (320 см) |
| Туурасы | 33" (84 см) |
| Калыңдыгы | 6" (15 см) |
| Башкарманын Салмагы | 18 фунт |
| Көлөм | 315 литр |
| Optimal PSI | 12-15 PSI |
| Максималдуу салмак боюнча сунуш | 315 фунт |
| Материал | Dual-layer Military-Grade Polyvinyl Chloride (PVC) |
| Оператордун чеберчилик деңгээли | Баары |

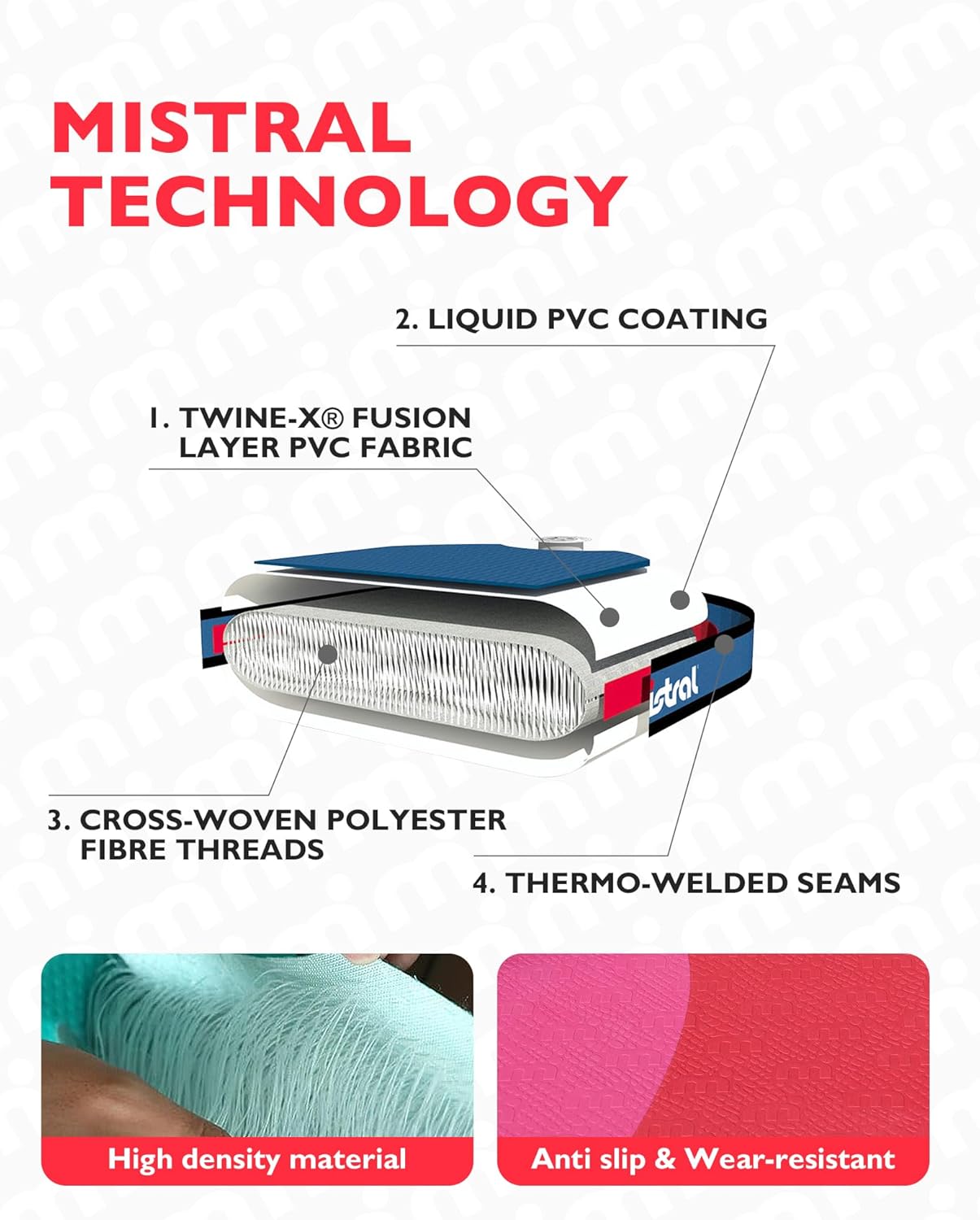

Construction Technology
The Mistral VIVID 10'6" iSUP is constructed with premium dual-layer military-grade PVC, featuring Twine-X® Fusion Layer PVC Fabric, Liquid PVC Coating, Cross-Woven Polyester Fibre Threads, and Thermo-Welded Seams for enhanced durability, puncture resistance, and rigidity.
Кепилдик жана колдоо
Mistral offers a 3-year manufacturer's warranty on this paddle board, ensuring peace of mind regarding product quality and craftsmanship. All Mistral paddle boards have passed SGS, CE, and ISO quality certifications.
For professional support, warranty claims, or any inquiries regarding your Mistral iSUP, please contact Mistral US customer service. Refer to the product packaging or the official Mistral webакыркы байланыш маалыматы үчүн сайт.
