Vector Optics 1x22 Red Dot Scope (SCRD-12II) User Manual

1. Киришүү

Thank you for choosing the Vector Optics 1x22 Red Dot Scope. This compact reflex sight is designed for quick target acquisition and precise aiming, suitable for various shooting applications. Crafted from durable 6061-T6 aluminum alloy, it offers reliable performance in diverse conditions. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new red dot sight to ensure optimal performance and longevity.

Figure 1.1: The Vector Optics 1x22 Red Dot Scope mounted on a Picatinny rail.

2. Продукциянын өзгөчөлүктөрү

• 1.5 Inch Center Height with Picatinny Mount: This red dot sight features a 1.5-inch center height with a standard Picatinny mount, making it compatible with various firearms, especially AR platforms. When considering a magnifier, ensure its center height matches for proper alignment.
• Illuminated Red LED 3 MOA Dot: The sight utilizes Red LED technology to project a stable and precise 3 MOA-sized red dot. This dot size is ideal for quick shooting at medium to long distances. It offers 10 daylight brightness levels and 1 night vision (NV) compatible level for use with night vision devices.
• Quick Detach & Picatinny Mount: The included high Picatinny mount allows for quick attachment and detachment, suitable for tactical shooting on AR platforms. A low-profile mount is also provided for absolute co-witness on AR platforms or for bolt-action shooters who prefer a lower sight line for hunting.
• Perceptible Adjustment with Click Sound: The finger-direct adjustment knobs allow for easy and precise adjustments with audible clicks. Each click corresponds to 1 MOA accuracy, enabling quick and accurate aiming. The built-in knob design helps prevent accidental adjustments.
• All-weather Performance: Constructed from 6061-T6 aluminum alloy, the sight is lightweight yet robust. It is shock-resistant, designed to withstand extreme shock, vibration, temperature fluctuations, and stress. With an IPX4 splash resistance rating, it offers protection against water and dust.

Figure 2.1: Detail of the finger direct adjustment knob and the quick release Picatinny mount.

Figure 2.2: Explanation of the multi-coating technology for improved clarity and protection.

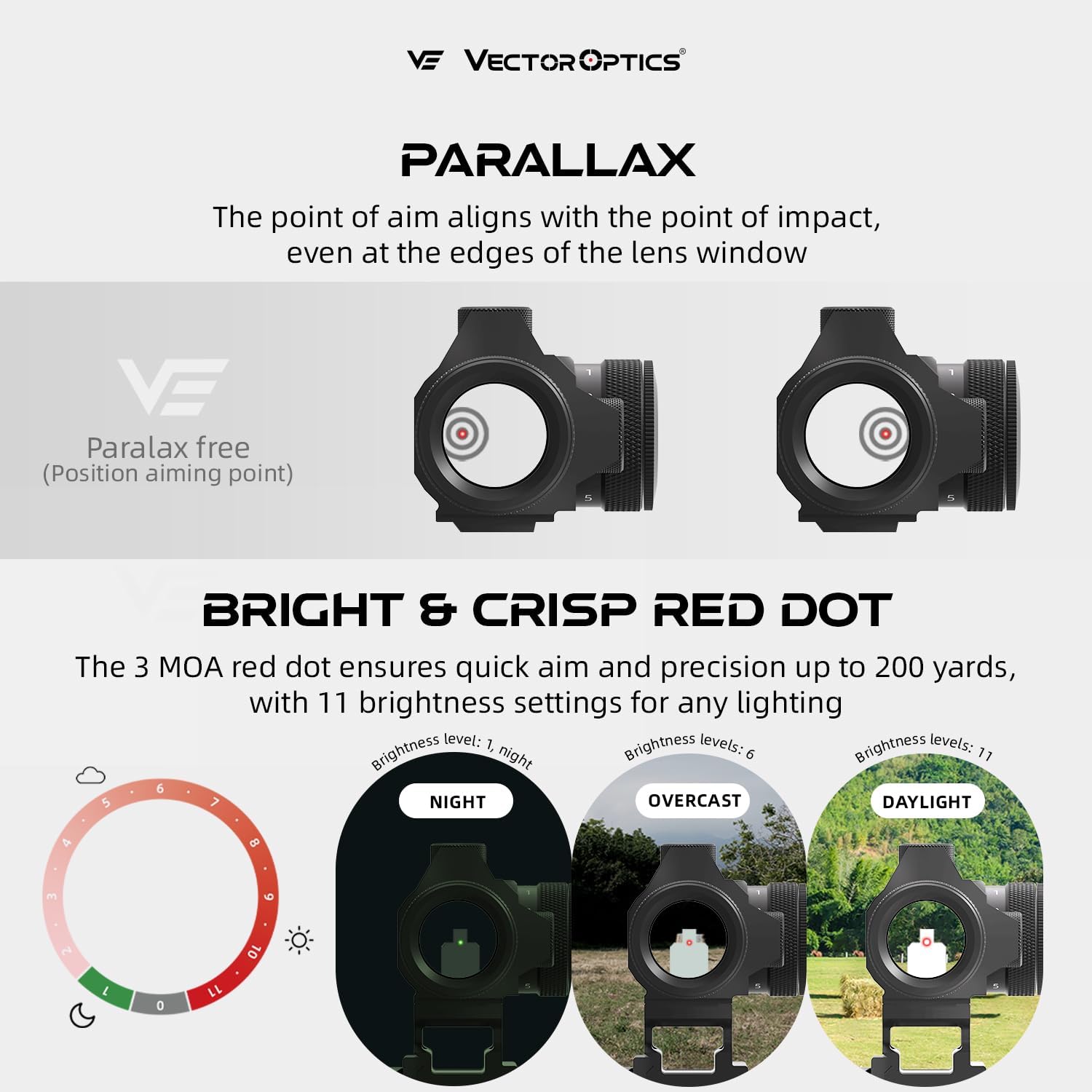

Figure 2.3: Visual representation of parallax-free design and the 11 brightness settings for various lighting conditions.

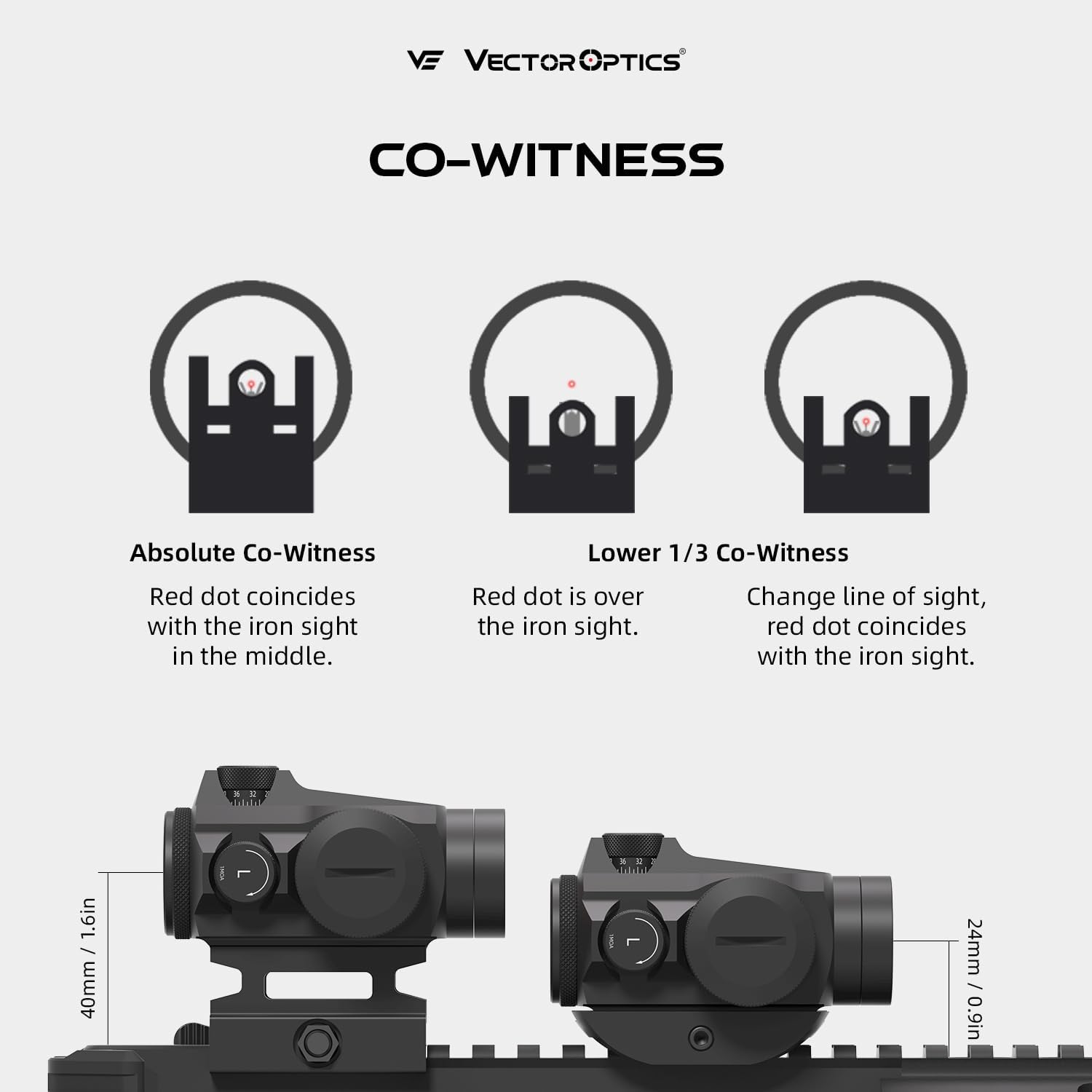

Figure 2.4: Comparison of absolute co-witness and lower 1/3 co-witness configurations.

Figure 2.5: The red dot sight demonstrating its all-weather performance and robust construction.

3. Пакеттин мазмуну

Пакетти ачкандан кийин, төмөнкү нерселердин бардыгы камтылганын текшериңиз:

• Vector Optics 1x22 Red Dot Scope (SCRD-12II)
• High Picatinny Mount (pre-installed or separate)
• Low-Profile Тоо
• Линзаны тазалоочу кездеме
• Adjustment Tools (e.g., Allen wrench)
• User Manual

Note: Batteries are typically not included and must be purchased separately. The sight uses a CR2032 battery.

Figure 3.1: ашыкview of the items included in the product package.

4. Орнотуу жана орнотуу

4.1 Батареяны орнотуу

1. Locate the battery compartment, usually on the side or top of the sight.
2. Unscrew the battery cap using a coin or appropriate tool.
3. Бир CR2032 батареясын оң (+) тарабын сыртка каратып салыңыз.
4. Батареянын капкагын кайра бекем бурап бекитиңиз.

4.2 Mounting the Sight

The Vector Optics 1x22 Red Dot Scope comes with both a high Picatinny mount and a low-profile mount. Choose the mount that best suits your firearm and desired co-witnessing (see Figure 2.4 for co-witnessing examples).

1. Ок атуучу куралыңыз бош жана коопсуз экенин текшериңиз.
2. Attach the desired mount to the bottom of the red dot sight using the provided screws and tools.
3. Place the assembled sight onto your firearm's Picatinny rail.
4. Engage the quick detach lever or tighten the mounting screws securely. Ensure the sight is firmly attached and does not wobble.

4.3 Zeroing the Sight

Zeroing your red dot sight is crucial for accurate shooting. This process involves adjusting the red dot to align with your point of impact at a specific distance.

1. Set up a target at your desired zeroing distance (e.g., 25 yards, 50 yards).
2. Fire a group of shots (e.g., 3-5 shots) at the target.
3. Observe the point of impact relative to your aim point.
4. Use the windage (horizontal) and elevation (vertical) adjustment knobs to move the point of impact. Each click adjusts the point of impact by 1 MOA.
   • To move the point of impact UP, turn the elevation knob сааттын жебесине каршы.
   • To move the point of impact ылдый, turn the elevation knob саат жебеси боюнча.
   • To move the point of impact ТУУРА, turn the windage knob сааттын жебесине каршы.
   • To move the point of impact СОЛ, turn the windage knob саат жебеси боюнча.
5. Repeat steps 2-4 until your shots consistently hit the center of the target at your chosen zeroing distance.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү жана жарыктыкты жөндөө

The red dot sight features controls for powering on/off and adjusting brightness levels.

• To power on, press and hold the "+" button for a few seconds.
• To increase brightness, press the "+" button. There are 10 daylight brightness levels.
• To decrease brightness, press the "-" button.
• To activate the night vision (NV) compatible setting, continue pressing the "-" button until the NV level is reached.
• To power off, press and hold the "-" button for a few seconds.

5.2 Parallax

The Vector Optics 1x22 Red Dot Scope is designed to be parallax-free at 25 yards. This means the point of aim aligns with the point of impact, even if your eye position shifts slightly, minimizing aiming errors within typical shooting distances.

6. Техникалык тейлөө

6.1 Линзаларды тазалоо

To maintain optimal clarity, regularly clean the lenses of your red dot sight. Use the provided lens cleaning cloth or a soft, lint-free cloth. For stubborn smudges, a small amount of lens cleaning solution designed for optics can be applied to the cloth, not directly to the lens.

• Линзанын бетинен чаңды же таштандыларды акырын сүртүп салыңыз.
• Линзаны ортосунан сыртка карай тегерек кыймыл менен сүртүңүз.
• Avoid using harsh chemicals, abrasive cloths, or excessive force, as this can damage the lens coatings.

6.2 Жалпы кам көрүү жана сактоо

• Keep the sight dry. Although it is splash-resistant, prolonged exposure to water should be avoided.
• Store the sight in a cool, dry place away from direct sunlight and extreme temperatures.
• When not in use for extended periods, remove the battery to prevent leakage and damage to the electronics.
• Periodically check all screws and mounting hardware to ensure they remain tight.

7. Кыйынчылыктарды

This section addresses common issues you might encounter with your red dot sight.

7.1 Red Dot Not Appearing or Dim

• Батареяны текшерүү: Ensure the CR2032 battery is correctly installed with the positive (+) side facing out. Replace the battery if it is old or depleted.
• Жарыктык жөндөөсү: Increase the brightness level using the "+" button. Ensure it's not set to the lowest or NV setting if you're in bright conditions.
• Күйгүзүү: Confirm the sight is powered on by pressing and holding the "+" button.

7.2 Red Dot Appears Distorted or Blurry

• Астигматизм: If you have astigmatism, the dot may appear starburst or smeared. This is an optical effect related to your vision, not a defect in the sight. Try looking through a rear peep sight or a small pinhole to see if the dot becomes clearer.
• Линзанын тазалыгы: Ensure the lenses are clean and free from smudges, dirt, or debris. Refer to Section 6.1 for cleaning instructions.
• Параллакс: While the sight is largely parallax-free, extreme eye positions or very close distances might introduce slight distortion. Ensure consistent eye relief.

7.3 Inaccurate Aiming / Point of Impact Shifts

• Коопсуздукту орнотуу: Check that the sight is securely mounted to the Picatinny rail and that all screws are tightened. A loose mount is a common cause of accuracy issues.
• Нөлдөө: Re-zero the sight if you suspect it has been knocked or if you've changed ammunition types. Refer to Section 4.3.
• Ammunition Consistency: Inconsistent ammunition can lead to varying points of impact.

7.4 Understanding Direct Bulb vs. Diaphragm Bulb Reticles

The Vector Optics 1x22 Red Dot Scope utilizes a direct bulb reticle system, which offers superior stability and clarity compared to older diaphragm bulb designs. The following video illustrates the differences and benefits of the direct bulb system, particularly in challenging conditions like lens damage or dirt.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Vector Optics is committed to providing high-quality products and excellent customer service. For any questions, technical assistance, or warranty claims regarding your 1x22 Red Dot Scope, please contact Vector Optics customer support directly.

Please refer to the official Vector Optics website or the contact information provided with your product packaging for the most up-to-date support details.
