Introduction
The Godox iA32 Mini Camera Flash is a compact and versatile speedlite designed to provide enhanced lighting for various camera models. It features a single-contact hot shoe for broad compatibility, adjustable power levels, and flexible angle adjustments to suit diverse photographic needs. This manual provides detailed instructions for the proper setup, operation, and maintenance of your iA32 flash.
Продукт өзгөчөлүктөрү
- Кеңири шайкештик: Features a single-contact hot shoe design, making it compatible with most mirrorless and film cameras, including models from Sony (e.g., ZV-1, ZV-E10), Ricoh (e.g., GR3), Canon, Nikon, Fuji, and Olympus. Note: Not compatible with Sony ZV-1F, A9III, A99, A77, A350, and other cameras without a universal touch point.
- Натыйжалуу күч: Powered by two AA batteries, providing up to 490 flashes at full power with a quick recycle time of approximately 2.5 seconds.
- Жөнгө салынуучу кубаттуулук деңгээлдери: Offers 8 power levels, ranging from 1/128 to full power (1/1), allowing precise light output control for various scenes.
- Optimal Lighting Quality: Delivers natural lighting with a guide number (GN) of 15 and a color temperature of 6500K±200K, enhancing photographic results.
- Ар тараптуу режимдер: Supports both Auto and Manual modes for flexible shooting requirements.
- Ийкемдүү бурчту жөндөө: The flash tube can be adjusted from -7° to 90° via a side dial, enabling bounce flash effects and varied lighting options.
- Компакт дизайн: Integrated flat design for easy portability and attachment to your camera.
Пакеттин мазмуну
Пакет төмөнкү нерселерди камтыйт:
- Godox iA32 Flash Body x 1
- Сактагыч x 1
This image shows the Godox iA32 flash unit alongside its included storage bag, illustrating the complete contents of the product package.
Бөлүктөрдү аныктоо
Familiarize yourself with the different parts of your Godox iA32 flash unit:
This diagram labels the key components of the Godox iA32 flash, including the display, buttons, optical sensor, flash tube, hot shoe, and battery cover.
- Дисплей
- Power Switch/Test баскычы
- MODE баскычы
- < - > Button
- < + > Button
- Оптикалык сенсор
- Flash Tube Angle Adjust Dial
- Hot Shoe
- Ысык бут кийимди бекитүүчү шакек
- Flash Tube
- Батарея капкагы
- Auto Light Meter
Жайгашуу
1. Батареяны орнотуу
The Godox iA32 flash requires two AA batteries for operation.
- Locate the battery cover (Part 11 in the diagram) on the side of the flash unit.
- Батареянын капкагын ачыңыз.
- Insert two AA batteries, ensuring correct polarity (+/-) as indicated inside the battery compartment.
- Батареянын капкагын бекем жабыңыз.
This image illustrates the Godox iA32 flash unit with its battery compartment open, showing the insertion of AA batteries.
2. Камерага орнотуу
To attach the iA32 flash to your camera:
- Slide the hot shoe (Part 8) of the flash into your camera's hot shoe mount.
- Once fully inserted, rotate the hot shoe locking ring (Part 9) clockwise to secure the flash firmly in place.
- Алып салуу үчүн, бекитүүчү шакекти саат жебесине каршы буруп, жаркылдак өчүрүңүз.

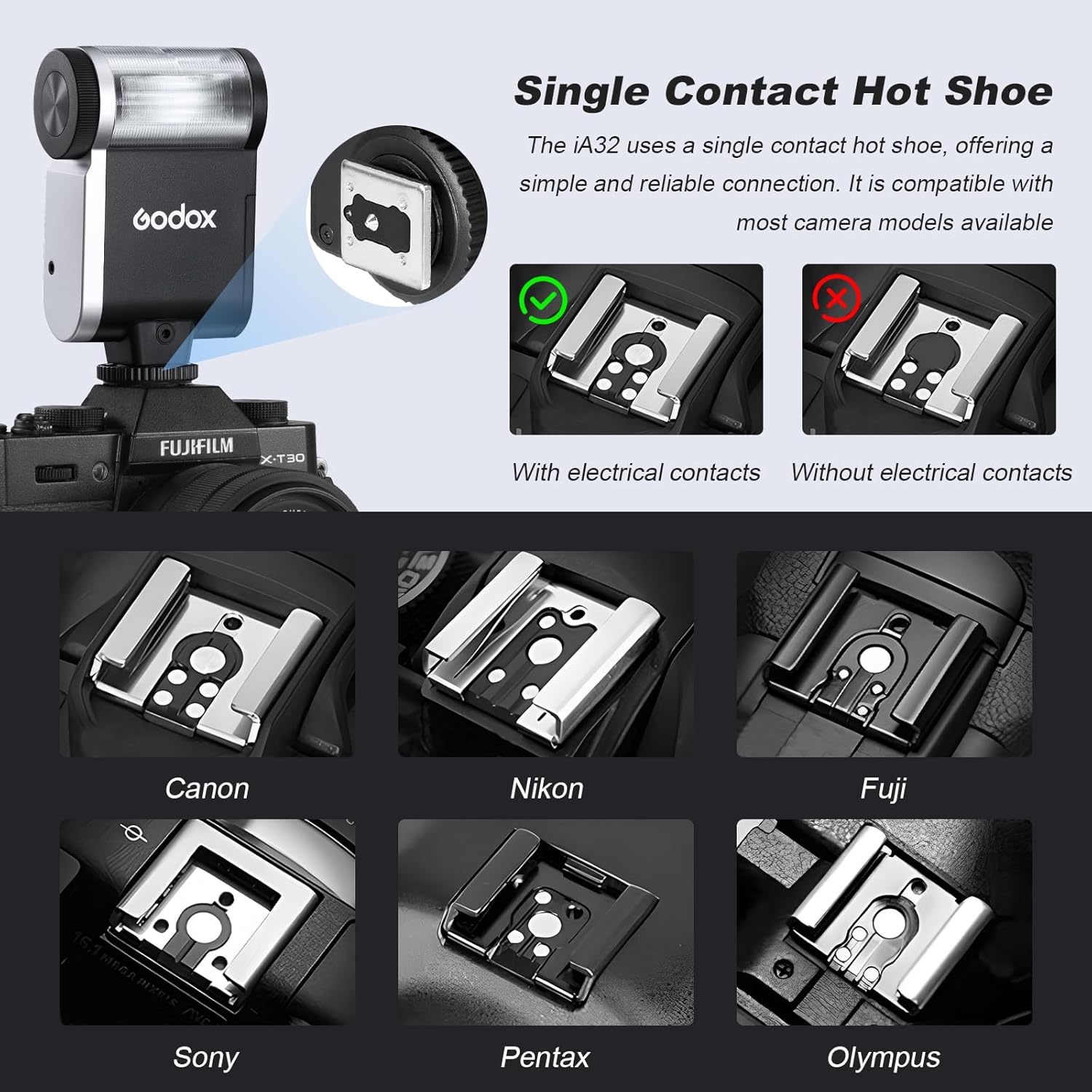

This image demonstrates the single-contact hot shoe of the Godox iA32 and its compatibility with various camera brands, showing both compatible and incompatible hot shoe designs.
Иштөө нускамалары
1. Күйгүзүү/өчүрүү
- Press and hold the Power Switch/Test Button (Part 2) to turn the flash on or off.
- A short press of the Power Switch/Test Button will fire a test flash.
2. Режимди тандоо (Автоматтык/Кол менен)
The iA32 supports both Auto and Manual modes.
This image displays the Godox iA32's screen in both Auto Mode (left) showing ISO, aperture, and recommended distance, and Manual Mode (right) showing flash power level.
- Press the MODE Button (Part 3) to switch between Auto and Manual modes.
- Авто режим: In this mode, you can set ISO and aperture values on the flash. The display will show the recommended shooting distance.
- Кол режими: Allows you to manually adjust the flash power level.
3. Кубаттуулук деңгээлин жөндөө (кол менен башкаруу режими)
In Manual Mode, you can select from 8 power output levels.
This image demonstrates the effect of different power levels (from 1/1 to 1/128) on a subject, illustrating the range of light output from the Godox iA32 flash.
- Use the < - > Button (Part 4) and < + > Button (Part 5) to cycle through the power levels from 1/128 to 1/1 (full power) in 1/3-step increments.
- Select the appropriate power level based on your desired exposure and lighting conditions.
4. Жаркылдоо башынын бурчун тууралоо
The flash tube can be adjusted to direct light as needed.

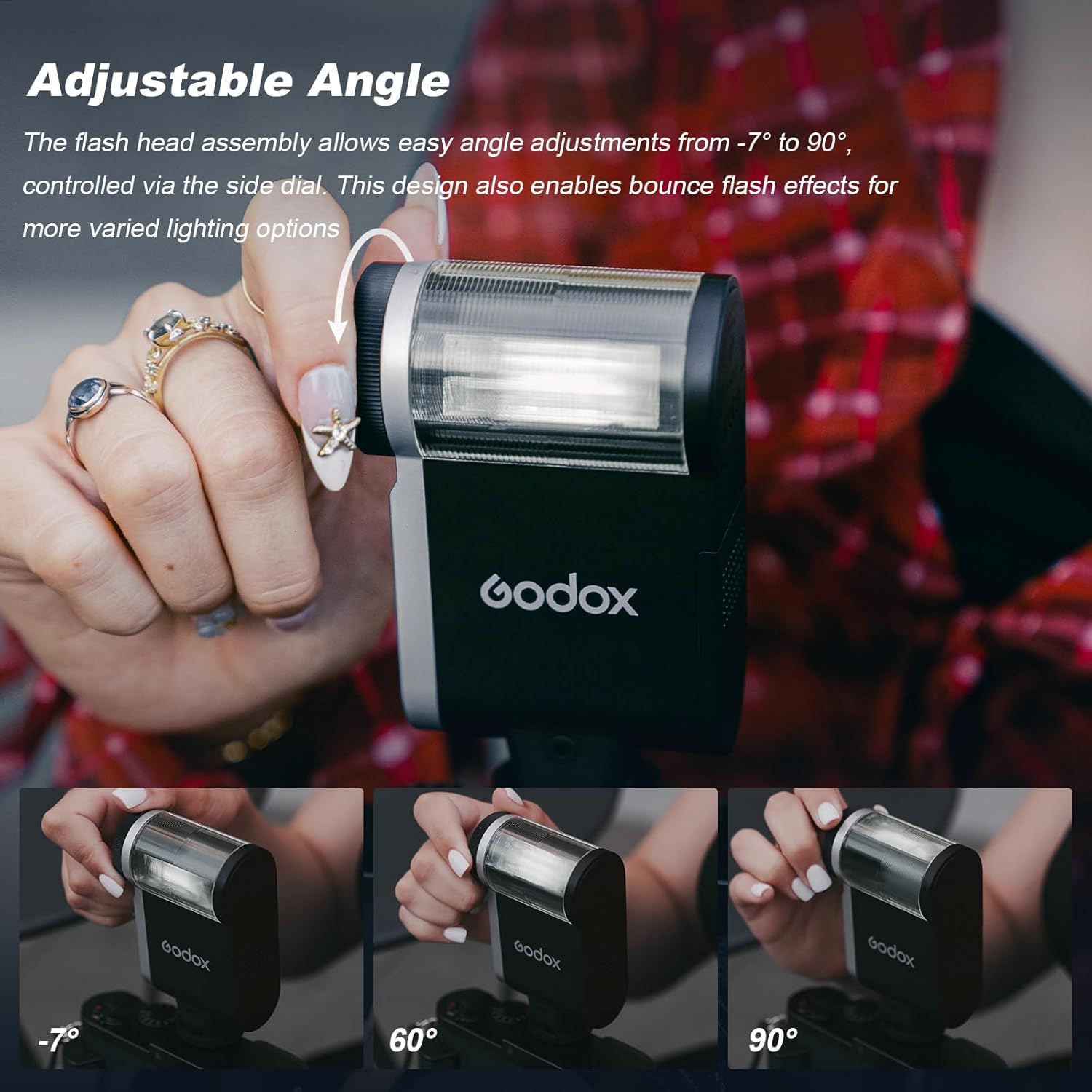

This image shows the Godox iA32 flash head being adjusted, with illustrations of its tilt capabilities from -7 degrees to 90 degrees, allowing for bounce flash.
- Use the Flash Tube Angle Adjust Dial (Part 7) on the side of the unit to tilt the flash head.
- The flash head can be adjusted from -7° to 90°. This allows for direct flash or bounce flash off ceilings or walls for softer lighting.
Шайкештик
The Godox iA32 Mini Camera Flash is designed with a single-contact hot shoe for broad compatibility with various camera systems. It is generally compatible with most mirrorless and film cameras that feature a universal hot shoe with electrical contacts.
Шайкеш бренддер: Sony (e.g., ZV-1, ZV-E10), Ricoh (e.g., GR3), Canon, Nikon, Fuji, Olympus, Pentax (with universal touch point).
Белгилүү шайкеш келбестиктер: Sony ZV-1F, A9III, A99, A77, A350, and other cameras that do not feature a universal hot shoe with a central electrical contact.
Always ensure your camera's hot shoe has a central contact for proper flash synchronization.
Техникалык тейлөө
- Тазалоо: Жарк этүүчү аппаратты тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. өжөр кир үчүн, бир аз гamp cloth can be used, followed by immediate drying. Avoid using strong detergents or solvents.
- Сактагыч: When not in use for extended periods, remove the AA batteries to prevent leakage and store the flash in its provided storage bag in a cool, dry place.
- Колдонуу: Жарк этияттык менен кармаңыз. Аны түшүрүп албоодон же катуу соккуга кабылбоодон алыс болуңуз, анткени алар ички компоненттерге зыян келтириши мүмкүн.
- Экологиялык шарттар: Do not expose the flash to water, high humidity, extreme temperatures, or direct sunlight for prolonged periods.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Flash күйбөйт. |
|
|
| Flash күйбөйт. |
|
|
| Жарык чыгаруу өтө ачык/караңгы. |
|
|
| Узак кайра иштетүү убактысы. |
|
|
Техникалык шарттар
This image displays a table of key specifications for the Godox iA32 flash, including battery type, guide number, recycle time, flash modes, and dimensions.
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | iA32 |
| Батарея | Two AA NiMH batteries (or alkaline) |
| Guide Number (ISO 100, in meters) | 15 |
| Толук кубаттуу жаркырап | Окутуу үчүн. 490 |
| Кайра иштетүү убактысы | Болжол менен 2.5с |
| Flash Power Steps | 8 levels: 1/128 ~ 1/1 |
| Flash режимдери | M Mode / AUTO Mode, Optical Trigger S1/S2 |
| Өлчөм | Болжол менен 2.56" x 4.53" x 1.38" (65мм x 115мм x 35мм) |
| Таза Салмак | Болжол менен 117г (батареясыз) |
| Flash синхрондоштуруу ылдамдыгы | 1/250с |
Кепилдик жана колдоо
Кепилдик маалыматы жана техникалык колдоо үчүн расмий GODOXке кайрылыңыз webсайтка кайрылыңыз же жергиликтүү дистрибьютериңиз менен байланышыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
GODOX is committed to providing high-quality products and customer service. Should you encounter any issues not covered in this manual, please reach out to their support channels for assistance.
