Raynic Digital Wall Clock, 10.1 Inch Large Display Digital Calendar Clock with 12 Themes, 20 Alarms, 20 Reminders, Auto Dimming,12/24 Hours, Temperature, Humidity for Seniors, Desk, Wall Mounted White 10.1 Inches

1. Киришүү

Welcome to the user manual for your Raynic Digital Calendar Clock. This versatile device combines time-telling with advanced calendar and reminder functions, designed for clear visibility and ease of use. Please read this manual thoroughly to understand all features and ensure optimal performance.

Raynic 10.1 Inch Digital Calendar Clock showing time, date, temperature, and humidity

Figure 1: Raynic Digital Calendar Clock (White, 10.1 Inches)

2. Орнотуу

2.1 Кутудан чыгаруу жана компоненттер

Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Сизде төмөнкү нерселер бар экенин текшериңиз:

Raynic Digital Calendar Clock (10.1-inch display)
Кубаттуу адаптер
USB-C - USB-A кабели
Колдонуучунун Колдонмосу (бул документ)
Дубалга орнотуучу жабдуулар (бурамалар, якорьлор)

Contents of the Raynic Digital Calendar Clock package including the clock, power adapter, and cable

Сүрөт 2: Таңгактоо тизмеси

2.2 Күйгүзүү

Connect the USB-C end of the cable to the clock's power port.
Connect the USB-A end of the cable to the provided power adapter.
Кубат адаптерин стандарттуу электр розеткасына сайыңыз.
The clock will automatically power on and display the default time and date.

Note: The clock requires continuous power via the AC adapter. It has an internal battery for settings backup during power outages, but it is not designed for portable use.

2.3 Алгачкы убакытты жана датаны орнотуу

The clock typically syncs time automatically. If manual adjustment is needed:

басыңыз Меню button on the side of the clock to access the main menu.
багыттоо Дата жана убакыт using the Up/Down arrow buttons. Press Тандоо.
Adjust the time, date, time format (12/24 hours), date format (Month-Day-Year, Day-Month-Year, Year-Month-Day), and Daylight Saving Time settings using the arrow buttons and Тандоо.

Видео 1: Бүттүview of the Raynic Digital Calendar Clock's features, including setting time and date, and navigating menus.

Raynic clock showing menu options for brightness settings, including auto dimming and time period settings.

Figure 3: Brightness Settings Menu

3. Иштөө нускамалары

3.1 Менюда навигация

The clock features intuitive side buttons for navigation:

Өйдө/төмөн жебелер: Scroll through menu options or adjust values.
Сол/оң жебелер: Change specific settings within an option (e.g., language, theme).
Тандоо баскычы: Confirm a selection or enter a sub-menu.
Артка баскычы: Return to the previous menu or exit a setting.

Raynic clock showing the main menu with options like Alarms, Schedule, Themes, Brightness, Date & Time, and Settings.

Figure 4: Main Menu Interface

3.2 Display Themes

The clock offers 12 distinct display themes to suit your preference:

Негизги менюдан тандаңыз Темалар.
Browse through the 12 available themes using the Left/Right arrow buttons.
Басыңыз Тандоо to apply your chosen theme.

Raynic clock displaying various themes, including minimalist, urban tempo, seasonal calendar, and time album.

Figure 5: Available Display Themes

Some themes allow for custom colors and time formats, enhancing personalization.

3.3 Setting Alarms and Reminders

The clock supports up to 20 alarms and 20 reminders for various events:

Негизги менюдан тандаңыз Ойготкучтар or График.
To add a new alarm/reminder, select Add new alarm/event.
Configure the time, repeat frequency (e.g., daily, specific days), label (e.g., Medication, Birthday), ringtone (18 options), and volume.
For reminders, choose from predefined types (Medication, Daily activity, Visit, Entertainment, Birthday/Holiday) or customize your own.

Raynic clock displaying a reminder for 'TAKE YOUR MEDICATION' with a time and date.

Figure 6: Reminder Display

3.4 Жарыктыкты жөндөө

Оптималдуу жарыктык үчүн дисплейдин жарыктыгын тууралаңыз viewing in any environment:

Негизги менюдан тандаңыз Жарыктык.
Төмөнкүдөн тандаңыз:
- Кол менен орнотуулар: Set a fixed brightness level (10% to 100%).
- Автоматтык караңгылатуу: The clock automatically adjusts brightness based on ambient light.
- Time Period: Set different brightness levels for day and night periods.

Raynic clock showing dimming settings options: Auto Dimming, Semi-auto Dimming (Time Period), and Manual Settings.

7-сүрөт: Жарыктыкты жөндөө параметрлери

3.5 Тилди тандоо

The clock supports multiple languages for its interface:

Негизги менюдан тандаңыз Орнотуулар, анда Тил.
Use the Left/Right arrow buttons to select your preferred language (e.g., English, French, Italian, German, Spanish, Japanese).
Басыңыз Тандоо ырастоо үчүн.

Raynic clock displaying various language options with flags: English, French, Italian, German, Spanish, Japanese.

8-сүрөт: Колдоого алынган тилдер

3.6 Photo Album Functionality

Transform your clock into a digital photo frame:

Insert a USB flash drive or TF card (up to 64GB, not included) containing your photos into the designated port on the side of the clock.
Негизги менюдан, төмөнкүгө өтүңүз Альбом.
The clock will display your photos in a slideshow.

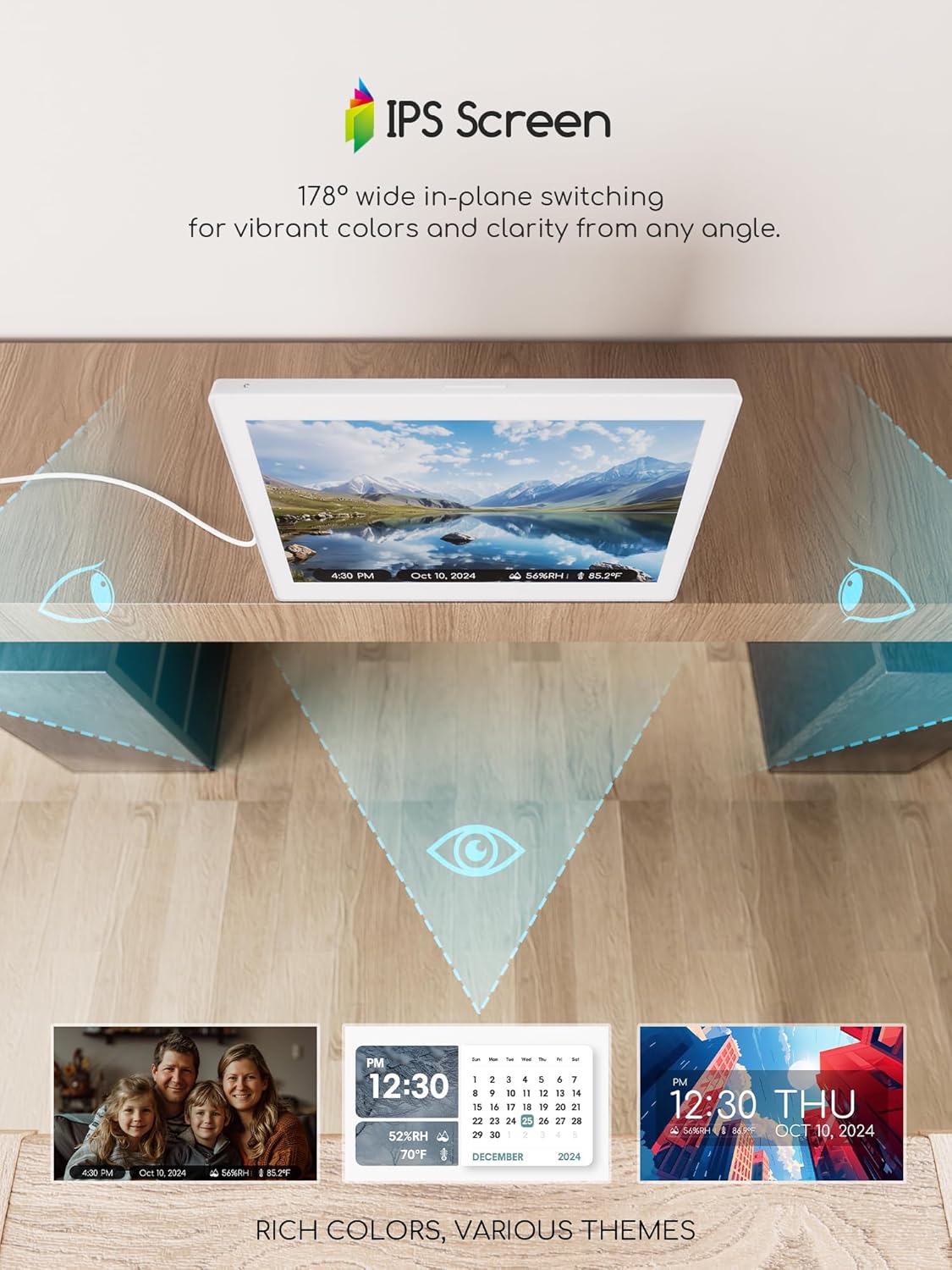

Raynic clock showing its IPS screen with wide viewing angles, displaying a scenic photo.

Figure 9: IPS Screen for Photo Display

4. Техникалык тейлөө

Тазалоо: Дисплейди тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз жанаasinг. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
Жайгашкан жери: Place the clock on a stable, flat surface or mount it securely to a wall. Avoid direct sunlight or extreme temperatures.
Күч: Always use the provided power adapter. Disconnect power during extended periods of non-use.

5. Кыйынчылыктарды

Көйгөй	Мүмкүн себеп	Чечим
Саат күйбөй жатат.	Эч кандай кубат туташуу же туура эмес адаптер.	Ensure power adapter is securely plugged into the clock and a working outlet. Try a different outlet.
Дисплей өтө күңүрт же өтө жарык.	Brightness settings are incorrect.	Adjust brightness settings in the menu (Manual, Auto Dimming, or Time Period).
Убакыт/дата туура эмес.	Manual setting error or Daylight Saving Time issue.	Go to Date & Time settings to manually correct or verify Daylight Saving Time region.
Alarms/Reminders not sounding.	Alarm/Reminder is off or volume is too low.	Check alarm/reminder settings to ensure they are activated and volume is adequate.

6. Техникалык шарттар

Модел: CR1026
Экрандын өлчөмү: 10.1 дюйм
Дисплей түрү: IPS экраны
Продукциянын өлчөмдөрү: 14.01 x 1.5 x 7.4 дюйм
Элемент Салмагы: 1.46 фунт
Кубат булагы: AC Adapter Powered (5V 2A recommended)
Батареянын камдык көчүрмөсү: Internal battery for settings retention (not for portable use)
Сактоо колдоо: USB Flash Drive, TF Card (up to 64GB)
Тилдер: English, French, Italian, German, Spanish, Japanese
Ойготкучтар: Up to 20 settings
Эскерткичтер: Up to 20 settings
Темалар: 12 customizable display themes
Температура/Нымдуулук: Built-in sensors for display
Өндүрүүчү: Raynic Electronics
Келип чыккан өлкө: Кытай

Raynic clock showing its dimensions: 10.1 inches screen, 14.01 inches width, 7.4 inches height, 1.5 inches depth.

Сүрөт 10: Продукциянын өлчөмдөрү

7. Кепилдик жана колдоо

7.1 Кайтаруу саясаты

This product is subject to a 30-day refund/replacement policy from the date of purchase. Please refer to your retailer's specific return guidelines for detailed instructions.

7.2 Кардарларды колдоо

For any questions, technical assistance, or warranty claims, please contact Raynic customer support through their official webпродукт сатылып алынган сайт же сатуучу. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

For more information, visit the official Raynic Store: Amazon'догу Raynic дүкөнү

Raynic CR1026

Raynic Digital Calendar Clock User Manual
