1. Киришүү
This manual provides essential information for the safe assembly, operation, and maintenance of your Caroma Peak K5 Electric Scooter. Please read this manual thoroughly before using your scooter to ensure proper function and to prevent injury. Retain this manual for future reference.
Image 1.1: The Caroma K5 Electric Scooter, featuring a front basket, comfortable seat, and robust design.
2. Коопсуздук маалыматы
Your safety is paramount. Adhere to all warnings and instructions to minimize risk of injury or damage.
- Айдоодо ар дайым туулга жана тиешелүү коопсуздук шайманын кийиңиз.
- Ар бир жүрүүнүн алдында бардык компоненттердин бекем бекитилишин текшериңиз.
- Do not exceed the maximum weight limit of 300 lbs (136 kg). The rear seat cushion supports up to 110 lbs (50 kg).
- Operate the scooter only in safe environments, away from heavy traffic.
- Айланаңыздагыларга жана башка жол колдонуучуларына көңүл буруңуз.
- The scooter is equipped with a bright headlight and rear brake light for visibility. Use them during low-light conditions.
- This electric scooter is UL 2272 certified, indicating compliance with electrical safety standards.
- Аба ырайынын катаал шарттарында же өтө тайгак беттерде жүрүүдөн качыңыз.
3. Пакеттин мазмуну
Таңгактан чыгарганда, төмөнкү компоненттердин бардыгы бар экенин текшериңиз:
- Caroma Peak K5 Electric Scooter Frame
- Алдыңкы дөңгөлөктөрдү чогултуу
- Рулдун жыйындысы
- Орун жана орундук пост
- Front Sepet
- Rear Rack (with removable seat cushion)
- Заряддагыч
- Куралдар
- User Manual
4. Монтаждоо боюнча нускамалар
Assembly is required before first use. Follow these steps carefully:
- Пакеттен чыгаруу: Carefully remove all components from the packaging. Remove all protective wrapping.
- Front Fork Orientation: The front fork is shipped in a reverse position. Rotate the front fork 180 degrees to face forward.
- Рулду орнотуу: Attach the handlebar assembly to the steering column. Ensure it is centered and securely tightened.
- Алдыңкы дөңгөлөктү бекитүү: Install the front wheel. Ensure the disc brake caliper aligns correctly with the rotor.
- Seat and Seat Post: Insert the seat post into the frame and adjust to a comfortable height. Secure the quick-release lever.
- Алдыңкы себет: Attach the front basket to the designated mounting points on the handlebar or frame.
- Тормозду тууралоо: Adjust the front and rear disc brakes according to the instructions provided in the separate brake adjustment guide (if applicable) or ensure they engage smoothly and effectively without rubbing.
- Шиналар инфляциясы: Inflate both tires to the recommended pressure indicated on the tire sidewall. Tires may be deflated for shipping.
- Баштапкы төлөм: Биринчи сапарга чейин батареяны толук заряддаңыз.
Image 4.1: Dimensional diagram of the Caroma K5 Electric Scooter.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
To power on the scooter, press and hold the power button on the LCD display. Repeat to power off.
5.2 LCD дисплей
The LCD display shows critical information including battery level, current speed, and riding mode. Monitor the battery level to plan your rides and avoid unexpected power loss.
Image 5.1: Key features including the battery indicator on the LCD display.
5.3 Скутерге минүү
- Баштоо: Gently apply the throttle. Be aware that the motor provides immediate torque. Start slowly to familiarize yourself with the acceleration.
- Ылдамдыкты көзөмөлдөө: Use the throttle to control your speed. The scooter can reach a top speed of 20 MPH.
- Тормоздоо: The scooter is equipped with front and rear disc brakes. Apply both brakes simultaneously for effective and controlled stopping.
- Cruise Control: Engage cruise control by maintaining a consistent speed for a few seconds. The scooter will hold this speed until you apply the brakes or throttle again.
- рельеф: The 20" x 3" off-road tires are designed for various terrains, including city roads, gravel, and light off-road paths.
Image 5.2: The 20"x3" wide off-road tires are suitable for diverse road conditions.
Image 5.3: The dual disc brake system provides reliable stopping power.
5.4 Өзгөчөлүктөрүview
- Жөнгө салынуучу отургуч: The seat height can be adjusted to accommodate different rider heights for optimal comfort.
- Removable Front Basket: The front basket provides convenient storage and can be detached when not needed.
- Rear Rack: The sturdy rear rack can carry additional items, and includes a removable seat cushion for a second rider (within weight limits).
- Foldable Footrests: Double foldable footrests are provided for passenger comfort when using the rear seat.
Image 5.4: The scooter features a rear rack with a removable seat cushion and foldable footrests.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your Caroma Peak K5 Electric Scooter.
- Батареяны заряддоо: Charge the 48V 10.4Ah (500Wh) battery fully after each use. Charging typically takes 3-4 hours. Avoid completely draining the battery to prolong its lifespan.
- Шина басымы: Regularly check and maintain the correct tire pressure as indicated on the tire sidewall. Under-inflated tires can affect performance and range.
- Тормозду текшерүү: Periodically inspect brake pads and rotors for wear. Ensure brakes are responsive and properly adjusted.
- Жалпы тазалоо: Скутерди жарнама менен үзгүлтүксүз тазалап туруңузamp cloth. Avoid using high-pressure water jets directly on electrical components. The scooter is designed to be waterproof, but excessive water exposure should be avoided.
- Бекер текшерүү: Бардык болтторду жана бекиткичтерди бекем бекитип, мезгил-мезгили менен текшерип туруңуз.
Image 6.1: The 48V 10.4Ah battery offers a 30-mile range and charges in 3-4 hours.
7. Кыйынчылыктарды
Скутериңизде көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Скутер күйбөйт | Low battery; loose battery connection; faulty power button | Charge battery; check battery connections; contact support |
| Кыскартылган аралык же ылдамдык | Under-inflated tires; low battery charge; riding uphill frequently; heavy load | Inflate tires to correct pressure; fully charge battery; adjust riding style |
| Тормоздор алсыз же ызы-чуулуу сезилет | Worn brake pads; misaligned caliper; air in hydraulic system (if applicable) | Inspect and replace brake pads; adjust caliper; consult a professional for hydraulic issues |
| Tires frequently deflate | Puncture; valve stem issue; improper tire seating | Inspect for punctures and repair/replace tube; check valve stem; ensure tire is seated correctly on rim |
If the problem persists or is not listed here, please contact Caroma customer service for assistance.
8. Техникалык шарттар
Key technical specifications for the Caroma Peak K5 Electric Scooter:
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Карома |
| Модель аты | K5 |
| Мотор | 750W (Peak 1200W) Brushless Hub Motor |
| Батарея | 48V 10.4Ah (500Wh) Lithium-ion |
| Эң жогорку ылдамдык | 20 миль/саатка чейин (32 км/саат) |
| Макс диапазон | 30 миляга чейин (48 км) |
| Шиналар | 20" x 3" Super Wide Off-Road Pneumatic Tires |
| Тормоздор | Алдыңкы жана арткы диск тормоздору |
| Максималдуу жүктөө сыйымдуулугу | 300 фунт (136 кг) |
| Rear Seat Load Capacity | 110 фунт (50 кг) |
| Продукциянын өлчөмдөрү (LxWxH) | 64.9" x 24" x 42.1" (165см x 61см x 107см) |
| Макс альпинизм жөндөмдүүлүгү | 20° |
| Заряддоо убактысы | Болжол менен 3-4 саат |
| Өзгөчөлүктөр | Waterproof, Adjustable Handlebar, Adjustable Seat, Removable Basket, Rear Rack, Bright Headlight, Rear Reflector, LCD Display |
| Сертификация | UL 2272 |
Image 8.1: The powerful 1200W peak motor enables a 20 MPH top speed and 20° climbing ability.

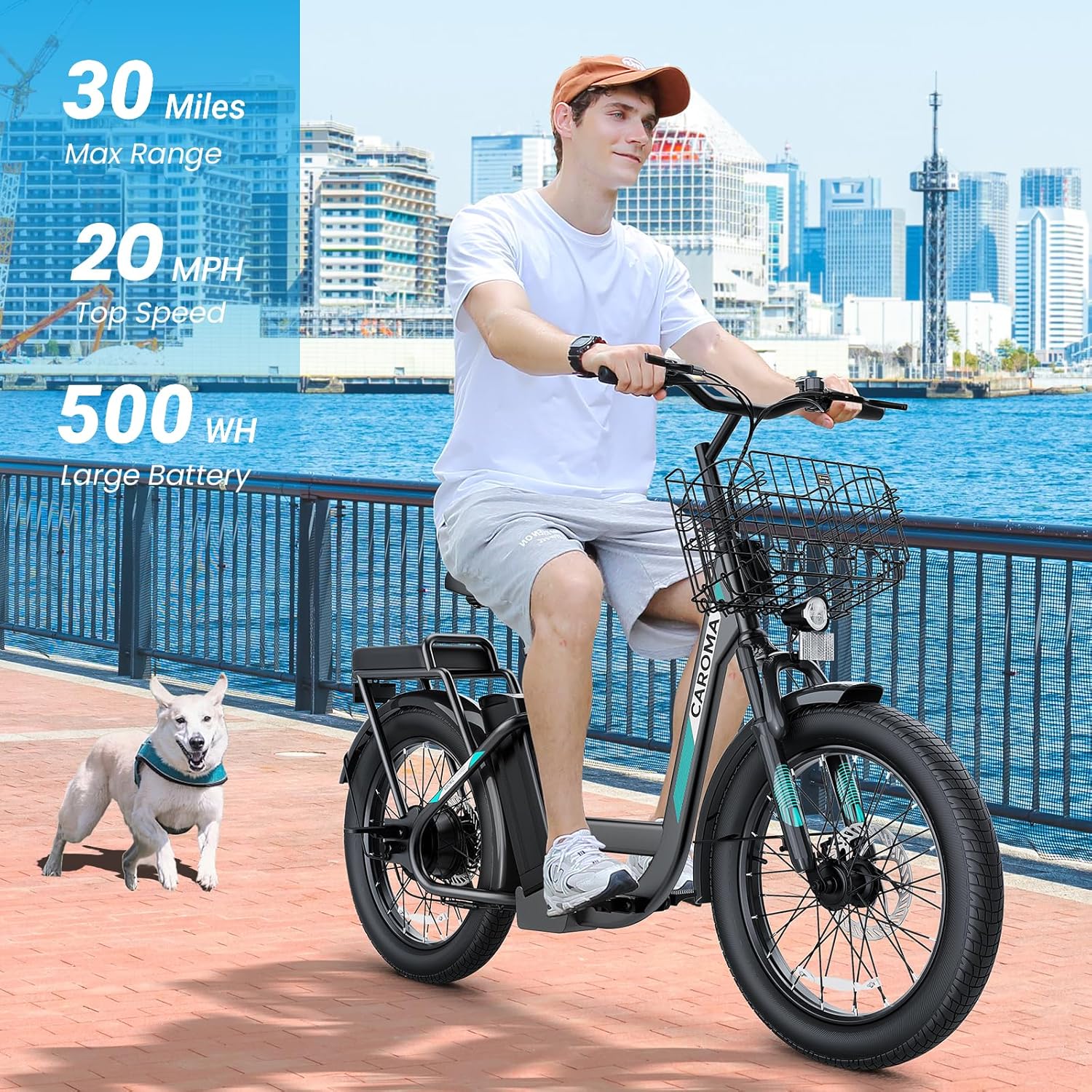

Image 8.2: The Caroma K5 offers a 30-mile range and 20 MPH top speed with its 500Wh battery.
9. Кепилдик жана колдоо
The Caroma Peak K5 Electric Scooter comes with a 12-month limited warranty. This warranty covers manufacturing defects under normal use conditions.
For warranty claims, technical support, or any questions not addressed in this manual, please contact Caroma customer service. Refer to your purchase documentation for specific contact details or visit the official Caroma webсайт.
Please note: There are no official product videos provided by the seller in the available data to embed in this manual.
