1. Киришүү

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your Caroma Peak Electric Scooter Q3. The scooter is designed for adults and teens, featuring a powerful motor, comfortable seating, and convenient storage options for commuting and leisure rides.

The Caroma Peak Electric Scooter Q3 is equipped with a 750W (peak 1200W) brushless hub motor, offering speeds up to 20 mph and a range of up to 30 miles on a single charge. It features 12-inch pneumatic tires for enhanced comfort and dual disc brakes for reliable stopping power.

2. Коопсуздук боюнча көрсөтмөлөр

Your safety is paramount. Please read and understand all instructions before operating the scooter. Failure to follow safety guidelines may result in serious injury or damage to the product.

• Always wear a helmet and appropriate safety gear (e.g., knee pads, elbow pads) while riding.
• Familiarize yourself with local traffic laws and regulations regarding electric scooters.
• Perform a pre-ride inspection: check tire pressure, brake functionality, and ensure all fasteners are secure.
• Нымдуу шарттарда, катуу жамгырда же тайгак жерлерде жүрүүдөн качыңыз.
• 265 фунт максималдуу салмак чегинен ашпаңыз.
• Коопсуз ылдамдыкты жана башка унаалардан жана жөө жүргүнчүлөрдөн аралыкты сактаңыз.
• Узак сапарлар алдында скутердин толук заряддалганын текшериңиз.

3. Пакеттин мазмуну

Пакетти ачкандан кийин, төмөнкү нерселердин бардыгы камтылганын текшериңиз:

• 1 x Caroma Peak Electric Scooter Q3
• 1 х кубат адаптери
• 1 x Toolkit
• 1 x User Manual

4. Орнотуу жана чогултуу

Your Caroma Peak Electric Scooter Q3 requires minimal assembly. Please follow these steps:

1. Кутудан чыгаруу: Скутерди жана бардык тетиктерди таңгактан этияттык менен алып чыгыңыз.
2. Рулду орнотуу: Unfold the handlebar stem and secure it using the locking mechanism. Ensure it clicks firmly into place.
3. Орнотуу: Attach the seat to the seat post, then insert the seat post into the scooter's frame. Adjust the seat height to your preference and secure it with the quick-release lever.
4. Корзинаны орнотуу: Attach the detachable rear basket to the designated mounting points on the rear frame using the provided screws and tools.
5. Кикстенди орнотуу: Secure the kickstand to the underside of the scooter using the provided bolts and tools.
6. Баштапкы төлөм: Before your first ride, fully charge the scooter's battery. Locate the charging port on the underside of the footboard, open the cover, and connect the power adapter. The charging time is approximately 7 hours.

Figure 1: Detailed diagram of the Caroma Peak Electric Scooter Q3 components.

5. Негизги өзгөчөлүктөрү

5.1 Motor and Performance

The Caroma Peak Electric Scooter Q3 is powered by a 750W brushless hub motor with a peak output of 1200W. This motor allows the scooter to reach speeds of up to 20 mph and handle inclines of up to 20 degrees. The high-capacity 48V lithium battery, combined with regenerative braking, provides an impressive range of up to 30 miles on a single charge. Three speed modes (Eco, Tour, Sport) are available to suit different riding preferences.

Сүрөт 2: Жакын пландан view highlighting the 1200W peak powerful motor.

5.2 Riding Comfort

Experience a comfortable ride with the scooter's cushioned, breathable seat and robust 12-inch pneumatic tires, which provide excellent shock absorption. The spacious 8.3-inch wide deck offers ample footroom. The seat height is adjustable to accommodate various riders.

5.3 Display and Safety Lighting

An HD LED monitor displays crucial ride information, including battery level, current speed, and selected speed mode (Eco: 7 mph, Tour: 13 mph, Sport: 20 mph), along with mileage. For enhanced safety, the scooter is equipped with high-brightness headlights and rear brake lights, ensuring visibility during night rides.

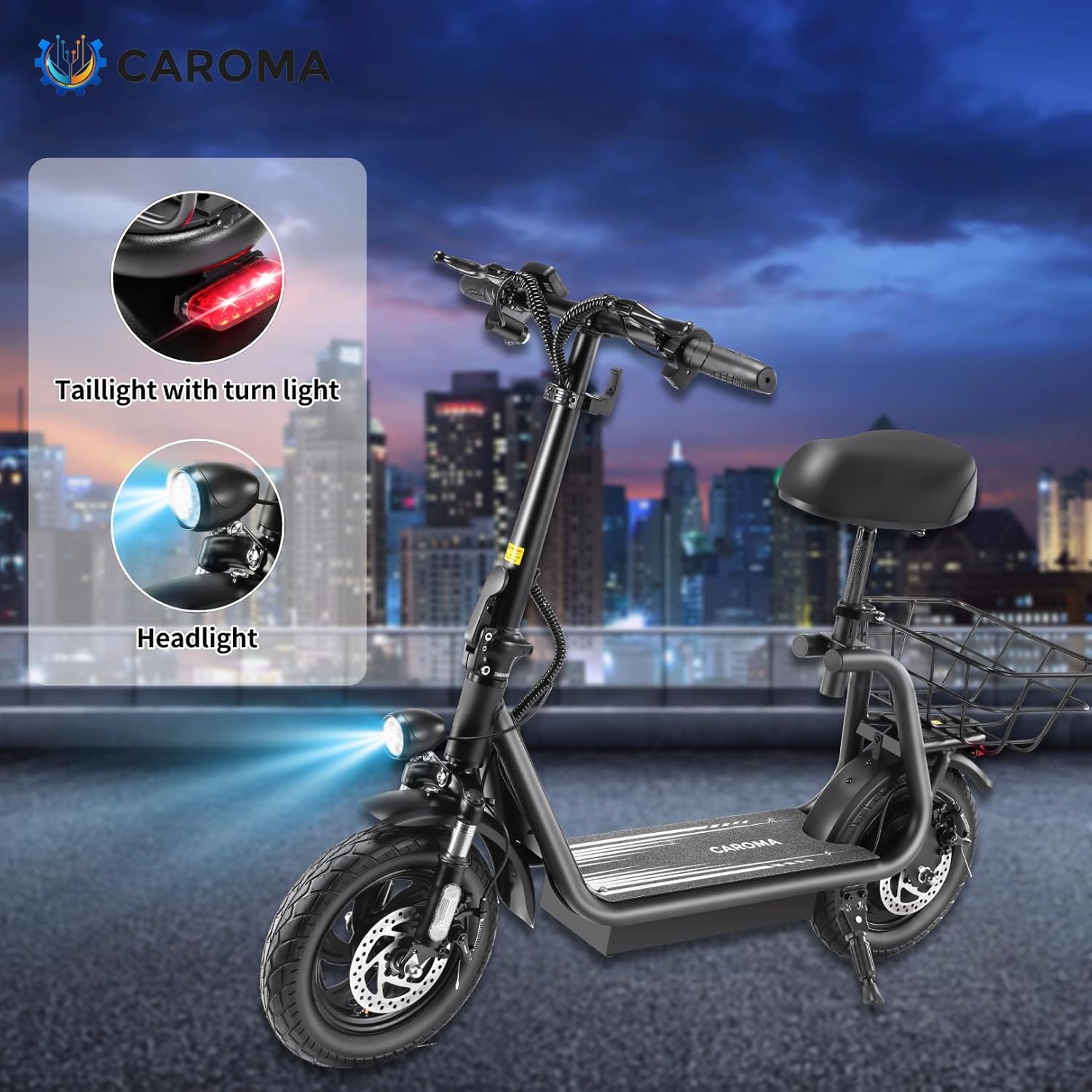

Figure 3: Illustration of the bright headlight and taillight for safe night riding.

5.4 Тормоздоо системасы

The scooter features effective front and rear disc brakes, providing excellent stability and control for reliable stopping.

Figure 4: Close-up of the 12-inch pneumatic tires and dual disc braking system.

5.5 Ташып жүрүү жана сактоо

Designed for convenience, the scooter has a foldable handlebar and a detachable rear basket, making it easy to store and transport. A convenient handlebar hook provides additional storage space for bags.

Figure 5: ашыкview of key features including foldable design and storage options.

6. Иштөө нускамалары

1. Күйгүзүү/өчүрүү: Insert the key into the ignition located on the handlebar and turn it to the ON position. The HD LED display will illuminate. To turn off, turn the key to the OFF position.
2. Ылдамдык режимдери: Use the mode button on the display to cycle through the three speed modes:
   • Эко режими: Maximum speed of 7 mph (for energy efficiency).
   • Тур режими: Maximum speed of 13 mph (for balanced performance).
   • Спорт режими: Maximum speed of 20 mph (for maximum performance).
3. Ылдамдатуу: Gently twist the half-twist throttle on the right handlebar to accelerate.
4. Тормоздоо: Squeeze the brake levers on both handlebars to engage the front and rear disc brakes. The rear brake light will illuminate when brakes are applied.
5. Жарыктар: Press the red button on the handlebar to turn the headlight on or off. The rear brake light activates automatically when braking.
6. Мүйүз: Press the green button on the left handlebar to activate the horn.

7. Техникалык тейлөө

• Шина басымы: Regularly check the pressure of the pneumatic tires. The recommended pressure is usually indicated on the tire sidewall.
• Тормозду тууралоо: If brakes feel loose or squeaky, they may require adjustment. Refer to the toolkit instructions or consult a professional.
• Тазалоо: Жарнама колдонууamp cloth to clean the scooter. Avoid using high-pressure water jets directly on electrical components.
• Сактагыч: When not in use for extended periods, store the scooter in a dry, cool place. Ensure the battery is charged to at least 50% before storage.

8. Кыйынчылыктарды

• Скутер күйбөй жатат: Ensure the key is fully inserted and turned to the ON position. Check the battery level on the display.
• Батарея кубатталбай жатат: Verify that the power adapter is correctly connected to both the scooter and a working power outlet. Check the charging port for any obstructions.
• Loss of power during ride: This may indicate a low battery. Check the battery level and recharge if necessary.
• Brakes squeaking or ineffective: Brakes may need adjustment. Refer to the assembly instructions or seek professional assistance.

9. Техникалык шарттар

10. Кепилдик жана колдоо

The Caroma Peak Electric Scooter Q3 is UL 2272 certified, ensuring safety standards. It comes with a 12-month warranty for the commuter scooter. For any problems or inquiries, please do not hesitate to contact customer support.

Электрондук почта колдоо: caromaservices@outlook.com
