Essebagno Esserain Kitchen Faucet with Pull-Out Spray Instruction Manual

Model: Esserain

1. Киришүү

Thank you for choosing the Essebagno Esserain kitchen faucet. This chrome mixer is designed with a 4-jet pull-out spray and an innovative swivel joint to ensure extended hose life and adaptability to your needs. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet, ensuring its longevity and optimal performance.

Негизги өзгөчөлүктөрү:

  • Anti-limescale aerator: Limits limescale buildup for consistent water flow.
  • Water saving: Maximum flow rate between 6 and 11 liters/min.
  • Энергияны үнөмдөө: Cartridge with flow limiter, offering 2 positions and flow speeds (normal and economic).
  • ESSEFIX System: Жөнөкөй, куралсыз орнотуу.
  • 4-Jet Pull-Out Spray: Versatile spray options for various kitchen tasks.

2. Орнотуу жана орнотуу

Proper installation is crucial for the optimal functioning and longevity of your Essebagno Esserain faucet. Please follow these steps carefully.

Орнотуу кадамдары:

  1. Сантехниканы даярдоо: Before proceeding with assembly, thoroughly flush the hot and cold water pipes to prevent dirt and residue from compromising the proper functioning of the faucet.
  2. Эски кранды алып салуу: After shutting off the main water supply, carefully remove the old faucet.
  3. Таза байланыштар: Thoroughly clean the threads of the main water supply pipes.
  4. Install New Faucet: Install the kitchen mixer into a 35 mm hole in a sink or countertop. The ESSEFIX system allows for easy, tool-free fastening.
  5. Verify Spout Length: Check that the length of the spout is compatible with your sink. Refer to the technical drawing for dimensions.
Technical drawing of Essebagno Esserain faucet with dimensions

Figure 2.1: Technical drawing showing the dimensions of the Essebagno Esserain faucet. Total height: 348mm, Height under spout: 311mm, Width (spout exit to body axis): 250mm, Base diameter: 52mm.

3. Иштөө нускамалары

Your Essebagno Esserain faucet is designed for ease of use and versatility. It features a single lever handle for temperature and flow control, and a pull-out spray head with multiple jet options.

Суунун агымы жана температурасын көзөмөлдөө:

  • The single metal handle controls both water flow and temperature. Lift the handle to increase flow and move it left for hot water, right for cold water.
  • The ceramic disc cartridge (35 mm) ensures smooth operation and durability.
  • The faucet includes an energy-saving feature with a flow limiter, offering two positions for normal and economic flow rates.

Pull-Out Spray with 4 Jets:

The pull-out spray head offers four distinct spray patterns to suit various kitchen tasks. A button on the spray head allows you to switch between modes.

Essebagno Esserain faucet showing 4 different spray patterns

Figure 3.1: ашыкview of the 4 spray positions available on the pull-out spray head.

Close-up of the Essebagno Esserain faucet spray head with water flowing in a wide, shower-like pattern.

Figure 3.2: Wide, shower-like spray pattern, ideal for rinsing large areas.

Close-up of the Essebagno Esserain faucet spray head with water flowing in a single, aerated stream.

Figure 3.3: Single, aerated stream, suitable for filling pots.

Close-up of the Essebagno Esserain faucet spray head with water flowing in a wide, flat stream.

Figure 3.4: Wide, flat stream, useful for scraping or cleaning.

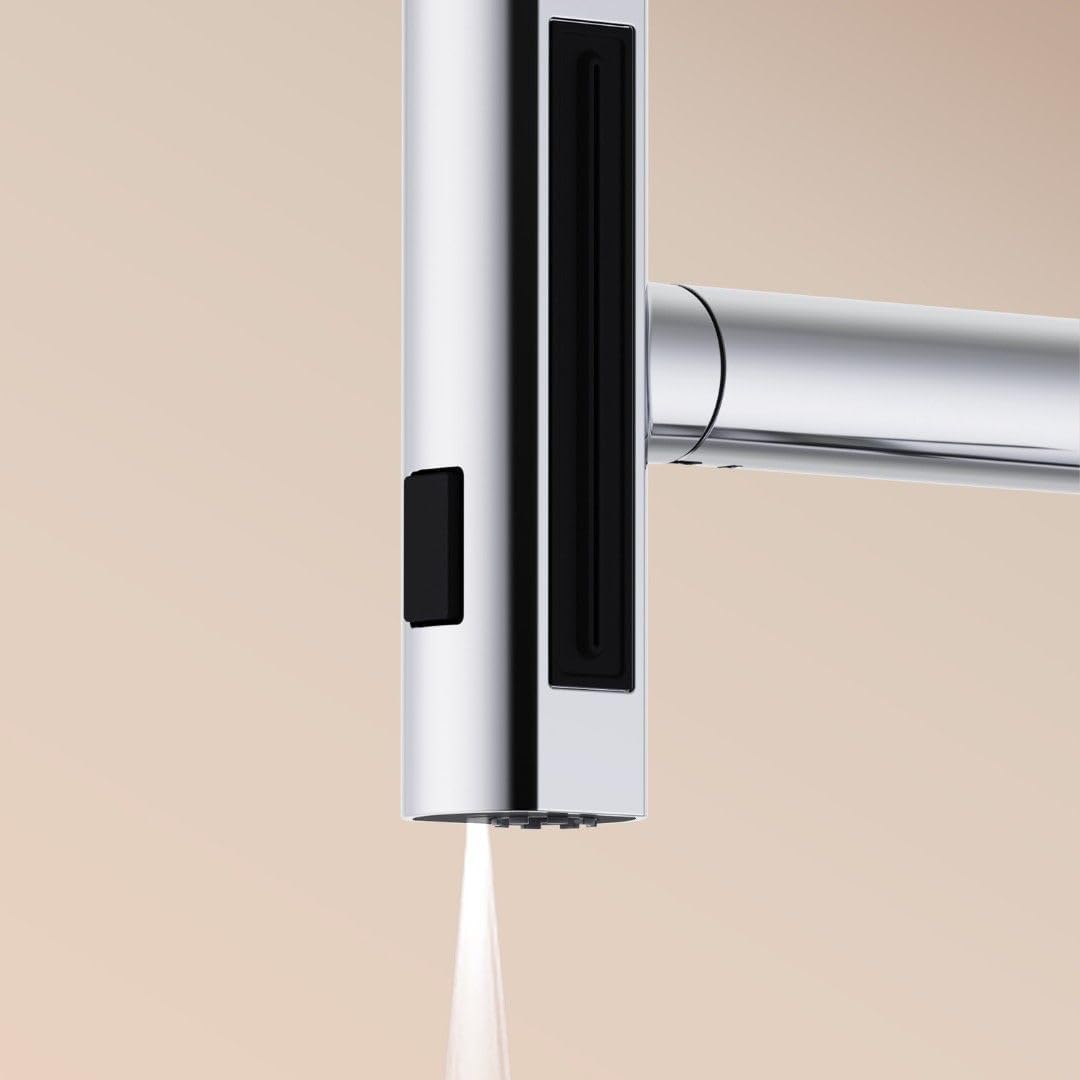

Close-up of the Essebagno Esserain faucet spray head with water flowing in a concentrated, powerful jet.

Figure 3.5: Concentrated, powerful jet, for stubborn cleaning tasks.

4. Техникалык тейлөө жана кам көрүү

Regular cleaning and proper care will help maintain the chrome finish and ensure the long-term performance of your Essebagno Esserain faucet.

Тазалоо көрсөтмөлөрү:

  • To keep your faucet in the best possible condition, ideally clean it daily with a non-abrasive damp кездеме же микрофибр кездеме.
  • Finish by wiping dry with a microfiber cloth or a dry cloth to prevent water spots.

Маанилүү эскертүүлөр:

ЭЧ КАЧАН use the following on the product:

  • Эриткичтер
  • Metallic sponges
  • агартуучу
  • Кислоталар
  • Күчтүү жуугучтар
  • Aggressive chemical cleaning products
  • Solvent-based cleaning solutions

5. Кыйынчылыктарды

This section provides general guidance for common issues. For more complex problems, please contact customer support.

Жалпы маселелер жана чечимдер:

  • Төмөн суунун агымы:
    • Check if the main water supply valves are fully open.
    • Clean the aerator for any mineral buildup or debris.
    • Ensure the water lines are not kinked or obstructed.
  • Leaking from Spout/Handle:
    • Ensure all connections are tightened properly during installation.
    • A worn-out cartridge might be the cause; contact support for replacement parts.
  • Spray режимдерин алмаштыруу кыйынчылыгы:
    • Rinse the spray head thoroughly to remove any debris that might be obstructing the mechanism.

6. Продукттун спецификациялары

Detailed specifications for the Essebagno Esserain kitchen faucet.

ӨзгөчөлүкDescription
Продукт түрүKitchen Mixer Faucet with Pull-Out Spray
ТүсChrome
СтильЗаманбап
БүтүрүүЖылмаланган
МатериалBrass (Body), Metal (Handle)
сүйлөйсүз Бийиктиги31.1 cm (Height under spout)
Жалпы бийиктик348 мм
Spout Reach250 mm (Width from water outlet to body axis)
Негизги диаметри52 мм
Handle PositionСолго
Туткалардын саны1
ӨзгөчөлүктөрWater-saving system, Anti-limescale aerator, ESSEFIX easy installation
Механизм35 mm Ceramic Disc Cartridge
Камтылган компоненттерInstruction Manual, Braided Stainless Steel Supply Hoses
СертификацияACS (Accreditation of Sanitary Conformity)

7. Кепилдик маалыматы

ESSEBAGNO provides the following warranty for your Esserain kitchen faucet:

  • Faucet Body: Guaranteed for 5 years from the date of purchase.
  • Кийилүү бөлүктөрү: Components such as the handle, cartridge, and flexible hoses are guaranteed for 2 years from the date of purchase.

Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.

8. Кардарларды колдоо кызматы

For further assistance, technical support, or warranty claims, please contact ESSEBAGNO customer service.

You can also visit the official ESSEBAGNO store on Amazon for more information and products: ESSEBAGNO Amazon Store
