1. Продукт бүтүп калдыview
This manual provides instructions for the installation and maintenance of the Hooke Road Flux Tube Fender Flares Kit, designed specifically for Jeep Gladiator JT models from 2020 to 2025. These fender flares are engineered to enhance vehicle protection and appearance, offering increased tire clearance and defense against trail debris.

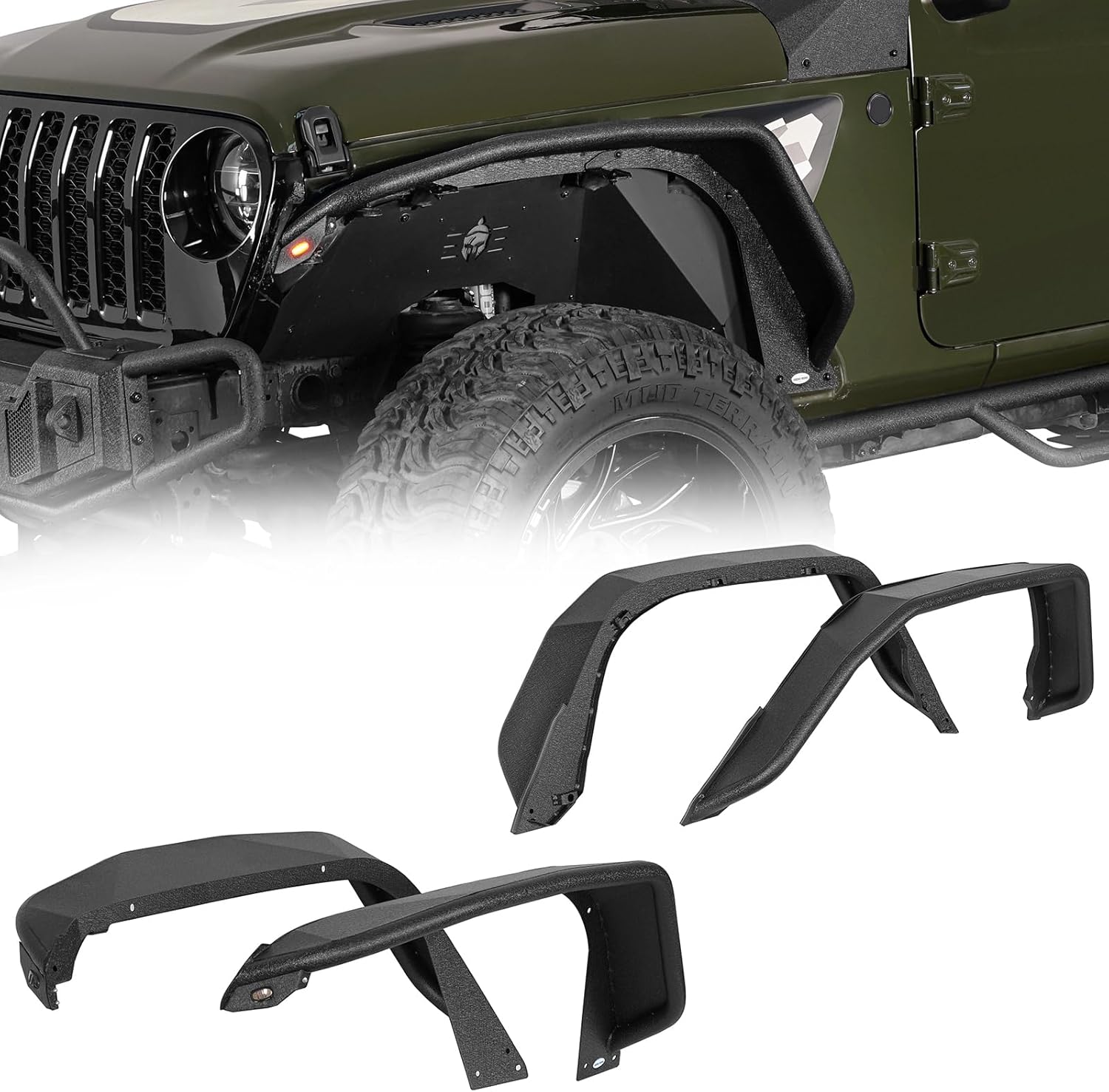

Сүрөт 1.1: Бүттүview of the Hooke Road Flux Tube Fender Flares Kit, showing both installed and individual components.
2. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз.
- 4 × Fender Flares (2 Front, 2 Rear - Passenger and Driver Sides)
- Монтаждоочу аппараттык комплект
- Орнотуу инструкциясы
Image 2.1: Front Fender Flares.
Image 2.2: Rear Fender Flares.
3. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Колдонмо | 2020-2025 Jeep Gladiator JT |
| Материал | 1.5" diameter × 0.06" thick steel tube, 16-gauge (1/16 inch) and 11-gauge (1/8 inch) steel plate |
| Бүтүрүү | Textured black powder coat with E-coating process |
| Front Fender Width | 6.6 дюйм |
| Rear Fender Width | 5.7 дюйм |
| Интегралдык жарыктандыруу | Amber turn signal lights (front flares) |
| Болжолдуу Салмагы | 75 фунт |
| Модель номери | BXG.7021AB-1 |
Image 3.1: Construction details of the fender flares, showing steel tube and plate components.
Image 3.2: Two-stage finish for corrosion resistance, including E-coat and textured black powder coat.
Image 3.3: Fender flare width measurements.
4. Орнотуу боюнча нускамалар
Professional installation is recommended. Ensure the vehicle is parked on a level surface with the engine off and parking brake engaged. Disconnect the vehicle's battery before starting any electrical work.
- Даярдоо: Remove the factory fender flares and the existing inner fender liners from your Jeep Gladiator JT.
- Позициялоо: Carefully position the new Hooke Road Flux Tube Fender Flares onto the vehicle. Ensure proper alignment with the mounting points.
- Коопсуз орнотуу: Use the provided mounting hardware to bolt the fender flares into place. A hand rivet nut tool is included for inserting rivet nuts into designated mounting holes. Tighten all bolts securely, but do not overtighten.
- Wiring for Turn Signals (Front Flares Only): The front fender flares are equipped with amber turn signal lights. Connect the wiring for these lights to your vehicle's existing turn signal circuit. Consult your vehicle's service manual for specific wiring diagrams if needed. Ensure all connections are secure and properly insulated.
- Inner Fender Liners: These fender flares are designed to fit perfectly with Hooke Road inner fender liners (sold separately). If using aftermarket or factory inner fender liners, ensure they do not interfere with the new flares.
- Акыркы текшерүү: After installation, verify that all flares are securely attached and that the turn signal lights function correctly.
Image 4.1: Front fender flare with integrated amber turn signal light.
Image 4.2: Front fender flare installed.
Image 4.3: Rear fender flare installed.
5. Операция
The primary function of these fender flares is to provide increased tire clearance and protection. The front fender flares include integrated amber turn signal lights. These lights operate in conjunction with your vehicle's existing turn signal system once properly wired during installation.
- Turn Signal Activation: The amber lights will activate when the vehicle's turn signals are engaged, providing additional visibility.
- Off-Road Clearance: The upward-angled design increases tire clearance, which is beneficial for off-road articulation and accommodating larger tires.
Image 5.1: Increased tire clearance provided by the fender flares.
6. Техникалык тейлөө
To ensure the longevity and appearance of your Hooke Road Flux Tube Fender Flares, follow these maintenance guidelines:
- үзгүлтүксүз тазалоо: Clean the fender flares regularly with mild soap and water to remove dirt, mud, and road grime. Avoid abrasive cleaners or harsh chemicals that could damage the powder coat finish.
- Зыянды текшерүү: Periodically inspect the flares for any signs of damage, such as chips, scratches, or dents, especially after off-road use. Touch up any damaged areas of the powder coat to prevent rust.
- бекиткичтерди текшерүү: Regularly check all mounting bolts and fasteners to ensure they remain tight. Vibrations from driving, especially off-road, can cause fasteners to loosen over time.
- Электр байланыштары: For the front turn signal lights, periodically inspect the wiring connections for corrosion or damage. Ensure they remain secure and waterproof.
7. Кыйынчылыктарды
Орнотуу учурунда же андан кийин көйгөйлөргө туш болсоңуз, төмөндөгүлөрдү карап көрүңүз:
- Flares Not Fitting Correctly: Double-check that the factory fender flares and inner liners have been completely removed. Ensure the new flares are correctly oriented (front/rear, driver/passenger side) and aligned with the vehicle's mounting points.
- Turn Signal Lights Not Working:
- Verify that all electrical connections are secure and properly wired to the vehicle's turn signal circuit.
- Check for blown fuses in the vehicle's fuse box related to the turn signals.
- Ensure the vehicle's battery is reconnected and fully charged.
- Loose Flares: Re-tighten all mounting hardware. If issues persist, inspect the mounting points on the vehicle and the flares for any damage or deformation.
8. Кепилдик жана колдоо
The Hooke Road Flux Tube Fender Flares Kit is backed by a 2 жылдык өндүрүүчү кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.
For warranty claims, technical assistance, or any product-related inquiries, please contact Hooke Road customer support. Lifetime customer support is provided to ensure your satisfaction.
Кошумча жардам алуу үчүн, сураныч, баш багыңыз Hooke Road Store.
