NEXTORCH TA22 Tactical EDC Flashlight Penlight User Manual

1. Киришүү

The NEXTORCH TA22 is a compact and powerful tactical penlight designed for a variety of applications, from everyday carry (EDC) to law enforcement and security. It combines portability with robust performance, offering multiple lighting modes and durable construction to withstand challenging environments. This manual provides detailed instructions on setup, operation, maintenance, and specifications to ensure optimal use of your TA22 flashlight.

Key features include: Instant access to Tactical, Duty, and Lock-out modes; 850 lumens brightness with a 95-meter beam distance; IPX8 waterproofing and 2-meter impact resistance; a 4-level LED battery indicator; and an emergency ceramic bezel for window breaking.

2. Продукт бүтүп калдыview

2.1-сүрөт: The NEXTORCH TA22 Tactical EDC Flashlight, shown with its included USB-C charging cable and lanyard. This image highlights the compact size and sleek black aluminum body of the penlight, ready for use.

2.2-сүрөт: Бүттүview of the NEXTORCH TA22, emphasizing its multi-mode, high-brightness capabilities. Key features such as variable frequency one-step strobe, USB-C charging, battery indicator, and nano-ceramic strike bezel are highlighted.

2.3-сүрөт: The TA22 showcasing its powerful 850 lumens output and 95-meter beam distance in an outdoor setting. This illustrates the flashlight's ability to provide significant illumination over a considerable range, setting a new brightness benchmark for penlights.

The TA22 features a durable aluminum body, ensuring a lightweight yet robust construction. Its pen-shaped design allows for easy and discreet carry in a pocket or gear. The overall dimensions are 5.8"D x 0.6"W x 0.6"H, and it weighs approximately 3.84 ounces, making it highly portable for daily use.

3. Орнотуу

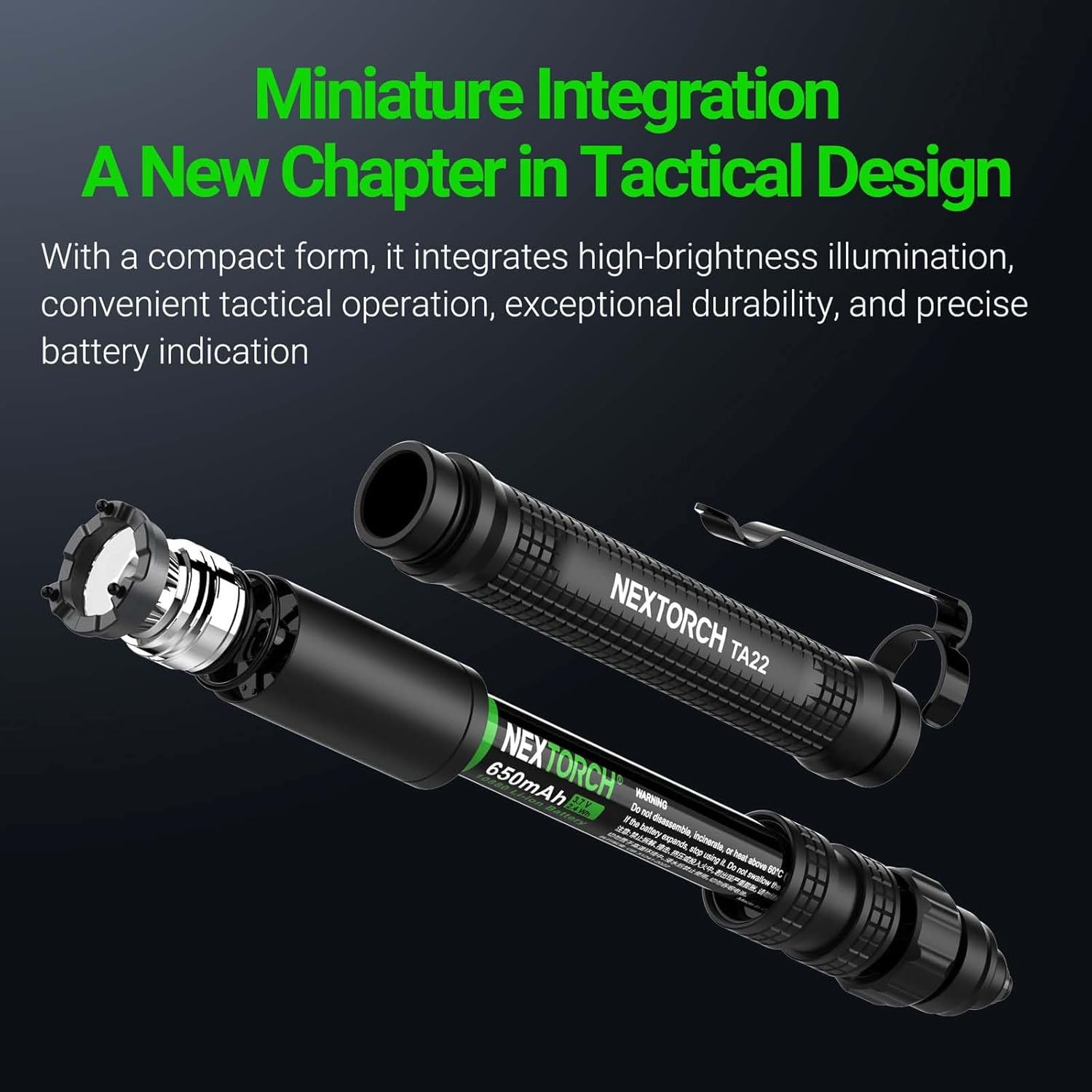

3.1-сүрөт: А жарылды view of the NEXTORCH TA22, illustrating its internal components and the removable battery. The design emphasizes miniature integration for high performance in a compact form factor.

3.1 Батареяны орнотуу

The TA22 uses a specialized 10880 Li-ion battery. To install or replace the battery, twist the head of the flashlight counter-clockwise to open the compartment. Insert the battery with the positive (+) end facing towards the head of the flashlight. Securely twist the head back on clockwise until fully tightened.

3.2 Заряддоо боюнча нускамалар

The included 10880 Li-ion battery features a built-in USB-C charging port. To charge, remove the battery from the flashlight and connect it directly to a USB-C cable. The battery indicator light on the battery itself will show charging status:

• Red Light (Constant On): Кубатталууда.
• Blue Light (Constant On): Толугу менен заряддалган.

3.2-сүрөт: Illustration of the USB-C charging process for the NEXTORCH TA22's 10880 Li-ion battery. The image shows the battery connected to a power bank, with indicator lights for charging status.

4. Иштөө режимдери

4.1-сүрөт: Detailed illustration of the NEXTORCH TA22's multi-mode design, showing how to rotate the flashlight head to select between LOCK, DUTY, and TAC modes.

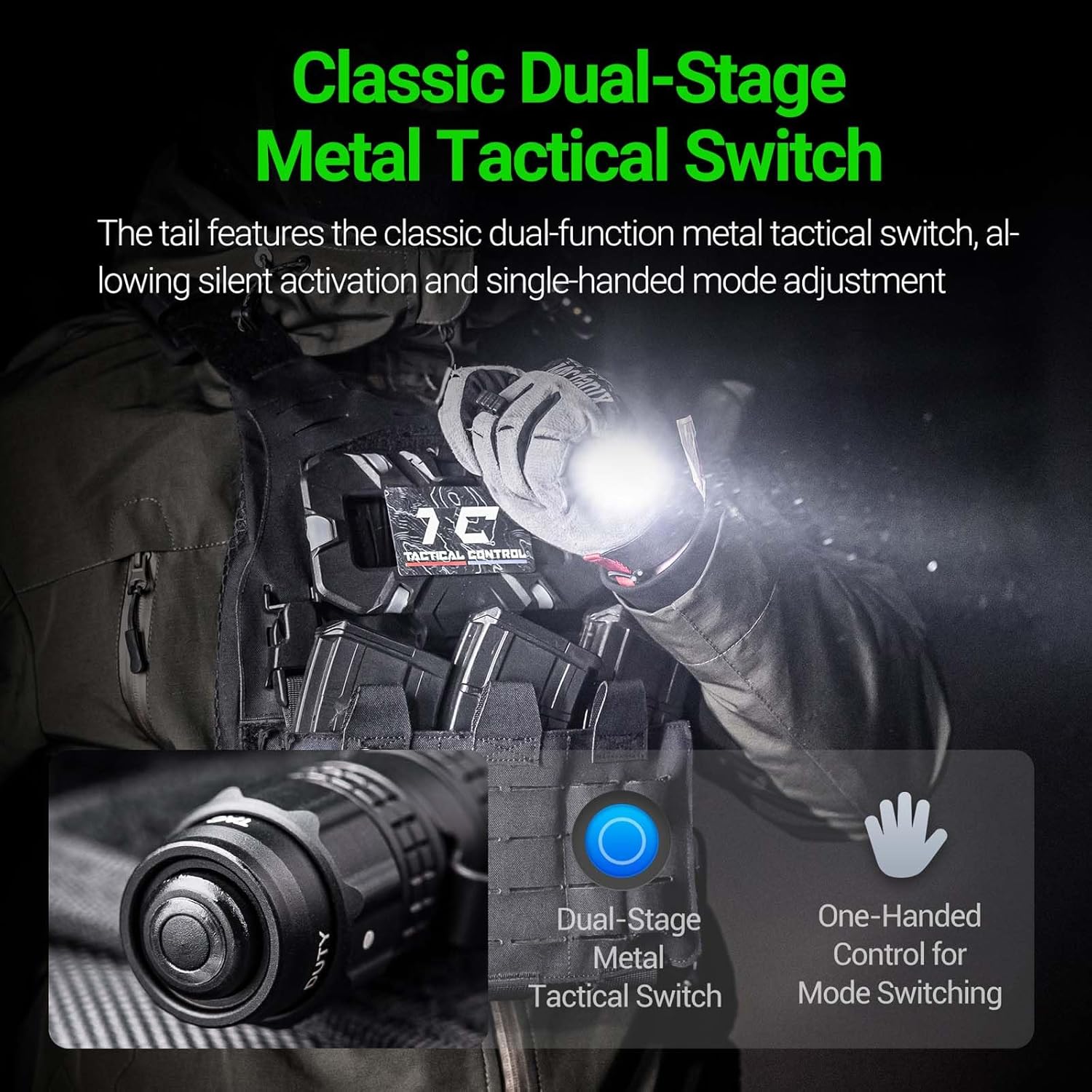

4.2-сүрөт: Close-up of the TA22's classic dual-function metal tactical switch located at the tail. This switch allows for silent activation and single-handed mode adjustment, crucial for tactical applications.

4.1 Режимди тандоо

The TA22 features a unique rotating head design that allows for quick and intuitive mode selection between three primary settings: LOCK Mode, DUTY Mode, жана TAC Mode.

• БУЛГУТУУ режими: Prevents accidental activation. The flashlight will not turn on in this position.
• DUTY Mode: Designed for general use. Half-press the tail switch for momentary-on. Full-press for constant-on, then half-press to toggle through brightness modes (Low, Medium, High).
• TAC режими: Optimized for tactical applications. Half-press for momentary-on at 850 lumens. Full-press for a one-step strobe at 850 lumens.

4.2 Brightness Levels & Strobe

The TA22 offers the following brightness levels and a strobe function:

• Төмөн: 15 lumens (for extended runtime or close-up tasks).
• Орточо: 150 lumens (for general illumination).
• Жогорку: 850 lumens (for maximum brightness and throw).
• Строб: 850 lumens (for disorienting or signaling in tactical mode).

4.3 Батарея көрсөткүчү

The tail switch features a 4-level LED battery indicator that lights up for 2 seconds when the flashlight is turned on or off, providing real-time battery status:

• Blue Light (75% - 100%): High battery.
• Blue Light Flashing (50% - 75%): Орточо кубаттуулуктагы батарея.
• Red Light (25% - 50%): Батарея аз.
• Red Light Flashing (0% - 25%): Critical battery, recharge soon.

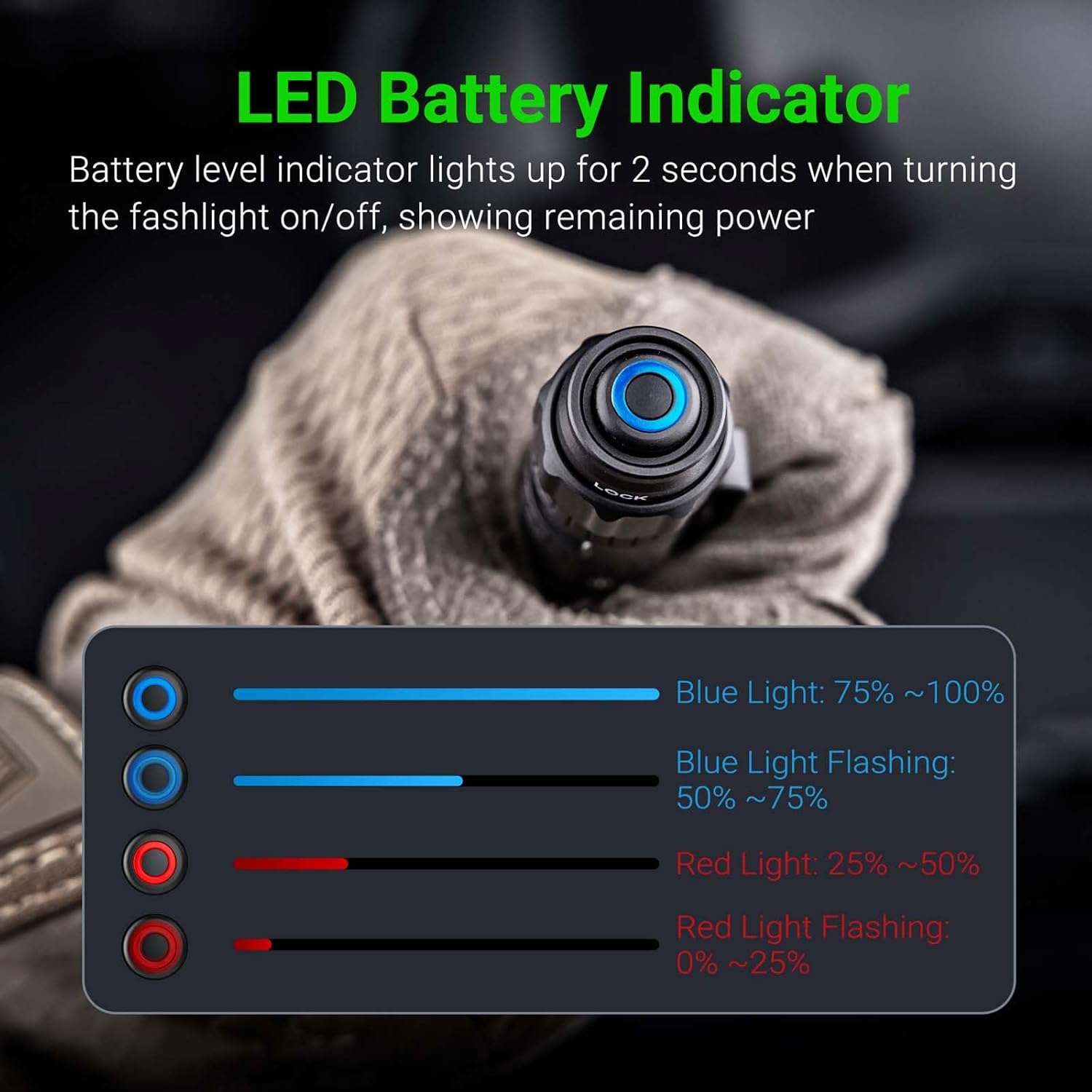

4.3-сүрөт: Visual guide to the TA22's 4-level LED battery indicator, located on the tail switch. The illustration shows different light colors and patterns corresponding to various battery charge levels.

5. Техникалык тейлөө

5.1 Жалпы кам көрүү

The NEXTORCH TA22 is built with IPX8 waterproofing, allowing it to be submerged in 2 meters of water for up to 30 minutes, and has a 2-meter impact resistance. To maintain its performance, ensure the O-rings are clean and lubricated. Avoid prolonged exposure to extreme temperatures outside of its operating range (-20°C to 40°C).

5.1-сүрөт: The TA22 demonstrating its ability to operate stably in extreme temperatures, from intense heat to freezing cold. This highlights the flashlight's robust construction and reliable performance in diverse environmental conditions.

5.2 Батареяга кам көрүү

Fully charge the battery before first use. If the flashlight is left unused for a long time, recharge it every three months to maintain battery health. If the waterproof O-ring is damaged, replace it immediately to prevent water ingress.

6. Кыйынчылыктарды

6.1 Mode Switching Difficulty

If you experience difficulty switching between modes, ensure the rotating head is clean and free of debris. Apply a small amount of silicone grease to the O-rings if the rotation feels stiff.

6.2 Батареянын төмөн көрсөткүчү

If the red light flashes, indicating a critical battery level, recharge the battery immediately to avoid performance degradation or damage to the battery's lifespan.

6.3 Emergency Use

The TA22 is equipped with an emergency ceramic bezel designed for window breaking. In emergency situations, firmly press the bezel against the window to break the glass for escape or access.

7. Техникалык шарттар

8. Кутуда эмне бар

• NEXTORCH TA22 Flashlight
• 10880 Li-ion Battery (pre-installed)
• USB-C заряддоо кабели
• Lanyard
• User Manual

9. Кепилдик жана колдоо

NEXTORCH offers a TEN YEARS WARRANTY for the TA22 flashlight, covering defects in workmanship and/or materials. This warranty excludes other accessories and rechargeable batteries, which are warranted for 1 year from the date of purchase. For warranty claims or product support, please contact NEXTORCH Flashlight directly.

Visit the official NEXTORCH store on Amazon for more products and support: NEXTORCH Store
