NOBLEX NV OS 1x23 Reflex Sight for Glock MOS

Introduction

The NOBLEX NV OS 1x23 Reflex Sight is designed for precise target acquisition, specifically optimized for Glock firearms equipped with the Modular Optic System (MOS). Its integrated, flat design allows for simultaneous use of standard mechanical sights (co-witness). This manual provides essential information for the proper setup, operation, and maintenance of your NOBLEX NV OS sight.

Эмне камтылган

Upon opening the packaging, please verify that all the following components are present:

• NOBLEX NV OS 1x23 Reflex Sight
• ABS Standby Protection Cap
• Rubber Transport Cap (Silicone Cover)
• Torx бурагыч
• Lithium Battery CR 1220
• Noblex Optics Cleaning Cloth
• Монтаждоо бурамалар

Image: The NOBLEX NV OS 1x23 Reflex Sight, a compact black unit with a green-tinted lens and the NOBLEX owl logo.

Техникалык шарттар

Жайгашуу

1. Батареяны орнотуу

The NOBLEX NV OS sight uses a CR 1220 lithium battery. To install or replace the battery:

1. Locate the battery compartment on the underside of the sight.
2. Use the flat end of the provided installation tool to carefully open the battery cover.
3. Insert the CR 1220 battery with the positive (+) side facing up.
4. Replace the battery cover and secure it using the installation tool.

2. Mounting on Glock MOS

The NOBLEX NV OS is designed for direct integration with Glock MOS slides. Ensure your Glock model is compatible (not compatible with subcompact models like Glock 43X and 48).

1. Ок атуучу куралдын бошотулганын жана коопсуз экенин текшериңиз.
2. Remove the appropriate MOS plate from your Glock slide.
3. Align the NOBLEX NV OS sight with the MOS cut on the slide.
4. Use the provided mounting screws and Torx screwdriver to securely attach the sight to the slide. Do not overtighten.

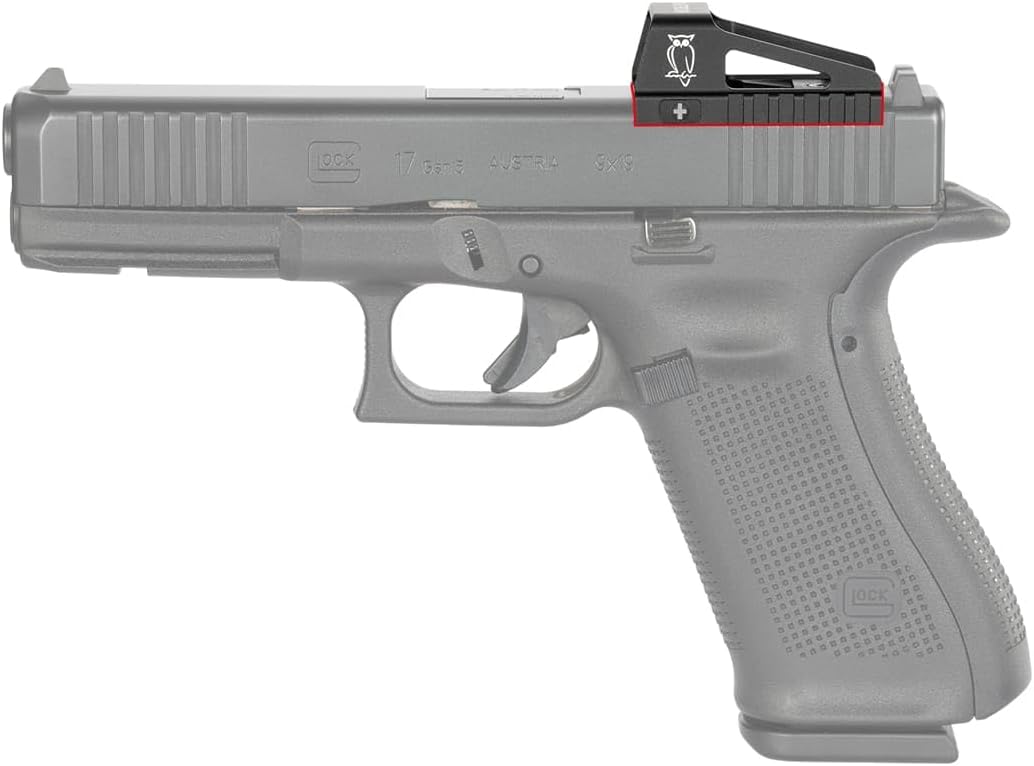

Image: The NOBLEX NV OS sight mounted on a Glock MOS slide, showing its low-profile integration and co-witness capability with the iron sights.

Иштөө нускамалары

1. Күйгүзүү/өчүрүү

• To turn on the sight: Briefly press the '+' button.
• To turn off the sight: Press and hold the '-' button for approximately 3 seconds.

2. Жарыкты жөндөө

The NOBLEX NV OS features automatic brightness control that adjusts to ambient light conditions. You can also manually override this setting:

• To increase brightness: Briefly press the '+' button.
• To decrease brightness: Briefly press the '-' button.
• To reactivate automatic brightness control: Press and hold the '+' button for approximately 3 seconds.

Сүрөт: А view through the NOBLEX NV OS sight, showing the clear green 4 MOA dot reticle.

3. Windage and Elevation Adjustment

Adjustments for windage and elevation are located on the sight's body. Use the provided Allen key flathead tool for precise adjustments.

• Windage adjustment: Typically located on the side of the sight.
• Elevation adjustment: Typically located on the top or rear of the sight.

Each click of the adjustment screw corresponds to a specific change in point of impact. Refer to the sight's specifications for precise click values.

Техникалык тейлөө

1. Линзаларды тазалоо

To maintain optimal clarity, regularly clean the objective and ocular lenses:

• Gently brush away any loose dust or debris using a soft lens brush or compressed air.
• Apply a small amount of lens cleaning solution to the provided Noblex optics cleaning cloth.
• Wipe the lens surfaces in a circular motion, starting from the center and moving outwards.
• Avoid using abrasive materials or excessive pressure, which can scratch the lens coatings.

2. Protecting the Sight

When not in use, protect your NOBLEX NV OS sight from dust, debris, and impact:

• Use the included ABS standby protection cap or the full rubber transport cap (silicone cover) to cover the sight. The silicone cover provides a full seal to protect against dust and minor impacts.
• Store the sight in a dry, cool place away from direct sunlight and extreme temperatures.

Сүрөт: каптал view of the NOBLEX NV OS sight, highlighting the NOBLEX owl logo and the compact design.

Проблемаларды чечүү

1. Reticle Not Visible or Dim

• Батареяны текшерүү: Ensure the CR 1220 battery is correctly installed and has sufficient charge. Replace if necessary.
• Жарыктыкты жөндөө: Manually increase the brightness using the '+' button. If the automatic brightness control is active, try deactivating and manually adjusting.
• Таза сенсор: Ensure the ambient light sensor (if visible) is not obstructed or dirty.

2. Inaccurate Point of Impact

• Нөлдөө: Perform a proper zeroing procedure at your desired distance (e.g., 25 meters for parallax-free performance).
• Монтаждоо коопсуздугу: Check that the sight is securely mounted to the Glock MOS slide and that all screws are tightened to the recommended torque.
• Ammunition Consistency: Ensure consistent ammunition is used for accurate zeroing and shooting.

3. Sight Not Turning On

• Батареяны текшерүү: Verify battery installation and charge. Try a new battery.
• Колдоо кызматы менен байланышуу: If the issue persists after checking the battery, contact NOBLEX customer support for further assistance.

Кепилдик жана колдоо

Кепилдик маалымат

The NOBLEX NV OS 1x23 Reflex Sight is backed by a 30 Year TAC Warranty. This warranty covers manufacturing defects and ensures long-term reliability of your product. Please retain your proof of purchase for warranty claims.

Кардарларды колдоо

For any questions, technical assistance, or warranty claims, please contact NOBLEX customer support through their official website or the retailer where the product was purchased. Provide your product model number (NV OS 1x23 for Glock MOS) and serial number (S/N: 2024100617) when contacting support for efficient service.
