1. Киришүү
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Beetronics 12HB9M/U1 12-inch high brightness touchscreen monitor. This industrial-grade display features Full HD 1920x1080 resolution, a high brightness IPS panel, and a capacitive multi-touch panel with 10-point touch support. Its IP66-rated front panel ensures protection against dust and water, making it suitable for various demanding environments.

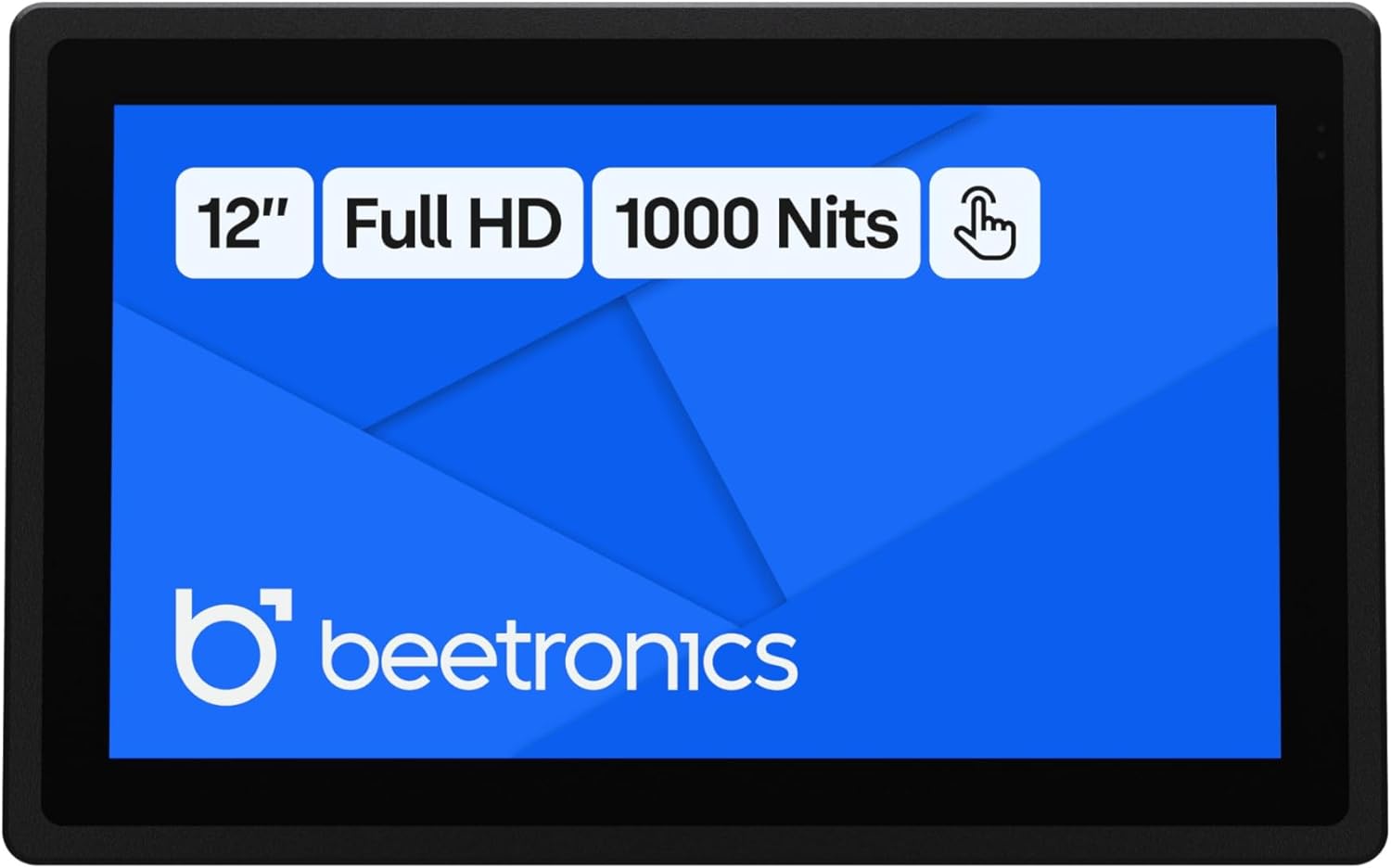

Сүрөт 1: Алдыңкы view of the Beetronics 12HB9M/U1 monitor, highlighting its 12-inch Full HD display, 1000 Nits brightness, and touch functionality.
Figure 2: ашыкview of the Beetronics 12HB9M/U1 monitor, emphasizing its Full HD resolution, 1000 Nits brightness, and touchscreen capabilities.
2. Кутуда эмне бар
Орнотууну улантуудан мурун бардык компоненттер бар экенин текшериңиз.
- Power Cord and Power Supply
- USB C to USB C Cord
- USB C to USB A Cord
- Алыстан башкаруу
- Panel Mounting Clips (8x)

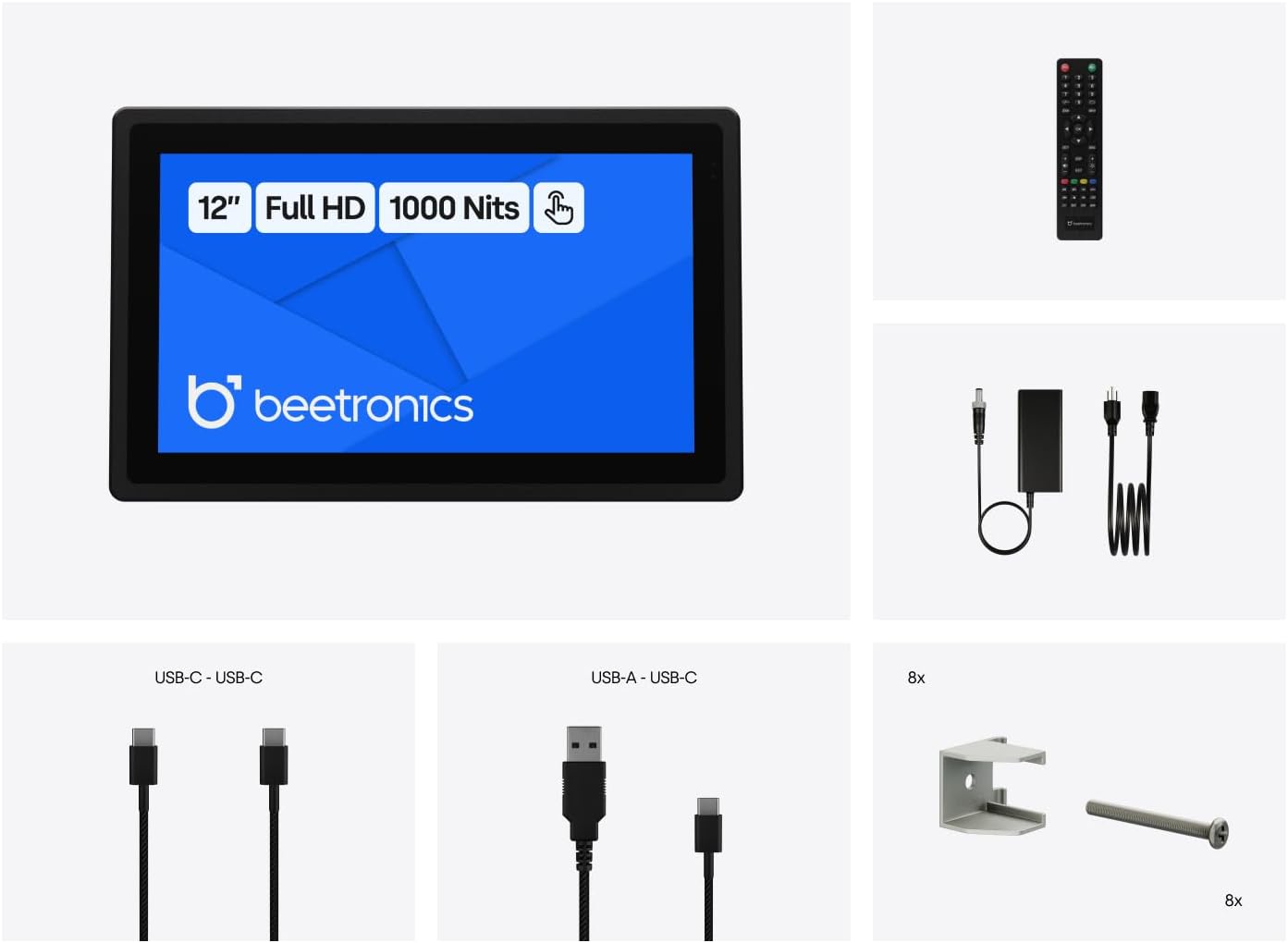

Figure 3: All items included in the product packaging: monitor, power supply, USB cables, remote control, and panel mounting clips.
3. Орнотуу
3.1 Физикалык орнотуу
The 12HB9M/U1 monitor offers versatile installation options, including desktop, wall-mounted, or panel-mounted configurations. Its compact dimensions are 12.0 x 7.6 x 1.6 inches.
Figure 4: Dimensional drawing of the Beetronics 12HB9M/U1 monitor, showing its width of 305mm and height of 192mm.
Figure 5: Illustration of how the panel mounting clips are used to secure the monitor into an enclosure.
3.2 Мониторду туташтыруу
The monitor features multiple connectivity ports for video input and touch functionality.
6-сүрөт: Детальдуу view of the monitor's rear ports, including AUX in/out, USB-C, VGA, DisplayPort, HDMI, and 5.5mm DC power input.
Figure 7: Rear panel of the monitor showing control buttons (ON/OFF, -, MENU, AUTO, +) and port labels.
- Кубат туташуу: Connect the provided power supply to the 5.5mm DC input port on the monitor. The monitor supports a wide input voltag9-36V диапазону.
- Video Input: Connect your source device (PC, Mac, Linux system) to one of the following video input ports:
- HDMI
- Дисплей порту (DP)
- USB-C (for video and touch data)
- VGA
- Тийүү функциясы: For touch functionality, connect the monitor to your source device using either the provided USB-C to USB-C cable or the USB-C to USB-A cable. This connection enables the 10-point capacitive touch interface.
- Аудио: Use the AUX in/out ports for audio connections if required.
4. Иштөө нускамалары
4.1 Күйгүзүү/өчүрүү
басыңыз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button located on the rear of the monitor or use the remote control to power the unit on or off.
4.2 Меню Навигациясы
колдонуу МЕНЮ button to access the On-Screen Display (OSD) menu. Navigate through options using the + жана - баскычтар. The АВТО button can be used for automatic image adjustment (VGA only) or as a selection/exit button in the OSD.
4.3 Сенсордук экрандын иштеши
Once connected via USB, the capacitive multi-touch panel will be recognized by your operating system. It supports up to 10 pressure points for gestures like swiping, zooming, and tapping. The monitor is compatible with Windows, macOS, and Linux operating systems.
Figure 8: Icons representing compatibility with Windows, macOS, ChromeOS, and Linux operating systems.
4.4 Жарыктыкты жөндөө
The monitor features a high brightness IPS panel with 1000 Nits. Brightness can be adjusted via the OSD menu or using the dimmer control if connected.
5. Техникалык тейлөө
5.1 Мониторду тазалоо
The front panel of the 12HB9M/U1 monitor is IP66 rated, providing protection against dust and powerful water jets. To clean the screen, gently wipe it with a soft, lint-free cloth. For stubborn marks, use a mild, non-abrasive screen cleaner applied to the cloth, not directly to the screen. Ensure the monitor is powered off before cleaning.
5.2 Жалпы кам көрүү
Avoid exposing the monitor to extreme temperatures or direct sunlight for prolonged periods. Ensure proper ventilation around the unit. Do not attempt to open the monitor casing, as this will void the warranty and may cause damage.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Экранда сүрөт жок |
|
|
| Сенсордук экран жооп бербей жатат |
|
|
| Image is distorted or incorrect colors |
|
|
7. Техникалык шарттар
| Модель номери | 12HB9M/U1 |
| Screen Size | 11.6 Inches (12 Inch product variant) |
| Резолюция | 1920 x 1080 пиксел (Full HD 1080p) |
| Аспект катышы | 16:9 |
| Сүрөттүн жарыктыгы | 1000 Кандела (Нитс) |
| Сенсордук экрандын түрү | Capacitive Multi-Touch (10 points) |
| Ingress Protection (Front) | IP66 суу жана чаң өткөрбөйт |
| Киргизүү көлөмүtage | 9-36 Вольт (ТК) |
| Байланыш порттору | HDMI, DisplayPort, USB-C, VGA, AUX in/out, 5.5mm DC |
| Продукциянын өлчөмдөрү (L x W x Y) | 12.0 x 7.6 x 1.6 дюйм (305 x 192 x 40.6 мм) |
| Элемент Салмагы | 4.1 фунт |
| Өндүрүүчү | Beetronics |
9-сүрөт: жарылган view illustrating key features such as Tempered Glass, Rugged Metal Enclosure, Conformal Coated PCB, IP66-Rated Front Panel, Full Lamination Optical Bonding, and Wide Input Voltage Диапазон.
8. Кепилдик жана колдоо
The Beetronics 12HB9M/U1 monitor comes with a 2 жылдык кепилдик, ensuring reliability for continuous and intensive professional use. For technical support, warranty claims, or further assistance, please contact Beetronics Inc. directly.
Өндүрүүчү: Beetronics Inc.
Көбүрөөк маалымат алуу үчүн расмий иш сапары менен Beetronics Store on Amazon.
