1. Киришүү
Thank you for choosing the Electactic Nugget Ice Maker Machine, Model Z5830N. This appliance is designed to produce soft, chewable nugget ice efficiently, suitable for various settings including home kitchens, offices, bars, and parties. With a daily production capacity of up to 66 pounds and an 18-pound storage capacity, this machine ensures a consistent supply of ice. Its stainless steel construction offers durability and a modern aesthetic, while features like the LCD control panel, self-cleaning function, and 24-hour timer enhance user convenience and operational efficiency.
This manual provides essential information for the safe and effective operation, installation, maintenance, and troubleshooting of your ice maker. Please read it thoroughly before using the appliance and retain it for future reference.
2. Коопсуздук нускамалары
Шайманыңызды колдонууда өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн төмөнкү негизги сактык чараларын аткарыңыз:
- Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- кубат менен камсыз кылуу Voltage requirements specified on the appliance label.
- Эч кандай шайманды зымы же сайы бузулган, же шайман иштебей калгандан кийин же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз.
- Электр шнурун, сайгычты же шаймандын башка бөлүктөрүн сууга же башка суюктуктарга салбаңыз.
- Unplug the appliance from the outlet when not in use, before cleaning, or before performing any maintenance.
- Шайманды жылуулук булактарынан жана түз күн нурунан алыс кармаңыз.
- Do not allow children to operate the ice maker without supervision.
- Муз өндүрүү үчүн ичүүчү сууну гана колдонуңуз.
- Шаймандын айланасында туура желдетүүнү камсыз кылыңыз. Эч кандай желдетүүчү тешиктерди жаап албаңыз.
- Бул шайман тиричиликке жана ушул сыяктуу колдонмолорго гана арналган.
3. Продукт бүтүп калдыview
3.1 Негизги өзгөчөлүктөрү
- Наггет музун өндүрүү: Produces soft, chewable nugget ice.
- Жогорку кубаттуулугу: Up to 66 pounds of ice per day.
- Муз сактагыч: 18 pounds maximum ice storage capacity.
- Натыйжалуу муз жасоо: First batch of ice in under 10 minutes.
- Температураны кармоо: Designed to retain 80% of ice for up to 24 hours after the basket is full.
- Ийкемдүү орнотуу: Can be used as a freestanding or built-in unit.
- Туруктуу курулуш: Stainless steel door and exterior for longevity and easy cleaning.
- Автоматтык суу менен камсыздоо: Features an auto water supply system, eliminating manual refilling.
- Өзүн-өзү тазалоо функциясы: Easy activation via the LCD panel for hygienic maintenance.
- 24 сааттык таймер: Allows for scheduled start and shut-down times to conserve energy.
- User-Friendly LCD Control Panel: Displays ambient temperature, water shortage, and ice full reminders.
3.2 Компоненттер
Familiarize yourself with the main components of your ice maker:
- Дат баспас болоттон жасалган тышкы: Main housing of the unit.
- LCD башкаруу панели: Located on the front, used for operation and monitoring.
- Ice Storage Bins: Dual internal bins for collecting and storing nugget ice.
- Суу кириши: Connection point for the automatic water supply.
- Суу чыгаруучу: Drain for water discharge.
- Жөнгө салынуучу буттар: For leveling the unit.
- Reversible эшик: Allows for flexible door swing direction.
Сүрөт 1: Алдыңкы view of the Electactic Nugget Ice Maker Machine.
2-сүрөт: Интерьер view displaying the dual ice storage bins filled with nugget ice.

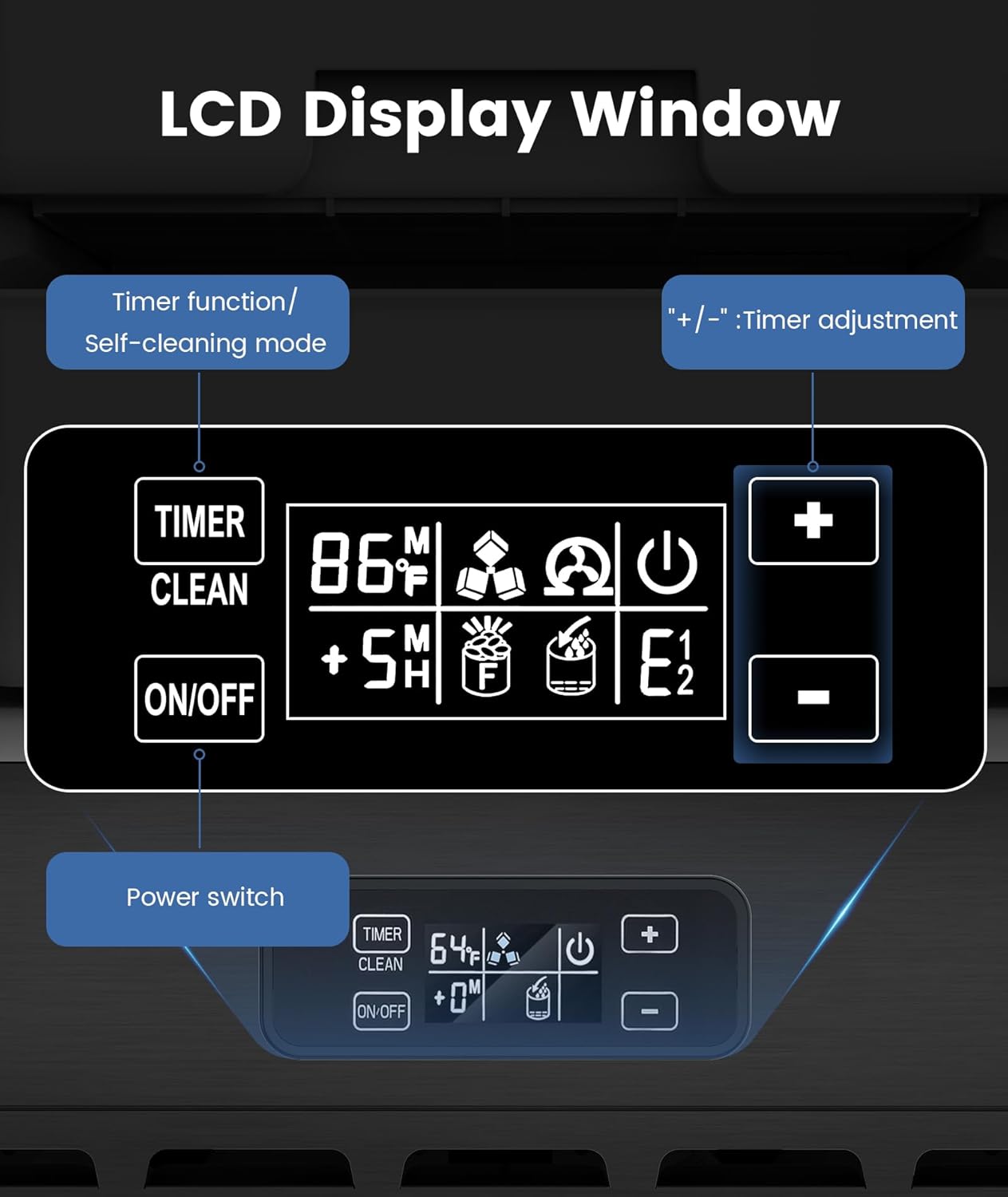

3-сүрөт: Детальдуу view LCD башкаруу панелинин.
4. Орнотуу
4.1 Пакеттен чыгаруу жана жайгаштыруу
- Carefully remove the ice maker from its packaging. Retain packaging materials for future transport if needed.
- Inspect the unit for any shipping damage. Contact customer support immediately if damage is found.
- Place the ice maker on a flat, stable surface. The unit can be installed freestanding or built-in under a counter. Ensure there is adequate clearance for ventilation (at least 2 inches on sides and back).
- Adjust the leveling feet at the bottom of the unit to ensure it is perfectly level. This is crucial for proper drainage and ice production.
Figure 4: Installation options: Freestanding and Under Counter.
4.2 Суу туташтыруу
This ice maker features an automatic water supply system. Connect it to a potable water source:
- Locate the water inlet connection at the back of the unit.
- Connect the provided water supply hose to the water inlet. Ensure a secure, leak-free connection.
- Connect the other end of the water supply hose to a cold water line with a shut-off valve.
- Locate the water outlet (drain) at the back of the unit.
- Connect the drain hose to the water outlet and route it to a suitable drain. Ensure the drain hose has a continuous downward slope to prevent water stagулут.
- Turn on the water supply and check for any leaks at the connections.
Figure 5: Water Inlet and Water Outlet connections.
4.3 Алгачкы тазалоо
Before first use, it is recommended to clean the interior of the ice maker:
- Prepare a solution of mild detergent and warm water.
- Wipe down the interior surfaces, including the ice storage bins, with a soft cloth dampчечүү менен аяктады.
- Таза суу менен жакшылап чайкаңыз.
- Run the self-cleaning cycle (refer to Section 6.1) before making ice for consumption.
5. Иштөө нускамалары
5.1 Күйгүзүү жана өчүрүү
- Күйгүзүү үчүн: Press the "ON/OFF" button on the LCD control panel. The unit will begin its ice-making cycle.
- Өчүрүү үчүн: Press the "ON/OFF" button again. The unit will stop ice production.
5.2 Муз өндүрүү
Once powered on and connected to a water supply, the machine will automatically start producing nugget ice. The first batch typically takes less than 10 minutes. The unit will continue to produce ice until the storage bins are full or the water supply is low.
5.3 Using the LCD Control Panel
The LCD panel provides real-time information and control options:
- Айлана-чөйрөнүн температурасынын дисплейи: Учурдагы бөлмө температурасын көрсөтөт.
- Суу Шорtage Индикатор: An icon will illuminate when the water supply is low, prompting you to check the water connection.
- Муз толук көрсөткүчү: An icon will illuminate when the ice storage bins are full, and the machine will pause ice production.
- Таймер функциясы: Press the "TIMER" button to set a scheduled start or shut-down time. Use the "+" and "-" buttons to adjust the time.
- Өзүн-өзү тазалоо режими: Refer to Section 6.1 for instructions.
Figure 6: Ice production efficiency and capacity.
6. Техникалык тейлөө жана тазалоо
6.1 Өзүн өзү тазалоо функциясы
The self-cleaning function helps maintain hygiene and efficiency:
- Ensure the unit is connected to a water supply and the drain hose is properly routed.
- Press and hold the "TIMER" button on the LCD display for approximately 5 seconds.
- The unit will initiate a self-cleaning cycle, circulating water through its internal components.
- Once the cycle is complete, the unit will automatically return to standby or ice-making mode.
6.2 Үзгүлтүксүз тазалоо
Perform regular cleaning to ensure optimal performance and ice quality:
- Сырткы: Wipe the stainless steel exterior with a soft cloth and mild detergent. Avoid abrasive cleaners that could scratch the surface.
- Interior and Ice Bins: Periodically remove the ice storage bins and wash them with warm, soapy water. Rinse thoroughly and dry before returning them to the unit.
- Конденсатордук катушкалар: The condenser coils, located at the back or bottom of the unit, should be cleaned every few months to prevent dust and lint buildup, which can affect efficiency. Use a soft brush or vacuum cleaner to gently remove debris.
- Суу линиялары: If you notice a decrease in ice quality or production, consider flushing the water lines or consulting a professional for descaling.
7. Кыйынчылыктарды
Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү көйгөйлөрдү чечүү боюнча көрсөтмөнү карап чыгыңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| муз өндүрүү жок | Аппарат иштетилген эмес Суу менен камсыздоо жок Суу шоруtage indicator active Ice full sensor activated | ON/OFF баскычын басыңыз Check water connection and supply valve Ensure water supply is connected and turned on Empty ice bins |
| Муздун өндүрүшү жай жүрүп жатат | Айлана-чөйрөнүн жогорку температурасы Начар желдетүү Кир конденсатор катушкалар Water flow restriction | Ensure unit is in a cool, well-ventilated area Clear obstructions around the unit Clean condenser coils (refer to Section 6.2) Check water filter (if installed) or water lines |
| Ice is wet or clumps together | Ice melting in storage bin Жогорку нымдуулук | This is normal for nugget ice makers as the storage bin is not a freezer. Transfer ice to a freezer for long-term storage. Ensure unit is in a suitable environment. |
| Бирдиги ызы -чуу | Кадимки операциялык үндөр Бирдик деңгээл эмес Бош компоненттер | Some operational noise from the compressor and water pump is normal. Туруктуулукту камсыз кылуу үчүн тегиздөө буттарын тууралаңыз. Contact customer support if noise is excessive or unusual. |
| Суунун агып чыгышы | Суу бош туташуулары Бөгөттөлгөн дренаждык шланг | Check and tighten all water inlet and drain hose connections. Ensure the drain hose is not kinked or blocked and has a continuous downward slope. |
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Электрик |
| Модель аты | Z5830N |
| Продукциянын өлчөмдөрү (D x W x Y) | 18" x 15" x 32" |
| Күнүмдүк муз өндүрүү кубаттуулугу | 66 фунтка чейин |
| Max Ice Storage Capacity | 18 фунт |
| Ватtage | 920 ватт |
| ASIN | B0DT9QGTFT |
9. Кепилдик жана колдоо
For warranty information or technical support, please contact Electactic customer service. Details regarding your product's specific warranty period and terms can typically be found on the product packaging or the official Electactic website. Please have your model number (Z5830N) and purchase information ready when contacting support.
For further assistance, you may visit the Electactic Store online: Electactic Store
