1. Киришүү
The ANCEL BM200 is an advanced 12V automotive Bluetooth battery monitor designed to provide real-time insights into your vehicle's battery health. This device supports both lead-acid and lithium batteries (100-2000CCA) and offers a range of diagnostic functions including cranking, charging, alternator, and starter tests. With its user-friendly mobile application, the BM200 ensures you stay informed about your battery's dynamics, helping to prevent unexpected breakdowns and extend battery life.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Жалпы шайкештик: Tests all 12V 100-2000CCA lead-acid and lithium batteries.
- Комплекстүү тестирлөө: Performs cranking, charging, alternator, and starter system tests.
- Fast & Accurate Diagnosis: Delivers results in 1 second with 99.9% accuracy.
- реалдуу убакыт мониторинг: Displays battery power, temperature, and voltagреалдуу убакытта e.
- Advanced App Features: Free iOS and Android app with customization options, multi-device monitoring (up to 4), and multi-language support.
- Маалыматтарды каттоо: Automatically saves 30 days of historical data (voltagд, заряддын пайызыtage, temperature) every 2 minutes, exportable to Excel.
- Car Finding Function: Records parking location and provides navigation to your vehicle.
- Коопсуздук жана ишенимдүүлүк: Features reverse polarity protection, short circuit protection, IP7 waterproof rating, and an automatic abnormal alarm.
2. Орнотуу жана орнотуу
Follow these simple steps to install and connect your ANCEL BM200 Battery Monitor:
- Download the BM200 App: Издөө "BM200" in the Apple App Store (for iOS) or Google Play Store (for Android) and download the official application.
- QR кодун сканерлеңиз: Locate the QR code printed on your ANCEL BM200 device. Open the BM200 app and use the scan function to scan this QR code. This will pair your device with the app.
- Connect to the Battery: Ensure your vehicle's ignition is off. Connect the red terminal of the BM200 to the positive (+) terminal of your 12V battery and the black terminal to the negative (-) terminal. Ensure a secure connection.
- Connect BM200 to App: Once the device is connected to the battery, open the BM200 app on your smartphone. The app will automatically detect and connect to the BM200 via Bluetooth. You should see real-time battery data displayed in the app.
Figure 2.1: Easy installation and Bluetooth connection steps for the ANCEL BM200.
Figure 2.2: The ANCEL BM200 device connected to a vehicle battery.
3. Operating the BM200
The ANCEL BM200 operates primarily through its dedicated mobile application, providing a comprehensive suite of monitoring and testing functions.
3.1 Реалдуу убакыттагы мониторинг
Upon successful connection, the app displays real-time battery parameters including voltagд, заряддын пайызыtage (SoC), and temperature. This allows for continuous oversight of your battery's status.
Figure 3.1: Multi-functional 12V battery testing capabilities displayed in the app.
3.2 Battery Testing Functions
The BM200 app offers several diagnostic tests to assess your battery and vehicle's electrical system:
- Тtage Test: Checks the battery health and starting voltage every hundredth of a second when the engine is starting.
- Кранк сыноо: Determines the battery's health and performance during vehicle startup. The app displays cranking voltagэ жана убакыт.
- Заряддоо сыноо: Verifies the proper functioning of the vehicle's charging system, including voltage at idle speed and high RPM, and ripple voltage.
- Battery Load Test: Assesses the battery's ability to hold a charge under load conditions.
Figure 3.2: High-performance cranking test results.
Figure 3.3: Professional charging test function display.
3.3 Data Logging and Playback
The BM200 automatically saves historical data every 2 minutes, storing up to 30 days of voltagд, заряддын пайызыtage, and temperature records. This data can be viewed as a waveform graph within the app, allowing you to track battery performance over time. You can also export this data to an Excel file андан ары талдоо үчүн.
Figure 3.4: Real-time waveform graph and data playback.
3.4 Car Finding and Trip Recording
The app includes a car finding function that automatically records your parking location, allowing you to navigate back to your vehicle easily. It also records track, cost, and driving habits for each trip, providing valuable insights into your vehicle usage.

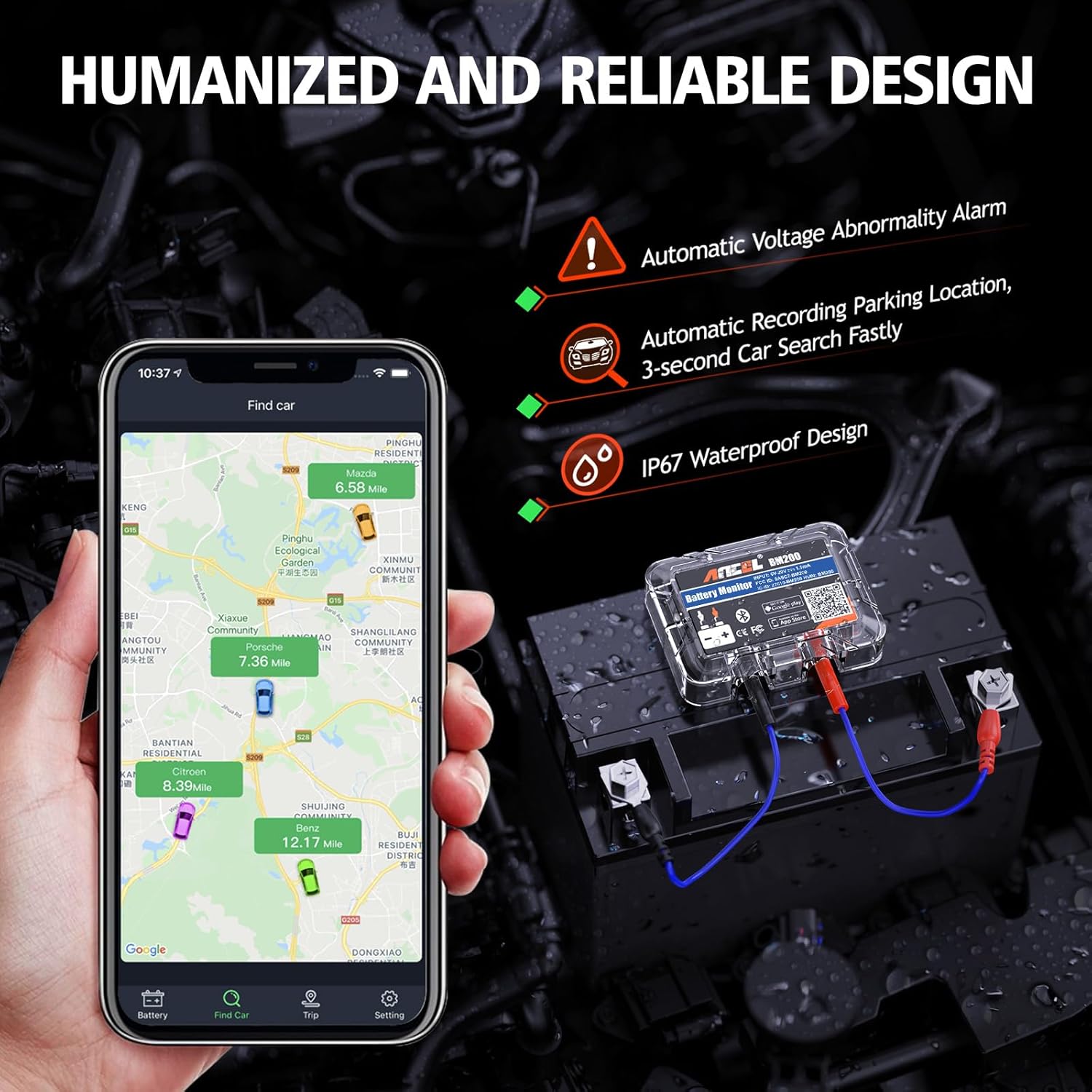

Figure 3.5: Car finding function and humanized design features.
3.5 Customization and Alerts
The BM200 app allows for advanced customization, including setting a custom power and voltage correspondence table for DIY users. It supports multiple languages to ensure ease of use. The device also features an automatic alarm function that notifies you via the app when the battery fails or when voltage and power levels are abnormal, ensuring timely intervention.
4. Техникалык тейлөө
The ANCEL BM200 is designed for low maintenance. Its average power consumption is only 1.5mA, ensuring minimal drain on your vehicle's battery. The device is IP7 waterproof, providing protection against water ingress.
- Keep the device clean and free from excessive dirt or debris.
- Ensure the terminals are clean and securely connected to the battery posts for accurate readings.
- Аппаратты колдонбогондо кургак жерде сактаңыз.
5. Кыйынчылыктарды
If you encounter issues with your ANCEL BM200, refer to the following common troubleshooting tips:
- Түзмөк колдонмого туташпай жатат:
- Смартфонуңузда Bluetooth иштетилгенин текшериңиз.
- Verify the BM200 is correctly connected to the vehicle battery (red to positive, black to negative).
- Make sure you are within the Bluetooth range (approximately 15-30 feet, depending on obstacles).
- Try restarting your smartphone and reopening the BM200 app.
- If the issue persists, try reinstalling the app.
- Туура эмес окуулар:
- Check for loose connections at the battery terminals.
- Ensure the battery type selected in the app matches your vehicle's battery (e.g., lead-acid or lithium).
- Clean any corrosion from the battery terminals and the BM200's connectors.
- No Data Logging:
- Ensure the app is running in the background or foreground to allow data recording.
- Check your phone's storage to ensure there is enough space for data logs.
- Abnormal Alarm Notifications:
- These notifications indicate a genuine issue with your battery's voltage or power. Consult a professional mechanic if you are unsure about the cause.
- The BM200 features reverse polarity and short circuit protection to prevent damage to the device and battery in case of incorrect connection.
6. Техникалык шарттар
| Бренд | ANCEL |
| Модель номери | BM200 Blue |
| Power Source | Батарея менен иштейт |
| Шайкеш батареянын түрлөрү | 12V Lead-Acid (Flooded, AGM, GEL, EFB) & Lithium Batteries |
| CCA диапазону | 100-2000 CCA |
| Bluetooth версиясы | 4.2 |
| Орточо электр керектөө | 1.5мА |
| Суу өткөрбөйт деңгээл | IP7 |
| Элементтин өлчөмдөрү (L x W x Y) | 5.31 x 4.53 x 0.98 дюйм |
| Элемент Салмагы | 1.44 унция |
| Маалыматтарды каттоо мүмкүнчүлүгү | 30 days (historical data) |
7. Кепилдик жана колдоо
ANCEL ишенимдүү өнүмдөрдү жана эң сонун кардарларды тейлөөнү камсыз кылууга умтулат.
- 30 күндүк акысыз кайтаруулар: 30 күндүк кайтаруу саясаты менен жан дүйнө тынчтыгынан ырахат алыңыз.
- 24/7 техникалык колдоо: Dedicated technical support is available around the clock to assist you with any queries or issues.
- 10 жылдык инновация: ANCEL stands by its products with a decade of innovation in automotive diagnostic tools.
Көбүрөөк жардам алуу үчүн, расмий ANCEL сайтына кириңиз website or contact their customer support team directly. Contact information can typically be found on the product packaging or the ANCEL brand store online.
