1. Киришүү
Thank you for choosing the AONIMI T5 Portable Charger. This high-capacity 50800mAh power bank is designed to provide reliable and fast charging for a wide range of electronic devices, featuring multiple built-in cables and versatile output/input options. Please read this manual carefully to ensure safe and optimal use of your device.
Figure 1: AONIMI T5 Portable Charger 50800mAh Power Bank.
2. Продукциянын өзгөчөлүктөрү
- Массивдуу 50800 мАч кубаттуулугу: Provides over 10 charges for most cellphones, keeping smartphones, tablets, or other USB devices running for an extended period.
- 3 Built-in Cables: Includes Type-C, iOS (Lightning), and Micro USB cables for convenient charging without carrying extra cords.
- 6 Outputs & 2 Inputs: Equipped with 2 USB-A ports, 1 USB-C port, and the 3 built-in cables for simultaneous charging of up to 6 devices. Recharges via Type-C cable or USB-C port.
- 25W PD QC4.0 Fast Charging: Supports dual 25W Power Delivery (PD) via Type-C cable or USB-C port, and Quick Charge 4.0 (QC4.0) technology for up to 3x faster charging. Can refuel an iPhone 16 to 50% in 30 minutes.
- Smart LCD дисплей: Clearly shows the remaining power percentage, ensuring you are aware of the battery status.
- Жалпы шайкештик: Supports PD3.0/QC3.0/QC4.0/DCP/FCP/AFC charging protocols, compatible with a wide range of devices including iPhone 17/16/15/14/13/12/11/X/8/7/6/SE Series, Galaxy/Google Pixel/LG/Moto/Nexus series, other Android phones, iPads, and tablets.
- Көп катмарлуу коопсуздук коргоосу: Built-in low-temperature ice core and intelligent monitoring systems prevent over-charge, over-discharge, short circuit, and high temperature.
3. Пакеттин мазмуну
Сураныч, пакетте төмөнкү нерселерди текшериңиз:
- 1 x AONIMI 50800mAh Portable Charger Power Bank with 3 Built-in Cables and 3 USB Ports
- 1 x USB-C Cable (for recharging the portable charger)
- 1 x User Manual
4. Продукт бүтүп калдыview
Familiarize yourself with the various components of your AONIMI T5 Power Bank:
Figure 2: Diagram illustrating the 6 outputs and 2 inputs of the power bank.
- Күйгүзүү / Өчүрүү баскычы: Activates the device and displays the battery percentage.
- LCD дисплей: Digital screen showing the remaining battery percentage.
- Камтылган кабелдер:
- iOS Cable Output (Lightning)
- Type-C Cable Output/Input
- Micro USB Cable Output
- USB порттору:
- USB-A QC Output (Quick Charge)
- PD USB-C Input/Output (Power Delivery)
- USB-A чыгаруу
5. Орнотуу
5.1 Power банктын алгачкы заряддоосу
Before first use, fully charge your AONIMI T5 Power Bank. You have two options for recharging:
- Орнотулган Type-C кабелин колдонуу: Extend the built-in Type-C cable and plug the USB-A end into a compatible USB wall adapter (not included).
- USB-C портун колдонуу: Connect the provided USB-C to USB-C cable (or your own USB-A to USB-C cable) to the PD USB-C Input/Output port on the power bank and plug the other end into a compatible wall adapter.
The LCD display will show the charging progress. Once it reaches 100%, the power bank is fully charged.
Figure 3: The power bank features built-in cables for convenience.
5.2 Тышкы түзмөктөрдү заряддоо
Түзмөктөрүңүздү кубаттоо үчүн:
- Камтылган кабелдерди колдонуу: Extend the appropriate built-in cable (Type-C, iOS, or Micro USB) and connect it directly to your device.
- USB портторун колдонуу: Connect your device's charging cable to one of the available USB-A Output ports or the PD USB-C Input/Output port on the power bank.
The power bank will automatically detect the connected device and begin charging. The LCD display will show the remaining power.
Figure 4: The power bank can charge multiple devices simultaneously using its built-in cables and USB ports.
6. Иштөө нускамалары
6.1 Батареянын деңгээлин текшерүү
Press the Power On/Off button once to activate the LCD display, which will show the current battery percentagэлектр банкынын д.
6.2 Тез кубаттоо
The AONIMI T5 supports 25W Power Delivery (PD) and Quick Charge 4.0 (QC4.0). For optimal fast charging, ensure your device and charging cable are also compatible with these fast charging standards. Connect your device to the PD USB-C port or the built-in Type-C cable for rapid charging.
Figure 5: The power bank offers 25W fast charging capabilities.
6.3 Бир убакта заряддоо
You can charge up to 6 devices at once using a combination of the built-in cables and external USB ports. The intelligent output system will distribute power efficiently to all connected devices.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Продукциянын өлчөмдөрү | 6.02 x 2.76 x 1.69 дюйм |
| Элемент Салмагы | 1.2 фунт |
| Элемент моделинин номери | T5 |
| Батарея сыйымдуулугу | 50800 миллионamp Саат |
| Өзгөчөлүктөр | 6-in-1 Portable Charger with iOS+Type-C+Micro USB Cables, 50800mAh Huge Capacity Power Bank, Dual 25W PD QC 4.0 Fast Charging USB C Battery Pack, 6 Outputs 2 Inputs Portable Phone Charger for All Series of iPhone 16/15/14/13, Samsung, LG and More Other Android Cellphones. |
| Түс | Көк |
| Өндүрүүчү | DONGGUAN BANGYUAN NEW ENERGY CO.,LTD. |
| Туташтыргыч түрү | USB Type C+iOS+Micro USB |
8. Коопсуздук маалыматы
Your AONIMI T5 Power Bank is equipped with multiple protection systems to ensure safe operation:
- Ашыкча заряддан коргоо
- Ашыкча разряддан коргоо
- Кыска туташуулардан коргоо
- High temperature protection (built-in low-temperature ice core)
- Ашыкча ток коргоо
- Overvoltagд коргоо
Important Airline Restriction:
This power bank is rated at 187.96Wh. Due to airline battery restrictions, power banks with a capacity exceeding 100Wh (or 27027mAh at 3.7V) are generally not permitted in carry-on or checked luggage without airline approval. Please check with your airline's specific regulations before traveling.

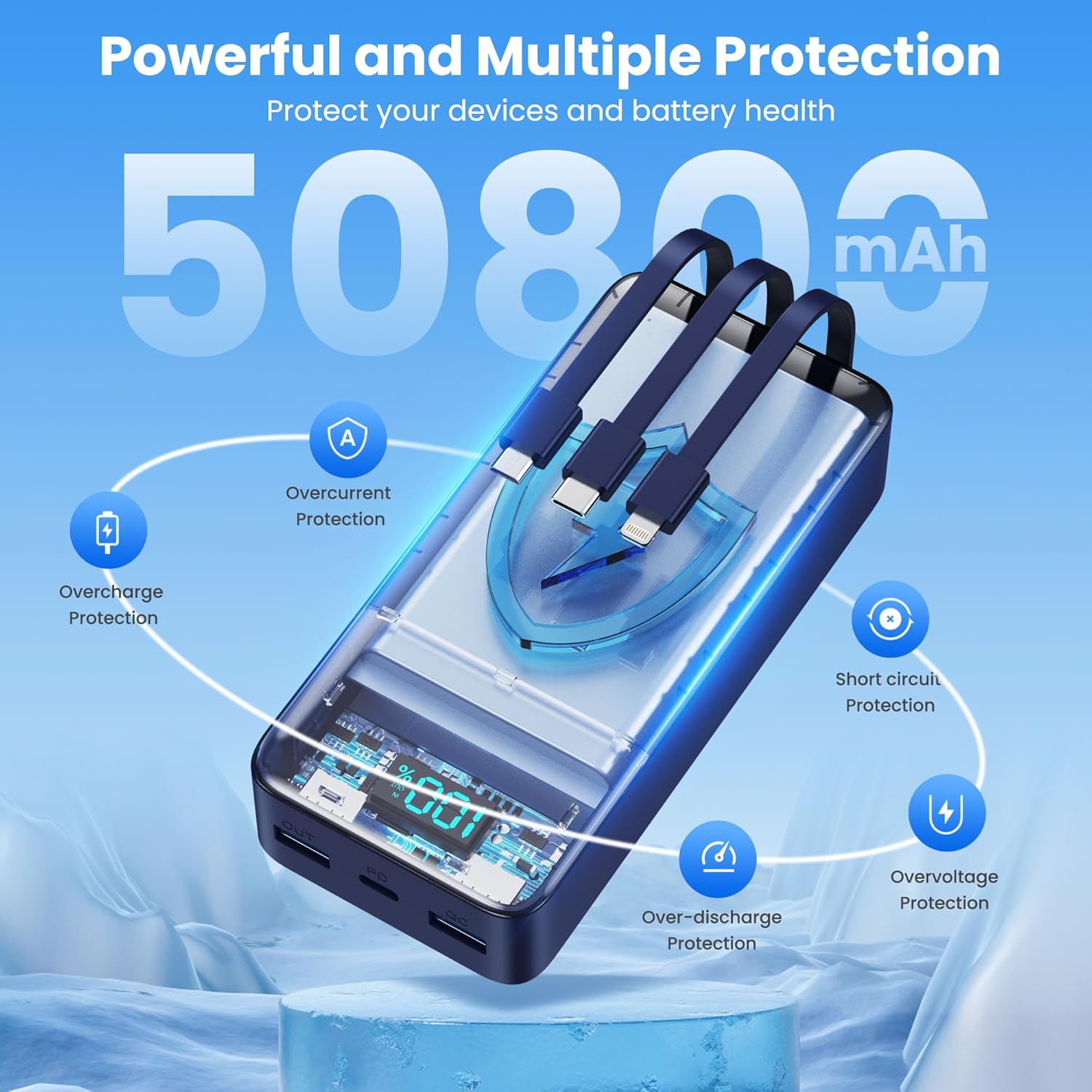

Figure 6: The power bank incorporates multiple safety features for device and battery health.
9. Техникалык тейлөө
- Power банкты кургак жана нымдан алыс кармаңыз.
- Аппаратты экстремалдык температурага (ысык же муздак) тийгизбеңиз.
- Power банкты жумшак, кургак чүпүрөк менен тазалаңыз. Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.
- Узак мөөнөткө колдонулбаганда салкын, кургак жерде сактаңыз.
10. Кыйынчылыктарды
If you encounter any issues with your AONIMI T5 Power Bank, please consider the following:
- Түзмөк кубатталбай жатат: Powerbank заряддалганын текшериңиз. Бардык кабелдердин туташууларын текшериңиз. Башка кабелди же портту колдонуп көрүңүз.
- Power банк кубатталбай жатат: Ensure the charging cable is securely connected to a working power source. Try a different wall adapter or cable.
- Жай кубаттоо: Verify that your device and cable support fast charging protocols (PD/QC). Some devices may charge slower if multiple devices are connected simultaneously.
Эгерде көйгөйлөр чечилбесе, жардам алуу үчүн кардарларды колдоо кызматына кайрылыңыз.
11. Кепилдик жана колдоо
The AONIMI T5 Portable Charger comes with a 2 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүштүк кемчиликтерди камтыйт жана ишенимдүү иштөөнү камсыз кылат.
For warranty claims, technical support, or any questions regarding your product, please contact AONIMI customer service through the retailer where you purchased the product or visit the official AONIMI webбайланыш маалыматы үчүн сайт.
