Kenmore KW1090 SpotLite Go 24V зымсыз көчмө килем тактарын тазалоочу колдонуучунун колдонмосу

1. Коопсуздук боюнча маанилүү маалымат

Please read all instructions carefully before using your Kenmore KW1090 SpotLite Go Cordless Portable Carpet Spot Cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Батареянын коопсуздугу: Use only the specified 24V Lithium-Ion battery and charger. Do not expose the battery to water, fire, or extreme temperatures. Do not attempt to open or modify the battery.
• Электр коопсуздугу: Ensure the charger is connected to a properly grounded outlet. Do not handle the charger or appliance with wet hands.
• Liquid Use: Use only Kenmore approved cleaning solutions. Do not use flammable or combustible liquids. Always ensure tanks are properly sealed before operation.
• Жалпы операция: Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Do not use the appliance on wet surfaces unless specifically designed for it. Do not pick up hard or sharp objects.
• Балдар жана үй жаныбарлары: Шайманды балдар жана үй жаныбарлары жетпеген жерде сактаңыз.

2. Продукт бүтүп калдыview

The Kenmore KW1090 SpotLite Go is a 24V cordless portable carpet spot cleaner designed for deep cleaning and stain removal on carpets, stairs, furniture, and car interiors. It features powerful suction and a long-lasting battery for up to 55 minutes of runtime.

Негизги өзгөчөлүктөрү:

• Deep Cleaning Power: Effectively removes tough stains.
• Зымсыз ыңгайлуулук: Offers freedom of movement without a power cord.
• Жеңил жана көчмө: Weighs approximately 12 lbs for easy transport.
• Узартылган шлангдын узундугу: 6 feet of hose for reaching various areas.
• Шланг тазалоочу курал: Facilitates easy maintenance of the hose.

Компоненттери:

• Main Unit with Integrated Handle
• Clean Water Tank (0.4 gallons capacity)
• Dirty Water Tank (0.2 gallons capacity)
• Ийкемдүү шланг
• Cleaning Tool/Brush Attachment
• 24V литий-ион батареясы
• Батарея заряддагыч
• Sample Cleaning Solution

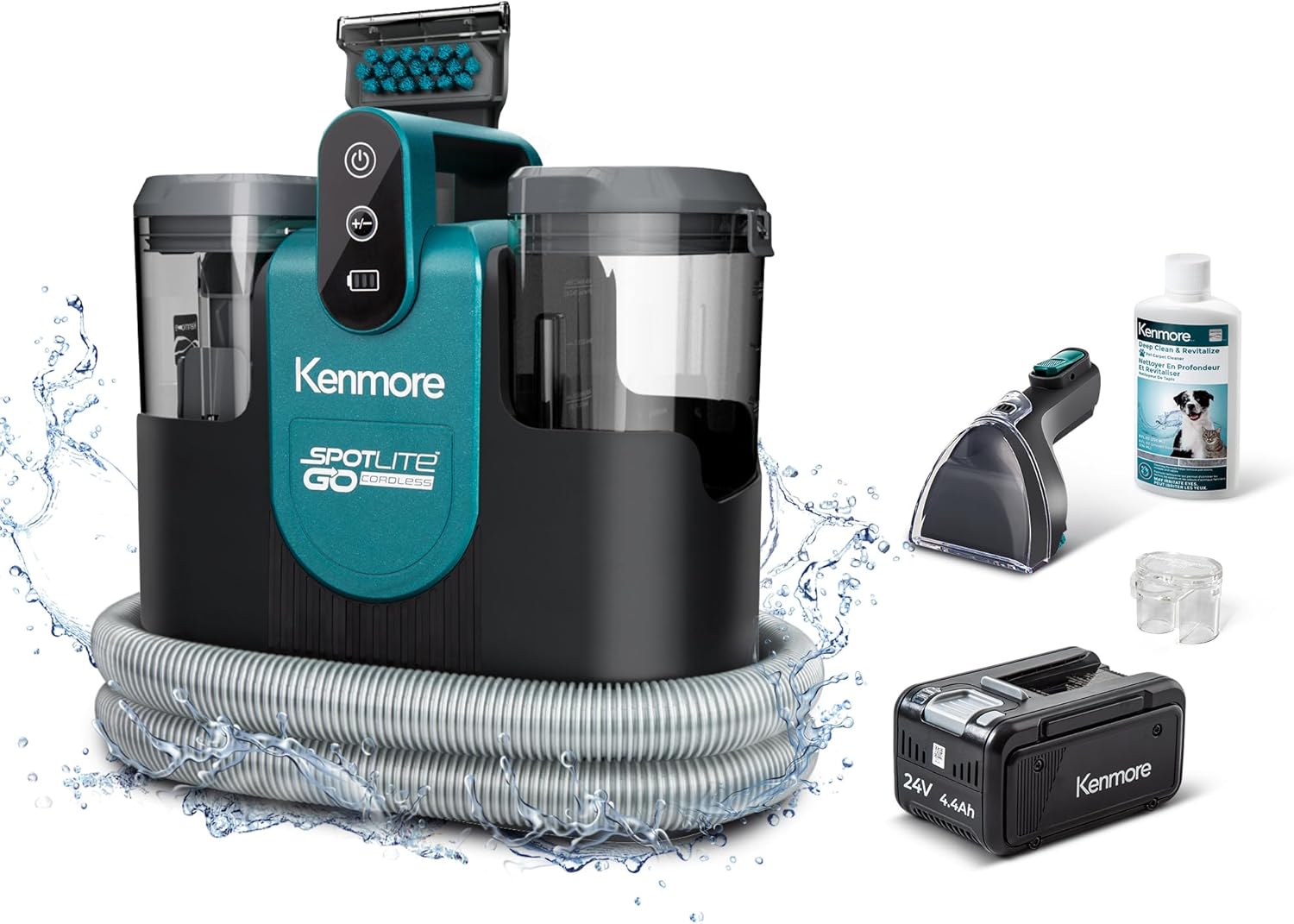

Image: The Kenmore KW1090 SpotLite Go cleaner shown with its main unit, flexible hose, cleaning tool, 24V battery, and a bottle of cleaning solution.

3. Орнотуу нускамалары

3.1 Батареяны заряддоо

1. Remove the 24V Lithium-Ion battery from its compartment.
2. Connect the battery to the provided charger.
3. Plug the charger into a standard electrical outlet. The indicator light on the battery or charger will show charging status.
4. Allow the battery to fully charge before first use. A full charge provides up to 55 minutes of runtime.

3.2 Таза суу резервуарын толтуруу

1. Негизги блоктон таза суу сактагычты алып салыңыз.
2. Капкагын ачып, бакты көрсөтүлгөн толтуруу сызыгына чейин жылуу крандан суу менен толтуруңуз.
3. Add the recommended amount of Kenmore cleaning solution to the tank, following the solution's instructions.
4. Securely replace the cap and reinsert the clean water tank into the main unit until it clicks into place.

3.3 Attaching the Cleaning Tool

1. Connect the desired cleaning tool (e.g., brush attachment) to the end of the flexible hose.
2. Ensure the attachment is securely fastened to prevent leaks and maintain suction.

Image: A woman kneeling on a rug, preparing the Kenmore KW1090 SpotLite Go cleaner for use, highlighting its cordless design and 55-minute runtime.

4. Иштөө нускамалары

4.1 Күйгүзүү жана өчүрүү

Press the power button located on the top of the unit to turn the cleaner on or off. The indicator lights will illuminate when the unit is powered on.

4.2 Spot Cleaning Procedure

1. Алдын ала дарылоо (милдеттүү эмес): For tough stains, pre-treat the area with a suitable spot cleaner according to its instructions.
2. Spray: Hold the cleaning tool over the stained area. Press the trigger on the tool to spray cleaning solution onto the stain.
3. Скраб: Дагды козгош үчүн щетка тиркемеси менен булганган жерди акырын сүртүңүз.
4. Соруу: Release the spray trigger and slowly pull the cleaning tool over the wet area to suction up the dirty solution. Repeat as necessary until the stain is removed and the area is as dry as possible.

Image: A woman cleaning the upholstery of a car seat with the Kenmore KW1090 SpotLite Go, demonstrating its powerful suction for spills and accidents.

Image: A woman cleaning a carpet with the Kenmore KW1090 SpotLite Go, utilizing its 6-foot extended hose for reaching distant areas and showing its dual suction control.

5. Техникалык тейлөө жана тазалоо

Regular maintenance ensures optimal performance and extends the life of your Kenmore KW1090 SpotLite Go cleaner.

5.1 Кир суу куюлган бактын ичин бошотуу жана тазалоо

1. After each use, remove the dirty water tank from the main unit.
2. Кир сууну раковинага же дренажга этияттык менен төгүңүз.
3. Кир суу куюлган идиш таза суу менен жакшылап чайкаңыз.
4. Бакты кайра аппаратка бекитүүдөн мурун, аны толугу менен кургатыңыз.

5.2 Cleaning the Hose and Tools

1. Use the integrated hose cleaning tool to flush out any remaining dirt or debris from the hose.
2. Detach the cleaning tool/brush attachment and rinse it under running water.
3. Ensure all parts are clean and free of residue.

Image: A woman demonstrating the use of the hose cleaning tool to flush out the machine's hose with clean water, ensuring no dirt is left behind.

5.3 Сактоо

Store the Kenmore KW1090 SpotLite Go in a cool, dry place. Ensure the hose and tools are neatly wrapped around the unit for compact storage.

Image: A woman easily storing the lightweight Kenmore KW1090 SpotLite Go cleaner in a kitchen cabinet, showcasing its portable and compact design.

6. Кыйынчылыктарды

If you encounter issues with your Kenmore KW1090 SpotLite Go, refer to the following common problems and solutions:

7. Техникалык шарттар

8. Кепилдик жана колдоо

The Kenmore KW1090 SpotLite Go typically comes with a 1 жылдык чектелген кепилдик сатып алынган күндөн тартып, кадимки тиричиликте колдонулган материалдардагы жана жасалгадагы кемчиликтерди жабуу. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

For technical assistance, warranty service, or to order replacement parts, please refer to the contact information provided in your product packaging or visit the official Kenmore website. When contacting support, please have your model number (KW1090) and purchase date available.
