Philips TAM3505M2 Micro HiFi System User Manual

1. Киришүү

Сатып алганыңыз үчүн рахматasing the Philips TAM3505M2 Micro HiFi System. This system offers powerful stereo sound and versatile music playback options, including CD, FM/DAB radio, Bluetooth, USB, and Audio In. This manual provides essential information for the safe and efficient use of your device. Please read it thoroughly before operating the system and retain it for future reference.

2. Коопсуздук маалыматы

Always follow basic safety precautions when using this equipment to reduce the risk of fire, electric shock, and personal injury.

• Кубат булагы: кубаттуулукту камсыз кылыңызtage түзмөктүн арткы бетиндеги баалоо этикеткасына дал келет.
• Вентиляция: Эч кандай желдетүүчү тешиктерди жаап албаңыз. Аба агымы туура болушу үчүн аппараттын айланасында жетиштүү орун бериңиз.
• Суу жана ным: Агрегатты жамгырга же нымдуулукка дуушар кылбаңыз. Ваза сыяктуу суюктуктар толтурулган нерселерди аппараттын үстүнө койбоңуз.
• Жылуулук: Аппаратты радиаторлор, жылуулук регистрлери, мештер же башка аппараттар (анын ичинде) сыяктуу жылуулук булактарынан алыс кармаңыз. ampкөтөргүчтөр) жылуулукту пайда кылуучу.
• Тазалоо: Тазалоодон мурун түзмөктү розеткадан сууруп алыңыз. Жумшак, кургак чүпүрөктү гана колдонуңуз.
• Тейлөө: Бул продуктту өзүңүз тейлөөгө аракет кылбаңыз. Бардык тейлөөнү квалификациялуу тейлөө кызматкерлерине тапшырыңыз.

3. Пакеттин мазмуну

Сураныч, сиздин пакетиңизде төмөнкү заттар бар экенин текшериңиз:

• Main Unit (Micro HiFi System)
• 2 x Bookshelf Speakers
• Remote Control (with 1 AAA battery)
• FM/DAB антеннасы
• Электр кабели
• Колдонуучунун Колдонмосу (бул документ)

4. Продукт бүтүп калдыview

The Philips TAM3505M2 Micro HiFi System consists of a central unit and two separate bookshelf speakers, designed for optimal stereo sound reproduction. The central unit features a CD player, display, control buttons, and various input/output ports.

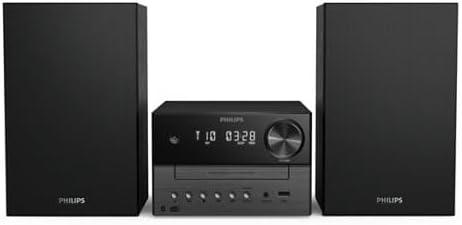

Сүрөт 4.1: The Philips TAM3505M2 Micro HiFi System, showing the central unit flanked by two black bookshelf speakers.

Сүрөт 4.2: The Philips TAM3505M2 Micro HiFi System positioned on a wooden cabinet, illustrating its compact and classic stereo design. The image highlights the subtle two-tone central unit and the matching speakers.

5. Орнотуу

5.1 Динамиктерди туташтыруу

Connect the speaker wires from the bookshelf speakers to the corresponding speaker terminals on the back of the main unit. Ensure correct polarity (red to red, black to black) for optimal sound quality.

5.2 Кубат туташтыруу

Plug the power cable into the AC IN socket on the main unit, then plug the other end into a wall power outlet.

5.3 Антеннаны туташтыруу

Connect the supplied FM/DAB antenna to the appropriate antenna input on the rear of the main unit. Extend the antenna fully for best reception.

5.4 Баштапкы күйгүзүү

Press the power button on the front panel or remote control to turn on the system. The display will illuminate, and the system will be ready for use.

6. Иштөө нускамалары

6.1 Негизги башкаруу каражаттары

The system can be controlled using the buttons on the front panel or the included remote control. Common controls include Power, Volume Up/Down, Source Selection, Play/Pause, Skip, and Stop.

6.2 Булакты тандоо

Press the 'Source' button on the unit or remote to cycle through available input sources: CD, FM, DAB, Bluetooth, USB, and Audio In.

Сүрөт 6.1: The Philips TAM3505M2 Micro HiFi System in a living space, emphasizing its ability to play 'All your music, simply'.

6.3 CD ойнотуу

1. Select the 'CD' source.
2. Press the 'Open/Close' button to open the CD tray.
3. Place a CD (audio CD or MP3 CD) with the label side up into the tray.
4. Press the 'Open/Close' button again to close the tray.
5. Playback will start automatically or by pressing the 'Play' button.

Сүрөт 6.2: A close-up of the Philips TAM3505M2 Micro HiFi System with its CD tray open, illustrating its capability to 'Play all your music' from physical media.

6.4 Radio Operation (FM/DAB)

1. Select 'FM' or 'DAB' source.
2. For FM, use the tuning buttons to manually tune or auto-scan for stations.
3. For DAB, the system will automatically scan for available stations upon first use.
4. To save a station as a preset, press and hold the 'Preset' button, then use the navigation buttons to select a preset number and confirm. The system supports 20 presets.

6.5 Bluetooth Pairing and Streaming

The system features Bluetooth 5.4 with LE Audio and Auracast for enhanced streaming.

1. Select the 'Bluetooth' source. The system will enter pairing mode automatically or by pressing and holding the Bluetooth button.
2. On your mobile device, enable Bluetooth and select 'Philips TAM3505M2' from the list of available devices.
3. Once paired, you can stream audio from your device to the HiFi system.
4. Auracast: For multi-speaker streaming, ensure other compatible Auracast speakers are within range and follow their instructions to connect to the TAM3505M2's Auracast broadcast.

Сүрөт 6.3: The Philips TAM3505M2 Micro HiFi System alongside a smartphone displaying the Philips Entertainment app interface, highlighting 'Bluetooth 5.4 for better sound and Auracast streaming'. This image demonstrates the system's advanced connectivity and app control capabilities.

6.6 USB ойнотуу

Аудио камтыган USB флэш-дискти салыңыз files into the USB port on the front of the unit. Select the 'USB' source, and the system will begin playing compatible audio files.

6.7 Audio In Connection

Connect an external audio device (e.g., turntable, MP3 player) to the 'Audio In' jack on the front of the unit using a 3.5mm audio cable. Select the 'Audio In' source to listen to audio from the connected device.

6.8 Digital Sound Control

Use the Digital Sound Control feature to adjust the sound profile to your preference. This allows you to optimize audio for different types of content like music, podcasts, or radio plays.

Сүрөт 6.4: The Philips TAM3505M2 Micro HiFi System with abstract sound wave graphics, illustrating its 'Great stereo sound for all your favorites' feature, emphasizing its powerful audio output.

6.9 Using the Philips Entertainment App

Download the Philips Entertainment app to your smartphone to conveniently control your micro HiFi system. The app allows you to customize audio styles, change audio sources, and manage settings remotely.

7. Техникалык тейлөө

7.1 Тазалоо

To clean the unit, unplug it from the power outlet. Use a soft, dry, lint-free cloth. Do not use cleaning agents containing alcohol, ammonia, abrasives, or benzene as these may damage the finish.

7.2 CD дисктерине кам көрүү

Handle CDs by their edges. Keep them clean and free from scratches. Store them in their cases when not in use.

7.3 Айлана-чөйрөнү коргоо

The Philips TAM3505M2 is designed with sustainability in mind, utilizing 85% Post-Consumer Recycled (PCR) plastic in its construction. The packaging is plastic-free and made from FSC-certified recycled cardboard. Please dispose of the product and its packaging responsibly according to local regulations.

Сүрөт 7.1: The Philips TAM3505M2 Micro HiFi System in a room, highlighting its construction from recycled plastic and responsible packaging. This image emphasizes the product's eco-friendly design.

8. Кыйынчылыктарды

If you encounter issues with your Philips TAM3505M2, refer to the following common problems and solutions:

9. Техникалык шарттар

10. Кепилдик жана колдоо

Кепилдик маалыматы жана кардарларды колдоо үчүн продуктуңузга кошулган кепилдик картасын караңыз же расмий Philipsке баш багыңыз website for your region. You may also find additional support resources, FAQs, and contact details there.
