1. Коопсуздук боюнча маанилүү маалымат
Please read and understand all safety instructions before operating the Tornado Marathon 1200 carpet extractor. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Электр коопсуздугу: Always connect the machine to a properly grounded outlet. Do not use with damaged cords or plugs. Keep the power cord away from heated surfaces and sharp edges. Disconnect power before performing any maintenance or cleaning.
- Химиялык иштетүү: Use only recommended cleaning solutions. Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling chemicals. Refer to the Safety Data Sheet (SDS) for all cleaning agents used.
- Операция: Do not operate the machine in areas with flammable liquids or gases. Keep hands, feet, and loose clothing away from moving parts. Ensure all covers and guards are in place before operation.
- Сактагыч: Store the machine in a dry, indoor area. Do not expose to freezing temperatures.
2. Продукт бүтүп калдыview жана компоненттер
The Tornado Marathon 1200 is a self-contained carpet extractor designed for efficient cleaning of carpeted surfaces. It features separate tanks for clean solution and dirty recovery, a powerful vacuum motor, and a brush system for deep cleaning.
2.1-сүрөт: Жалпы view of the Tornado Marathon 1200 carpet extractor.
Негизги компоненттер:
- Чечим танкы: Таза суу жана тазалоочу эритмени кармайт.
- Калыбына келтирүүчү танк: Collects dirty water extracted from the carpet.
- Вакуум мотору: Provides suction for water extraction.
- Brush Assembly: Agitates carpet fibers for effective cleaning.
- Бүркүтүүчү саптама: Applies cleaning solution to the carpet.
- Башкаруу панели: Contains power switches and operational controls.
- Электр кабели: Узак мөөнөттүү жетүү үчүн 50 футтук жип.

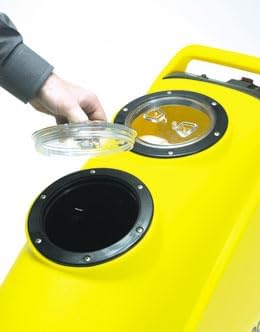

Figure 2.2: Accessing the solution or recovery tank via the top opening.
3. Орнотуу нускамалары
- Пакеттен чыгаруу: Carefully remove the extractor from its packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
- Позициялоо: Машинаны тегиз, туруктуу бетке коюңуз.
- Fill Solution Tank: Open the solution tank cap (refer to Figure 2.2). Fill the tank with clean water and the recommended carpet cleaning solution according to the manufacturer's instructions. Do not overfill. Securely close the cap.
- Туташуу кубаты: Plug the 50-foot power cord into a grounded electrical outlet. Ensure the outlet matches the voltagмашинанын талаптары.

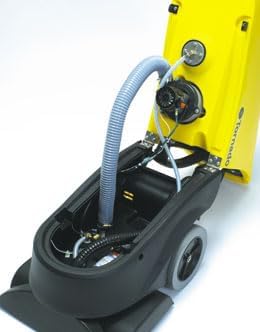

Figure 3.1: Internal components of the extractor (for reference, not user-serviceable).
4. Иштөө нускамалары
4.1 Операцияга чейинки текшерүү тизмеси
- Ensure solution tank is filled.
- Check recovery tank is empty.
- Verify power cord is securely plugged in.
- Pre-vacuum the area to remove loose dirt and debris.
4.2 Тазалоо процедурасы
- Turn on the vacuum motor switch.
- Turn on the pump/spray switch.
- Push the machine forward slowly, allowing the spray nozzle to apply solution and the brush to agitate the carpet.
- Pull the machine backward over the same path, allowing the vacuum to extract the dirty solution. Overlap passes slightly to ensure complete coverage.
- For heavily soiled areas, repeat the process or allow the solution to dwell for a few minutes before extraction.
- Monitor the recovery tank. When it is full, the vacuum suction will decrease. Turn off the machine and empty the recovery tank.

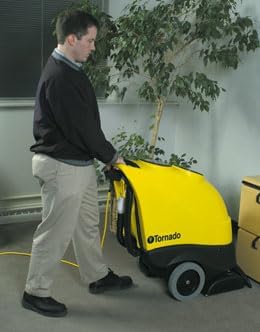

Figure 4.1: Operator using the Tornado Marathon 1200 carpet extractor.
5. Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the life of your carpet extractor.
5.1 Ар бир колдонуудан кийин
- Бошотуу жана чайкоо резервуарлары: Empty both the solution and recovery tanks. Rinse them thoroughly with clean water to prevent residue buildup and odors.
- Таза чыпкалар: Check and clean any filters (e.g., vacuum motor filter, solution line filter) as per the machine's specific design.
- Wipe Down Machine: Жарнама менен машинанын сыртын сүртүңүзamp cloth to remove any dirt or chemical residue.
- Check Brush: Inspect the brush for tangled hair or debris. Remove any obstructions.
5.2 Мезгил-мезгили менен тейлөө
- Шлангдарды жана шнурларды текшерүү: Regularly check all hoses for cracks or leaks and the power cord for damage. Replace if necessary.
- Соплолорду тазалоо: If spray becomes uneven, clean the spray nozzle to remove any blockages.
- Кесиптик тейлөө: For internal components or complex issues, consult a qualified service technician.
6. Кыйынчылыктарды
Жалпы маселелер жана аларды чечүү үчүн төмөнкү таблицага кайрылыңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Машина күйбөйт | No power to outlet; Power cord damaged; Switch off | Check outlet and circuit breaker; Inspect power cord; Ensure all switches are in the 'ON' position |
| Соплодон спрей жок | Solution tank empty; Pump switch off; Nozzle clogged; Solution line blocked | Fill solution tank; Turn on pump switch; Clean nozzle; Check solution line for kinks or blockages |
| Начар вакуум соргуч | Recovery tank full; Recovery tank lid not sealed; Vacuum hose clogged; Vacuum motor filter dirty | Empty recovery tank; Ensure lid is properly sealed; Clear vacuum hose; Clean vacuum motor filter |
| Ushетка айланбай | Brush motor switch off; Debris tangled in brush; Drive belt broken | Turn on brush motor switch; Remove debris; Contact service for belt replacement |
7. Техникалык шарттар
- Модел: Tornado Marathon 1200
- Модель номери: 98168
- Бренд: Торнадо
- Чечимдин резервуарынын сыйымдуулугу: 12 галлон
- Калыбына келтирүүчү резервуардын сыйымдуулугу: 12 галлон
- Вакуум мотору: 2 HP
- Brush туурасы: 17 дюйм
- Электр шнурунун узундугу: 50 фут
- UPC: 098612583509
- ASIN: B0DVJ7CSMB
8. Кепилдик жана колдоо
For warranty information, technical support, or to order replacement parts, please contact Tornado customer service. Keep your purchase receipt and model number (98168) available when contacting support.
Contact details can typically be found on the manufacturer's official webсайтында же продуктунун таңгагында.
