Introduction
This manual provides essential instructions for the safe and proper installation and use of the Penn Union SLU650 Copper Lug Connector. Please read this manual thoroughly before proceeding with installation or operation. Retain this manual for future reference.
The Penn Union SLU650 is a high-quality copper lug connector designed for reliable electrical connections. It is manufactured by Crimp Supply.
Коопсуздук маалыматы
Always follow local electrical codes and safety regulations when working with electrical components. Improper installation can lead to electrical shock, fire, or other hazards.
- Орнотуудан мурун электр энергиясы өчүрүлгөнүн текшериңиз.
- Изоляцияланган кол каптар жана коргоочу көз айнек сыяктуу тиешелүү жеке коргонуу шаймандарын (ЖКК) колдонуңуз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу электрик менен кеңешиңиз.
- Do not modify the connector.
Продукт бүттүview
The Penn Union SLU650 is a single-barrel copper lug connector, typically used for terminating electrical conductors. It features a set screw for securing the wire and a flat pad for bolt-down connections.

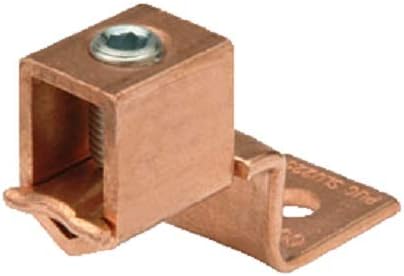

1-сүрөт: Penn Union SLU650 Copper Lug Connector. This image shows the copper lug connector with its square barrel for wire insertion and a flat mounting pad with a pre-drilled hole. A set screw is visible at the top of the barrel, used to secure the conductor.
Орнотуу жана орнотуу
- Prepare the Conductor: Strip the insulation from the end of the electrical conductor to the appropriate length, ensuring that the bare wire will fully enter the lug barrel without excess insulation inside or bare wire exposed outside the barrel once secured.
- Insert the Conductor: Insert the stripped end of the conductor into the barrel of the SLU650 connector.
- Secure the Conductor: Using an appropriate tool (e.g., an Allen wrench or screwdriver, depending on the screw type), tighten the set screw on top of the lug barrel. Ensure the screw is tightened firmly to establish a secure electrical and mechanical connection. Refer to manufacturer specifications for recommended torque values if available.
- Луг тоосу: Attach the flat pad of the lug to the desired connection point using a bolt and nut (not included). Ensure the connection is tight and secure.
- Байланышты текшерүү: Double-check all connections for tightness and proper seating before restoring power.
Иштөө нускамалары
The Penn Union SLU650 is a passive electrical connector. Once properly installed, it facilitates the electrical connection between a conductor and a terminal point. There are no operational controls or user interactions required after installation.
- Ensure the connector is not subjected to excessive mechanical stress or vibration that could loosen connections.
- Periodically inspect connections in critical applications for signs of corrosion or loosening.
Техникалык тейлөө
The Penn Union SLU650 connector requires minimal maintenance. Regular inspection is recommended, especially in environments with high humidity, temperature fluctuations, or corrosive elements.
- Текшерүү: Visually inspect the connector and surrounding wiring for any signs of damage, corrosion, discoloration (indicating overheating), or loose connections.
- Тазалоо: If necessary, gently clean the exterior of the connector with a dry, non-abrasive cloth. Ensure power is disconnected before cleaning. Do not use liquid cleaners that could leave residue or cause corrosion.
- Кайрадан бекемдөө: If any connections appear loose during inspection, disconnect power and carefully re-tighten the set screw and mounting bolt to the appropriate torque.
Проблемаларды чечүү
Most issues related to electrical connectors stem from improper installation or environmental factors. If an electrical circuit involving the SLU650 connector is not functioning as expected, consider the following:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No electrical continuity | Loose set screw; improperly stripped wire; corrosion; incorrect wire gauge. | Disconnect power. Re-tighten set screw. Re-strip and re-insert wire. Clean or replace corroded components. Ensure correct wire gauge for the lug. |
| Туташуу чекитинде ашыкча ысып кетүү | Loose connection; insufficient contact area; excessive current; corrosion. | Disconnect power. Tighten all connections. Ensure proper wire insertion. Verify current load is within specifications. Clean or replace corroded parts. |
| Иттин физикалык жабыркашы | Excessive force during installation; environmental impact. | Disconnect power. Replace the damaged lug with a new one. |
Эгерде мүчүлүштүктөрдү оңдоо кадамдары көйгөйдү чечпесе, квалификациялуу электрикке кайрылыңыз.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | SLU650 |
| Бренд | Penn Union (Manufactured by Crimp Supply) |
| Материал | Жез |
| Өлчөмдөрү (L x W x Y) | Болжол менен 1 x 1 x 1 дюйм |
| Элемент Салмагы | Болжол менен 1 фунт |
| Пакеттин саны | 1 |
| Батареялар талап кылынат | Жок |
Note: Specific wire gauge compatibility for the SLU650 is not provided in the product data. Always ensure the lug is rated for the conductor size and current application.
Кепилдик жана колдоо
Specific warranty information for the Penn Union SLU650 connector is not provided in this manual. For details regarding warranty coverage, technical support, or further product inquiries, please contact the manufacturer, Crimp Supply, or your authorized distributor.
You may find contact information on the official Crimp Supply webсайт же сатып алуу пункту аркылуу.
