1. Киришүү
This manual provides instructions for the proper setup, operation, and maintenance of your Timex Men's Waterbury Classic 40mm Chronograph Watch (Model TW2Y29400VQ). This watch features a 40mm stainless-steel case, a cream dial with Arabic numerals, a date window, luminant hands, and a black natural leather strap. It includes a chronograph function and INDIGLO backlight for enhanced visibility.

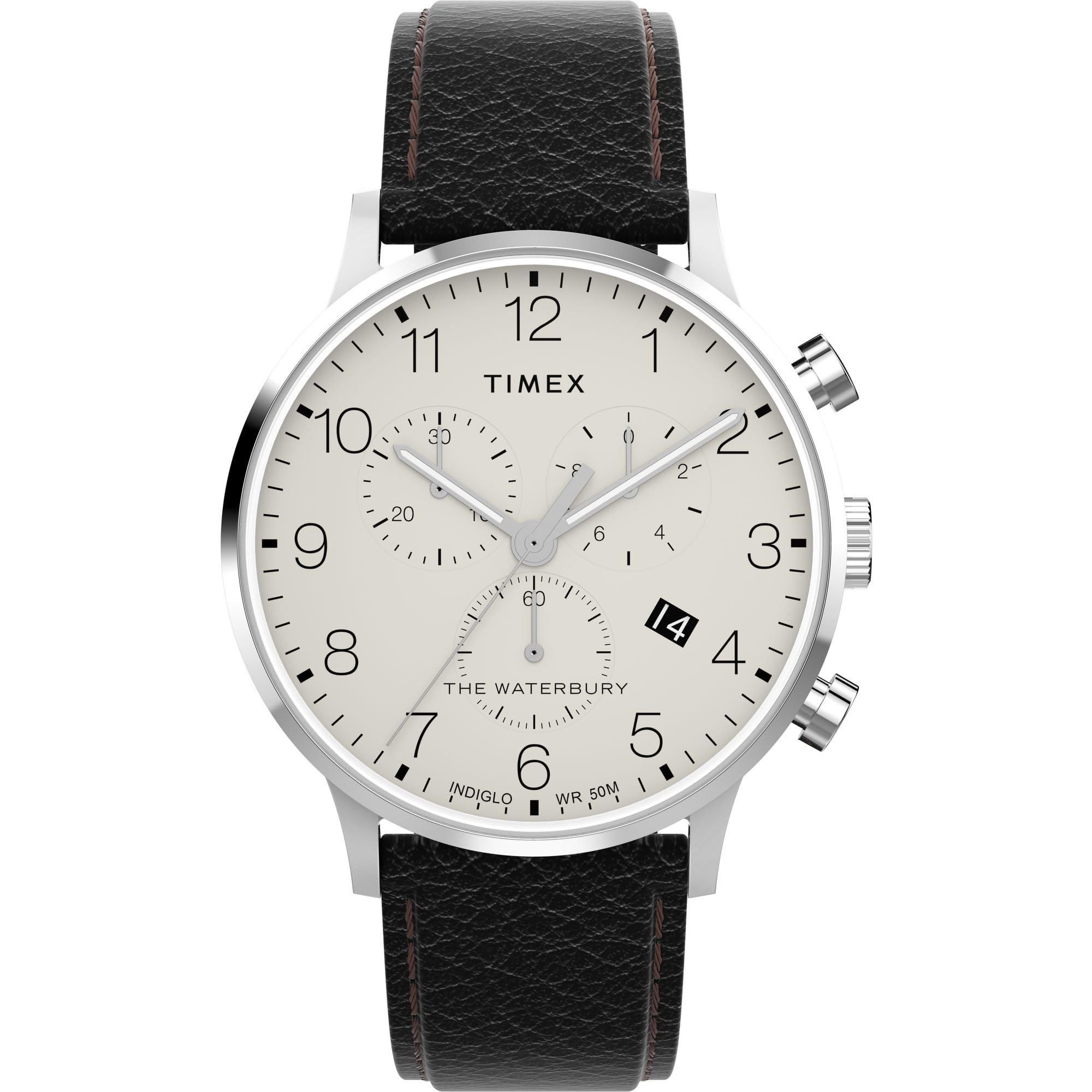

Сүрөт 1.1: Алдыңкы view of the Timex Waterbury Classic Chronograph watch.
This image shows the watch face, including the cream dial, Arabic numerals, chronograph subdials, and the date window. The black leather strap is also visible.
2. Компоненттерди көрүү
Сааттын негизги компоненттери менен таанышып алыңыз:
- Crown: Used for setting time and date, and activating INDIGLO.
- Түрткүчтөр (A & B): Хронографтын функцияларын иштетүү үчүн колдонулат.
- Терүү: Displays time, date, and chronograph measurements.
- Колдор: Hour, minute, second, and chronograph hands.
- Дата терезеси: Учурдагы датаны көрсөтөт.
- Булгаары боо: Саатты билегиңизге бекитет.
- Корпустун арткы бети: Protects the internal movement and often contains model information.
Сүрөт 2.1: Каптал view illustrating the crown and pushers.
Бул сүрөт ачык-айкын камсыз кылат view of the watch's right side, showing the main crown in the center and the two chronograph pushers above and below it.
Image 2.2: Close-up of the watch case back.
This detailed image displays the stainless steel case back, featuring engravings such as "TIMEX," "WATERBURY COLLECTION," and water resistance information.
3. Баштапкы орнотуу
3.1 Убакытты коюу
- тартыңыз таажы out to position 3 (farthest out). The second hand will stop.
- Turn the crown to move the hour and minute hands clockwise until the desired time is set. Ensure AM/PM is correctly set if your watch has a 24-hour indicator or date changes at midnight.
- Push the crown back in to position 1 (normal operating position). The second hand will resume movement.
3.2 Күндү коюу
- тартыңыз таажы out to position 2 (intermediate position).
- Turn the crown either clockwise or counter-clockwise (depending on the movement) until the correct date appears in the date window.
- Таажыны кайра 1 абалына түртүңүз.
- Эскертүү: Avoid setting the date between 9 PM and 3 AM, as this may interfere with the automatic date change mechanism. If the date needs to be set during this period, first set the time outside this range, adjust the date, then reset the time.
4. Иштөө нускамалары
4.1 Хронографтын функциясы
The chronograph allows you to measure elapsed time. Your watch features a 1/10 second chronograph accuracy.
- үчүн баштоо the chronograph, press pusher A (top pusher). The chronograph second hand will begin to move.
- үчүн токто the chronograph, press pusher A again. The elapsed time will be displayed.
- үчүн баштапкы абалга келтирүү the chronograph, press pusher B (bottom pusher) while the chronograph is stopped. All chronograph hands will return to their zero positions.
- Өлчөө үчүн split time (intermediate time), press pusher B while the chronograph is running. The chronograph hands will stop to show the split time. Press pusher B убакытты кайра улантуу үчүн.
4.2 INDIGLO түнкү жарыгы
The INDIGLO night-light illuminates the entire watch dial for easy reading in low-light conditions.
- To activate the INDIGLO night-light, simply press and hold the таажы. The light will remain on as long as the crown is pressed.
4.3 Сууга туруктуулук
Your Timex Waterbury Classic Chronograph watch is water resistant to 100 метр (330 фут). This means it is suitable for showering, swimming, and snorkeling. However, it is not suitable for scuba diving.
- Саат нымдуу же суу астында турганда таажыны же түртүүчүлөрдү иштетпеңиз. This can compromise the water resistance.
- After exposure to salt water, rinse the watch with fresh water and wipe it dry with a soft cloth.
5. Боону тууралоо
The watch comes with a natural leather strap. To adjust the fit, simply use the buckle to select the appropriate hole for your wrist size. The leather strap will soften and conform to your wrist over time.
Сүрөт 5.1: Арткы view showing the leather strap and buckle.
This image displays the watch from the back, focusing on the black leather strap and its silver-tone buckle, which is used for securing the watch.
5.1 Understanding Watch Case Sizing
To help visualize how different watch case sizes appear on various wrist sizes, please refer to the following informational video:
Video 5.1: Timex Watch Sizing Chart.
This video demonstrates how various watch case sizes (from 16mm to 50mm) appear on a 7-inch wrist and a 6-inch wrist, providing a visual guide for understanding watch proportions.
6. Кароо жана тейлөө
- Тазалоо: Сааттын корпусун жана хрустальды жумшак, d менен сүртүңүзamp cloth. For the leather strap, avoid excessive moisture and harsh chemicals.
- Батареяны алмаштыруу: When the watch stops or the second hand begins to jump every few seconds, it indicates a low battery. Have the battery replaced by a qualified watch technician to ensure water resistance is maintained.
- Температуранын кескин чеги: Саатыңызды экстремалдык температурага (ысык же муздак) узак убакыт бою тийгизбеңиз, анткени бул тактыкка жана батареянын иштөө мөөнөтүнө таасир этиши мүмкүн.
- Химиялык заттар: Саатты эриткичтерден, жуучу каражаттардан, атырлардан жана косметикадан алыс кармаңыз, анткени алар корпуска, боого же прокладкаларга зыян келтириши мүмкүн.
- Магниттик талаалар: Strong magnetic fields can affect the watch's accuracy. Keep it away from strong magnets.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Иштебей турган же үзгүлтүктүү иштеп жаткан көрүү. | Батарея аз же өлүк. | Батареяны алмаштырыңыз. |
| Date not changing at midnight. | Убакыт туура эмес коюлду (AM/PM). | Reset the time, ensuring the date changes at 12 AM. |
| Хронограф колдору нөлгө кайра коюлбайт. | Калибрлөөнү талап кылат. | Consult Timex support or a qualified watch technician for calibration instructions. |
| Watch gains or loses time significantly. | Exposure to strong magnetic fields or internal movement issue. | Keep away from magnets. If problem persists, seek professional service. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | Waterbury Classic Chronograph |
| Модель номери | TW2Y29400VQ |
| Бренд | Timex |
| Дисплей түрү | Аналог |
| Кыймылды көрүү | Кварц |
| Power Source | Батарея менен иштейт |
| Иштин материалы | Дат баспаган болот |
| Иштин диаметри | 40 миллиметр |
| Case Thickness | 11 миллиметр |
| Кристалл түрү | Минералдык айнек |
| Топтун материалы | Тери |
| Band Color | Кара |
| Band Width | 20 миллиметр |
| Band Length | 8 дюйм |
| Терүү түсү | Беж (Крем) |
| Класс түрү | Buckle |
| Сууга каршылыктын тереңдиги | 100 метр (330 бут) |
| Сууга туруктуулук деңгээли | Waterproof (suitable for swimming/snorkeling, not diving) |
| Өзгөчөлүктөр | Chronograph, Date Window, INDIGLO Night-Light, Luminant Hands |
| Элемент Салмагы | 0.21 килограмм (болжол менен 7.41 унция) |
| Камтылган компоненттер | Watch with Leather Strap, Watch Box |
9. Кепилдик жана колдоо
Your Timex Waterbury Classic Chronograph Watch comes with a Чектелген Кепилдик. Please refer to the warranty information included in your watch packaging for specific terms and conditions.
For further assistance, troubleshooting, or warranty claims, please contact Timex Customer Support:
- Онлайн колдоо: расмий сапар Timex колдоо Webсайт.
- Байланыш маалыматы: Refer to your product packaging or the Timex webаймактык байланыш маалыматы үчүн сайт.
When contacting support, please have your watch model number (TW2Y29400VQ) and purchase details readily available.
