SEAFLO 12V 13D сериясы 1100GPH Livewell/Baitwell насосунун колдонуу боюнча колдонмосу

1. Киришүү

The SEAFLO 12V 13D Series 1100GPH Livewell/Baitwell Pump is designed to provide continuous water circulation, maintaining a healthy environment for live bait and catch in marine livewell and baitwell tanks. This pump ensures a steady supply of oxygen-rich water, crucial for extended fishing trips. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of the product.

2. Коопсуздук чаралары

Always observe the following safety guidelines to prevent injury or damage to the pump and vessel:

• Disconnect power before installing, servicing, or performing any maintenance on the pump.
• Ensure the power source is a 12V DC system. Connecting to an incorrect voltage насосту бузуп, кепилдикти жокко чыгарат.
• This pump is fully submersible and ignition-protected, designed for safe operation underwater and in enclosed compartments.
• Насосту узак убакыт бою кургак иштетпеңиз, анткени бул ысып кетүү жана бузулууга алып келиши мүмкүн.
• Use appropriate marine-grade wiring and connectors for all electrical connections to prevent corrosion and ensure safety.
• Ensure all hose connections are secure and leak-free.

3. Продукциянын компоненттери

The SEAFLO 13D Series Livewell/Baitwell Pump typically includes the following components:

• Pump Body with Motor
• Quick-Release Strainer Base
• Discharge Fittings (typically two, for various hose sizes)
• Wiring Leads (12V DC)

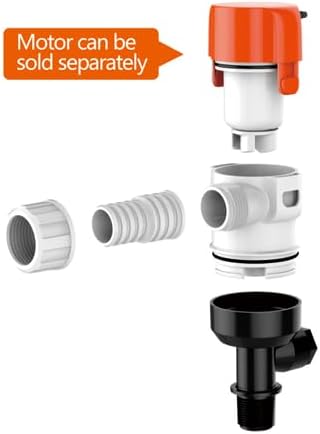

Сүрөт 3.1: Жарылып кеткен view of the pump showing its main components, including the motor, pump body, and quick-release strainer base. The motor can be sold separately for replacement.

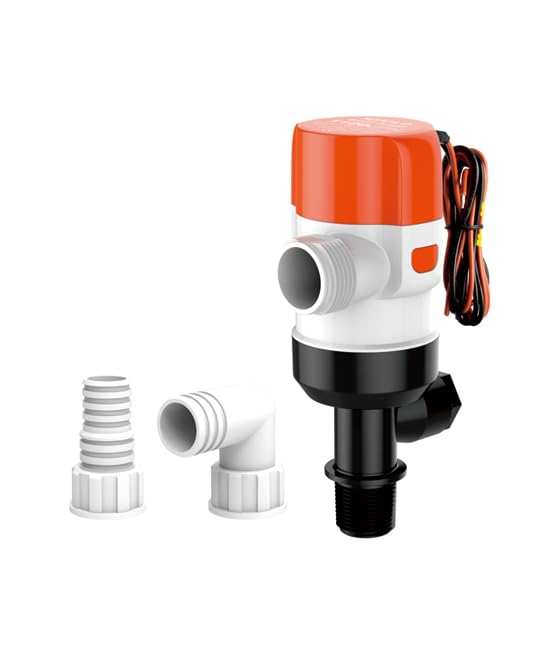

Image 3.2: Assembled view of the SEAFLO 13D Series 1100GPH Livewell/Baitwell Pump, featuring its orange and white housing with wiring leads.

4. Техникалык шарттар

5. Орнотуу боюнча колдонмо

Follow these steps for proper installation of your livewell/baitwell pump:

5.1 Монтаждоо

1. Choose a suitable location in your livewell or baitwell tank that allows the pump to be fully submerged during operation.
2. Монтаждоо бетинин таза жана тегиз болушун камсыз кылыңыз.
3. Secure the quick-release strainer base to the bottom of the tank using appropriate marine-grade fasteners (not included).
4. Align the pump body with the strainer base and snap it into place. Ensure it is firmly seated.

5.2 Электр зымдары

1. Connect the pump's positive (+) wire (typically brown or red) to a 12V DC fused power source. The fuse should be rated appropriately for the pump's current draw (refer to pump specifications or packaging).
2. Connect the pump's negative (-) wire (typically black) to a reliable ground connection.
3. Use marine-grade, heat-shrink butt connectors or similar waterproof connections to prevent corrosion.
4. Ensure all wiring is routed safely, away from sharp edges or moving parts, and secured with cable ties.

5.3 Шлангдын туташуулары

1. Attach the appropriate discharge hose to the pump's outlet port. The 360-degree adjustable outlet allows for flexible hose routing.
2. Secure the hose with a marine-grade hose clamp агып кетпеши үчүн.
3. Route the discharge hose to your livewell or baitwell inlet, ensuring a smooth path without kinks or sharp bends that could restrict water flow.
4. Ensure the discharge outlet is positioned to create optimal water circulation within the tank.

6. Операция

To operate your SEAFLO Livewell/Baitwell Pump:

1. Ensure the livewell/baitwell tank is filled with water, fully submerging the pump.
2. Activate the pump via its dedicated switch on your vessel's electrical panel.
3. Verify that water is flowing from the discharge outlet into the tank, indicating proper operation.
4. The pump is designed for continuous operation to maintain water quality. Monitor your bait/catch and water conditions regularly.
5. The anti-airlock protection feature helps ensure uninterrupted water flow, even in choppy conditions.

7. Техникалык тейлөө

Үзгүлтүксүз тейлөө оптималдуу иштешин камсыз кылат жана насосуңуздун иштөө мөөнөтүн узартат:

7.1 Cleaning the Strainer Base

1. Насостун кубатын ажыратыңыз.
2. Twist and pull the pump body upwards to detach it from the quick-release strainer base.
3. Remove any debris, weeds, or foreign objects from the strainer and impeller area.
4. Rinse the strainer base and pump body with fresh water.
5. Reattach the pump body to the strainer base, ensuring it clicks securely into place.

7.2 Жалпы кам көрүү

• Periodically inspect all wiring and connections for signs of corrosion or damage.
• Check hoses for kinks, cracks, or blockages.
• Ensure the pump is always fully submerged when operating to prevent dry running.
• For winterization, remove the pump, clean it thoroughly, and store it in a dry, frost-free location.

8. Кыйынчылыктарды

If you encounter issues with your pump, refer to the following table:

Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, SEAFLO кардарларды колдоо кызматына кайрылыңыз.

9. Кепилдик жана колдоо

For warranty information, technical assistance, or to purchase replacement parts, please contact SEAFLO customer support through their official webсайтына же продукт сатып алынган сатуучуга кайрылыңыз. Кепилдик талаптары үчүн сатып алгандыгыңызды тастыктаган документти сактап коюңуз.
