Liectroux YW810 терезе тазалоочу робот колдонуучунун колдонмосу

1. Киришүү

The Liectroux YW810 is an advanced robotic window cleaner designed to automate the cleaning of various smooth surfaces, including windows, mirrors, and tiles. This manual provides essential information on how to safely set up, operate, and maintain your Liectroux YW810 robot to ensure optimal performance and longevity.

Figure 1.1: Liectroux YW810 Window Cleaning Robot. This image shows the sleek, black, oval-shaped robot with its power button and Liectroux branding visible on the top surface, and two grey cleaning pads on the underside.

2. Коопсуздук маалыматы

Please read all safety warnings and instructions carefully before using the Liectroux YW810. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always connect to power: The robot operates on a wired electric connection and requires continuous power for optimal suction and operation. It is equipped with an internal battery that provides up to 20 minutes of backup power in case of an electricity outage, preventing falls.
• Use the safety rope: Always attach the provided safety rope to a secure anchor point before operating the robot, especially on high windows or surfaces. This is a critical safety measure against accidental falls.
• Supervision recommended: While the robot features intelligent sensors and anti-fall protection, continuous supervision is recommended, particularly during initial uses or on challenging surfaces.
• Surface compatibility: The robot is designed for smooth surfaces such as glass, mirrors, and tiles. It may not perform optimally or safely on frameless glass, very narrow surfaces, or surfaces with significant irregularities.
• Тоскоолдуктарды болтурбоо: Ensure the cleaning path is clear of any obstacles that could impede the robot's movement or cause it to dislodge.
• Балдардан жана үй жаныбарларынан алыс кармаңыз: Do not allow children or pets to approach the robot while it is in operation.

Figure 2.1: Battery Protection Feature. This image illustrates the robot's internal lithium battery, which provides up to 20 minutes of power backup to prevent falls during power outages.

3. Продукт бүтүп калдыview

3.1. Негизги өзгөчөлүктөрү

• Жогорку соруу күчү: Features strong suction (up to 2800 Pa) to maintain firm adherence to surfaces while cleaning.
• Көп кырдуу тазалоо: Effectively cleans glass, windows, mirrors, and wall tiles.
• Manual-like Cleaning: Reproduces precise movements for deep and uniform cleaning.
• Акылдуу сенсорлор: Detects obstacles and edges, adjusting its route in real-time to prevent collisions and falls.
• Multiple Cleaning Trajectories: Offers N-mode, Z-mode, and automatic cleaning paths.
• Smart App Control: Control the robot conveniently via a smartphone application (Bluetooth compatible).
• Алыстан башкаруу: Includes a remote control for manual operation.
• Bivolt Compatibility: Operates on both 110V and 220V power outlets.
• Суу спрей функциясы: Automatically sprays water for efficient cleaning, using only 70ml of water to clean up to 150m².

Figure 3.1: ашыкview of Liectroux YW810 Features. This image highlights the robot's intelligent trajectory, remote control via app, complete cleaning capability, and high suction power, shown with the robot cleaning a large window.

Figure 3.2: Multi-Surface Cleaning Capability. This image demonstrates the robot's versatility, showing it can clean various surfaces including windows, mirrors, tiles, and glass walls in different room settings.

3.2. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1 x Liectroux YW810 Robot
• 1 x узартуу кабели
• 1 x Коопсуздук кабели
• 10 x Mop Discs (1 pair pre-installed, 4 bonus pairs)
• 1 х кубат адаптери
• 1 x Water Spray Bottle (special offer)
• 1 x Cleaning Ring
• 1 x User Manual
• 1 x Алыстан башкаруу

Figure 3.3: Included Accessories. This image displays all components included in the Liectroux YW810 package, such as the robot, cables, mop discs, adapter, and remote control.

4. Орнотуу

1. Attach Mop Discs: Securely attach the cleaning mop discs to the bottom of the robot. Ensure they are properly aligned and fastened.
2. Коопсуздук арканын туташтыруу: Attach one end of the safety rope to the robot and the other end to a sturdy, immovable object (e.g., a heavy piece of furniture, a window frame anchor) that can withstand the robot's weight in case of a fall.
3. Кубат адаптерин туташтыруу: Plug the power adapter into the robot's power port and then into a suitable electrical outlet (110V or 220V). The robot must remain connected to power during operation.
4. Бетти даярдоо: Ensure the surface to be cleaned is free of large debris or obstructions.
5. Place Robot: Carefully place the robot onto the surface you wish to clean. Ensure it adheres firmly before releasing it.
6. Күйгүзүү: Press the power button on the robot or use the remote control to turn it on.

Figure 4.1: Robot with Remote Control and Smartphone App. This image shows the Liectroux YW810 robot alongside its remote control and a smartphone displaying the control app interface, illustrating the multiple control options.

5. Иштөө нускамалары

5.1. Тазалоо режимдери

The Liectroux YW810 offers several cleaning modes:

• Автоматтык режим: The robot intelligently maps the cleaning area and determines the most efficient path.
• N-Mode: The robot cleans in an N-shaped pattern, suitable for tall and narrow surfaces.
• Z-Mode: The robot cleans in a Z-shaped pattern, suitable for wide and short surfaces.

You can select these modes via the remote control or the smartphone application.

Figure 5.1: Intelligent Cleaning. This image illustrates the robot's ability to memorize cleaned areas and define optimal cleaning paths, returning to the starting point after completion.

5.2. Пультту колдонуу

The included remote control allows for direct command of the robot. Functions typically include:

• Тазалоону баштоо/токтотуу
• Change cleaning mode (N/Z/Auto)
• Manual direction control
• Activate/Deactivate water spray

5.3. Using the Smartphone App

Download the official Liectroux app from your device's app store. Pair your robot via Bluetooth. The app provides comprehensive control, including:

• Алыстан баштоо/токтоо
• Режим тандоо
• Real-time cleaning progress monitoring
• Тазалоо иштерин пландаштыруу
• Firmware updates (if available)

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Liectroux YW810.

• Clean Mop Discs: After each use, remove the mop discs and wash them thoroughly. Allow them to air dry completely before reattaching. Replace worn or damaged discs promptly. Note that some users report lint from the mop pads, which may require additional manual wiping after cleaning.
• Суу резервуарын кайра толтуруу: If using the water spray function, ensure the internal water tank (70ml capacity) is refilled with appropriate cleaning solution or distilled water.
• Таза сенсорлор: Periodically wipe the robot's sensors with a soft, dry cloth to ensure they remain free of dust and debris, which can affect navigation and obstacle detection.
• Inspect Safety Rope: Regularly check the safety rope for any signs of wear or damage. Replace if necessary.
• Check Attachment Discs: Inspect the attachment discs for any damage or broken teeth, as reported by some users. Ensure they are perfectly attached before starting operation.

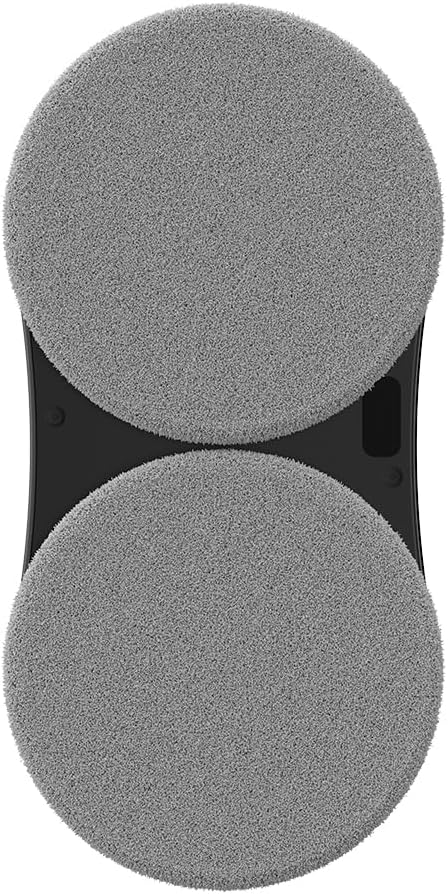

6.1-сүрөт: Төмөнкү View of Robot with Mop Pads. This image shows the underside of the Liectroux YW810, highlighting the two circular cleaning pads that attach to the robot for cleaning surfaces.

7. Кыйынчылыктарды

This section addresses common issues you might encounter with your Liectroux YW810.

8. Техникалык шарттар

Figure 8.1: Product Dimensions and Weight. This image provides a visual representation of the robot's dimensions and its weight of 1.06 kg.

9. Кепилдик жана колдоо

The Liectroux YW810 comes with standard manufacturer's warranty. Additionally, extended protection plans may be available for purchase:

• 12 айга бузулууларга жана кемчиликтерге каршы узартылган кепилдик.
• 24 айга бузулууларга жана кемчиликтерге каршы узартылган кепилдик.

For technical support, warranty claims, or further assistance, please contact the seller, Liectroux Brasil, or refer to the official Liectroux webбайланыш маалыматы үчүн сайт.

You can visit the official Liectroux store on Amazon for more information: Liectroux Brasil Store
