Продукт бүттүview
The Satisure Wireless Doorbell Chime Video Doorbell Extender is designed to enhance your home's doorbell system by providing a wireless chime solution. This extender allows you to hear your doorbell ring from anywhere in your home, overcoming the limitations of relying solely on app notifications. It is specifically engineered for compatibility with Blink Video Doorbell and Blink Video Doorbell (2nd Generation).
Image: The Satisure Wireless Doorbell Chime Video Doorbell Extender system, showing the main chime units and the compact video doorbell extender.
Шайкештик
This Satisure Doorbell Extender is exclusively compatible with the following Blink Video Doorbell models:
- Blink Video Doorbell
- Blink Video Doorbell (2nd Generation)
Important Note: This device is not compatible with other doorbell brands or models.

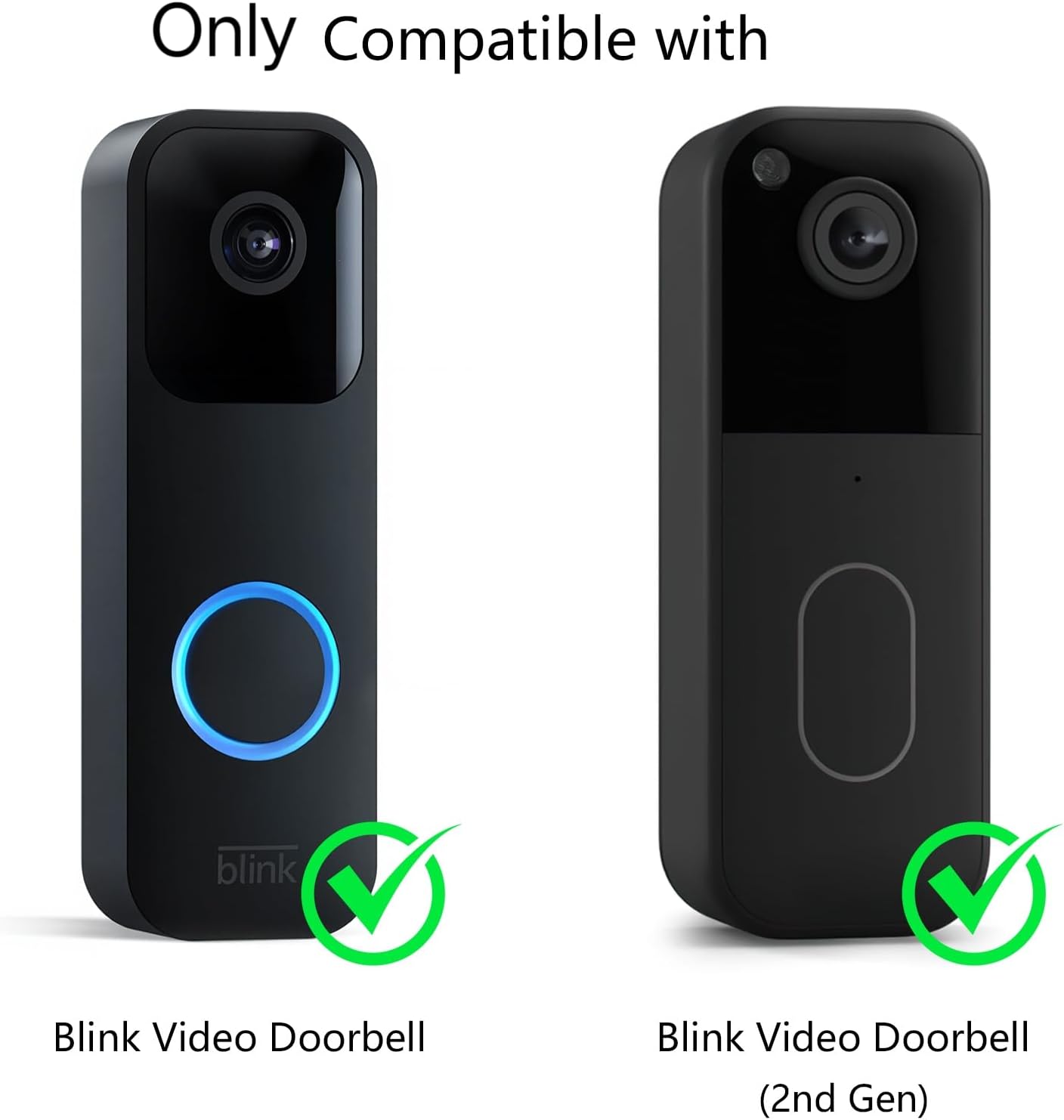

Image: A visual representation confirming compatibility with Blink Video Doorbell and Blink Video Doorbell (2nd Gen) models.
Орнотуу жана орнотуу
Орнотууга чейинки эскертүүлөр
If your Blink Video Doorbell is currently connected to an existing wired doorbell system, it is crucial to disconnect the wires of the wired doorbell before connecting the Satisure transmitter. The Satisure extender cannot be connected simultaneously with a wired doorbell system.

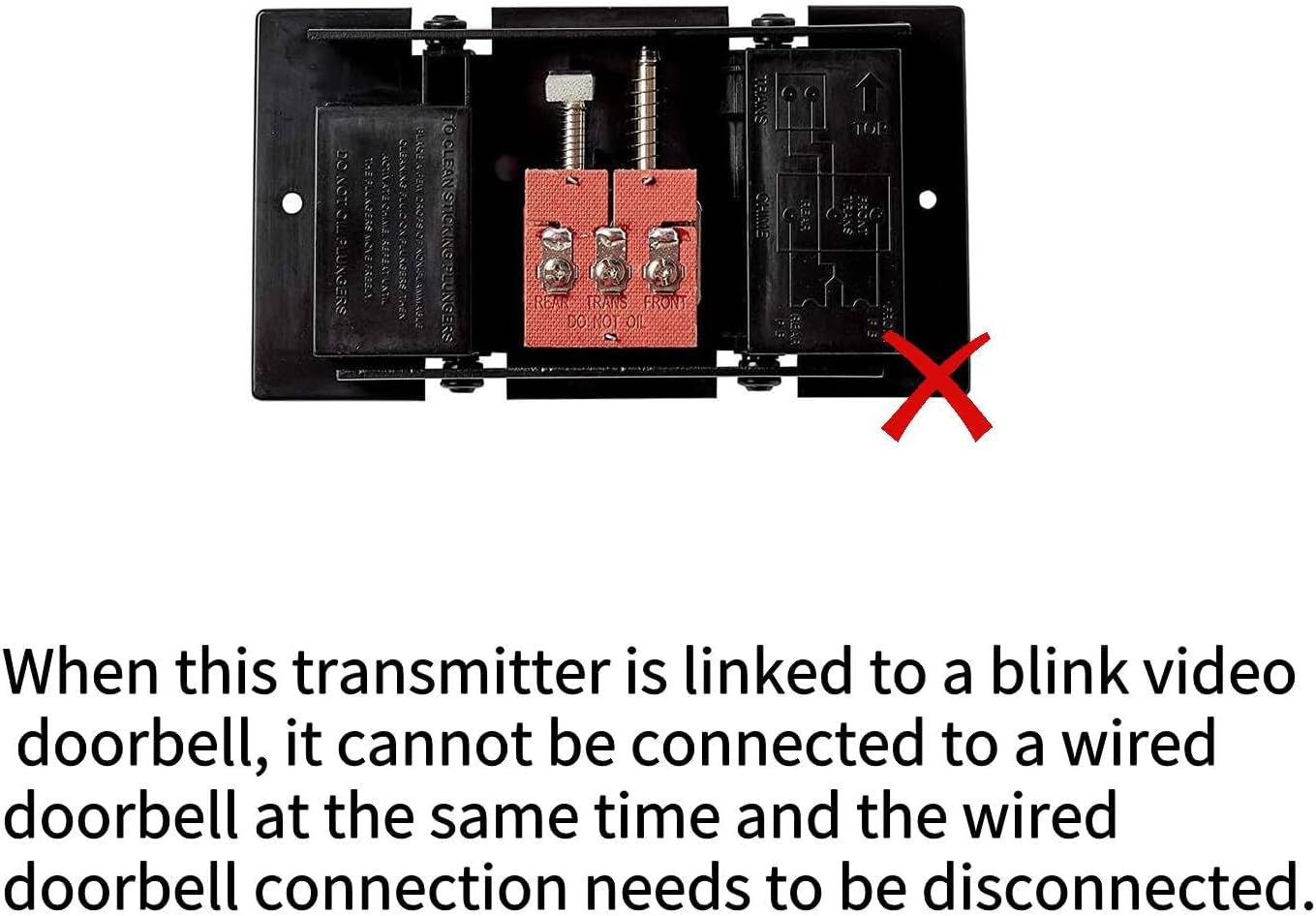

Image: An illustration indicating that existing wired doorbell connections must be removed when installing the Satisure extender.
Өткөргүчтү туташтыруу
- Connect the Satisure transmitter to the back of your Blink Video Doorbell using the pre-installed cable.
- Ensure the connection is secure. Once connected, the indicator light on the transmitter should illuminate, signifying proper operation.
Image: A diagram illustrating how the Satisure video doorbell extender connects to the Blink Video Doorbell and then wirelessly communicates with the chime unit.
Image: A visual guide demonstrating the physical connection of the transmitter to the Blink Video Doorbell using the provided cable.
Кабылдагыч менен өткөргүчтү жупташтыруу
The transmitter and receiver units are typically pre-paired from the factory. If re-pairing is necessary or if you are adding additional receivers, follow these steps:
- Plug the receiver into a standard electrical outlet.
- On the receiver, use the "Music Button" (forward/back buttons) to select your desired ringtone.
- Press and hold the "Volume Button" on the receiver for 5-7 seconds until the receiver emits a "dings" sound and its indicator light flashes rapidly. This indicates the receiver is in pairing mode.
- Quickly press the doorbell button on your Blink Video Doorbell. The indicator light on the Satisure transmitter extender will light up, and the transmitter will send a signal to the receiver.
- Upon successful pairing, you will hear the ringtone you selected from the receiver.
Image: A step-by-step visual guide detailing the pairing process between the Satisure doorbell extender and the receiver unit.
Иштөө нускамалары
Wireless Range and Coverage
The Satisure doorbell extender provides a wide coverage range of up to 656 feet (approximately 200 meters). This extensive range ensures that you will hear your doorbell chime regardless of your location within your home or property, such as in a garage or backyard.
Image: An architectural diagram illustrating the 200-meter wireless range of the Satisure doorbell system, covering multiple rooms and areas within a typical home layout.
Сүрөт: Мисamples of multi-scene application, demonstrating how the chime can be heard in various locations like the fireplace area, bedroom, kitchen, and garage.
Chime Selection and Volume Adjustment
The doorbell receiver offers 58 distinct chime melodies to suit your preference. It also features 5 adjustable volume levels, ranging from 0dB (silent) to 110dB, allowing you to set the alert volume as needed.
- To change the chime melody: Use the "Music Button" (forward/back buttons) on the receiver.
- To adjust the volume: Press the "Volume Button" on the receiver to cycle through the 5 volume levels.
Multiple Receiver Connections
For larger homes or properties, you can connect up to 20 receivers to a single transmitter. This allows for comprehensive coverage and ensures the doorbell chime is audible throughout your entire living space.
LED Night Light Feature
The plug-in receiver is equipped with a blue LED night light. This light can provide a visual indication when the doorbell rings, which is particularly useful in silent mode or during nighttime hours.
Image: A comparison showing the plug-in receiver with its blue LED night light feature, illuminated in a dark room and off in a bright room.
Техникалык тейлөө
The Satisure Wireless Doorbell Chime Video Doorbell Extender requires minimal maintenance. To ensure optimal performance and longevity:
- Keep the units clean by wiping them with a soft, dry cloth.
- Avoid exposing the units to extreme temperatures, direct sunlight, or moisture.
- Ensure the receiver is plugged into a stable power source.
Проблемаларды чечүү
If you encounter issues with your Satisure Wireless Doorbell Chime Video Doorbell Extender, consider the following troubleshooting steps:
- Коңгуроонун үнү жок:
- Кабыл алгычтын иштеп жаткан электр розеткасына туура сайылганын текшериңиз.
- Check if the volume level on the receiver is set to an audible level (not 0dB).
- Verify that the transmitter is correctly connected to your Blink Video Doorbell and its indicator light is on.
- Attempt to re-pair the transmitter and receiver following the "Pairing the Transmitter and Receiver" instructions.
- Чектелген диапазон:
- Ensure there are no significant obstructions (e.g., thick walls, large metal objects) between the transmitter and receiver.
- Relocate the receiver to a more central location within the desired coverage area.
- Check for potential sources of wireless interference (e.g., other wireless devices, microwaves).
- Үзгүлтүксүз иштөө:
- Confirm that the Blink Video Doorbell's battery is not low, as this can affect the transmitter's power supply.
- Бардык байланыштар коопсуз экенин текшериңиз.
If these steps do not resolve the issue, please contact Satisure customer support for further assistance.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү | 3.62 x 3.34 x 7.6 дюйм |
| Элемент Салмагы | 8.4 унция |
| Модель номери | B22 |
| Зымсыз диапазон | 656 фут (200 метр) чейин |
| Chime Melodies | 58 вариант |
| Үн деңгээли | 5 деңгээл (0-110дБ) |
| Max Receivers per Transmitter | 20ге чейин |
| Шайкештик | Blink Video Doorbell, Blink Video Doorbell (2nd Gen) |
Image: A detailed diagram illustrating the dimensions and key components of the Satisure doorbell system, including the receiver and transmitter.
Кепилдик жана колдоо
Satisure offers a 30-day refund guarantee for this product. We are committed to providing excellent customer service and support.
If you have any questions, concerns, or require assistance with your Satisure Wireless Doorbell Chime Video Doorbell Extender, please do not hesitate to reach out to our dedicated after-sales service team. Contact information can typically be found on the product packaging or the official Satisure webсайт.
