ATTACK SHARK MAMBASNAKE X60 HE механикалык оюн клавиатурасы колдонуучунун колдонмосу

1. Киришүү

This manual provides detailed instructions for the setup, operation, and maintenance of your ATTACK SHARK MAMBASNAKE X60 HE Mechanical Gaming Keyboard. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

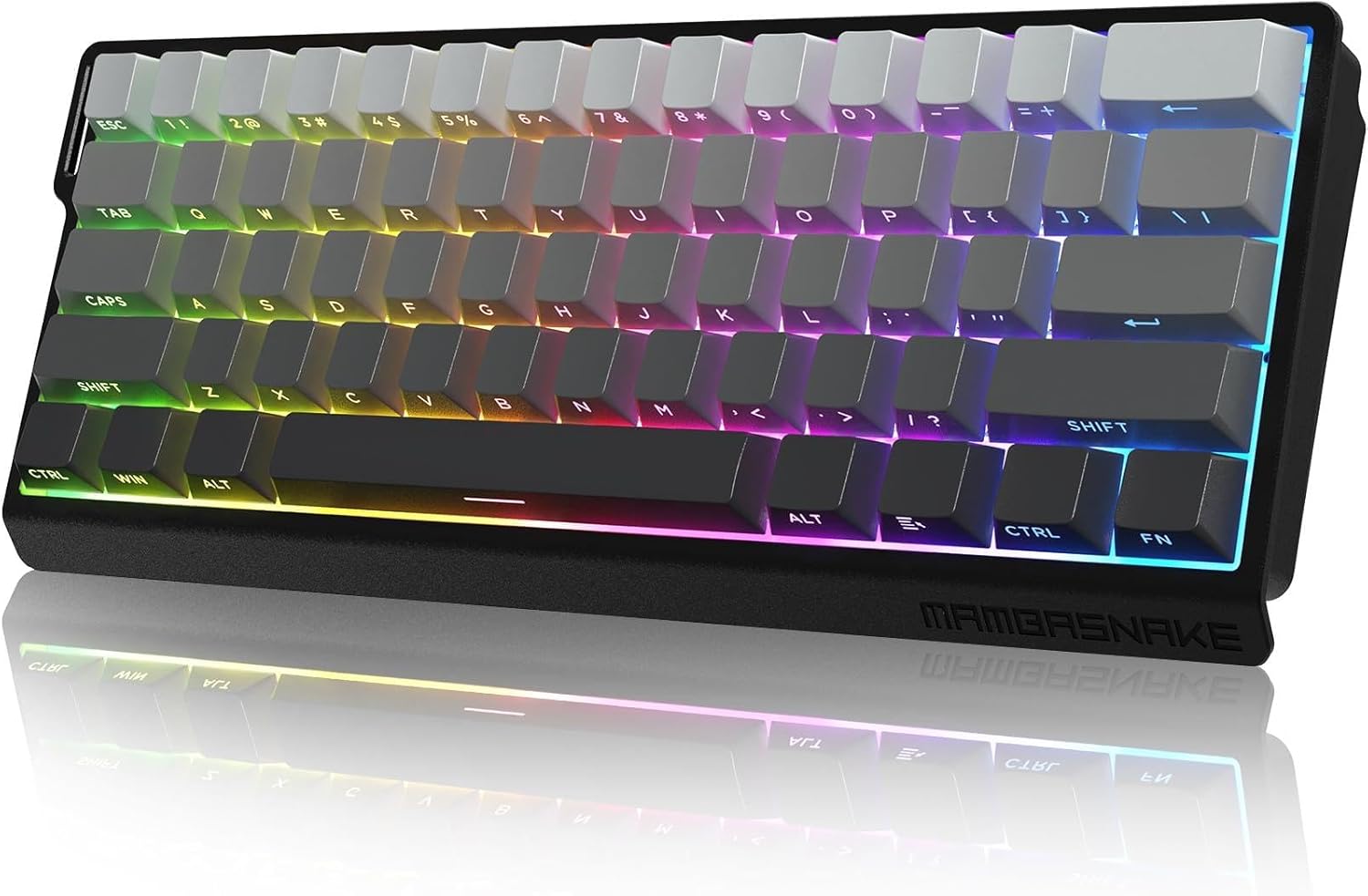

Image 1.1: The ATTACK SHARK MAMBASNAKE X60 HE Mechanical Gaming Keyboard, showcasing its compact 60% layout and vibrant RGB backlighting.

2. Орнотуу жана туташуу

The MAMBASNAKE X60 HE keyboard supports three connection modes: wired, 2.4GHz wireless, and Bluetooth. Choose the mode that best suits your needs.

2.1 Пакеттин мазмуну

• ATTACK SHARK MAMBASNAKE X60 HE Keyboard
• USB-C - USB-A кабели
• 2.4GHz USB кабылдагычы
• Keycap / Switch Pulling Tool
• Колдонуучунун Колдонмосу (бул документ)

2.2 Triple Mode Connection

Your keyboard offers versatile connectivity options:

• Зымдуу режим: Connect the keyboard directly to your computer using the provided USB-C cable. This mode offers an 8000Hz polling rate and 0.1ms latency for competitive gaming.
• 2.4 ГГц зымсыз режими: Insert the 2.4GHz USB receiver into an available USB port on your computer. The keyboard will automatically connect. This mode provides a 1000Hz polling rate.
• Bluetooth режими: The keyboard can pair with up to three Bluetooth-enabled devices simultaneously. Refer to the operating instructions for pairing details. This mode also provides a 1000Hz polling rate.

Image 2.1: Illustration of the keyboard's triple-mode connectivity, highlighting wired, 2.4G wireless, and Bluetooth options.

2.3 Web Драйверди орнотуу

For advanced customization, access the web айдоочу qmk.top. No software download is required. This web-based tool allows you to configure key functions, macros, RGB lighting, and more.

3. Иштөө нускамалары

3.1 Негизги ачкыч функциялары

The X60 HE features a compact 61-key ANSI layout. Many functions are accessed via the FN башка баскычтар менен айкалышкан баскыч.

• FN + TAB: Toggles between function key mode (F1-F12) and numpad mode for the number row.
• FN + Right Ctrl: Checks the current battery level.
• Other FN combinations for multimedia, lighting, and system controls are detailed in the web driver interface.

3.2 Advanced Customization (Web Айдоочу)

The web айдоочу qmk.top provides extensive customization options:

• Ачкычты кайра түзүү: Reassign individual keys to different functions.
• Макрос: Create and assign complex sequences of keystrokes.
• RGB жарыктандыруу: Customize the 16.8 million color RGB lighting, including 21 backlit modes and 9 light colors.
• Динамикалык баскыч басуу (DKS): Assign multiple functions to a single key based on press duration.
• Mod-Tap (MT): Allows a key to act as a modifier when held and a regular key when tapped.
• Toggle (TGL): Toggles a function on or off with a single key press.
• Snap Key: Advanced key behavior for rapid input.

Сүрөт 3.1: The web driver interface, demonstrating options for key remapping, macros, and advanced settings like DKS and Snap Key.

3.3 Rapid Trigger and Adjustable Actuation

The keyboard features Hall Effect Magnetic Switches with Rapid Trigger technology, allowing for precise and immediate key response.

• 0.01mm RT Accuracy: Eliminates physical input delay for ultra-fast reactions.
• Жөнгө салынуучу кыймылдаткыч: Customize the actuation point of each switch from 0.1mm to 3.4mm via the web driver to match your preferred typing or gaming style.

Сүрөт 3.2: деталдуу view of the magnetic switch mechanism, illustrating the adjustable actuation range and key specifications.

3.4 Polling Rate and Latency

• Зымдуу режим: 8000Hz polling rate, 0.1ms latency.
• Wireless Modes (2.4GHz & Bluetooth): 1000Hz добуш берүү ылдамдыгы.

Image 3.3: Visual representation of the keyboard's high performance metrics, including 0.1ms wired latency and 128K ultra-high scanning.

4. Техникалык тейлөө

4.1 Батареяны башкаруу

The keyboard is equipped with a 4000mAh high-capacity battery for extended use.

• Батареяны текшерүү: Басыңыз FN + Оң Ctrl учурдагы батареянын деңгээлин текшерүү үчүн.
• Төмөн батарея көрсөткүчү: The space bar will flash when the battery is low, indicating it's time to recharge.
• Акылдуу уйку режими: The keyboard features a smart sleep mode to conserve power. The sleep time can be adjusted via the web айдоочу.
• Заряддоо: Connect the keyboard via the USB-C cable to charge.

4.2 Тазалоо жана кам көрүү

• Use a soft, dry cloth to clean the keyboard surface.
• For deeper cleaning, use the provided keycap puller to remove keycaps and clean underneath.
• Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.

4.3 Construction and Sound Dampэning

The keyboard is built with a durable metal positioning plate, double PO cotton, and a thick silicone bottom to provide a stable and acoustically pleasing typing experience, minimizing hollow echoes.

Image 4.1: An exploded diagram illustrating the internal components of the keyboard, including the PBT keycaps, aluminum alloy plate, PORON foam, PCB, and battery.

5. Кыйынчылыктарды

5.1 Байланыш маселелери

• 2.4 ГГц зымсыз: Ensure the USB receiver is securely plugged in and the keyboard is in 2.4GHz mode.
• Bluetooth: Verify Bluetooth is enabled on your device and the keyboard is in pairing mode. Try re-pairing if connection is lost.
• текст: Check the USB-C cable connection at both ends. Try a different USB port or cable if necessary.

5.2 Polling Rate Discrepancy

Note that the 8000Hz polling rate is only available in wired mode. In 2.4GHz wireless and Bluetooth modes, the polling rate is 1000Hz. This is expected behavior and not a malfunction.

5.3 Баскычтоп жооп бербейт

• Check battery level (FN + Right Ctrl). Recharge if low.
• Ensure the correct connection mode is selected.
• Компьютериңизди жана клавиатураңызды өчүрүп-күйгүзүңүз.
