1. Киришүү
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Dripex LED Mirror Vanity Table. This product is designed to offer a functional and organized space for personal grooming, featuring an illuminated mirror, integrated power outlets, and ample storage. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
1-сүрөт: Фронт view of the Dripex LED Mirror Vanity Table. This image displays the complete vanity table with its large LED mirror, central drawer, and two side cabinets.
2. Коопсуздук маалыматы
- Чийилип калбашы үчүн, продуктуну ар дайым таза, жумшак бетке чогултуңуз.
- Колдонуудан мурун бардык бурамалар жана бекиткичтер бекем бекитилгенин текшериңиз. Мезгил-мезгили менен бекемдигин текшерип туруңуз.
- Тартпаларды же текчелерди ашыкча жүктөбөңүз.
- Keep electrical components (mirror, power strip) away from water and moisture.
- Use only the provided power cord and ensure it is properly connected to a suitable power outlet.
- Чогултуу учурунда кичинекей бөлүктөрүн балдар жетпеген жерде сактаңыз.
3. Пакеттин мазмуну
The Dripex LED Mirror Vanity Table is shipped in two separate boxes. Please ensure you have received both packages before beginning assembly.
2-сүрөт: Illustration showing the product is shipped in two boxes (Box 1 and Box 2). These boxes may arrive at different times.
Бардык компоненттерди кылдаттык менен таңгактан чыгарып, өзүнчө чогултуу колдонмосунда берилген тетиктердин тизмеси менен салыштырып текшериңиз.
4. Монтаждоо боюнча нускамалар
Assembly of the Dripex LED Mirror Vanity Table is required. A detailed assembly guide with step-by-step instructions and diagrams is included in your package. Please follow the instructions carefully.
- Даярдоо: Clear a spacious area and lay out all components. It is recommended to have a second person assist with assembly, especially for larger parts like the mirror.
- Куралдар: Чогултуу боюнча колдонмодо көрсөтүлгөндөй керектүү шаймандардын (мисалы, бурагыч, балка) бар экенине ынаныңыз.
- Кадам-кадам: Follow the numbered steps in the assembly guide. Do not overtighten screws.
- Күзгү орнотуу: Pay close attention to the instructions for mounting the LED mirror securely.
- Электр байланыштары: Connect the LED mirror and power strip according to the instructions. Ensure all connections are firm.
3-сүрөт: Dimensional diagram of the vanity table, illustrating key measurements and component placement for assembly reference.
5. Иштөө нускамалары
5.1 LED күзгүнүн иштеши
The integrated LED mirror features touch controls for adjusting lighting.
- Күйгүзүү/өчүрүү: Күзгүнүн бетиндеги кубат сөлөкөтүн акырын басып, LED чырактарын күйгүзүңүз же өчүрүңүз.
- Түс режимдери: Touch the mode icon to cycle through three light color modes: cool white, natural daylight, and warm yellow.
- Жарыктыкты жөндөө: Жарыктык деңгээлин тууралоо үчүн кубат баскычын басып, кармап туруңуз. Каалаган жарыктыкка жеткенде коё бериңиз.

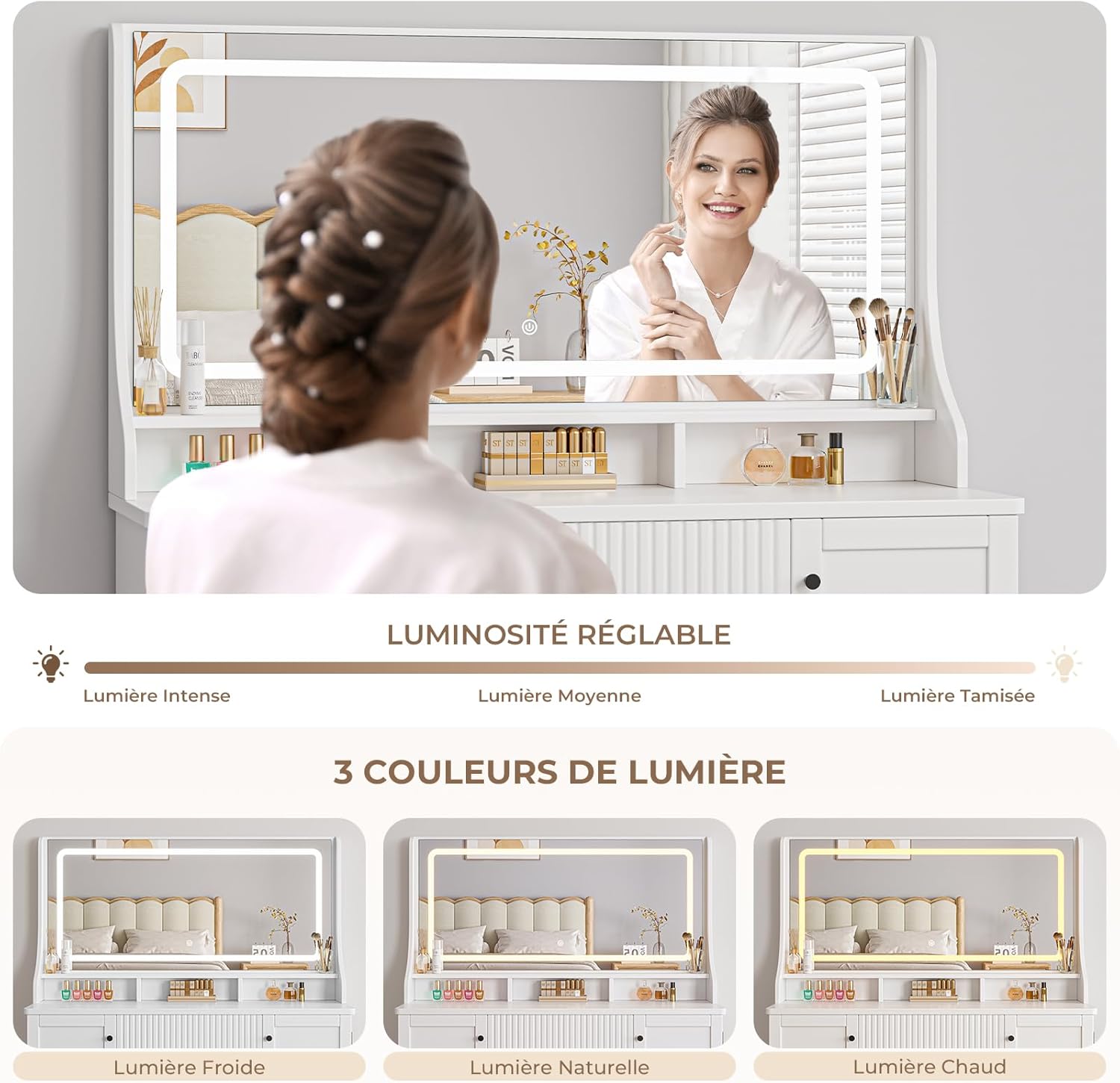

4-сүрөт: The LED mirror offers three light colors (Cool, Natural, Warm) and adjustable brightness levels for optimal illumination during use.
5.2 Интегралдык электр тилкеси
The vanity table includes a convenient power strip with two standard European outlets and two USB charging ports.
- AC розеткалары: Use the two 230V/16A outlets for powering devices such as hair dryers, curling irons, or straighteners.
- USB порттору: Use the two 5V/2.1A USB ports to charge mobile phones, tablets, or other USB-powered accessories.
- Электр кабели: The power strip is connected via a 155cm (61.02 inch) cord. Ensure it is plugged into a grounded wall outlet.
5-сүрөт: Деталь view showing the elegant drawer, smooth silent sliding rails, safe rounded edges, and the integrated power strip with AC outlets and USB ports.
6. Сактоо өзгөчөлүктөрү
The Dripex LED Mirror Vanity Table is designed with generous storage options to keep your beauty products and accessories organized.
- Large Central Drawer: A spacious drawer is located beneath the tabletop, ideal for storing makeup, jewelry, and other small items. It features silent sliding rails for smooth operation.
- Two Side Cabinets: Each side of the vanity table features a cabinet with three tiers of storage. These provide ample space for larger items like lotions, hair products, or towels.

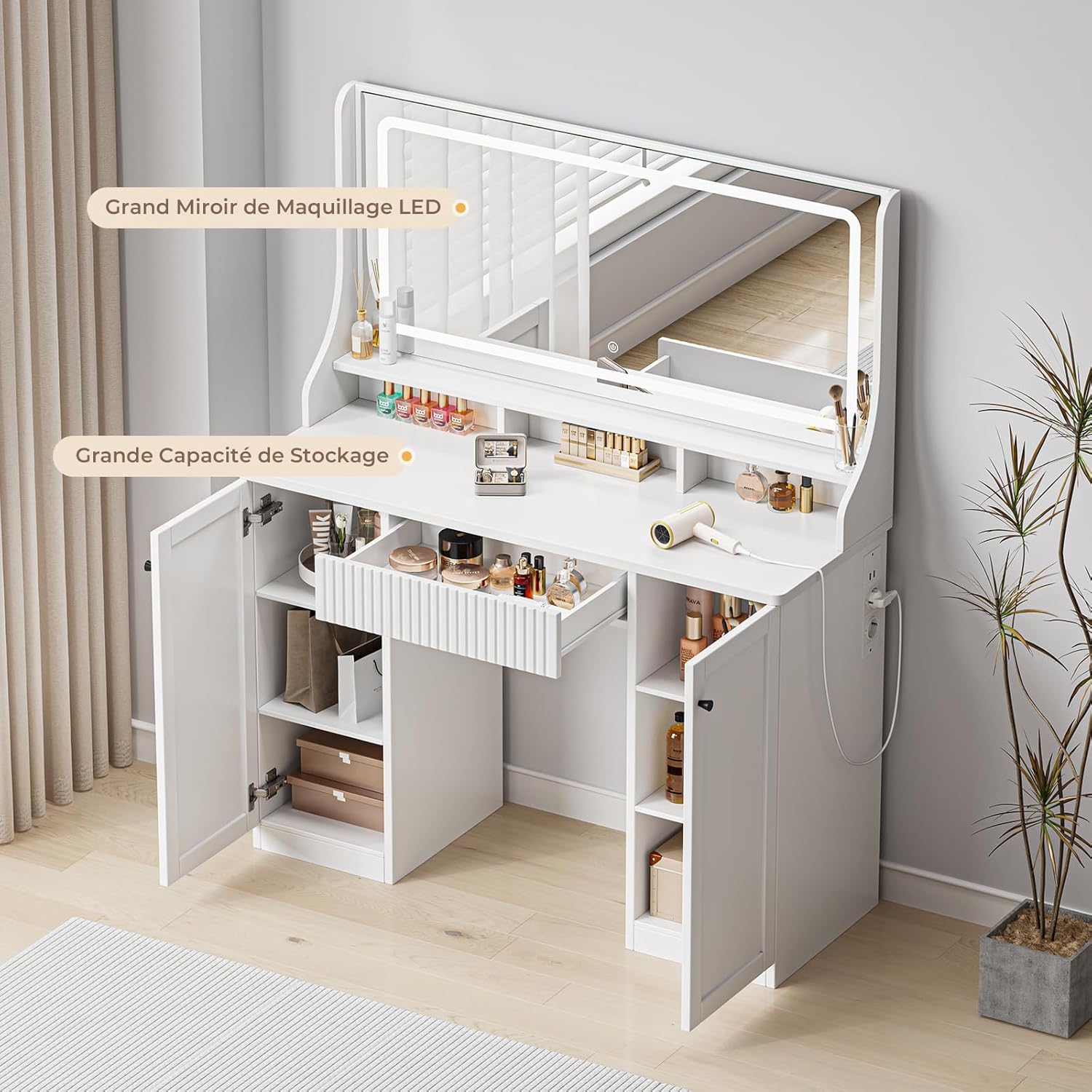

6-сүрөт: The vanity table with its central drawer and side cabinets open, demonstrating the extensive storage capacity for various items.
7. Техникалык тейлөө
- Тазалоо: Беттерди жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтардан же финишке зыян келтирүүчү катаал химиялык заттардан алыс болуңуз.
- Күзгүгө кам көрүү: Clean the mirror with a glass cleaner and a lint-free cloth. Do not spray cleaner directly onto the mirror to avoid liquid seeping into electrical components.
- Электр компоненттери: Ensure the power strip and mirror connections are dry and free from dust.
- бекиткичтер: Мезгил-мезгили менен бардык бурамалар менен болтторду текшерип туруңуз, алар бекем бойдон калууда. Керек болсо катуулатуу.
8. Кыйынчылыктарды
- LED күзгү күйбөй жатат:
- Кубат шнурунун иштеп жаткан розеткага бекем сайылганын текшериңиз.
- Check if the mirror's power cable is properly connected to the vanity table's power source.
- Lightly touch the power icon on the mirror to activate.
- Электр розеткалары/USB порттору иштебей жатат:
- Verify the main power cord is plugged in.
- Test with a different device to confirm the issue is with the power strip and not the device itself.
- Ensure no circuit breaker has tripped in your home.
- Drawer/Cabinet Doors Sticking:
- Check for any obstructions inside the drawer or cabinet.
- Ensure assembly was completed correctly and all rails/hinges are aligned.
9. Техникалык шарттар
| Бренд | Dripex |
| Модель номери | JJA005BAA0XAEU+JJA005BAA0XBEU-22 |
| Өлчөмдөрү (L x W x Y) | 110 x 40 x 135 см (43.3 x 15.7 x 53.1 дюйм) |
| Элемент Салмагы | 49.1 килограмм (108.2 фунт) |
| Материал | Жыгач |
| Түс | Ак |
| Тартмалардын саны | 1 |
| Ассамблея талап кылынат | Ооба |
| LED күзгү өзгөчөлүктөрү | 3 Color Modes (Cool, Natural, Warm), Adjustable Brightness, Touch Control |
| Power Strip | 2 x 230V/16A AC Outlets, 2 x 5V/2.1A USB Ports |
10. Кепилдик жана колдоо
For warranty information, technical support, or to order replacement parts, please contact Dripex customer service. Refer to the contact information provided with your purchase or visit the official Dripex website. Please have your model number (JJA005BAA0XAEU+JJA005BAA0XBEU-22) ready when contacting support.
