Introduction
Сатып алганыңыз үчүн рахматasing the VTech VM5267 Digital Video Baby Monitor. This manual provides comprehensive instructions for setting up, operating, and maintaining your new baby monitor. Please read this manual thoroughly before use to ensure proper operation and safety.
Пакеттин мазмуну
- Ата-эне блогу (5 дюймдук LCD экран менен)
- Балдар бирдиги (камера)
- Two power adapters
- Колдонуучунун колдонмосу
- Тез баштоо колдонмосу
Image: The VTech VM5267 Digital Video Baby Monitor package contents, including the parent unit with a 5-inch display and the baby unit (camera).
Жайгашуу
1. Powering On the Baby Unit
- Connect the small plug of the power adapter to the DC jack on the back of the baby unit.
- Connect the large plug of the power adapter to a wall outlet.
- Ымыркай блогу автоматтык түрдө күйөт.
2. Powering On the Parent Unit
- Connect the small plug of the power adapter to the DC jack on the side of the parent unit.
- Connect the large plug of the power adapter to a wall outlet.
- басып, кармап туруңуз КҮЧ экран күйгөнгө чейин ата-эне бөлүгүндөгү баскычты басып туруңуз.
Note: For optimal performance, ensure both units are placed within range and away from other electronic devices that may cause interference.
Мониторду иштетүү
ViewБалаңызды багып алуу
Once both units are powered on and linked, the parent unit will display the video feed from the baby unit. The 5-inch high-resolution color LCD screen provides a clear view.

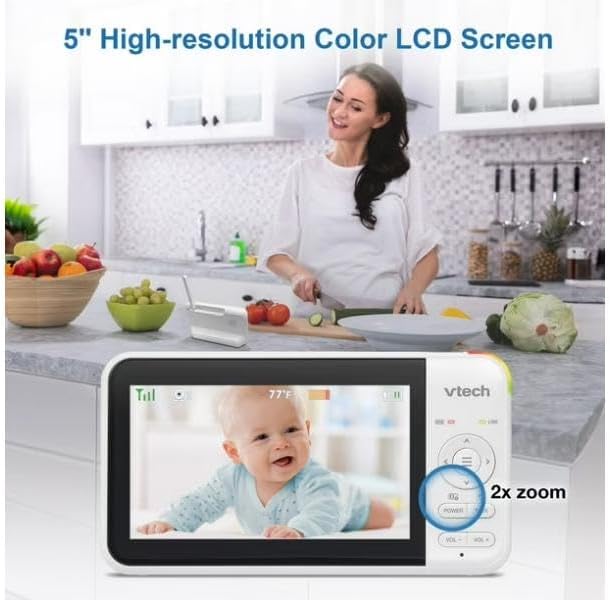

Image: The parent unit's 5-inch high-resolution color LCD screen showing a clear image of a baby, with an indication of 2x zoom capability.
Панорама жана жантайтуу функциясы
Use the navigation buttons on the parent unit to remotely pan (move horizontally) and tilt (move vertically) the camera lens of the baby unit. This allows you to adjust the viewing angle without physically moving the camera.
Эки тараптуу байланыш-кайра байланыш домофону
басып, кармап туруңуз СҮЙЛӨШҮҮ button on the parent unit to speak to your baby through the baby unit's speaker. Release the button to hear your baby.
Image: A visual representation of the two-way talk-back intercom, demonstrating communication between the parent unit and the baby unit.
Night Light and Soothing Sounds
The baby unit features a multi-color night light and can play soothing sounds and lullabies. Use the dedicated buttons on the parent unit to control these features.

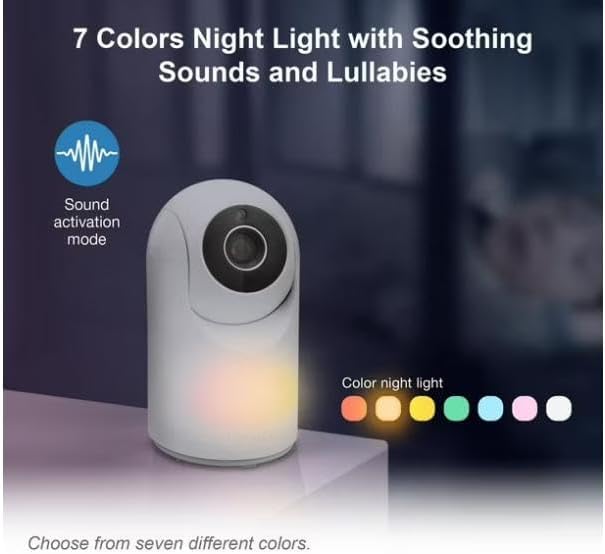

Image: The baby unit showcasing its 7-color night light feature, along with an icon indicating sound activation mode.
Автоматтык инфракызыл түнкү көрүү
The baby unit is equipped with infrared LEDs that automatically activate in low-light conditions, providing a clear black-and-white video image of your baby, even in complete darkness.
Image: A side-by-side comparison illustrating the superior clarity of VTech's enhanced night vision compared to standard night vision.
Sound Activation Screen
The parent unit screen can be set to automatically turn on when sound is detected from the baby unit, conserving battery life. The night light on the baby unit can also be configured to turn on with sound detection.
Image: The parent unit displaying a baby, with visual cues indicating the sound activation feature that turns the screen on when noise is detected.
Техникалык тейлөө
Cleaning the Units
- Wipe the surfaces of the parent unit and baby unit with a soft, damp кездеме.
- Тазалоочу спрейлерди же суюк тазалагычтарды колдонбоңуз.
- Ensure units are dry before reconnecting to power.
Батареяны тейлөө (Ата-эне блогу)
- The parent unit uses a rechargeable battery.
- Биринчи колдонуудан мурун батареяны жок дегенде 12 саат заряддаңыз.
- To prolong battery life, fully discharge the battery periodically before recharging.
- If storing the unit for an extended period, remove the battery.
Проблемаларды чечүү
| Көйгөй | Мүмкүн чечим |
|---|---|
| Байланыш жок / Кызмат көрсөтүү диапазонунан тышкары |
|
| Сүрөт жок / Кара экран |
|
| Статикалык же интерференция |
|
Техникалык шарттар
- Модел: VM5267
- Дисплей: 5-inch (12.7 cm) Color LCD
- Камеранын өзгөчөлүктөрү: Pan, Tilt, Digital Zoom, Automatic Infrared Night Vision, Multi-color Night Light
- Аудио өзгөчөлүктөрү: Two-Way Talk-Back Intercom, Soothing Sounds & Lullabies, Sound Activation
- Күч: AC power adapters for both units; Rechargeable battery for Parent Unit
- Иштөө жыштыгы: 2.4 ГГц FHSS
- Иштөө диапазону: 300 метрге чейин (ачык талаа)
- Өлчөмдөрү (ата-эне бирдиги): Approximately 7.62 x 7.62 x 5.08 cm (as per parcel dimensions, actual unit dimensions may vary slightly)
- Салмагы: Approximately 750 g (total package weight)
Кепилдик жана колдоо
Кепилдик жөнүндө маалымат жана техникалык колдоо алуу үчүн, өнүмүңүздүн таңгагына кирген кепилдик картасын караңыз же расмий VTech компаниясына кайрылыңыз. website. Please have your product model number (VM5267) and purchase date ready when contacting support.
VTech расмий өкүлү Webсайт: www.vtechphones.com
