Night Owl BNVR82-F12-8L 12 каналдуу NVR коопсуздук системасынын колдонуучу колдонмосу

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Night Owl 12-Channel NVR Security System (Model: BNVR82-F12-8L). This system features a 2TB pre-installed hard drive and includes 8 wired IP 4K Plus Deterrence Cameras, designed to provide comprehensive surveillance and security for your property. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

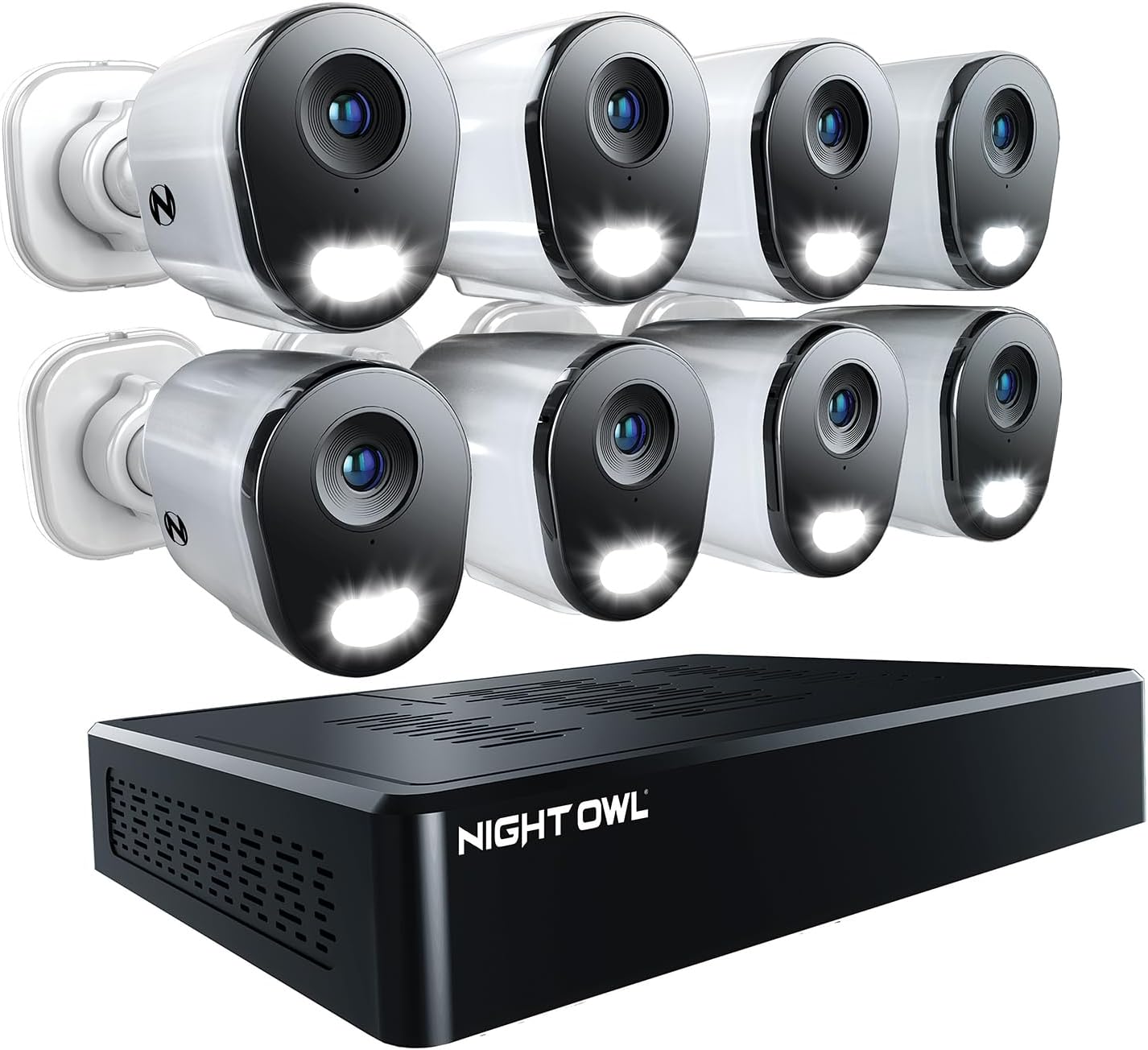

Image: The Night Owl 12-Channel NVR Security System, showing the NVR unit and eight wired IP cameras.

Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:

• 1x Network Video Recorder (NVR) with 2TB Hard Drive
• 8x Wired IP 4K Plus Deterrence Cameras
• Ethernet Cables for Camera Connection
• NVR үчүн кубаттуу адаптер
• USB чычкан
• Камералар үчүн орнотуучу жабдуулар
• Ыкчам орнотуу көрсөтмөлөрү

Жайгашуу

1. NVR баштапкы орнотуу

The Night Owl NVR features secure app-based Bluetooth setup, eliminating the need for a TV or monitor during the initial configuration. You can configure your system directly from the Night Owl Protect app on your smartphone or tablet.

1. Download the Night Owl Protect app from your device's app store.
2. Ensure your NVR is powered on and within Bluetooth range of your smartphone/tablet.
3. Follow the in-app instructions to pair your NVR and complete the initial setup.
4. Create a secure password for your system and enable 2-Step Verification for enhanced security.

2. Камераны орнотуу

The wired IP cameras utilize Power over Ethernet (PoE) technology, meaning a single RJ-45 Ethernet cable provides both power and video signal, along with 2-Way Audio capabilities.

1. Ар бир камера үчүн ылайыктуу орнотуучу жерлерди тандап, оптималдуу viewing angles and coverage.
2. Mount the cameras securely using the provided hardware.
3. Connect one end of an Ethernet cable to the camera's RJ-45 port.
4. Connect the other end of the Ethernet cable to an available PoE port on the back of the NVR.
5. Repeat for all 8 cameras.

Image: A Night Owl camera shown with its Ethernet cable connected to the NVR, illustrating the Power over Ethernet (PoE) setup.

3. Колдонмонун конфигурациясы

The Night Owl Protect app is your primary interface for managing and monitoring your security system.

• After initial NVR setup, the app will guide you through adding and configuring your cameras.
• Customize camera names, recording schedules, and alert preferences.
• Enable Smart Detection features such as Human Detection, Facial Capture, and Vehicle Alerts for each camera as desired.

Иштөө нускамалары

1. Түз эфир View жана Ойнотуу

Түз эфирдеги камеранын каналдарына кирүү жана кайраview foo жазылганtage directly through the Night Owl Protect app.

• Open the Night Owl Protect app on your smartphone or tablet.
• Select the desired camera to view анын жандуу тоюту.
• Navigate to the playback section to review recordings stored on the NVR's hard drive.
• Recordings are stored locally, ensuring your privacy and eliminating monthly fees for storage.

Image: A smartphone displaying the Night Owl app's live camera view, highlighting the absence of monthly fees for storage.

2. 2-Way Audio and Deterrence Features

Each camera is equipped with 2-Way Audio, a built-in siren, and preset voice alerts.

• 2 тараптуу аудио: Use the app to listen and speak through the camera, allowing communication with individuals on your property.
• Сирена: Activate the built-in siren from the app to deter intruders.
• Preset Voice Alerts: Utilize pre-recorded messages to communicate with visitors or warn trespassers.

Image: Illustration of the 2-Way Audio feature, showing a person communicating with someone at their front door via the Night Owl app.

Image: A smartphone screen displaying controls for preset audio alerts and camera siren, with a person in a hoodie in the background, indicating deterrence.

3. Motion-Activated Dual Spotlights

The cameras feature motion-activated dual spotlights that illuminate your yard when human or vehicular motion is detected, providing clear, full-color viewing and recording at night.

• Spotlights activate automatically upon motion detection.
• Enhance visibility and act as a visual deterrent.

Image: A Night Owl camera mounted outdoors at night, with its dual spotlight illuminated.

4. Smart Detection Technology

The system incorporates advanced Smart Detection Technology to reduce false alarms and provide relevant alerts.

• Адамды аныктоо: Identifies human figures, distinguishing them from other moving objects.
• Бетти тартуу: Snaps a photo of detected faces and sends the image to your smart device.
• Унаа жөнүндө эскертүүлөр: Notifies you when a vehicle is detected on your property.

Image: A smartphone displaying a notification for human detection, with an overlay showing a human and a vehicle highlighted in a surveillance feed.

5. Google Жардамчысы менен интеграциялоо

For hands-free operation, you can use Google Assistant to stream camera footage directly to your TV or monitor using simple voice commands.

Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө сиздин коопсуздук системаңыздын оптималдуу иштешин жана узак мөөнөттүү иштешин камсыз кылат.

• Камера линзалары: Камера линзаларын мезгил-мезгили менен жумшак, d чүпүрөк менен тазалап туруңузamp cloth to remove dust, dirt, or smudges that may obstruct the view.
• Кабелдик байланыштар: Ensure all Ethernet cables are securely connected to both the cameras and the NVR. Check for any signs of wear or damage.
• NVR жайгаштыруусу: Keep the NVR in a well-ventilated area, free from dust and extreme temperatures, to prevent overheating.
• Программалык камсыздоо жаңыртуулары: Regularly check the Night Owl Protect app for firmware updates for your NVR and cameras to ensure you have the latest features and security enhancements.
• Катуу дискти башкаруу: While the 2TB hard drive provides ample storage, you can manage older recordings through the app if needed, though the system typically overwrites the oldest footage автоматтык түрдө.

Проблемаларды чечүү

If you encounter issues with your Night Owl security system, refer to the following common troubleshooting steps:

• Видео түрмөгү жок: Check power connections to the NVR and ensure all camera Ethernet cables are securely plugged into the NVR's PoE ports. Verify the camera is powered on (spotlights may briefly flash during startup).
• Колдонмонун туташуу маселелери: Ensure your smartphone/tablet has a stable internet connection. Restart the Night Owl Protect app. If using Bluetooth for initial setup, ensure Bluetooth is enabled on your device and the NVR is nearby.
• Сүрөттүн сапаты начар: Clean the camera lens. Ensure the camera is securely mounted and not vibrating. Check for obstructions in the camera's field of view.
• No Audio/2-Way Audio Not Working: Verify microphone and speaker settings in the app for the specific camera. Ensure there are no physical obstructions blocking the camera's microphone or speaker.
• Жалган кыймыл эскертүүлөрү: Adjust the motion detection sensitivity settings within the Night Owl Protect app. Ensure Smart Detection (Human/Vehicle) is enabled to filter out irrelevant motion.
• NVR жаздырылбай жатат: Check the NVR's hard drive status in the app to ensure it is functioning correctly and has available space. Verify recording schedules are properly configured.

For more complex issues or technical support, please visit the official Night Owl support webсайтка же кардарларды тейлөөгө кайрылыңыз.

Техникалык шарттар

Кепилдик жана колдоо

Night Owl products are designed and engineered in the U.S.A. and comply with Section 889 of the National Defense Authorization Act (NDAA).

For warranty information, technical assistance, or customer support, please visit the official Night Owl website or contact their dedicated support team. Details regarding specific warranty periods and terms are typically provided with your product documentation or available on the manufacturer's webсайт.
