1. Киришүү
This manual provides essential information for the safe and efficient operation of your Westinghouse Apolo Mini 3.5kW 120V Electric Tankless Water Heater. Please read all instructions carefully before installation and use. Retain this manual for future reference.
The Westinghouse Apolo Mini is designed to provide instant hot water for single-faucet applications such as handwashing, dish rinsing, and general sink use. It features a compact design, smart WiFi control, and multiple safety protections.
2. Коопсуздук боюнча маанилүү маалымат
ЭСКЕРТҮҮ: Failure to follow these safety instructions could result in property damage, serious injury, or death.
- This appliance is intended for under-sink point-of-use applications only. It is ЖОК suitable for whole-house heating or shower applications.
- Орнотуу иштери квалификациялуу электрик жана сантехник тарабынан бардык жергиликтүү жана улуттук электр жана сантехникалык эрежелерге ылайык жүргүзүлүшү керек.
- The unit requires a dedicated 30A circuit and hardwiring. Do not use extension cords or adapters.
- Электр шоктун алдын алуу үчүн туура жерге туташтырууну камсыз кылыңыз.
- Суу жылыткыч бузулуп же иштебей калса иштетпеңиз.
- Do not block or restrict the water inlet or outlet.
- Агрегатты суук температурадан сактаңыз.
- Regularly inspect the unit for any signs of leaks or damage.
Integrated Safety Protections:
- IPX4 суу өткөрбөйт рейтинги: Provides protection against splashing water.
- Anti-Scald Technology: Helps prevent water from reaching dangerously high temperatures.
- Dry-Fire Prevention: Prevents the heating element from activating without water flow.
- Flame-Retardant Shell: Constructed with materials designed to resist flame spread.
- Low-Flow Protection: Shuts off the heater if water flow is insufficient.
- Тtage Коргоо: Safeguards against electrical fluctuations.
3. Продукт бүтүп калдыview
Негизги өзгөчөлүктөрү:
- Ыкчам ысык суу: Provides continuous hot water on demand without a storage tank.
- Компакт дизайн: Small footprint for installation in tight spaces, typically under a sink.
- Smart WiFi башкаруу: Remote temperature adjustment and monitoring via a smartphone app, compatible with Alexa and Google Home.
- Энергияны үнөмдүү: Heats water only when needed, reducing energy waste compared to traditional tank heaters.

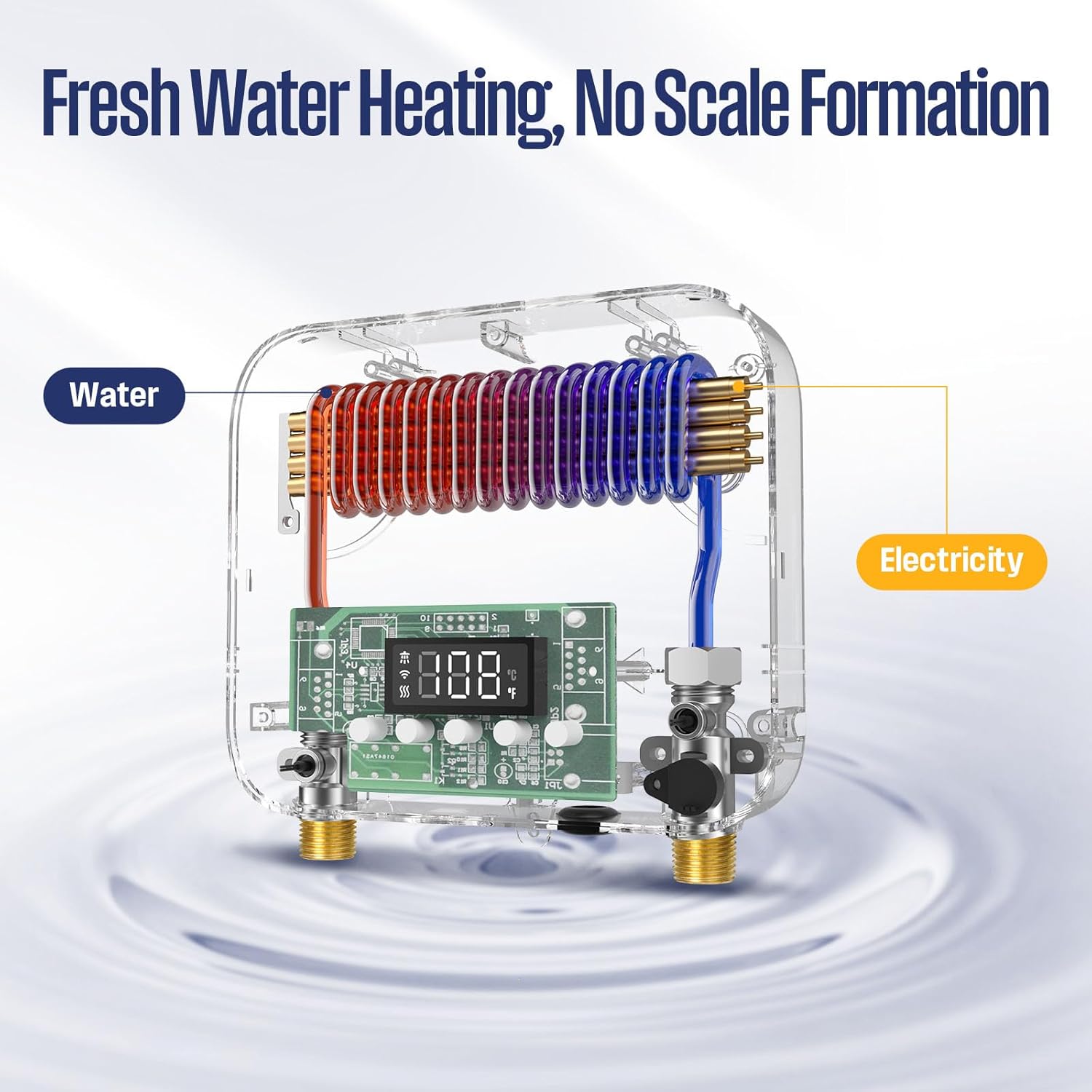

- Anti-Scale Protection: Features a separated heating element design to minimize scale and corrosion buildup.
- Constant Temperature System: Automatically adjusts power to maintain a stable water temperature.
Компоненттер камтылган:
- Westinghouse Apolo Mini Water Heater Unit x 1
- Inlet Filter x 1
- Rubber Gasket for Outlet and Inlet x 2
- Installation and Operation Manual x 1 (this document)
- Орнотуу көрсөтмөсү x 1
- Screw (M4×20) x 4
- Rubber Plug x 4
- Warning Label x 1
- Network Configuration Guide x 1
4. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Westinghouse |
| Модель номери | ET003A5DB |
| Өнүмдүн Өлчөмдөрү (Ж x Y x D) | 8.1" x 6.9" x 2.5" |
| Түс | Deep Blue |
| Ватtage / Heat Output | 3500 Ватт |
| Тtage | 120 вольт (AC) |
| Температура диапазону | 80°F – 130°F (Adjustable) |
| Жылытуунун натыйжалуулугу | 96% |
| Иштөө басымы | Макс. 150 PSI |
| Суу өткөрбөйт рейтинги | IPX4 |
| Minimum Start-up Flow Rate | 0.3 GPM |
| Монтаж түрү | Дубалга орнотулган |
| Электр байланышы | Hard Wiring Required (Dedicated 30A circuit, 10 AWG wire) |
| Сантехника байланыштары | 1/2" NPT |
| Элемент Салмагы | 4.54 фунт |
| UPC | 850057631739 |
5. Орнотуу жана орнотуу
Before beginning installation, ensure you have all necessary tools and components. It is highly recommended that installation be performed by a licensed professional.
5.1. Сайтты тандоо
- Install the unit indoors, in a location protected from freezing temperatures.
- Choose a location close to the point of use to minimize heat loss and wait time.
- Ensure adequate space for mounting and access for maintenance.
- The unit is designed for wall-mounted installation, typically under a sink.
5.2. Сантехникалык байланыштар
- Connect the cold water supply to the inlet (typically marked blue or 'IN').
- Connect the hot water outlet (typically marked red or 'OUT') to the faucet.
- Use 1/2" NPT connections. Ensure all connections are tight to prevent leaks.
- Install the provided inlet filter and rubber gaskets.
- Flush the system thoroughly before connecting power to remove any air or debris.
5.3. Электрдик талаптар
МААНИЛҮҮ: Бардык электр жумуштарын квалификациялуу электрик аткарышы керек.
- The unit requires a dedicated 120V, 30A circuit.
- Use 10 AWG wire gauge for the electrical connection.
- A single-pole breaker (30A) is required but not included with the unit.
- The unit must be hardwired; plug-in operation is not supported.
- Туура жерге туташтырууну камсыз кылуу.
6. Иштөө нускамалары
6.1. Негизги операция
- Күйгүзүү/өчүрүү: Press the power button on the unit's front panel.
- Температураны жөндөө: Use the '+' and '-' buttons on the front panel to set the desired water temperature between 80°F and 130°F. The LED display will show the set temperature.
- Температура бирдиги: Toggle between Fahrenheit (°F) and Celsius (°C) using the dedicated button.
- The unit will automatically activate heating when water flow is detected and deactivate when flow stops.
6.2. Smart WiFi Control
The Westinghouse Apolo Mini can be controlled remotely via a smartphone app and integrated with smart home systems like Alexa and Google Home.
- Колдонмону жүктөө: Refer to the included Network Configuration Guide for instructions on downloading the specific control app.
- Түзмөктү жупташтыруу: Follow the in-app instructions to pair your water heater with your smartphone via WiFi.
- Алыстан башкаруу: Once paired, you can remotely monitor and adjust the water temperature (80°F-130°F), view consumption reports, and restart the unit via the app.
- Үн менен башкаруу: Integrate the app with Alexa or Google Home for voice command functionality (e.g., "Alexa, set water heater temperature to 105 degrees").
7. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин суу жылыткычыңыздын оптималдуу иштешин жана узак мөөнөттүү иштешин камсыз кылат.
- Тазалоо: Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Кирүү чыпкасы: Periodically check and clean the inlet filter to prevent debris from entering the unit and affecting water flow.
- Масштабдын алдын алуу: The unit's separated heating element design helps minimize scale buildup. In areas with hard water, consider professional descaling every 1-2 years or as needed.
- агып текшерүү: Regularly inspect all plumbing connections for any signs of leaks. Tighten connections if necessary.
- Кыштоо: If the unit is in an area prone to freezing and will not be used for an extended period, drain the water heater completely to prevent damage from freezing.
8. Кыйынчылыктарды
If you encounter issues with your water heater, refer to the table below for common problems and solutions. If the problem persists, contact customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No hot water / Unit not heating | No power; Low water flow; Breaker tripped; Unit malfunction. | Check power supply and breaker. Ensure adequate water flow (min 0.3 GPM). Inspect inlet filter for clogs. If issues persist, contact support. |
| Суу жетиштүү ысык эмес | Temperature setting too low; High incoming water temperature; Excessive flow rate. | Increase temperature setting on unit or app. Reduce water flow at the faucet. Ensure incoming water temperature is within operating limits. |
| Суу өтө ысык | Температураны орнотуу өтө жогору. | Decrease temperature setting on unit or app. |
| Бирдик агып жатат | Бошоң сантехникалык туташуулар; Бузулган пломбалар. | Tighten all plumbing connections. If leaks persist, turn off water supply and power, then contact support. |
| WiFi байланышындагы көйгөйлөр | Incorrect network settings; Router too far; App error. | Refer to the Network Configuration Guide. Ensure unit is within WiFi range. Restart router and unit. Re-pair device in app. |
| Дисплейде ката коду | Internal fault or specific condition detected. | Refer to the full instruction manual for specific error code meanings. If not listed or unresolved, contact customer support. |
9. Кепилдик маалыматы
Warranty terms and conditions for the Westinghouse Apolo Mini 3.5kW 120V Electric Tankless Water Heater are provided separately with your product documentation. Please refer to the warranty card or the official Westinghouse webкамтуу мөөнөтү, дооматтардын жол-жоболору жана камтуу мөөнөтү жөнүндө толук маалымат алуу үчүн сайтты караңыз.
10. Кардарларды колдоо кызматы
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Westinghouse customer support:
- Webсайт: Visit the official Westinghouse webколдоо булактары жана байланыш маалыматы үчүн сайт.
- Телефон: Refer to your product packaging or warranty documentation for customer service phone numbers.
- When contacting support, please have your model number (ET003A5DB) and purchase date available.
