Karinear 5-Zone Induction Hob User Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read this manual carefully before installing or using your Karinear Induction Hob. Keep these instructions for future reference.

• Ensure the appliance is installed by a qualified professional to prevent electrical hazards.
• ысык беттерге тийбеңиз. Дайыма меш колдорун же казан кармагычтарды колдонуңуз.
• The hob surface remains hot after use. The hot surface indicator will alert you.
• Бул шайман менен жабдылган Child Lock feature to prevent accidental operation. Activate it when not in use, especially if children are present.
• The hob has an Автоматтык өчүрүү function for safety, which activates if a cooking zone is left on for an extended period without adjustment.
• Only use cookware suitable for induction hobs. Refer to the "Compatible Cookware" section.
• Плитанын бетине бычак, вилка, кашык же капкак сыяктуу металл буюмдарды койбоңуз, алар ысып кетиши мүмкүн.
• Keep flammable materials away from the hob.

2. Продукт бүтүп калдыview

The Karinear 5-Zone Induction Hob (Model B57228) is a high-performance built-in appliance designed for modern kitchens. It features five cooking zones, including flexible zones for versatile cooking, precise slider control, a powerful booster function, a timer, and essential safety features.

2.1-сүрөт: Жогорку view of the Karinear 5-Zone Induction Hob, showcasing its sleek black glass surface and five cooking zones.

Негизги өзгөчөлүктөрү:

• Intelligent Power Control: Total power of 7200W, automatically adjusts when multiple zones are active to prevent overload and ensure uniform heat.
• Versatile 5-Zone Design: Five cooking zones of varying sizes, suitable for diverse cookware.
• Flexible Zone Function: Merge two smaller zones into a large rectangular cooking area, ideal for griddle plates, oval pots, or XXL pans.
• Күчөтүү функциясы: Provides maximum power (7200W) for five minutes for rapid boiling or searing.
• Коопсуздук жана ыңгайлуулук: Includes Child Lock, Timer (up to 99 minutes), and Pause functions.
• Elegant дизайн: Smooth ceramic glass surface, easy to clean and robust.

Figure 2.2: Visual representation of the hob's key features including pause, hot surface indicator, 9 power levels, flexible zone, child lock, 99-minute timer, boost function, and automatic shutdown.

3. Орнотуу жана орнотуу

The Karinear Induction Hob is designed for built-in installation. Professional installation is highly recommended to ensure proper electrical connection and safe operation.

Өлчөмдөрү:

• Product Dimensions: 90 cm (Length) × 52 cm (Width) × 6.1 cm (Height)
• Installation Dimensions (Cut-out): 87 cm (Length) × 49 cm (Width)

Figure 3.1: Detailed diagram illustrating the hob's physical dimensions and recommended electrical wiring connections for installation.

Электр байланышы:

The hob operates on 220-240V. It requires a direct electrical connection and does not come with a plug. Consult the wiring diagram provided in Figure 3.1 and ensure all connections comply with local electrical codes.

4. Иштөө нускамалары

The Karinear Induction Hob features intuitive touch controls for easy operation.

4.1 Күйгүзүү жана өчүрүү:

• To turn on, touch the power symbol. The display will light up.
• Өчүрүү үчүн кубат белгисине кайра тийип коюңуз.

4.2 Selecting a Cooking Zone and Adjusting Power:

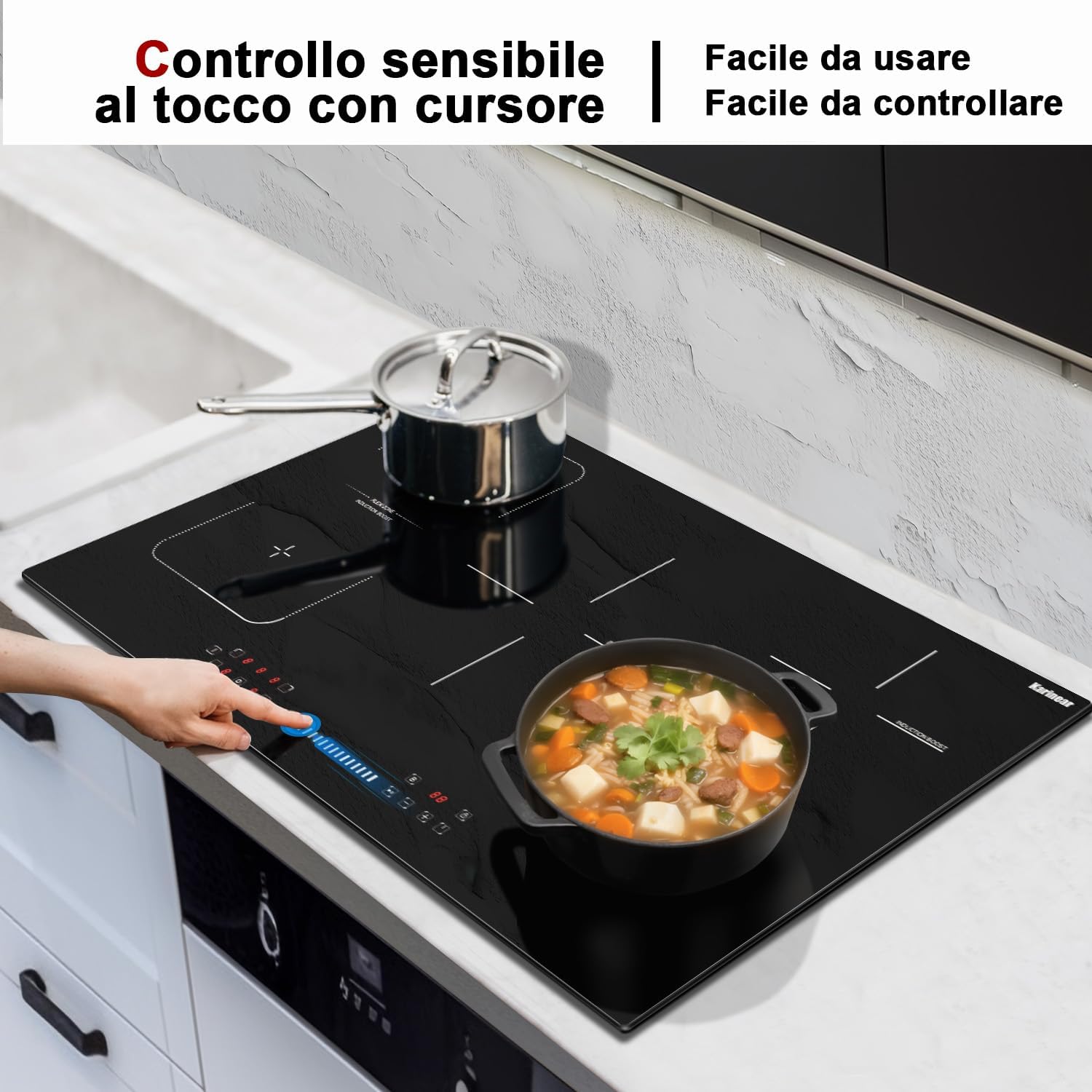

Figure 4.1: Demonstrating the sensitive touch slider control for adjusting power levels on the hob.

• Керектүү бышыруу зонасын анын тиешелүү башкаруу баскычына тийүү менен тандаңыз.
• Adjust the power level using the сыдырма башкаруу. There are 9 power levels available.

Figure 4.2: Illustration of various power levels and the boost function, indicating their respective wattage чыгышы.

4.3 Flexible Zone Function:

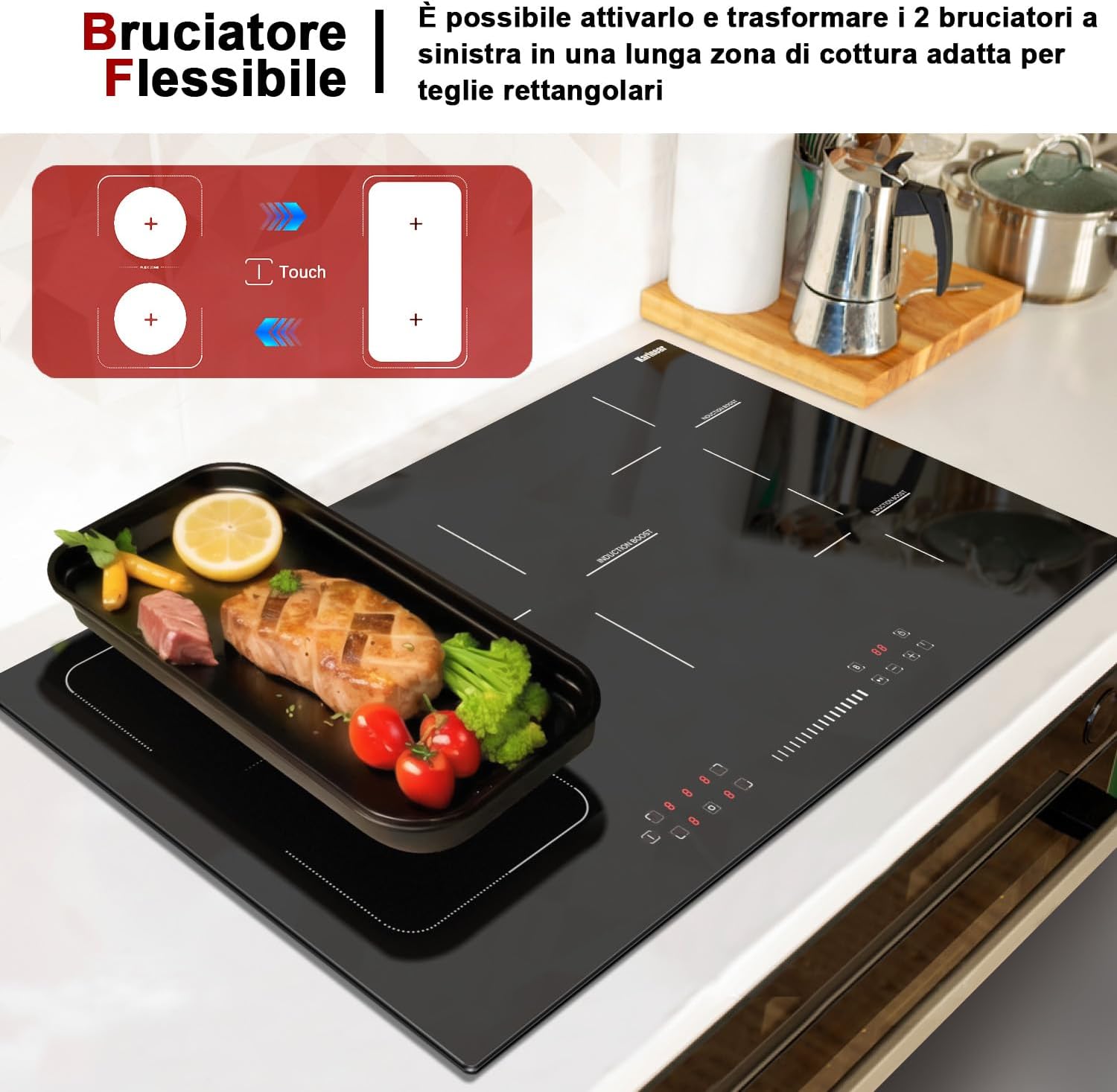

Figure 4.3: Visual guide on how to activate the flexible burner zone, combining two smaller zones into one large rectangular cooking area.

• To activate the flexible zone, touch the designated flexible zone control. This will merge two adjacent cooking zones into a single large zone.
• Ideal for larger cookware such as griddle pans or roasting dishes.

4.4 Booster Function:

• Select a cooking zone and then touch the Booster баскычы.
• The booster function provides maximum power (up to 7200W) to the selected zone for approximately five minutes, allowing for rapid heating.

4.5 Таймер функциясы:

• тийиңиз Таймер button and use the +/- controls to set the desired cooking time, up to 99 minutes.
• The hob will automatically turn off the selected zone(s) once the timer expires.

4.6 Балдардан кулпу:

• иштетүү үчүн Child Lock, touch and hold the lock symbol until the indicator lights up. This prevents accidental changes to settings or activation of the hob.
• To deactivate, touch and hold the lock symbol again until the indicator turns off.

4.7 Pause Function:

• тийиңиз Тыныгуу button to temporarily stop all active cooking zones. This allows you to attend to other tasks without losing your current settings.
• Touch the Pause button again to resume cooking with the previous settings.

4.8 Compatible Cookware:

Induction hobs require cookware with a magnetic base. Use pots and pans made of cast iron, enameled steel, or stainless steel with a magnetic bottom. Cookware made of copper, ceramic, glass, or aluminum without a magnetic base is not compatible.

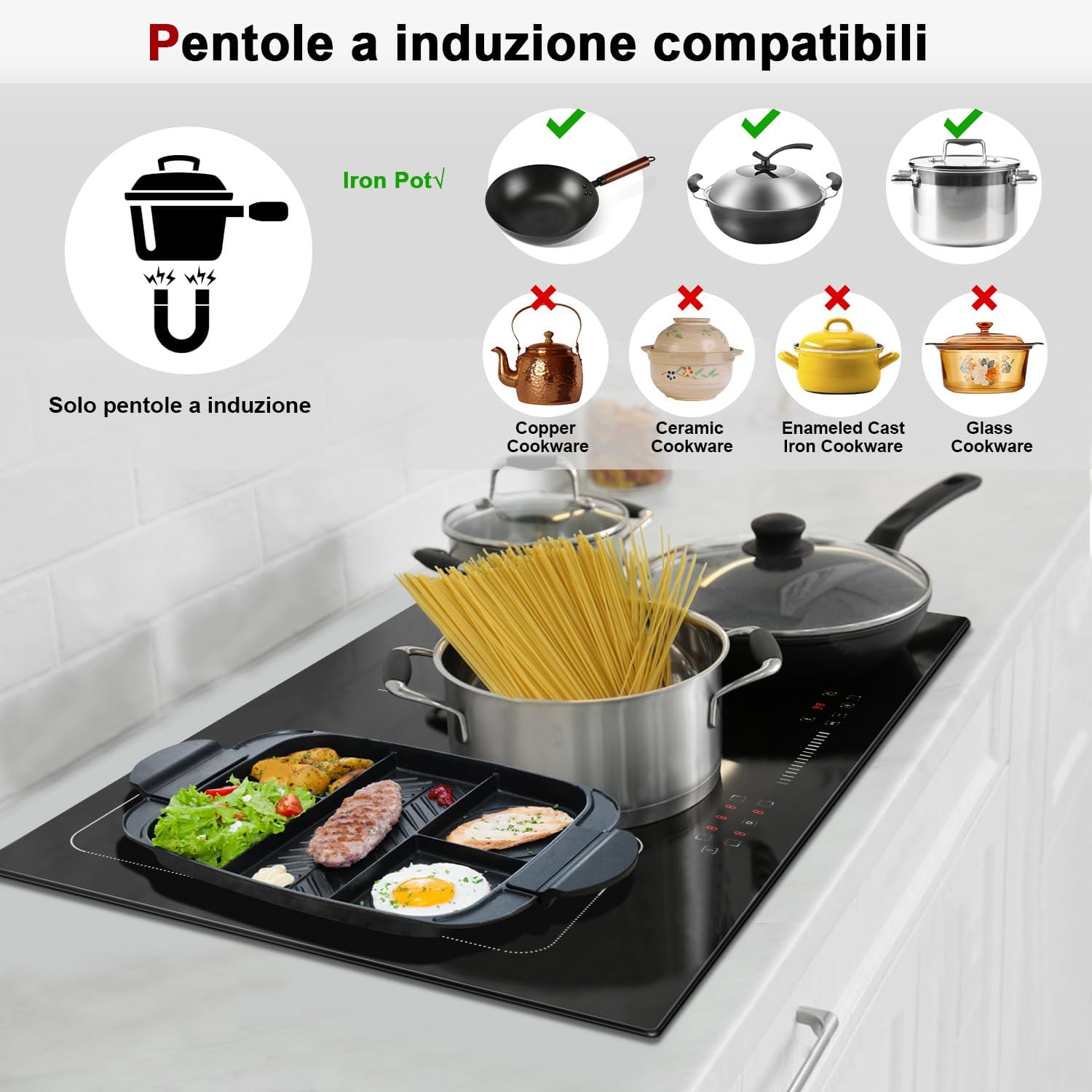

Figure 4.4: Visual guide indicating which types of cookware are compatible (iron pot, stainless steel, enameled steel) and incompatible (copper, ceramic, glass, aluminum) with induction hobs.

5. Техникалык тейлөө жана тазалоо

Үзгүлтүксүз тазалоо жана тейлөө индукциялык плитаңыздын узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.

• Always ensure the hob is cool before cleaning. The hot surface indicator will turn off when it's safe to clean.
• The smooth ceramic glass surface is easy to clean. For light spills, wipe with a damp кездеме жана жумшак жуугуч.
• For stubborn stains or burnt-on food, use a specialized ceramic hob cleaner and a non-abrasive sponge or scraper.
• Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the glass surface.
• Суу тактарынын алдын алуу үчүн таза чүпүрөк менен кургатып сүртүңүз.

6. Кыйынчылыктарды

If you encounter issues with your Karinear Induction Hob, refer to the following common troubleshooting steps. If the problem persists, contact customer support.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Karinear customer service directly. You can also visit the official Karinear store on Amazon for more information:

Visit the Karinear Store

For technical assistance or service requests, please provide your model number (B57228 or KNI-B57228-F1-EU) and purchase date.
