Introduction
Сатып алганыңыз үчүн рахматasing the GHB Baby Monitor with Camera. This manual provides essential information for the safe and effective operation of your device. Please read it thoroughly before use and keep it for future reference.

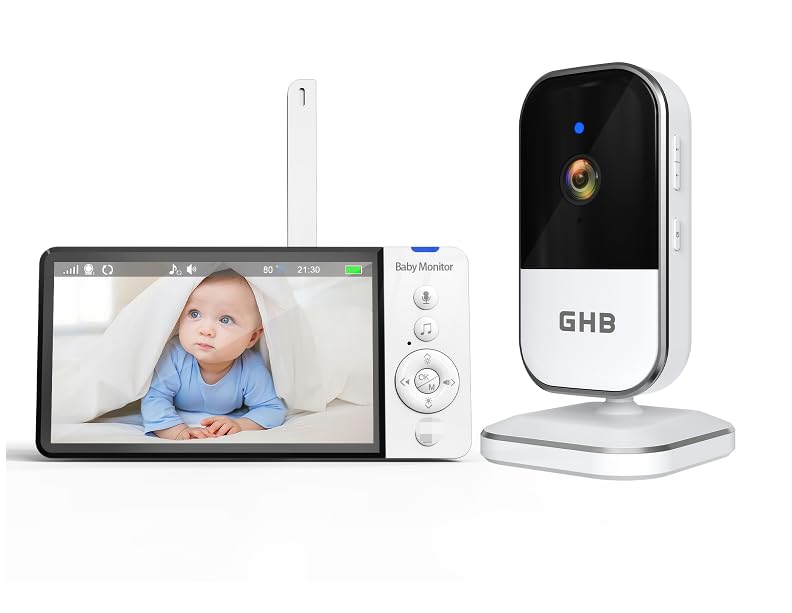

Image: The GHB Baby Monitor system, showing the parent unit with a 5-inch HD screen displaying a baby, and the camera unit. Both units are white and black.
Маанилүү коопсуздук нускамалары
- кичинекей бөлүктөрүн балдардан алыс кармаңыз.
- Do not place the camera or parent unit within reach of the baby.
- Ensure power cords are not accessible to children to prevent strangulation hazards.
- Берилген кубат адаптерлерин гана колдонуңуз.
- Аппаратты сууга же нымга тийгизбеңиз.
- Аппаратты жылуулук булактарынын жанына коюудан алыс болуңуз.
- Аппаратты өзүңүз оңдоого аракет кылбаңыз. Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.
Пакеттин мазмуну
Сураныч, пакетте төмөнкү нерселерди текшериңиз:
- GHB Baby Monitor Parent Unit (with 5" HD screen)
- GHB Baby Monitor Camera Unit
- Power Adapter (for Parent Unit)
- Power Adapter (for Camera Unit)
- Көрсөтмө (бул документ)
- Mounting Screws (for camera unit)
Жайгашуу
1. Ата-эне блогун заряддоо
Before first use, fully charge the parent unit for approximately 8 hours. Connect the power adapter to the parent unit and a power outlet. The battery indicator will show charging status.
2. Камера блогун кубаттоо
Connect the power adapter to the camera unit and a power outlet. The camera will automatically power on.
3. Камераны жайгаштыруу
Place the camera unit at a safe distance from your baby (at least 3 feet / 1 meter away) to avoid strangulation hazards from the cord. Ensure a clear view of the baby's crib or play area. The camera can be placed on a flat surface or mounted to a wall using the provided screws.
Эскертүү: Түнкүсүн көрүүнүн сапатын жакшыртуу үчүн, камераны терезеге же күчтүү жарык булагына түз каратып койбоңуз.
4. Жупташтыруу (зарыл болсо)
The parent unit and camera unit are pre-paired at the factory. If the connection is lost or you need to add another camera (sold separately), follow these steps:
- Turn on both the parent unit and the camera unit.
- On the parent unit, navigate to the "Camera Pairing" menu.
- Press the pairing button on the back of the camera unit (usually a small button, refer to the camera unit diagram).
- The parent unit will display a confirmation message once pairing is successful.
Иштөө нускамалары
1. Parent Unit Overview
The parent unit features a 5-inch HD display and various control buttons. Familiarize yourself with the buttons for navigation, volume, zoom, and two-way talk.
2. Негизги функциялар
- Күйгүзүү/өчүрүү: Press and hold the power button on the parent unit.
- Үндү көзөмөлдөө: Use the dedicated volume buttons to adjust the audio level from the camera.
- Жарыктыкты жөндөө: Adjust screen brightness via the menu settings.
3. VOX (Voice Operated Exchange) Mode
VOX mode conserves battery by turning off the screen and audio when no sound is detected from the baby's room. The unit will automatically activate when sound is detected.
- VOX жандыруу: Navigate to the VOX settings in the parent unit menu.
- Сезимталдуулук деңгээли: Adjust the VOX sensitivity (Low, Medium, High) to suit your environment. Higher sensitivity means the unit will activate with softer sounds.
4. Digital Zoom (4x)
Use the zoom function to get a closer look at your baby. Press the zoom button on the parent unit to cycle through zoom levels (e.g., 1x, 2x, 4x).
5. Түнкү көрүнүш
The camera unit is equipped with infrared LEDs for automatic night vision. In low-light conditions, the camera will automatically switch to black and white night vision mode, providing clear images even in complete darkness.
6. Two-Way Talk Function
Communicate with your baby or partner in the baby's room using the two-way talk feature.
- Press and hold the microphone button on the parent unit.
- Ата-эне бөлүгүнүн микрофонуна даана сүйлөңүз.
- Балаңызды кайра угуу үчүн баскычты коё бериңиз.
7. Бешик ырлары
Some models include pre-programmed lullabies. Access the lullaby menu on the parent unit to play soothing melodies for your baby.
8. Температураны көзөмөлдөө
The camera unit has a built-in temperature sensor. The current room temperature will be displayed on the parent unit's screen, allowing you to ensure a comfortable environment for your baby.
Техникалык тейлөө
- Тазалоо: Wipe the units with a soft, dry, lint-free cloth. Do not use cleaning agents or solvents.
- Батареяга кам көрүү: For optimal battery life, avoid fully discharging the parent unit battery frequently. If storing the unit for an extended period, charge the battery every few months.
- Сактагыч: Түзмөктөрдү салкын, кургак жерде, күндүн нуру түз тийбеген жана өтө жогорку температурадан алыс сактаңыз.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No picture/sound on parent unit. | Units are not powered on or not paired. | Ensure both units are powered on and connected to power. Re-pair the units if necessary. |
| Poor picture/sound quality. | Units are too far apart or obstructions are present. | Move the parent unit closer to the camera. Remove any large metal objects or thick walls between units. |
| Ата-эне бөлүгүнүн батареясы бат эле түгөнөт. | VOX mode is off, or screen brightness is too high. | Activate VOX mode. Reduce screen brightness. Ensure battery is fully charged. |
| Статикалык же тоскоолдук. | Other 2.4 GHz devices nearby. | Move the baby monitor away from Wi-Fi routers, cordless phones, or microwaves. |
Техникалык шарттар
- Модель номери: ABM809
- Экрандын өлчөмү: 5 дюймдук HD
- Видео жазуунун чечилиши: 720p
- Байланыш технологиясы: 2.4 ГГц FHSS
- Өзгөчөлүктөр: Two-way audio, Portable, HD Resolution, Night Vision, VOX mode, 4x Zoom
- Кубат булагы: AC Adapter, Lithium-ion Battery (Parent Unit)
- Батарея түрү: 1 D (included)
- Продукциянын өлчөмдөрү (L x W x Y): 28 x 18 x 5.6 см
- Продукт Салмагы: 630 грамм
- Орнотуу түрү: Screw-in (Wall Mount)
- Колдонуу: Indoor Baby Monitoring
утилдештирүү
Do not dispose of this product with household waste. Please recycle electronic devices at designated collection points. Contact your local authorities for information on recycling and disposal.
