Eureka Vector ENRICH RO+UV+MC 2X Water Purifier User Manual

1. Продукт бүтүп калдыview

The Eureka Vector ENRICH RO+UV+MC 2X Water Purifier is designed to provide pure and safe drinking water. This system incorporates advanced RO+UV+MC (Mineral Charge) filtration technology, suitable for various water sources including borewell, tanker, and municipal supply. It features a compact design, 6.2 liters storage capacity, and LED indicators for operational status.

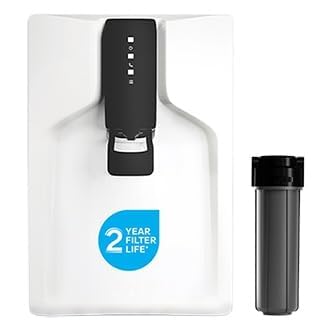

Сүрөт 1.1: Алдыңкы view of the Eureka Vector ENRICH RO+UV+MC 2X Water Purifier. This image displays the sleek, white exterior of the water purifier with its black control panel and dispensing area.

Негизги өзгөчөлүктөрү:

• Өркүндөтүлгөн чыпкалоо: Utilizes RO+UV+MC (Mineral Charge) technology for 30X impurity removal.
• UV e-boiling Technology: Ensures water is as pure and safe as water boiled for 20+ minutes.
• Water-Saving Design: Reduces water wastage by over 60% compared to conventional models.
• Ар тараптуу шайкештик: Effective for borewell, tanker, and municipal water sources with TDS levels up to 500 PPM.
• Purification Modules: Includes i-Filter, Chemi-Block, High Recovery Reverse Osmosis Cartridge, UV e-boiling, and Mineral Cartridge.
• Сактоо сыйымдуулугу: 6.2 liters of purified water storage.
• LED көрсөткүчтөрү: Provides status updates for power, tank full, and service requirements.
• Компакт дизайн: Эстетикалык жактанasing and space-saving, suitable for wall mount or countertop installation.

2. Коопсуздук маалыматы

Please read all safety instructions carefully before installing or operating the water purifier. Retain this manual for future reference.

• Ensure the power supply matches the specifications mentioned on the product label.
• Шайманды, шнурду же сууга же башка суюктуктарга батырбаңыз.
• Keep the purifier away from direct sunlight, heat sources, and corrosive chemicals.
• Do not attempt to open or repair the purifier yourself. Contact authorized service personnel for assistance.
• Агрегаттын айланасын туура желдетүүнү камсыз кылыңыз.
• Балдар шайман менен ойнобошу үчүн аларды көзөмөлгө алуу керек.
• Always unplug the purifier before cleaning or performing any maintenance.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• Eureka Vector ENRICH RO+UV+MC 2X Water Purifier Unit
• Installation Kit (includes necessary fittings, pipes, and mounting accessories)
• Колдонуучунун Колдонмосу (бул документ)

4. Орнотуу & Орнотуу

Professional installation is recommended for optimal performance and to ensure warranty validity. Contact Eureka customer support for installation services.

4.1 Орнотууга чейинки текшерүүлөр:

• Суу булагы: Ensure a continuous supply of potable water.
• Суунун басымы: The water pressure should be within the recommended range for RO purifiers.
• Электр розетка: A grounded 3-pin electrical outlet (230V AC, 50Hz) should be available within 1.5 meters of the installation site.
• Боштук: Choose a location that allows for easy access for maintenance and is away from direct sunlight or heat. The purifier can be wall-mounted or placed on a countertop.

4.2 Орнотуу кадамдары:

1. Монтаждоо: If wall-mounting, use the provided template and hardware to securely fix the purifier to a sturdy wall. For countertop placement, ensure a stable, flat surface.
2. Суу киргизүү туташуу: Connect the raw water inlet pipe from the water source to the purifier's inlet port using the provided fittings.
3. Дренаж туташуусу: Connect the waste water drain pipe to a suitable drainage point.
4. Кубат туташуу: Электр шнурын электр розеткасына сайыңыз.
5. Баштапкы тазалоо: Before first use, allow the purifier to fill and drain completely 2-3 times to flush out any manufacturing residues from the filters. This process ensures optimal water quality from the first use.

5. Операция

5.1 Powering On and LED Indicators:

Once connected to power, the purifier will automatically begin the purification process. The control panel features LED indicators to display the operational status:

Сүрөт 5.1: Жакын пландан view of the control panel with LED indicators on the Eureka Vector ENRICH RO+UV+MC 2X Water Purifier. The LEDs typically indicate power, purification in progress, tank full, and service alerts.

• Күч көрсөткүчү: Illuminates when the purifier is connected to power and switched on.
• Тазалоо көрсөткүчү: Lights up when the purification process is active.
• Танк толук көрсөткүчү: Illuminates when the storage tank is full of purified water. The purification process will automatically stop.
• Кызмат көрсөткүчү: Flashes or changes color to indicate that filter replacement or service is due.

5.2 Water Dispensing:

Place a clean container under the dispensing faucet and operate the lever or button to dispense purified water.

5.3 Taste Adjuster (TA) Function:

The Taste Adjuster allows you to manually control the TDS (Total Dissolved Solids) level of the output water, optimizing taste based on your preference and the source water quality. Refer to the diagram below for a visual representation of the advanced filtration stages, including the Taste Adjuster.

Image 5.2: Diagram illustrating the advanced filtration technologies including RO Membrane, UV e-boiling, and the Taste Adjuster. This visual explains how the purifier processes water from various sources like tap, tanker, and borewell water to achieve desired taste and purity.

Adjust the Taste Adjuster knob (if externally accessible) as per your desired water taste. Turning it clockwise generally increases TDS, while counter-clockwise decreases it. It is recommended to adjust this setting during installation or service by a qualified technician.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and efficient performance of your water purifier. Always unplug the unit before performing any maintenance.

6.1 Фильтрди алмаштыруу:

The Eureka Vector ENRICH RO+UV+MC 2X features long-life filters, with an estimated life of 2 years or 12,000 liters, whichever comes first. The Service Indicator LED will alert you when filter replacement is due.

Image 6.1: The Eureka Vector ENRICH RO+UV+MC 2X Water Purifier highlighting its 2-year filter life. This image emphasizes the durability and long-term efficiency of the filtration system.

• Filter replacement should only be performed by an authorized service technician.
• Using non-genuine filters may void your warranty and compromise water quality.

6.2 Cleaning the Purifier:

• Тазалоочу аппараттын сыртын жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Clean the dispensing area regularly to prevent accumulation of dust or residue.
• Сууну түз эле аппаратка чачпаңыз.

6.3 Storage Tank Cleaning:

The internal storage tank should be cleaned periodically by an authorized service technician to maintain hygiene.

7. Кыйынчылыктарды

If you encounter any issues, refer to the table below. For problems not listed or if solutions do not resolve the issue, contact customer support.

8. Техникалык шарттар

Technical specifications for the Eureka Vector ENRICH RO+UV+MC 2X Water Purifier:

9. Кепилдик жана Кардарларды колдоо

For warranty information, service requests, or any product-related queries, please contact Eureka Forbes Ltd. customer support.

• Өндүрүүчү: Eureka Forbes Ltd
• Кардарларды тейлөө номерлери: 18602661177 / 9212222051
• Электрондук почта: customercare@eurekaforbes.com

Please keep your purchase receipt and product model number (GWPDVERUM03000) handy when contacting customer support.
