MONODEAL Portable CD Player Колдонуучу колдонмосу

Introduction

Сатып алганыңыз үчүн рахматasing the MONODEAL Portable CD Player. This device is designed to provide high-quality audio playback from your favorite CDs, with the added convenience of Bluetooth connectivity and built-in stereo speakers. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan.

Пакеттин мазмуну

Figure 1: Package Contents. The image displays the MONODEAL Portable CD Player alongside its included accessories: a dual AUX cable, a USB-C charging cable, wired earphones, and the user manual.

• MONODEAL Portable CD Player (Model: MD-602)
• USB-C заряддоо кабели
• Dual AUX Cable
• Зымдуу наушниктер
• User Manual

Продукт бүттүview

Сүрөт 2: Алдыңкы view of the MONODEAL Portable CD Player, highlighting the central control panel with playback buttons, mode selection, volume, and the digital display showing track information and battery status.

The MONODEAL Portable CD Player features a compact design with intuitive controls. It includes a digital display for track information, battery status, and mode indicators. Key features include:

• Камтылган стерео динамиктер: Enjoy audio without headphones.
• Bluetooth 5.0 туташуусу: Easily connect to Bluetooth headphones, earphones, or speakers.
• Бир нече ойноо режимдери: Play in order, repeat track, repeat all, A-B repeat, and shuffle.
• EQ үн эффекттери: Choose from BBS, Pop, Jazz, Rock, and Classic.
• Резюме функциясы: Remembers the last played track.
• FM тараткыч: Connect to car stereos or home radios via FM.
• Кайра заряддалуучу батарея: Long-lasting 2000mAh battery for extended playback.

Жайгашуу

1. Аппаратты заряддоо

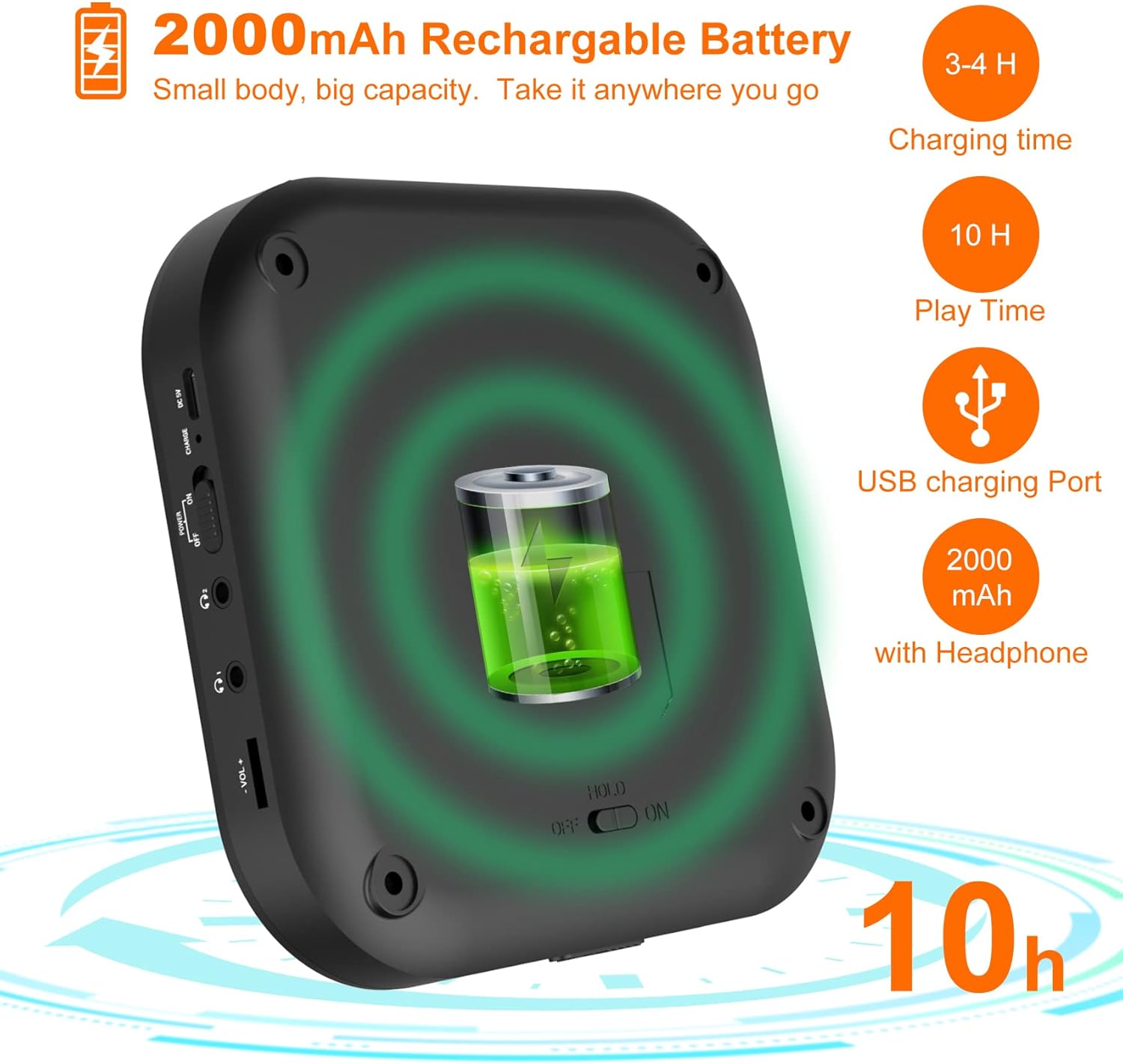

Figure 3: Battery and Charging. This image illustrates the 2000mAh rechargeable battery capacity, indicating a charging time of 3-4 hours and a play time of up to 10 hours with headphones, using the USB charging port.

Before first use, fully charge the CD player. Connect the supplied USB-C charging cable to the device's USB-C port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status. A full charge typically takes 3-4 hours and provides up to 10 hours of playback with headphones.

2. CD кыстаруу

1. Gently slide the "OPEN" switch to open the CD compartment lid.
2. CDди этикеткасын өйдө каратып, шпинделге коюңуз.
3. Компакт-дисктин ортосунан акырын басып, ал ордунан чыккыча басыңыз.
4. CD бөлүктүн капкагын бекитилмейинче бекем жабыңыз.

Иштөө нускамалары

Негизги ойнотуу

1. Ensure the "HOLD" switch on the side of the player is in the "OFF" position.
2. басыңыз ОЙНОО/ТЫНЫТТЫРУ баскычы (▶”) ойнотууну баштоо үчүн.
3. басыңыз ОЙНОО/ТЫНЫТТЫРУ ойнотууну тындыруу үчүн баскычты кайра басыңыз.
4. колдонуу МУРУНКУ (⏮) жана КИЙИНКИ (⏭) buttons to skip tracks. Press and hold to fast forward or rewind.
5. Үнүн колдонуп, үнүн жөндөңүз VOL+ жана VOL- баскычтар.

Bluetooth туташуу

Figure 4: Bluetooth Connectivity. This image demonstrates the player's built-in Bluetooth 5.0, showing its compatibility with Bluetooth headphones, earphones, and speakers, with a woman enjoying music wirelessly.

1. CD ойноткучту күйгүзүңүз.
2. басыңыз Bluetooth баскычы (&B;) to activate Bluetooth pairing mode. The Bluetooth indicator will flash.
3. Enable Bluetooth on your desired device (headphones, speaker, etc.) and set it to pairing mode.
4. Select "MONODEAL CD Player" from the list of available devices.
5. Once connected, the Bluetooth indicator will stop flashing and remain solid.

FM өткөргүч функциясы

Figure 5: Car Connection Options. This image illustrates two methods to connect the CD player to a car audio system: via AUX connection or FM connection, highlighting its suitability for cars without a built-in CD player.

The player can transmit audio to an FM radio, ideal for car stereos without a CD player.

1. басыңыз PROG/FM button to enter FM transmission mode.
2. The display will show the FM frequency. Use the МУРУНКУ (⏮) жана КИЙИНКИ (⏭) buttons to adjust the frequency.
3. Tune your car radio or home radio to the same FM frequency.
4. Adjust the volume on your radio for optimal sound.

Play Modes and EQ Settings

Figure 6: Play Modes and EQ. This image shows a family enjoying music, with text detailing the 5 available play modes (Play in order, Repeat a track, Repeat all, A-B repeat, Shuffle) and 5 EQ sound effects (BBS, Pop, Jazz, Rock, Classic).

• MODE баскычы: Press to cycle through different play modes:
  • Бир цикл: Учурдагы тректи кайталайт.
  • БААРЫ: CDдеги бардык тректерди кайталайт.
  • INTRO: Ар бир тректин алгачкы 10 секундун ойнотот.
  • SHUF: Тректерди туш келди тартипте ойнойт.
• AB кайталоо: басыңыз AB button at the start point (A) and again at the end point (B) of the desired section to repeat it. Press a third time to cancel.
• EQ баскычы: Press to cycle through different equalizer sound effects: BBS, Pop, Jazz, Rock, Classic.

Техникалык тейлөө

• Түзмөктү жумшак, кургак чүпүрөк менен сүртүп, таза кармаңыз. Суюк тазалоочу каражаттарды же аэрозольдорду колдонбоңуз.
• Avoid exposing the player to extreme temperatures, direct sunlight, or high humidity.
• Do not disassemble the device. Repairs should only be performed by qualified personnel.
• When not in use for extended periods, store the player in a cool, dry place.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official MONODEAL webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
