POWERTEC Model 70448 дүкөнүнүн чаң соргуч жабдууларынын топтому колдонуучунун колдонмосу

Introduction

This manual provides detailed instructions for the POWERTEC Model 70448 Shop Vacuum Attachment Kit. This kit is designed to enhance your wet/dry vacuum's capabilities for efficient cleanup in workshops, garages, and for car detailing. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x Stainless Steel Extendable Wand
• 1 x 9-foot Hose with Built-in Adapter (for 2-1/4" ID shop vacuum ports)
• 1 x Floor Brush with Swivel Action and Adjustable Levels
• 1 x Flexible Crevice Tool with Swivel Head
• 1 x Dusting Brush with Swivel Head

1-сүрөт: Бүттүview of the POWERTEC Shop Vacuum Attachment Kit components, including the hose, extendable wand, floor brush, crevice tool, and dusting brush.

Продукт өзгөчөлүктөрү

• Кеңейтилген мүмкүнчүлүк: The 9-foot hose and extendable stainless steel wand provide ample reach for various cleaning tasks. The wand adjusts from 19-1/2 inches to 31-5/16 inches.
• Ар тараптуу тазалоо: Includes a floor brush for large surfaces, a flexible crevice tool for tight spaces, and a dusting brush for delicate areas.
• Эргономикалык дизайн: Features a comfortable handle and swiveling attachments for ease of use.
• Adjustable Suction Control: The hose handle includes an adjustable opening to manage suction power and prevent vacuum overload.
• Туруктуу курулуш: The extendable wand is made from heavy-duty stainless steel for long-lasting performance.

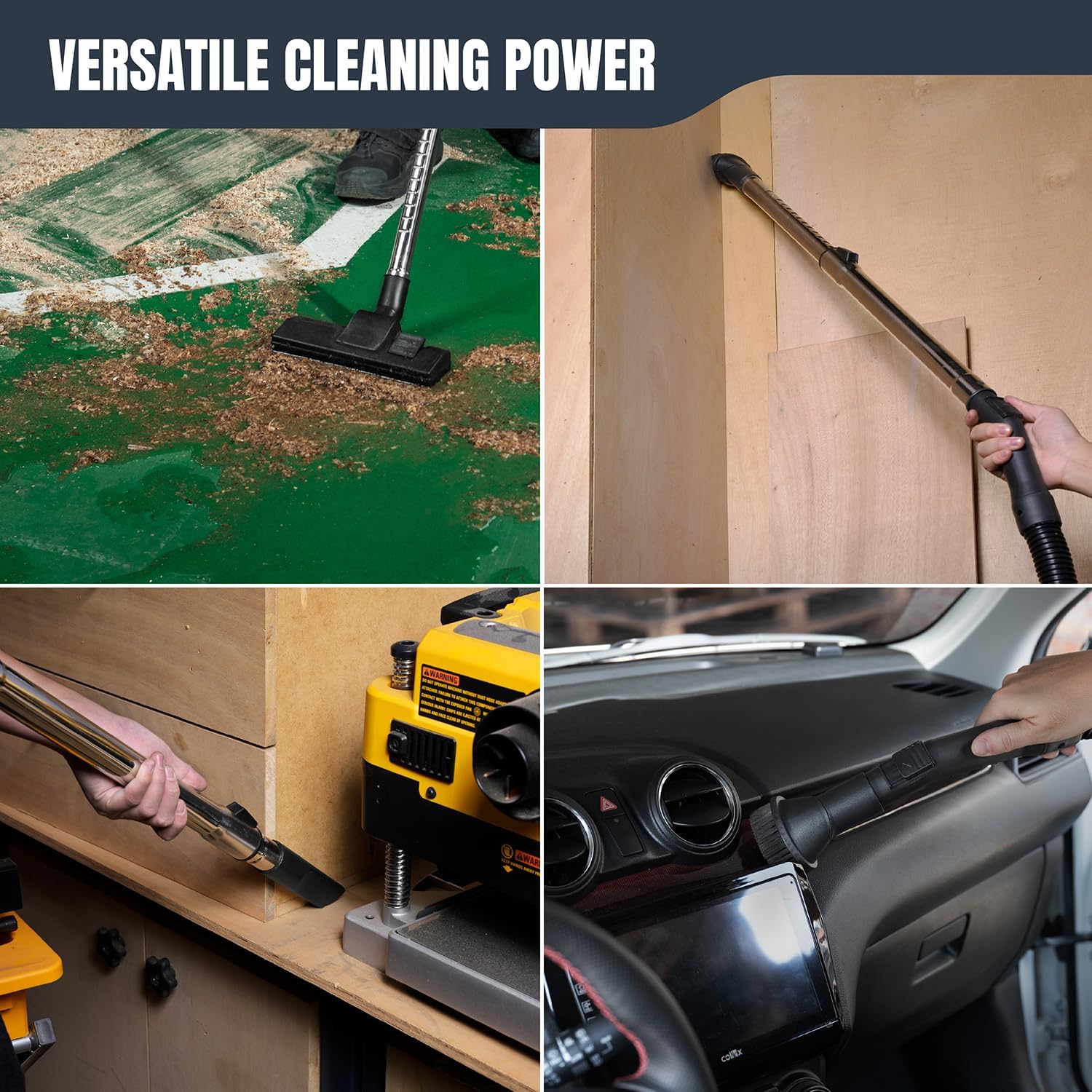

2-сүрөт: Demonstrates the versatile cleaning power of the kit, showing the floor brush on a workshop floor, the extendable wand reaching high, the crevice tool cleaning a planer, and the dusting brush in a car interior.

Орнотуу нускамалары

1. Connect Hose to Vacuum: Insert the adapter end of the 9-foot hose securely into your shop vacuum's 2-1/4 inch ID port. Ensure a tight fit for optimal suction.


   3-сүрөт: Illustrates the proper connection of the hose adapter to a shop vacuum's 2-1/4 inch ID port.

2. Attach Wand (Optional): For extended reach, connect the stainless steel extendable wand to the hose handle. Adjust the wand to your desired length by pulling or pushing the sections.
3. Тазалоочу куралды тиркеңиз: Select the appropriate cleaning tool (floor brush, crevice tool, or dusting brush) and firmly attach it to the end of the wand or directly to the hose handle if not using the wand.


   4-сүрөт: Shows how the crevice tool and dusting brush attach to the hose handle for versatile cleaning.

Иштөө нускамалары

Жалпы операция

• Ensure all connections are secure before turning on your shop vacuum.
• Adjust the suction control on the hose handle as needed. Opening the vent reduces suction, while closing it increases suction.

Тиркемелерди колдонуу

1. Extendable Wand:

   Use the stainless steel extendable wand to reach high areas, ceilings, or under furniture. Adjust its length by sliding the sections until the desired reach is achieved.



   5-сүрөт: Details the extendable stainless steel wand, showing its adjustable length from 19-1/2" to 31-5/16" and its connection points for brushes.
2. Пол щетка:

   Attach the floor brush for cleaning large floor areas. It features two adjustable levels:

   • Retracted Brush/Squeegee: Ideal for picking up dust and small debris.
   • Extended Brush/Squeegee: Suitable for liquid pickup and more thorough dusting.

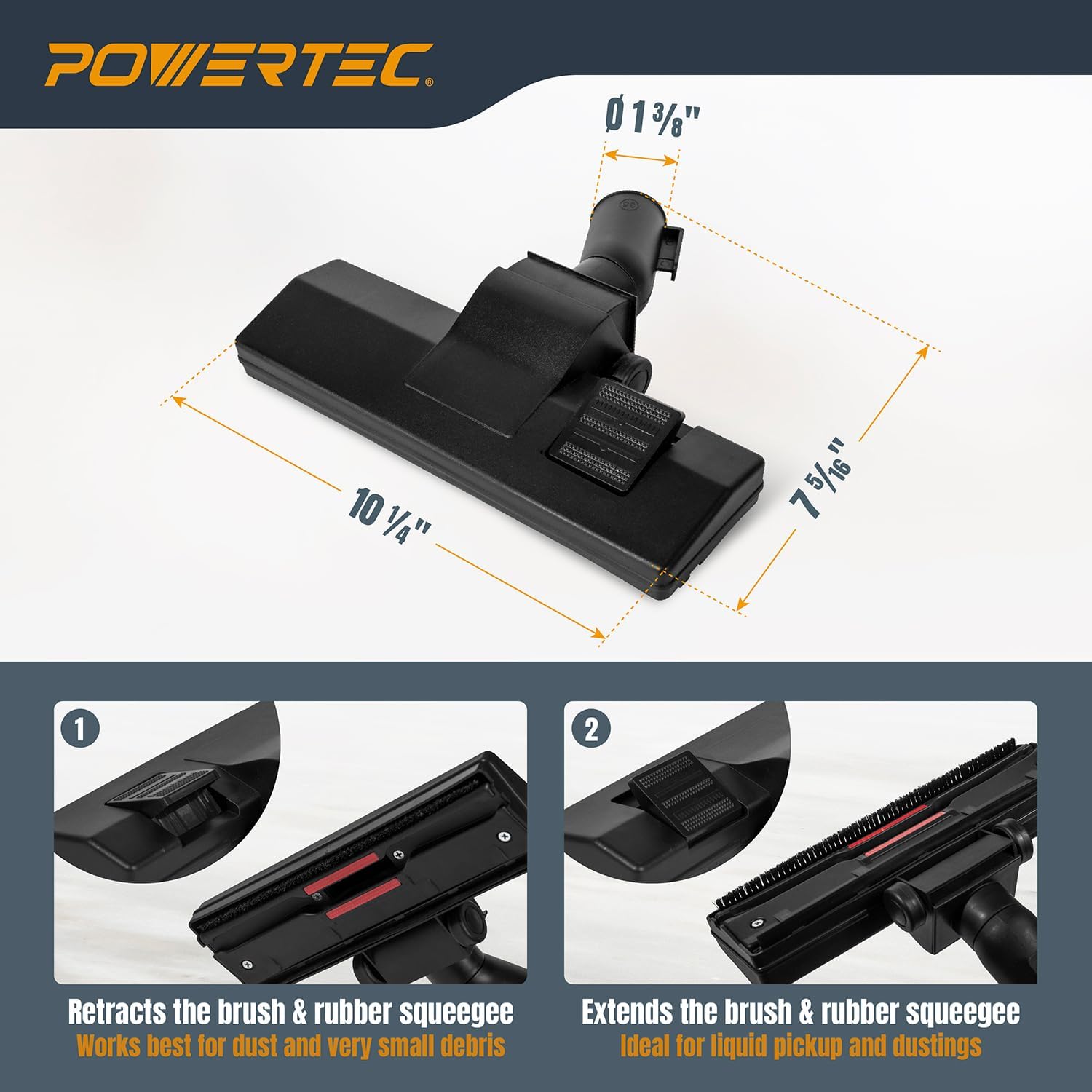

   6-сүрөт: Shows the floor brush's two adjustable settings: retracted for dust and small debris, and extended for liquid pickup and thorough dusting.
3. Flexible Crevice Tool:

   Use the flexible crevice tool to access narrow gaps, corners, and tight spaces in your workshop or vehicle interior.

4. Чаң тазалоочу щетка:

   The soft dusting brush is designed for gently removing dust from delicate surfaces, equipment, and intricate areas.



   7-сүрөт: Provides dimensions for the crevice tool and dusting brush, and illustrates their use for detailed cleaning on a table saw.

Техникалык тейлөө

• Тазалоочу тиркемелер: After each use, remove any accumulated debris from the attachments. They can be wiped clean with a damp кездеме.
• Шланг текшерүү: Periodically inspect the hose for any cracks, punctures, or blockages. Clear any obstructions to maintain optimal airflow.
• Сактагыч: Store the kit components in a clean, dry place to prevent damage and prolong their lifespan.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

Specific warranty information for the POWERTEC Model 70448 Shop Vacuum Attachment Kit is not provided in this manual. For warranty details, technical support, or any inquiries regarding your product, please contact POWERTEC customer service directly. You can typically find contact information on the manufacturer's webсайт же продукт таңгак.

For additional resources and product information, visit the official POWERTEC store: Amazon'догу POWERTEC дүкөнү.
