1. Киришүү
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Siemens WT43H004 iQ300 Heat Pump Dryer. Please read these instructions carefully before using the appliance and keep them for future reference.
The Siemens WT43H004 iQ300 is an 8 kg capacity heat pump dryer designed for energy-efficient and gentle drying of various textile types. Key features include AutoDry technology for precise drying, a SoftDry drum system for fabric care, and an EasyClean filter for simplified maintenance. The appliance operates quietly at 65 dB and offers a range of specialized programs via its touchControl LED display.
2. Коопсуздук маалыматы
Жеке жаракат же шайманга зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук эрежелерин сактаңыз:
- Шайман туура жерге туташтырылганын текшериңиз.
- Do not allow children to operate or play with the dryer. The appliance includes a child safety lock feature.
- Never dry items that have been soiled with flammable substances.
- Regularly clean the lint filter to prevent fire hazards and maintain drying efficiency.
- Желдетүүчү тешиктерди жаппаңыз.
- Кандайдыр бир тазалоо же тейлөө иштерин жүргүзүүдөн мурун шайманды электр кубатынан ажыратыңыз.
3. Орнотуу жана орнотуу
Proper installation ensures optimal performance and safety of your dryer.
3.1 Пакеттен чыгаруу
Carefully remove all packaging materials. Inspect the dryer for any transit damage. Report any damage immediately to your retailer.
3.2 Орнотуу
The dryer should be placed on a clean, level, and stable surface. Ensure adequate ventilation around the appliance. The anti-vibration design contributes to stability and quiet operation.
Өлчөмдөрү: 84.2 cm (height) x 59.8 cm (width) x 61.3 cm (depth). A niche height of at least 85 cm is required for installation. With the door open, the depth is 109.6 cm.

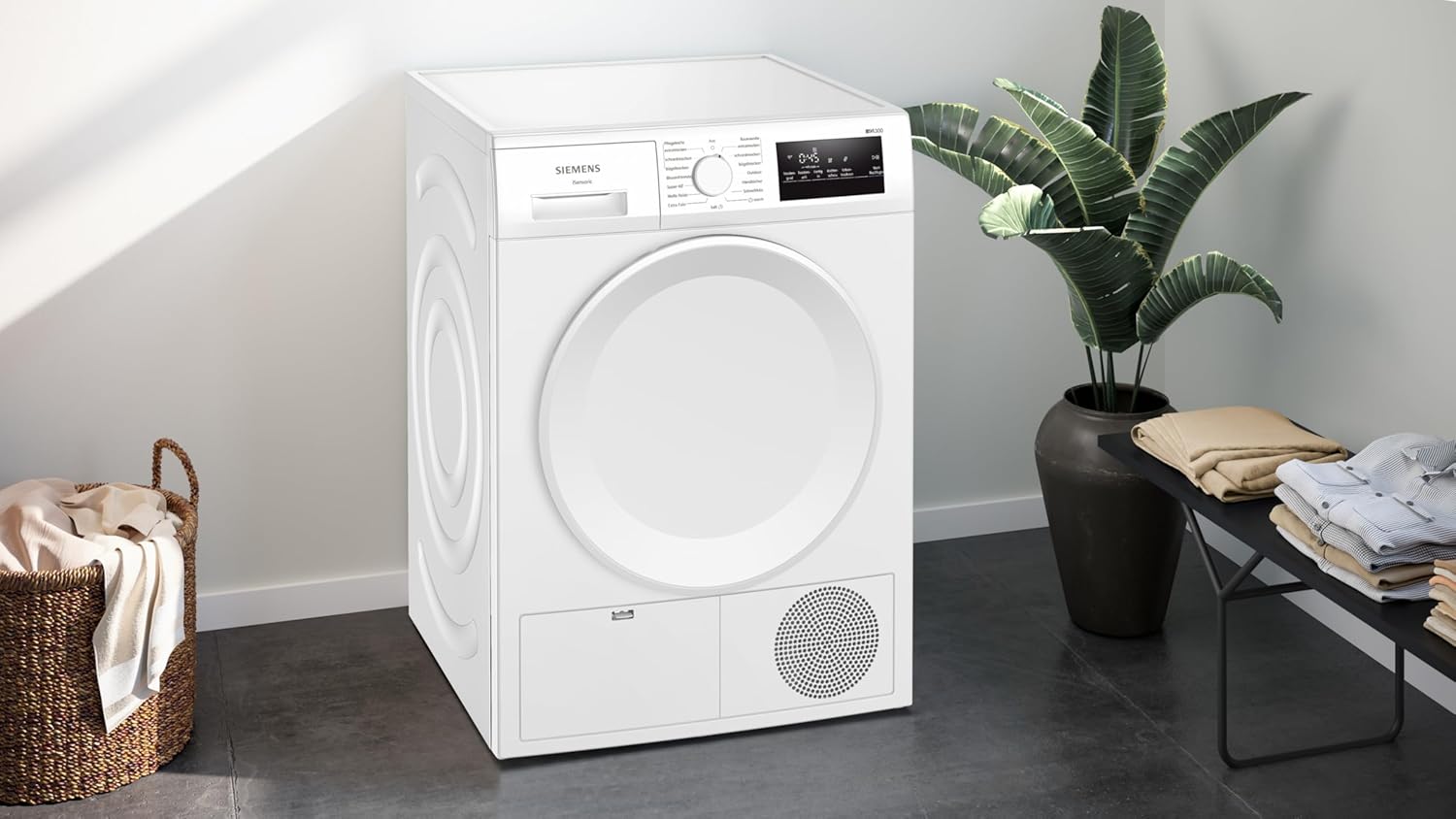

Image: The Siemens WT43H004 iQ300 Heat Pump Dryer positioned in a laundry area, demonstrating its compact design and suitability for various home environments.
3.3 Электрдик туташуу
Connect the dryer to a properly installed and grounded power outlet. Refer to the rating plate for voltagе жана жыштык талаптары.
3.4 Конденсатты дренаж
The dryer collects condensed water in a container. This container must be emptied after each drying cycle. Alternatively, a direct drain hose can be connected to automatically discharge the condensate.
4. Иштөө нускамалары
Follow these steps to operate your Siemens WT43H004 iQ300 dryer.
Сүрөт: толук фронт view of the Siemens WT43H004 iQ300 Heat Pump Dryer, showcasing its clean white design and the central control panel.
4.1 Кирди жүктөө
Open the dryer door and load laundry into the SoftDry drum. Do not overload the dryer; ensure clothes can tumble freely for optimal drying results. The SoftDry drum system is designed for gentle fabric treatment.
Сүрөт: деталдуу view of the interior of the SoftDry drum, highlighting its unique texture and design for gentle and effective drying.
4.2 Программаны тандоо
Turn the program selector dial to choose the desired drying program. The touchControl LED display will show relevant information.
- Стандарттык программалар: Cotton, Easy Care.
- Атайын программалар: Wool Finish, Outdoor, Towels, Timed Program (Warm/Cold), Super 40, Blouses/Shirts, Extra Fine.
Image: A close-up of the dryer's control panel, showing the program selector dial, touchControl buttons, and the LED display with program information.
4.3 Орнотууларды тууралоо
Use the touchControl buttons to customize program options:
- Жумшак кургактоо: Назик кездемелер үчүн.
- Crease Guard: Кредитти азайтатasing.
- Программанын узактыгы: Adjust drying time for timed programs.
- Drying Level Fine-tuning: Adjust the dryness level.
- 24-hour Delay Start: Кечигип баштоо убактысын коюңуз.
4.4 Программаны баштоо
Press the 'Start/Pause' button to begin the drying cycle. The LED display will show the remaining time and program status. The AutoDry technology will automatically stop the program once the desired dryness level is reached, protecting fabrics from over-drying.
5. Техникалык тейлөө жана тазалоо
Үзгүлтүксүз тейлөө сиздин кургаткычыңыздын узак мөөнөттүү жана натыйжалуулугун камсыз кылат.
5.1 Cleaning the EasyClean Filter
The EasyClean filter should be cleaned after every drying cycle. The appliance will indicate when the filter needs cleaning.
- Кургаткычтын эшигин ачыңыз.
- Locate and remove the lint filter from its housing.
- Open the filter and remove all lint.
- Зарыл болсо, чыпканы агын суунун астында чайкап, кайра салуудан мурун толугу менен кургаганын текшериңиз.
Image: The interior of the dryer with the door open, showing the location of the lint filter housing at the bottom of the drum opening.
Image: The EasyClean lint filter, removed from its compartment, ready for cleaning. This filter captures lint and debris during the drying cycle.
5.2 Конденсат контейнерин бошотуу
The appliance will indicate when the condensate container is full. Remove the container and empty the collected water. Reinsert the container securely.
5.3 Сырты тазалоо
Кургаткычтын сырткы беттерин жумшак, г менен сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
6. Кыйынчылыктарды
Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди жана чечимдерди караңыз:
- Кургаткыч иштебей жатат: Ensure the power cord is plugged in, the door is closed securely, and a program is selected. Check if the child safety lock is active.
- Кир жууган кийимдер туура эмес кургатылганда: Check if the lint filter is clean and the condensate container is empty. Ensure the load size is appropriate for the selected program.
- адаттан тыш ызы-чуу: Verify that the dryer is level and stable. Check for any foreign objects in the drum.
- Дисплейдеги ката коддору: If an error code appears, consult the full user manual (if provided separately) or contact Siemens customer support, providing the specific code.
7. Техникалык шарттар
| Бренд | SIEMENS |
| Модель номери | WT43H004 |
| Type | Жылуулук насосу менен кургаткыч |
| Кубаттуулугу | 8 кг |
| Энергия эффективдүүлүгү классы | E (based on provided data, note: energy ratings can vary by region/standard) |
| Жылдык энергия керектөө | 216 кВт/саат |
| Program Duration (Standard) | 205 мүнөт |
| Ызы-чуу деңгээли | 65 дБ |
| Конденсациянын эффективдүү классы | B |
| Өлчөмдөрү (H x W x D) | 84.2 см х 59.8 см х 61.3 см |
| Салмагы | 45.6 кг |
| Эшик топчу | Туура |
| Муздаткыч | R290 |
8. Кепилдик жана колдоо
For warranty information, please refer to the warranty card included with your appliance or visit the official Siemens website for your region. In case of technical issues or questions not covered in this manual, please contact Siemens customer service. Ensure you have your model number (WT43H004) and serial number ready when contacting support.
