Meross MST100 WiFi акылдуу чачыраткыч таймеринин колдонуу боюнча колдонмосу

1. Киришүү

The Meross MST100 WiFi Smart Sprinkler Timer provides intelligent and automated control over your garden irrigation system. This device, when paired with the Meross Smart Hub MSH400HK (required, sold separately), allows for remote management, smart scheduling based on weather conditions, and detailed water consumption tracking. This manual will guide you through the installation, operation, and maintenance of your MST100 sprinkler timer.

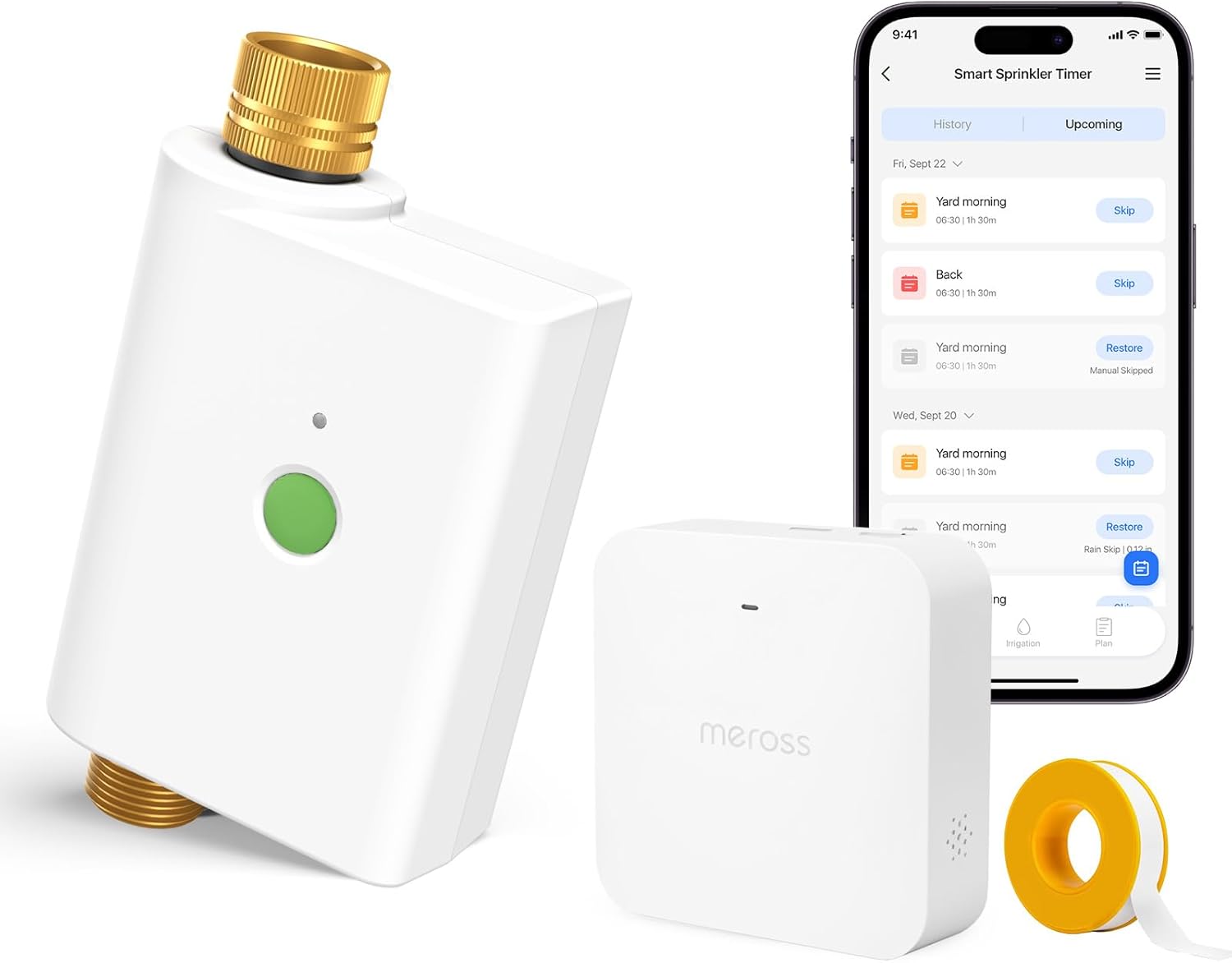

Figure 1: Meross MST100 Smart Sprinkler Timer, MSH400 Hub, and Meross app interface.

2. Пакеттин мазмуну

• Meross MST100 Smart Sprinkler Timer
• User Manual
• Note: The Meross Smart Hub MSH400HK is required for operation and is sold separately.

3. Орнотуу

3.1 Meross App Installation

1. Meross тиркемесин Apple App Store же Google Play Store дүкөнүнөн жүктөп алыңыз.
2. Register for a Meross account or log in if you already have one.

3.2 Connecting the Meross Smart Hub (MSH400HK)

The MST100 Sprinkler Timer communicates wirelessly with the Meross Smart Hub. Ensure your hub is set up and connected to your home's 2.4GHz WiFi network before proceeding.

Figure 2: Instructions for connecting the Meross WiFi Hub.

1. Power on the Meross WiFi Hub and ensure your smartphone is connected to a 2.4GHz WiFi network.
2. Meross колдонмосун ачыңыз.
3. Жаңы түзмөк кошуу үчүн "+" сөлөкөтүн таптаңыз.
4. Select "Smart Hub (MSH400)" and follow the in-app instructions to pair the hub.

3.3 Installing and Pairing the Smart Sprinkler Timer (MST100)

The MST100 is designed for outdoor use and connects directly to a standard outdoor faucet.

Figure 3: The MST100 features durable brass connections for leak-proof installation.

Figure 4: Battery installation and pairing process for the MST100.

1. Батареяны орнотуу: The battery compartment is designed to be waterproof. Use a screwdriver to gently open it. Insert 4 x AA 1.5V batteries, ensuring correct polarity.
2. Кранга бекитүү: Connect the MST100 to your outdoor faucet. Ensure a secure, watertight connection.
3. Initiate Pairing on Hub: Press the button on the Meross Smart Hub twice. The hub's indicator light will flash.
4. Initiate Pairing on Timer: Press the button on the MST100 Sprinkler Timer twice. Its indicator light will flash.
5. Жупташтыруу ырастоо: Wait a few seconds until the indicator lights stop flashing, indicating successful pairing between the sprinkler timer and the hub.

4. Operating the Sprinkler Timer

4.1 Кол менен сугаруу

You can manually activate watering directly from the device or through the Meross app.

• Түзмөктө: Press the green button on the MST100 once to start manual watering.
• Колдонмо аркылуу: Open the Meross app, select your MST100 device, and tap the manual irrigation button.

The manual irrigation feature includes an automatic shut-off, defaulting to 15 minutes to prevent water waste. This duration can be adjusted within the Meross app.

Figure 5: Simple manual control via the Meross app.

4.2 Smart Scheduling and Weather Adaptation

The Meross app allows you to create customized watering schedules and benefits from intelligent weather integration.

6-сүрөт: Мисamples of customizable watering schedules within the Meross app.

• Custom Plans: Create schedules based on specific days, intervals (e.g., every 3 days, odd days), and times. These plans function even without an internet connection once set.
• Weather Integration: The timer automatically adjusts or skips scheduled watering cycles based on local weather data (rain forecast or detection) to prevent overwatering and conserve water. You will receive push notifications for skipped plans.

Figure 7: Smart weather adaptation feature, showing rain skip notifications.

4.3 Үн менен башкаруу

The MST100 is compatible with popular voice assistants, allowing for hands-free control.

• Колдоого алынган платформалар: Apple Home (Siri), Amazon Alexa, Google Assistant.
• Example Commands: "Alexa, activate the sprinkler timer," "Hey Siri, open the sprinkler timer," "Ok Google, open the sprinkler timer."

Figure 8: Voice control integration with smart home platforms.

4.4 Water Consumption Tracking

The Meross app provides detailed insights into your water usage, helping you manage resources efficiently.

• Мониторинг: Track daily, weekly, and monthly water consumption in liters/gallons.
• Cost Analysis: Monitor estimated costs associated with your water usage.

Figure 9: Water consumption and cost tracking in the Meross app.

4.5 Кең шайкештик

The MST100 is versatile and can be integrated into various outdoor watering setups.

• Works with standard sprinklers.
• Suitable for drip irrigation systems.
• Can be used for pool filling or garden irrigation.

Figure 10: The MST100 is compatible with various irrigation systems.

5. Техникалык тейлөө

5.1 Жалпы кам көрүү

• Аппаратты таза жана таштандылардан тазалаңыз.
• Avoid exposing the device to extreme temperatures outside its operating range.
• Ensure the battery compartment is securely closed to maintain its waterproof seal.

5.2 Батареяны алмаштыруу

When the battery level is low, the Meross app will notify you. To replace the batteries:

1. Carefully open the battery compartment using a screwdriver.
2. Remove the old 4 x AA 1.5V batteries.
3. Insert new 4 x AA 1.5V batteries, ensuring correct polarity.
4. Суу өткөрбөй турган пломбаны сактоо үчүн батарея бөлүмүн бекем жабыңыз.

5.3 Кышка даярдык

Before the first frost, it is recommended to disconnect the MST100 from the outdoor faucet and store it indoors in a dry, protected area to prevent damage from freezing temperatures.

6. Кыйынчылыктарды

If you encounter issues with your Meross MST100, consider the following:

• Түзмөк жооп бербейт: Check the battery level in the Meross app. Replace batteries if low. Ensure the device is within range of the Meross Smart Hub (up to 100m unobstructed).
• Watering Not Starting: Verify that the faucet is turned on. Check your schedule in the Meross app for any conflicts or if a rain skip event is active. Ensure the device is properly paired with the hub.
• Туташуу маселелери: Confirm your Meross Smart Hub is connected to a stable 2.4GHz WiFi network. Restart the hub and the sprinkler timer if necessary.
• агып кетүү: Ensure all connections to the faucet and hose are tight and properly sealed. Check for any damage to the brass connections.
• Колдонмо эскертмелери: The Meross app provides real-time notifications for various events, including low battery, flow anomalies, and device failures. Check the app for specific alerts.

7. Техникалык шарттар

8. Кепилдик маалыматы

Meross products are designed and manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your product or visit the official Meross website. The warranty typically covers defects in materials and workmanship under normal use for a specified period from the date of purchase.

9. Колдоо

For further assistance, technical support, or to provide feedback, please contact Meross customer service through the following channels:

• Меросс колдонмосу: Access the 'Help' or 'Support' section within the Meross application for FAQs and direct contact options.
• Официалдуу Webсайт: Visit www.meross.com for product information, support resources, and contact details.
• Электрондук почта колдоо: Refer to your product packaging or the Meross webатайын колдоо электрондук почта дареги үчүн сайт.
