1. Продукт бүтүп калдыview
The SYNCO XVision HD Wireless Video Transmission System provides high-definition video transmission for professional film, television, and live streaming applications. This system, configured with one transmitter (TX) and two receivers (RX), supports 1080P/60fps video with a range of up to 300 meters and ultra-low latency of 40ms. Its compact design and flexible power options make it suitable for various production environments.
Негизги өзгөчөлүктөрү:
- Stable HD Video Transmission: Supports 1080P/60fps video up to 300 meters with SYNCO's ultra-penetration technology.
- Ультра төмөн кечигүү: 40ms latency for real-time monitoring and feedback, utilizing advanced H.265/HEVC encoding.
- Dual HDMI Connectivity: Features HDMI input, HDMI output, and HDMI loop-out ports for versatile connections.
- Multi-User Monitoring: Supports simultaneous transmission to multiple receivers (up to four) for collaborative workflows.
- Компакт жана көчмө: Lightweight at 119g with foldable antennas, designed for easy transport and on-the-go use.
- Ийкемдүү кубат параметрлери: Compatible with NP-F batteries and USB-C 5V input.
- SYNCO Link App: Companion app for real-time monitoring, image adjustments (zebra lines, mirroring, false color), video saving, screenshots, and playback.
Кутуда эмне бар:
- Transmitter (TX) x 1
- Receiver (RX) x 2
- C түрүндөгү кабель x 3
2. Компоненттер жана башкаруу элементтери
Each unit (Transmitter and Receiver) features a compact design with essential ports and controls for efficient operation.
Transmitter (TX) Unit:
- HDMI IN: Connects to the video source (e.g., camera, computer).
- HDMI OUT: Provides a loop-out signal to a local monitor.
- USB-C 5V IN: Кубат киргизүү порту.
- ON/OFF которуу: Аппаратты күйгүзөт же өчүрөт.
- PAIR баскычы: Initiates pairing with receiver units.
- NP-F Батарея уячасы: For external battery power.
- Дисплей экраны: Shows status information like resolution, frame rate, signal strength, and battery level.
Receiver (RX) Unit:
- HDMI OUT: Connects to a display device (e.g., monitor, TV, projector).
- USB-C 5V IN: Кубат киргизүү порту.
- ON/OFF которуу: Аппаратты күйгүзөт же өчүрөт.
- PAIR баскычы: Initiates pairing with the transmitter unit.
- NP-F Батарея уячасы: For external battery power.
- Дисплей экраны: Shows status information like resolution, frame rate, signal strength, and battery level.
3. Орнотуу
3.1 Түзмөктөрдү күйгүзүү
- Батарея орнотуу: If using NP-F batteries, insert a charged battery into the NP-F battery slot on both the TX and RX units.
- USB-C кубаттуулугу: Alternatively, connect the provided Type-C cables to the USB-C 5V IN port on both the TX and RX units and plug them into a power source (e.g., USB wall adapter, power bank).
- Күйгүзүү: Slide the ON/OFF switch to the 'ON' position for both the transmitter and receiver units. The display screens will illuminate.
3.2 Connecting Video Devices
- Өткөргүч туташуу: Connect your video source (e.g., camera, computer, game console) to the HDMI IN port of the TX unit using an HDMI cable.
- Алуучу туташуусу: Connect your display device (e.g., monitor, HDTV, projector) to the HDMI OUT port of each RX unit using an HDMI cable.
- HDMI Loop-Out (Optional): If you require a local monitor at the transmitter end, connect an HDMI cable from the HDMI OUT port of the TX unit to your local monitor.
3.3 Өткөргүчтөрдү жана кабыл алгычтарды жупташтыруу
The units are typically pre-paired from the factory. If re-pairing is necessary or if adding additional receivers, follow these steps:
- Ensure both the TX and RX units are powered on.
- Press and hold the PAIR button on the TX unit until the display indicates pairing mode.
- Within a few seconds, press and hold the PAIR button on each RX unit you wish to pair.
- The units will automatically connect. The display screens will show a successful connection status (e.g., signal strength indicator).
4. Иштөө нускамалары
4.1 Негизги операция
- Once powered on and connected, the system will automatically begin transmitting video.
- Monitor the display screens on both TX and RX units for signal strength, battery status, and video resolution/frame rate.
- Ensure antennas are unfolded and positioned for optimal signal reception.
4.2 Using the HDMI Loop-Out
The HDMI OUT port on the transmitter allows for local monitoring without signal delay. Connect an HDMI cable from the TX unit's HDMI OUT to a monitor near your camera setup. This is useful for camera operators who need to see the video feed directly from the source while it is also being transmitted wirelessly.

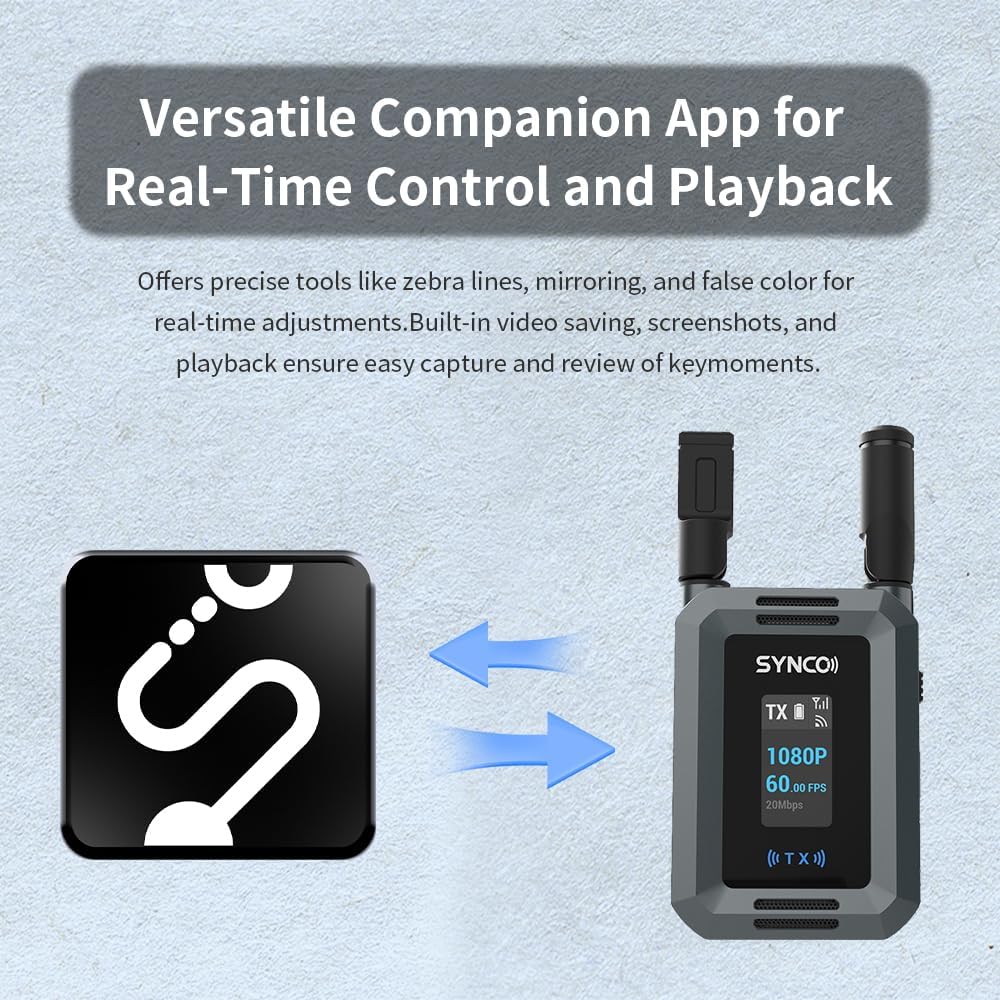

4.3 SYNCO Link App
The SYNCO Link App enhances the system's capabilities by providing advanced monitoring and control features. Download the app from your device's app store.
- Колдонмого туташуу: Ensure your mobile device is connected to the Wi-Fi network broadcast by the XVision HD system (refer to the unit's display for Wi-Fi name and password, if applicable).
- Реалдуу убакыттагы мониторинг: View the live video feed on your mobile device.
- Сүрөттүн жөндөөлөрү: Utilize tools such as zebra lines, mirroring, and false color for precise visual control and exposure analysis.
- Capture and Review: The app supports built-in video saving, screenshots, and instant playback of captured moments.
5. Техникалык тейлөө
5.1 Тазалоо
- Use a soft, dry cloth to clean the exterior of the units.
- Суюк тазалагычтарды, эриткичтерди же абразивдик материалдарды колдонбоңуз, анткени алар финишке же ички тетиктерге зыян келтириши мүмкүн.
- Порттарды чаңдан жана таштандылардан тазалаңыз.
5.2 Батареяга кам көрүү
- Always use recommended NP-F type batteries.
- Remove batteries if the units will not be used for an extended period.
- Батареяларды салкын, кургак жерде сактаңыз.
5.3 Сактоо
- Store the units in a dry, dust-free environment.
- Ашыкча температурадан жана нымдуулуктан алыс болуңуз.
- When storing, ensure antennas are folded to prevent damage.
6. Кыйынчылыктарды
If you encounter issues with your SYNCO XVision HD system, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No video signal on receiver display. | Units not powered on; HDMI cable loose/faulty; Units not paired; Out of range; Interference. | Ensure units are powered on. Check HDMI cable connections. Re-pair TX and RX units. Move units closer. Check for other wireless devices. |
| Poor video quality or dropped frames. | Weak signal; Obstructions; Interference. | Reduce distance between TX and RX. Ensure clear line of sight. Adjust antenna positions. Minimize other wireless device usage. |
| Units not pairing. | Incorrect pairing procedure; Units too far apart. | Follow pairing instructions carefully (Section 3.3). Ensure units are within close proximity during pairing. |
| SYNCO Link App not connecting. | Not connected to unit's Wi-Fi; App issues. | Ensure mobile device is connected to the XVision HD's Wi-Fi network. Restart the app and the XVision HD units. |
| Батареянын иштөө мөөнөтү кыска. | Battery not fully charged; Old battery; High power consumption. | Ensure batteries are fully charged before use. Replace old batteries. Use USB-C power for extended operation. |
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Video Resolution | 1080P/60fps чейин |
| Берүүнүн диапазону | 300 метрге чейин (көрүү сызыгы) |
| Кечигип калуу | 40ms |
| Видеону коддоо | H.265/HEVC |
| Киргизүү/Чыгуу | HDMI IN (TX), HDMI OUT (TX & RX) |
| Электр камсыздоо | NP-F Battery, USB-C 5V IN |
| Weight (each unit) | Болжол менен 119 г |
| Антенналар | Бүктөлүүчү |
| Колдонмо колдоо | SYNCO Link App |
8. Кепилдик жана колдоо
For warranty information, please refer to the official SYNCO website or the warranty card included with your product. For technical support, product registration, or further inquiries, please visit the SYNCO support page or contact their customer service directly.
