Karinear 60cm Induction Cooktop with Integrated Hood User Manual

1. Киришүү

Thank you for choosing the Karinear 60cm Induction Cooktop with Integrated Hood. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and retain them for future reference.

2. Коопсуздук нускамалары

To prevent accidents and ensure proper operation, always adhere to the following safety guidelines:

• Электр коопсуздугу: Ensure the appliance is connected to a properly grounded electrical supply as specified in the installation section. Do not use extension cords or adapters.
• Идиш шайкештиги: Only use induction-compatible cookware with a magnetic base. Incompatible cookware will not heat.
• Калдык жылуулук: Induction zones remain hot after use. The residual heat indicator will illuminate. Avoid touching hot surfaces until the indicator turns off.
• Балдар жана аялуу адамдар: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Keep children away from the appliance during operation and cooling.
• Вентиляция: Ensure adequate ventilation around the appliance as per installation instructions to prevent overheating.
• Тазалоо: Disconnect power before cleaning. Allow the appliance to cool completely.
• Күйүүчү материалдар: Do not store flammable materials near or on the cooktop.

3. Продукциянын өзгөчөлүктөрү

• Versatile Cooking Zones: Four induction cooking zones with nine adjustable power levels and a boost function for rapid heating.
• Ийкемдүү зоналар: Innovative flex zones allow combining adjacent cooking areas to accommodate larger or irregularly shaped cookware.
• Integrated Extraction System: A central extractor hood efficiently removes cooking vapors. It supports both ducted and recirculation modes.
• Easy-Clean Filtration: Features washable metal grease filters and an accessible drip tray for simplified maintenance.
• Precise Timer: An integrated timer can be set for up to 99 minutes, offering automatic shut-off for selected cooking zones.
• Калган жылуулук көрсөткүчтөрү: Visual indicators for each zone alert you when surfaces are still hot after use.
• Сенсордук башкаруу каражаттары: Intuitive touch controls provide precise command over cooking zones and extraction functions.
• Elegant дизайн: The black ceramic glass surface offers a modern aesthetic and is easy to clean.

4. Техникалык шарттар

5. Орнотуу

Installation should be performed by a qualified technician in accordance with local regulations and electrical codes.

5.1. Countertop Cut-out

Ensure the countertop cut-out dimensions match the appliance requirements:

• Туурасы: 57.5 см
• Тереңдик: 49.5 см
• Minimum Depth Clearance: 20 cm below the countertop surface

5.2. Электр байланышы

The appliance requires a direct electrical connection (220-240V). A plug is not included; the connection is made via a cable. Consult the wiring diagrams provided with the appliance for correct connection. Ensure the power supply is disconnected before commencing any electrical work.

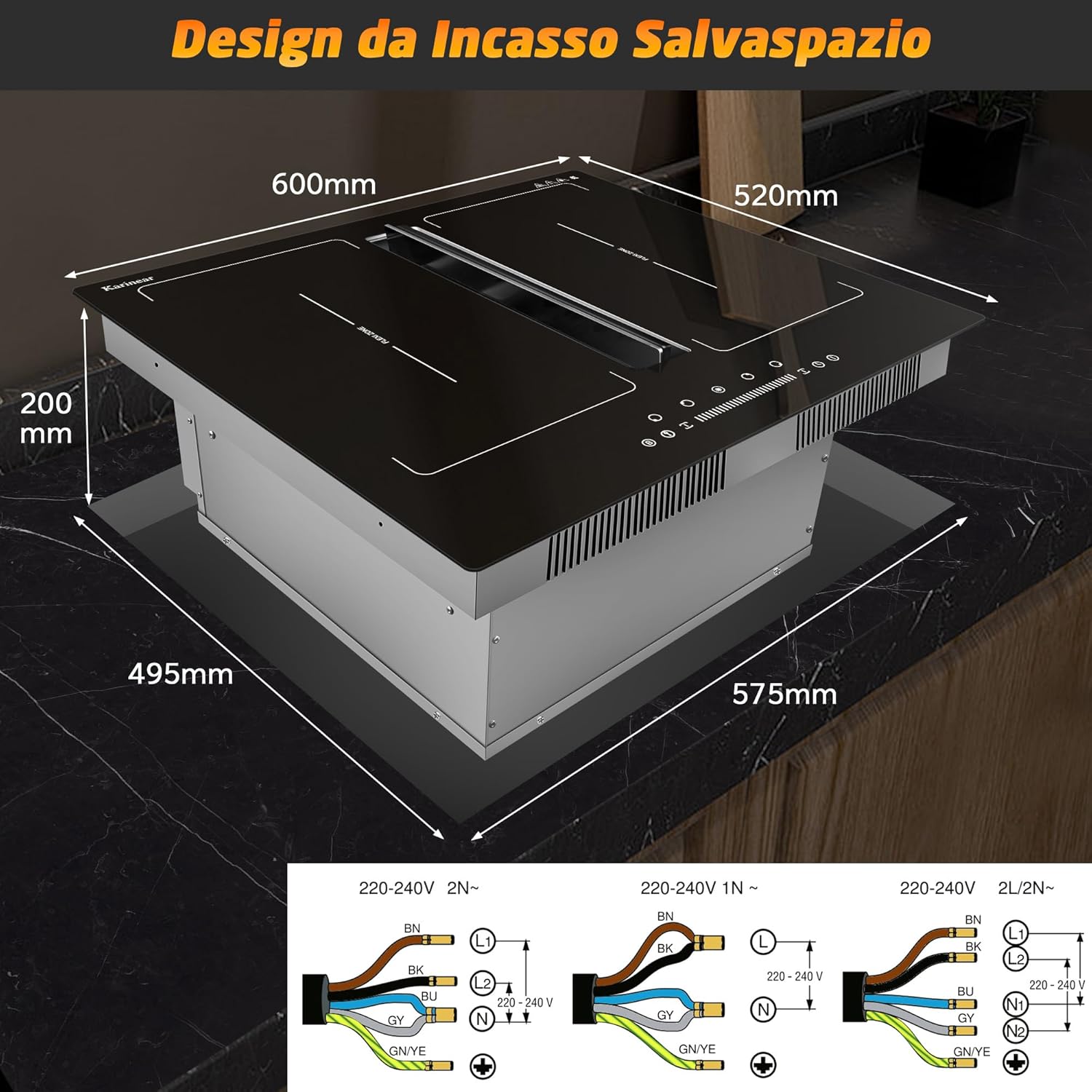

Image: This diagram illustrates the required installation dimensions (600mm width, 520mm depth, 200mm height for the unit, with a cut-out of 575mm x 495mm and 200mm depth) and various wiring configurations (220-240V 2N~, 220-240V 1N~, 220-240V 2L/2N~) for electrical connection.

6. Операция

The cooktop features intuitive touch controls. Familiarize yourself with the control panel before first use.

6.1. Control Panel Overview

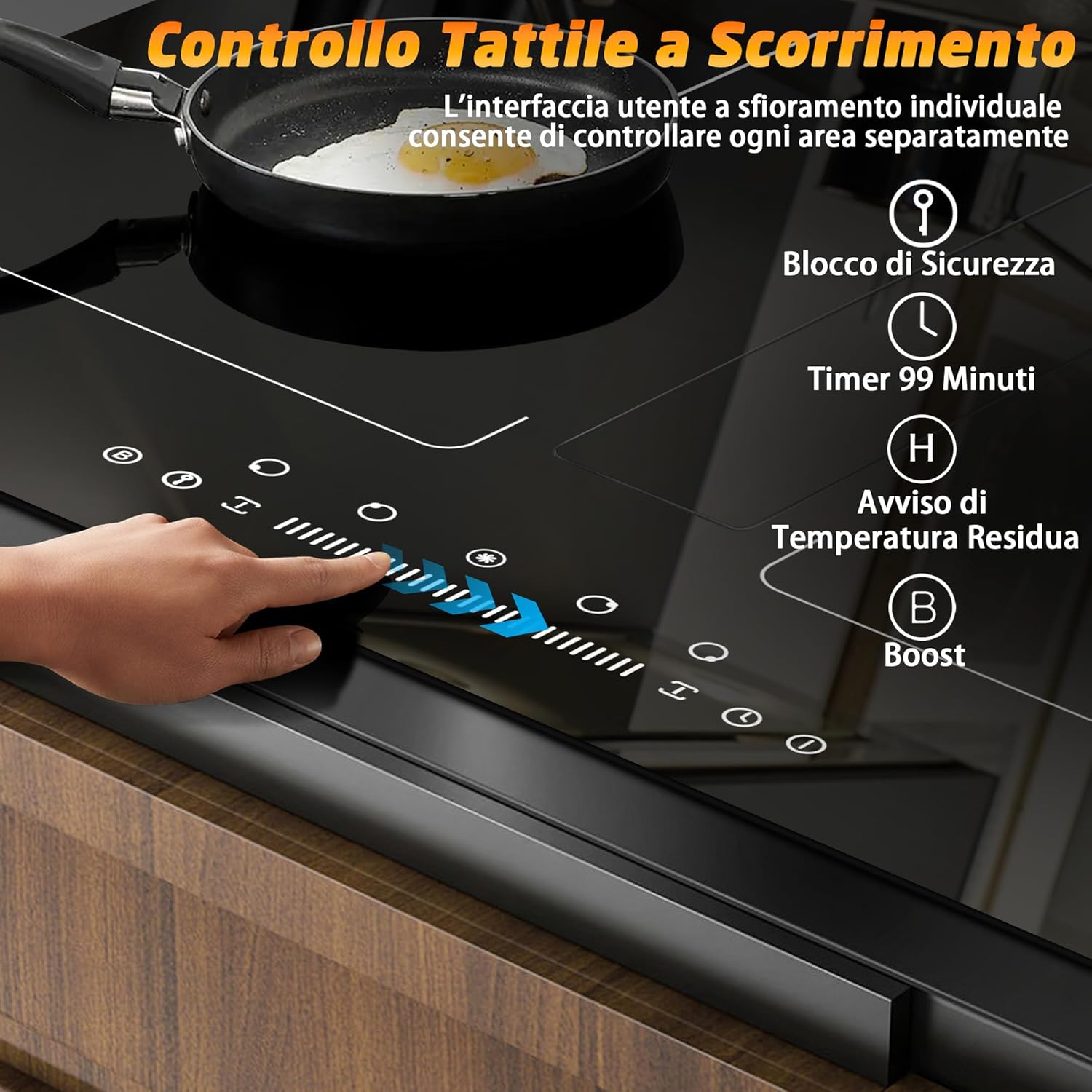

Image: This image displays the touch control panel of the induction cooktop, highlighting key functions such as Safety Lock, 99-minute Timer, Residual Heat Warning, and Boost function. A finger is shown interacting with the slider control for power adjustment.

• Күйгүзүү/өчүрүү: Touch the power symbol to turn the appliance on or off.
• Тамак бышыруу зонасын тандоо: Tap the corresponding zone indicator to select a cooking area.
• Кубаттын деңгээлин жөндөө: Use the slider or +/- touch buttons to set the desired power level (1-9).
• Boost Function (B): Activates maximum power for rapid heating. Tap the 'B' symbol for the selected zone.
• Timer (L): Set a cooking duration up to 99 minutes. The zone will automatically switch off when the timer expires.
• Safety Lock (Key Symbol): Prevents accidental changes to settings. Press and hold to activate/deactivate.
• Residual Heat Indicator (H): Indicates that a cooking zone is still hot after use.

6.2. Flex Zones

The flex zones allow you to combine two adjacent cooking zones into one large area, ideal for griddle plates or oversized pots.

Image: This graphic illustrates the flexibility of the cooktop, showing how it can operate as four independent cooking zones or combine two zones into a single, larger flexible zone for accommodating bigger cookware.

• To activate a flex zone, place your large cookware over the two adjacent zones and then select one of the zones. The system will automatically detect the combined area.
• Adjust the power level for the combined flex zone as you would for a single zone.

6.3. Integrated Hood Operation

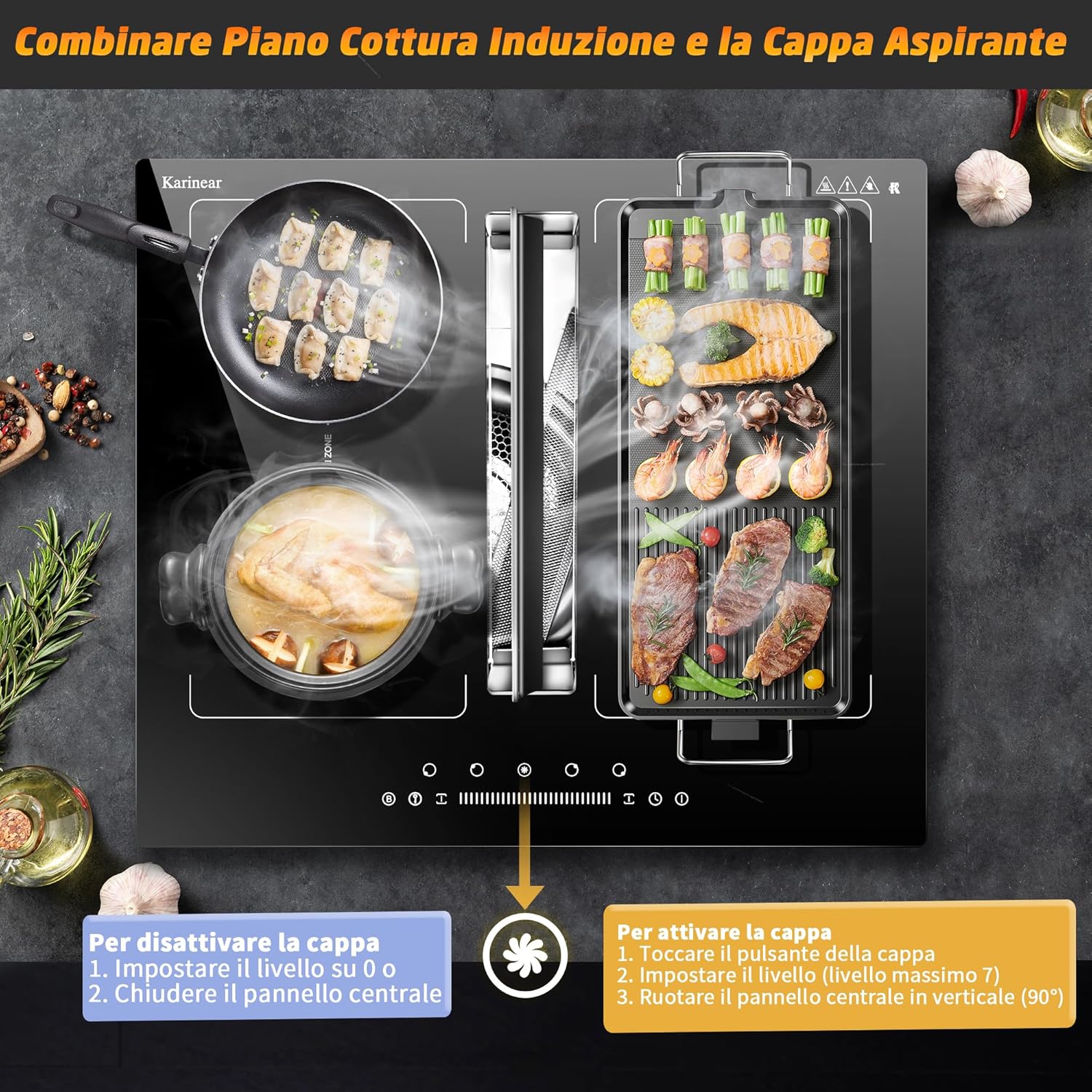

Image: This image demonstrates how to activate and deactivate the integrated extractor hood. To activate, touch the hood button, set the level (max 7), and rotate the central panel vertically. To deactivate, set the level to 0 or 1 and close the central panel.

• To Activate the Hood:
  1. Touch the hood button on the control panel.
  2. Set the desired extraction level (up to level 7).
  3. Rotate the central panel vertically (90 degrees) to open the extraction vent.
• To Deactivate the Hood:
  1. Set the extraction level to 0 or 1.
  2. Close the central panel.

Image: This image shows the Karinear induction cooktop in operation, with various dishes being prepared on the cooking zones and the integrated hood actively extracting steam and cooking odors from the center.

7. Шайкеш келген идиш-аяктар

Induction cooktops require cookware with a magnetic base. To check if your cookware is compatible, hold a magnet to the bottom. If it sticks, the cookware is suitable for induction.

Image: This diagram illustrates which types of cookware are suitable for induction cooking (e.g., magnetic induction pots, cast iron, stainless steel pots, frying pans) and which are not (e.g., ceramic, glass, copper, aluminum pots without an induction base). A magnet test is also shown.

7.1. Ылайыктуу идиш

• Cast iron pots and pans
• Болот казандар жана көмөч казандар
• Эмаль капталган темир идиш
• Магниттик негизи бар дат баспас болоттон жасалган ашкана идиштери

7.2. Unsuitable Cookware

• Керамикалык идиштер
• Glass pots
• Жез идиштер
• Aluminum pots (unless specifically designed for induction)

8. Тазалоо жана тейлөө

Regular cleaning and maintenance ensure the longevity and optimal performance of your appliance.

8.1. Ceramic Glass Surface

• Тазалоодон мурун плитаны толугу менен муздатыңыз.
• Жарнама менен тазалаңызamp кездеме жана жумшак жуугуч.
• For stubborn stains, use a specialized ceramic hob cleaner. Avoid abrasive cleaners or scourers.

8.2. Extractor Hood Filters and Drip Tray

The metal grease filters and drip tray should be cleaned regularly to maintain extraction efficiency.

Image: This image provides visual instructions for regularly disassembling the filter screen and collection tray for cleaning. It shows the metal filter being removed, the oil drip tray being emptied and washed, and mentions the inclusion of three carbon filters and two oil drip trays. Regular cleaning is recommended every 4-6 months for the filter and as needed for the drip tray.

• Metal Grease Filters: These are washable. Remove them by following the instructions in the diagram. Clean them with warm soapy water or in a dishwasher. Ensure they are completely dry before re-installing. Recommended cleaning frequency: every 4-6 months, or more often depending on usage.
• Тамчылатма табак: The drip tray collects oil and condensation. Remove and empty it regularly. Wash with warm soapy water and dry thoroughly before re-inserting.
• Carbon Filters (if installed for recirculation mode): If your hood is set up for recirculation, carbon filters are used to remove odors. These are typically not washable and need to be replaced periodically. Refer to the product packaging or manufacturer's webалмаштыруу интервалдары үчүн орун.

9. Кыйынчылыктарды

If you encounter issues with your appliance, consult the following table before contacting customer support.

10. Кепилдик жана Кардарларды колдоо

For warranty information, please refer to the documentation provided with your purchase or visit the official Karinear website. If you require technical assistance or have questions not covered in this manual, please contact Karinear customer support.

Өндүрүүчү: Каринеар

Модел: KNY-PXJ-KEH6015B-M47274-F2-CB-EU
