1. Киришүү жана Продукт бүттүview
Thank you for choosing the LIECTROUX N7S-U Robot Vacuum Cleaner. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use.
The LIECTROUX N7S-U is designed for efficient dry and wet cleaning, featuring smart mapping, powerful suction, and smart home integration.

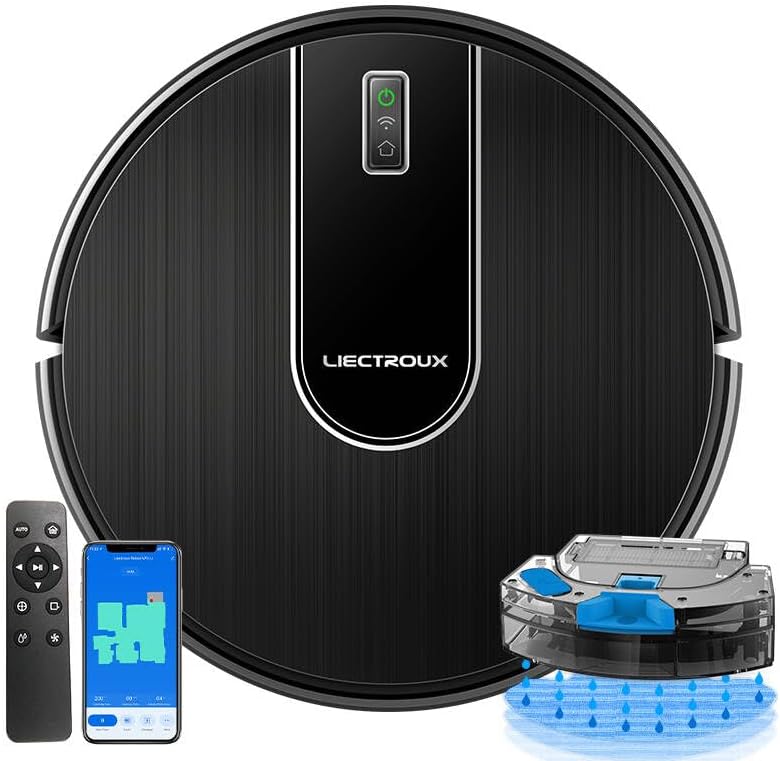

Image: The LIECTROUX N7S-U Robot Vacuum Cleaner, showcasing its sleek design, accompanying remote control, and a smartphone displaying the control app interface. A water tank accessory is also visible.
2. Орнотуу
2.1 Таңгактан чыгаруу жана алгачкы жайгаштыруу
Carefully remove all components from the packaging. Place the charging station against a wall in an open area, ensuring there are no obstacles within 1 meter to the sides and 2 meters in front.
2.2 Роботту заряддоо
Connect the power adapter to the charging station and plug it into a wall outlet. Place the robot onto the charging station, ensuring the charging contacts align. The indicator light on the robot will show charging status. Fully charge the robot before first use (approximately 4-5 hours).
2.3 App Connection (TUYA App)
Download the TUYA Smart app from your smartphone's app store. Follow the in-app instructions to add your LIECTROUX N7S-U robot. This will enable smart control, cleaning process visualization, and voice control via Alexa or Google Home.
Image: An illustration demonstrating the WiFi App Control capabilities, including Distance Control, Multiple Cleaning Modes, Schedule Cleaning, and Adjustable Suction Power. The image also shows a smartphone displaying the robot's cleaning map within a house layout.
3. Иштөө нускамалары
3.1 Күйгүзүү/өчүрүү
Press and hold the power button on the robot for a few seconds to turn it on or off.
3.2 Тазалоо режимдери
The robot offers various cleaning modes to suit different needs. These can be selected via the remote control, the TUYA app, or voice commands.
- Автоматтык тазалоо: The robot intelligently navigates and cleans the entire area.
- Fixed-Point Cleaning (Spot Cleaning): Тазалоого белгилүү бир кир аймакты топтоштурат.
- Четтерин тазалоо: Дубалдарды жана эмеректердин четтерин тазалайт.
- шыпыруу: Dry cleaning mode.
- сүртүү: Wet cleaning mode using the water tank.
Image: Visual representation of the various cleaning modes available, including Zigzag Cleaning, Border Cleaning, Fixed Point Cleaning, and the Constant Pressure Water Tank feature. The robot is shown cleaning a room with different floor types.
3.3 Акылдуу навигация жана карта түзүү
The N7S-U utilizes 2D map navigation to detect its environment and create a cleaning map. This allows it to clean systematically from room to room, ensuring high coverage and minimal repetition.
Image: An infographic illustrating key features such as WiFi App Control, 2D Map Navigation and Accurate Positioning, Multiple Cleaning Modes, Brushless Motor, and an Intelligent Chip. The robot is depicted navigating a mapped area.
3.4 Соруу күчүн жөндөө
The suction power can be adjusted, reaching up to 4000 Pa in max mode, to effectively remove dirt from various surfaces.
Image: A visual demonstrating the robot's strong suction power, showing dust particles being drawn into the device. Insets highlight the Filter Dust Box and the Strong Fan components.
3.5 Автоматтык түрдө кубаттоо
The robot will automatically return to its charging station when the battery is low or when a cleaning task is complete.
4. Техникалык тейлөө
Үзгүлтүксүз тейлөө оптималдуу иштешин камсыз кылат жана робот чаң соргучуңуздун иштөө мөөнөтүн узартат.
4.1 Dust Box and Water Tank
The robot features an integrated 400ml large dust box and a 250ml large water tank. Empty the dust box after each use and refill the water tank as needed for mopping.
Image: An illustration highlighting the integrated dust box and water tank, emphasizing effortless cleaning. Icons represent the 400ml large dust box, 250ml large water tank, fine seepage, and intelligent electronic control. The bottom of the robot is shown with labels for Mopping, Vacuuming, and Sweeping functions.
Image: A close-up of the robot's 250ml large water tank, illustrating its three-level intelligent electric control for water adjustment (High, Medium, Low). Icons represent the large water tank, fine seepage, and intelligent electronic control.
4.2 Brushes and Filters
- Каптал щеткалар: Check and clean the side brushes regularly for tangled hair or debris. Replace them if they are worn.
- Негизги щетка: Remove and clean the main brush periodically. Use the cleaning tool provided to cut and remove tangled hair.
- Чыпка: Tap out dust from the filter after each use. Wash the filter with water every 2-4 weeks (depending on usage) and allow it to air dry completely before reinserting.
4.3 Сенсорлор жана заряддоо контакттары
Wipe the anti-drop sensors, anti-collision sensors, and charging contacts on both the robot and the charging station with a clean, dry cloth regularly to ensure proper function.
5. Кыйынчылыктарды
If you encounter issues with your robot vacuum cleaner, please refer to the following common solutions:
- Робот заряддалбай жатат: Ensure the charging contacts on both the robot and the charging station are clean and free of debris. Check if the power adapter is securely plugged in.
- Robot stuck or trapped: Clear obstacles from the robot's path. The robot is designed with anti-collision, anti-falling, and twining-proof features, and can climb thresholds up to 1.5cm.
- Начар тазалоо көрсөткүчтөрү: Empty the dust box, clean the brushes, and check the filter for clogs. Ensure the water tank is filled for mopping.
- Колдонмого туташуу маселелери: Wi-Fi тармагыңыздын туруктуу экенин жана роботтун диапазонунда экенин текшериңиз. Керек болсо роботту жана роутерди өчүрүп күйгүзүңүз.
- Робот жооп бербей жатат: Try restarting the robot by holding the power button. If unresponsive, place it on the charging station.
Image: A four-panel image illustrating the robot's intelligent navigation features: Anti-collision (detecting barriers), Anti-falling (detecting stairs), Twining-proof (avoiding cables), and Easy Climbing (overcoming small thresholds up to 1.5cm).
Туруктуу маселелер үчүн кардарларды колдоо кызматына кайрылыңыз.
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | LIECTROUX |
| Модель номери | N7S-U |
| Түс | Кара |
| Продукциянын өлчөмдөрү | 32L x 32W x 7.8H сантиметр |
| Соруу күчү | 4000 Па чейин (Макс режими) |
| Чаң кутучасынын сыйымдуулугу | 400мл |
| Суу резервуарынын сыйымдуулугу | 250мл |
| Батарея түрү | Литий-ион |
| Батарея сыйымдуулугу | 2500 мАч |
| Run Time | 120 мүнөткө чейин |
| Контролдоо ыкмалары | Remote Control, TUYA App, Voice Control (Alexa, Google Assistant) |
| Навигация | 2D Map Navigation |
Image: A diagram illustrating the compact stature of the robot vacuum cleaner, showing its height of 7.5cm, which allows it to clean under most furniture.
7. Кепилдик жана колдоо
For warranty information, please refer to the documentation included with your purchase or contact the retailer. For technical support, spare parts, or any inquiries not covered in this manual, please contact LIECTROUX customer service through their official webсайтты же продуктуңуз менен берилген байланыш маалыматын.
