1. Киришүү
The BAOFENG UV-25 PRO is a robust 10W heavy-duty handheld radio designed for reliable communication across multiple frequency bands. Featuring a 1.77-inch color display, full keyboard operation, and a 5200mAh Type-C rechargeable battery, this device offers extensive functionality for various applications. It supports UHF, VHF, MW, FM, Air, and NOAA multi-band reception, along with advanced features like DTMF coding/decoding, frequency hopping, and scrambling for enhanced privacy and versatility.
2. Коопсуздук маалыматы
Please read and understand all safety instructions before using the radio. Failure to follow these instructions may result in injury, damage to the radio, or voiding the warranty.
- Do not operate the radio in explosive atmospheres (e.g., around flammable gas, dust, or powders).
- Do not transmit without an antenna connected to the radio. This can damage the radio's power ampөмүрлүү.
- Use only BAOFENG-approved batteries and chargers. Unauthorized accessories may cause damage or fire.
- Keep the radio away from medical devices, as it may interfere with their operation.
- Avoid exposing the radio to extreme temperatures, direct sunlight, or moisture.
- Do not attempt to disassemble or modify the radio. Servicing should only be performed by qualified technicians.
3. Орнотуу
3.1. Кутудан чыгаруу жана Пакеттин мазмуну
Upon opening the box, verify that all components are present:
- BAOFENG UV-25 PRO Radio Unit
- Li-ion Батарея (5200mAh)
- Батарея заряддагыч база
- Power Adapter for Charger
- USB-C заряддоо кабели
- Стандарттык антенна
- Longer Whip Antenna
- Belt Clip
- Lanyard
- Flathead Screwdriver (for battery attachment)
- Microphone and Earpiece
- Колдонуучунун колдонмосу
Figure 1: BAOFENG UV-25 PRO radio and included accessories.
3.2. Батареяны орнотуу
- Align the battery with the back of the radio unit.
- Батареяны бекем чыккыча ордуна жылдырыңыз.
- Use the provided flathead screwdriver to secure the battery screw at the bottom of the radio.
Video 1: Demonstrates the unboxing and initial setup, including battery and antenna installation.
3.3. Антенна орнотуу
Screw the desired antenna (standard or whip) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.
3.4. Батареяны заряддоо
The UV-25 PRO offers multiple charging options:
- Үстөл үстүндөгү кубаттагыч: Place the radio with the battery installed into the desktop charger base. Connect the power adapter to the charger base and a power outlet.
- Түздөн-түз С типтеги кубаттоо: Connect the USB-C cable directly to the Type-C port on the battery (located at the bottom of the radio when installed) and to a compatible USB power source (e.g., car charger, power bank, PC).
Figure 2: The Type-C charging port is located on the battery for convenient charging.
Video 2: Highlights the 10W high power and long-range capabilities, including charging methods.
3.5. Software Installation and Programming Cable Connection
To program the radio via computer, download the official software from the BAOFENG website. Connect the radio to your computer using a compatible programming cable.
Video 3: Provides instructions on how to program BAOFENG walkie-talkies using software.
4. Иштөө нускамалары
4.1. Күйгүзүү/өчүрүү жана үндү жөндөө
To power on the radio, rotate the Power/Volume knob clockwise. To power off, rotate it counter-clockwise until it clicks. Adjust the volume by rotating the same knob.
4.2. Негизги башкаруу жана дисплей
The radio features a 1.77-inch color LCD screen and a full numeric keypad for direct frequency input and menu navigation. Use the arrow keys to navigate menus and the P1/P2 buttons for programmable functions.

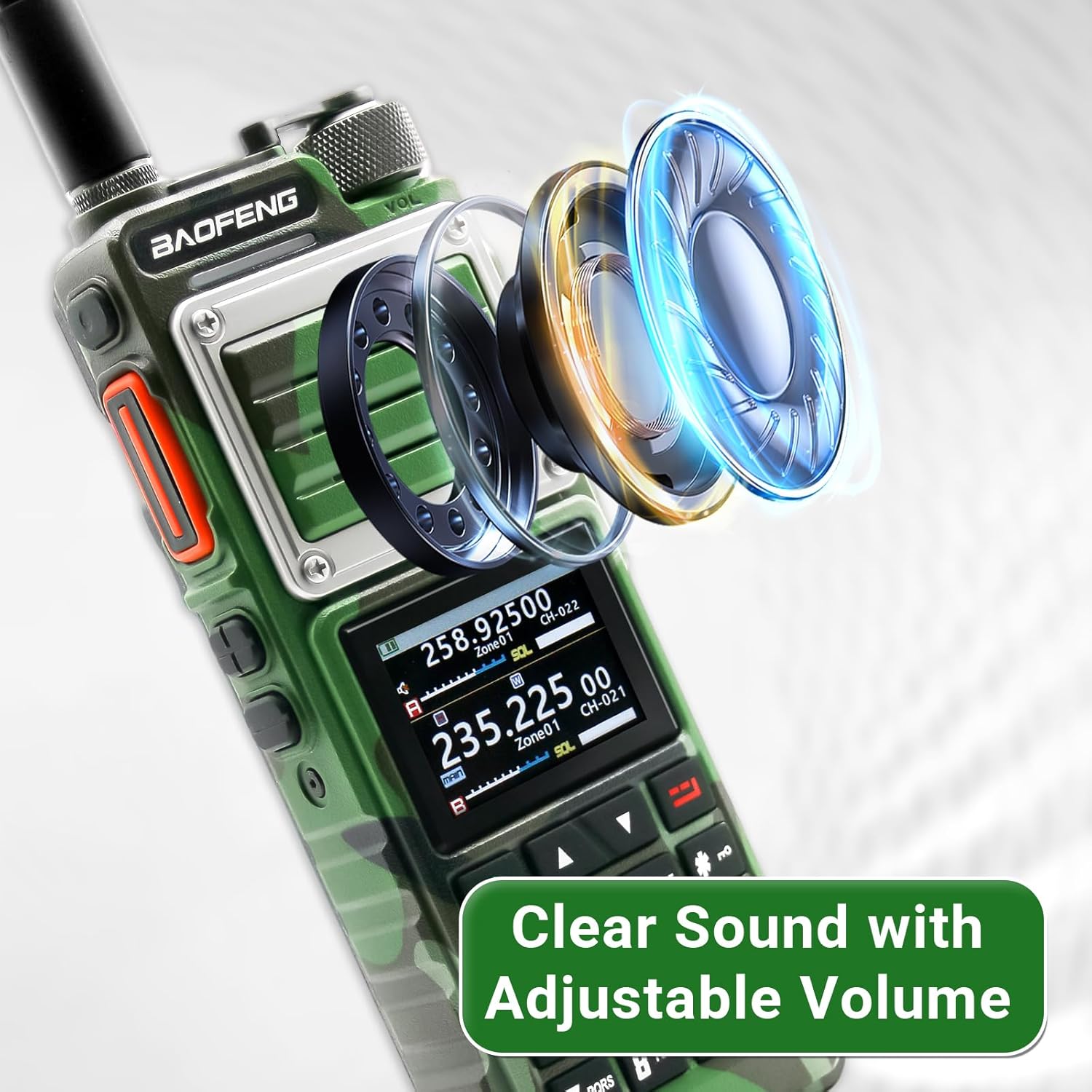

Figure 3: The radio's display and clear sound capabilities.
4.3. Frequency and Channel Management
- Manual Frequency Entry: Use the numeric keypad to directly enter frequencies.
- Канал сактоо: The radio can store up to 999 channels. Channels can be stored and deleted directly from the radio's menu.
- One-Key Frequency Matching: This feature allows for quick pairing and copying of channel configuration parameters from another radio.

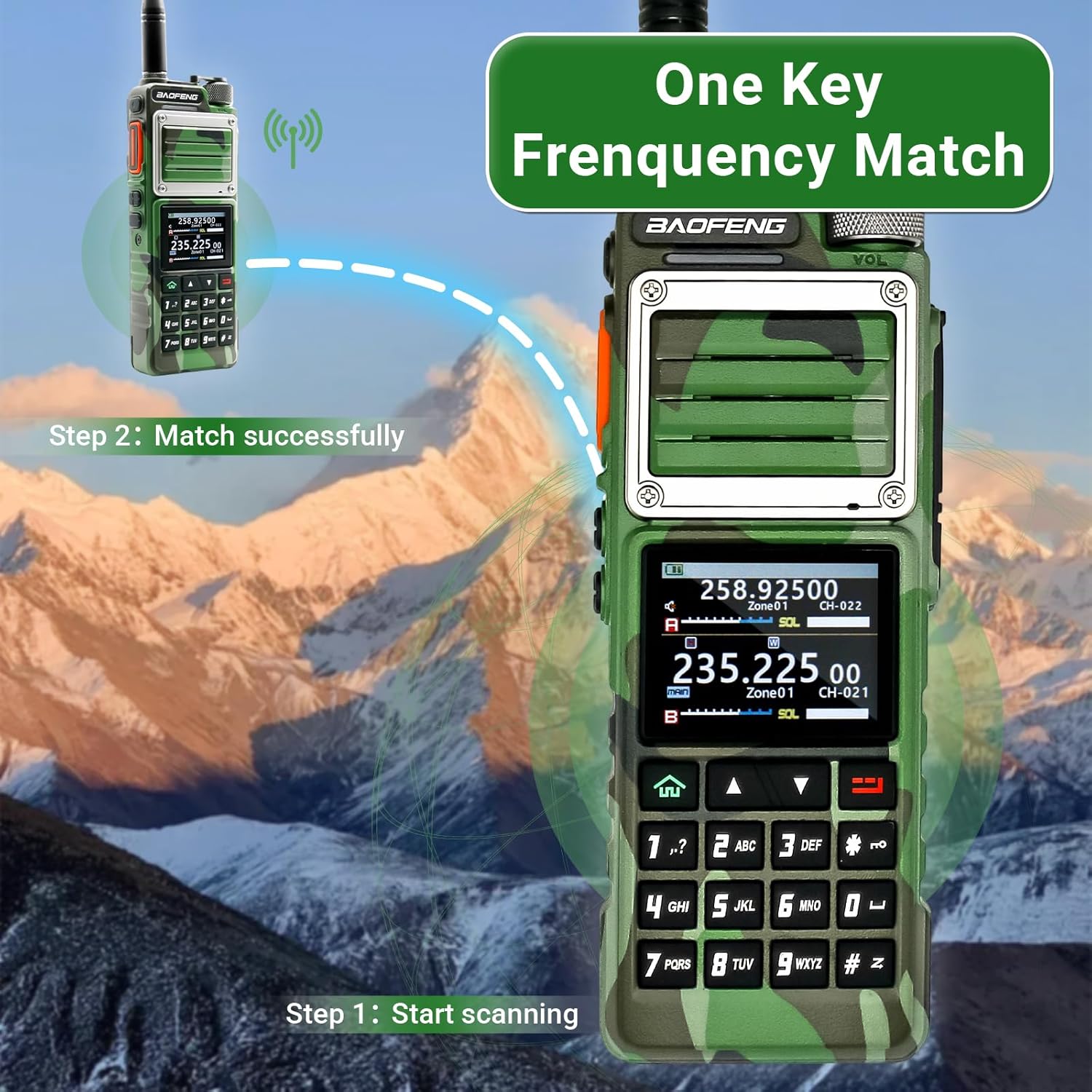

Figure 4: One-key frequency matching for easy pairing.
4.4. Multi-Band Reception and Transmission
The UV-25 PRO supports a wide range of frequencies:
- Reception/Transmission: 136-174MHz, 400-520MHz, 200-260MHz, 350-390MHz.
- Reception Only: 76-108MHz (FM Radio), 108-136MHz (Air Band).

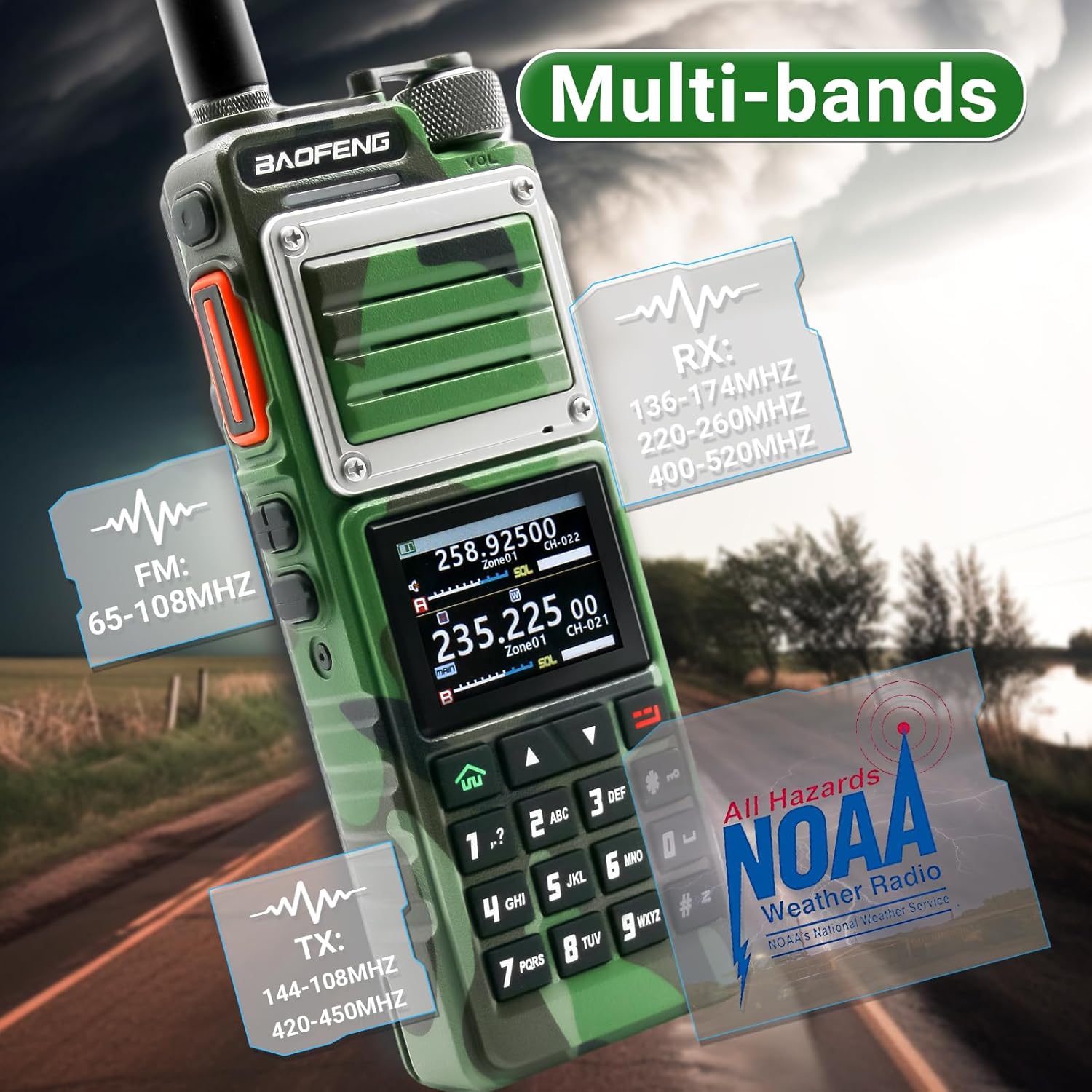

Figure 5: ашыкview of supported multi-bands for reception and transmission.
4.5. Power Settings
Selectable power levels include 10W (High), 8W (Medium), and 5W (Low) to optimize range and battery life.
Figure 6: Power output options and estimated communication ranges.
4.6. Өзгөчөлүктөр
- NOAA Weather Reception: Supports NOAA weather reception in the United States and Canada for emergency weather information.
- FM радиосу: Built-in FM radio function (receiving frequency 65~108MHZ).
- DTMF Coding/Decoding: Includes 15 DTMF calls for advanced signaling.
- Frequency Hopping & Scrambling: Features to enhance call privacy.
- Кош режимдер: Supports Dual-Guard, Dual-Standby, Dual-Segment Single-Guard, and Single-Segment Single-Guard modes.
- Flashlight & Alarm: Integrated LED flashlight and acousto-optic alarm function with three alarm types.
- Баскычтоп кулпусу: Automatic or manual keyboard lock.
- LCD Backlight & Key Backlight: Adjustable backlighting for display and keys.
- Секундомер функциясы: Камтылган секундомер.
- Power-on Password: Management function for security.
4.7. APP Programming (CHIRP Compatible)
The BAOFENG UV-25 PRO can be programmed using BAOFENG CPS and CHIRP software. This allows for advanced customization of channels, frequencies, and other settings.
Video 4: Demonstrates APP programming capabilities for BAOFENG radios.
5. Техникалык тейлөө
- Тазалоо: жумшак колдонуу, damp Радионун сыртын тазалоо үчүн кездеме колдонуңуз. Катуу химиялык заттарды же эриткичтерди колдонбоңуз.
- Батареяга кам көрүү: To prolong battery life, avoid overcharging or completely draining the battery. Store the battery in a cool, dry place when not in use.
- Антенна: Regularly check the antenna for damage. Replace if bent or broken to ensure optimal performance.
6. Кыйынчылыктарды
- Кубат жок: Батареянын толук заряддалганын жана туура орнотулганын текшериңиз. Кубат/үн баскычы күйүк экенин текшериңиз.
- Берүү/кабыл алуу мүмкүн эмес: Verify the antenna is securely attached. Check frequency settings and ensure you are on an active channel. Confirm power output settings.
- Начар аудио сапаты: Check the volume level. Ensure the microphone/earpiece is properly connected if in use.
- Программалоо маселелери: Ensure the correct software version is installed and the programming cable is securely connected. Refer to the software's specific instructions.
7. Техникалык шарттар
- Модел: UV-25 PRO
- Бренд: БАОФЕНГ
- Элемент Салмагы: 2.68 фунт
- Пакеттин өлчөмдөрү: 9.37 x 9.06 x 2.72 дюйм
- Батареялар: 1 x 9V batteries required (included)
- Каналдардын саны: 999
- Өзгөчө өзгөчөлүгү: Узак аралык
- Жыштык диапазону: 76-174 МГц, 200-260 МГц, 350-390 МГц, 400-520 МГц
- Сүйлөшүү диапазону максималдуу: 5 километр
- Тtage: 9 вольт
- Сууга туруктуулук деңгээли: Сууга чыдамдуу
- Камтылган компоненттер: JIQI (This likely refers to the full accessory kit)
8. Кепилдик
The BAOFENG UV-25 PRO comes with a 1-Year Warranty. For warranty claims or service, please contact BAOFENG customer support.
9. Колдоо
For further assistance, technical support, or to explore additional products, please visit the official BAOFENG Store:
