HAARAY JY2423

HAARAY күн коопсуздук лампасынын модели JY2423 колдонуу боюнча колдонмо

Модел: JY2423

1. Киришүү

Thank you for choosing the HAARAY Solar Security Light Model JY2423. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new solar-powered security light. Please read these instructions thoroughly before use and retain them for future reference.

2. Коопсуздук маалыматы

  • Ensure the solar panel is installed in a location that receives direct sunlight for at least 6-8 hours daily to maximize charging efficiency.
  • Do not disassemble, modify, or attempt to repair the product yourself. Contact qualified personnel for service.
  • Продукцияны оттон же жогорку температурадан алыс кармаңыз.
  • Avoid direct eye exposure to the light source, as it is very bright.
  • Батареяларды жана электрондук компоненттерди жергиликтүү эрежелерге ылайык жок кылыңыз.
  • This product is IP65 waterproof, suitable for outdoor use, but avoid submerging it in water.

3. Пакеттин мазмуну

Орнотуудан мурун бардык компоненттер бар экендигин текшериңиз:

  • Solar Security Light (with dual adjustable heads and motion sensor) x 1
  • Solar Panel with 16.4ft Cable x 1
  • Mounting Hardware (Wall Plugs x 8, Screws x 8, Wall Brackets x 2)
  • Колдонмо колдонмо x 1
Diagram showing the components included in the package: solar light, solar panel, wall plugs, screws, and wall brackets.

Figure 3.1: Package Contents and Easy Installation Diagram

4. Продукт бүтүп калдыview

4.1 Негизги өзгөчөлүктөрү

  • Күн энергиясы: Energy-efficient charging via a high-efficiency polycrystalline silicon solar panel.
  • Кыймыл сенсору: High-sensitivity motion detection with a 120° detection angle and up to 39 feet range.
  • Adjustable Dual Heads: Two rotatable light heads provide wide and customizable illumination coverage.
  • Бөлүнүүчү дизайн: LED panels and solar panel are separable with a 16.4ft cable for flexible installation indoors or outdoors.
  • 3 жарык режимдери: Offers two motion-activated modes and one stay-on mode for varied lighting needs.
  • Жөнгө салынуучу таймер: Lighting duration can be set from 5 seconds to 1 minute.
  • Күн/түн сенсору: Adjustable knob to select operation during night only or day and night.
  • Туруктуу курулуш: IP65 waterproof rating, frost-resistant, and heat-resistant ABS material for reliable performance in various weather conditions.

4.2 Компоненттер

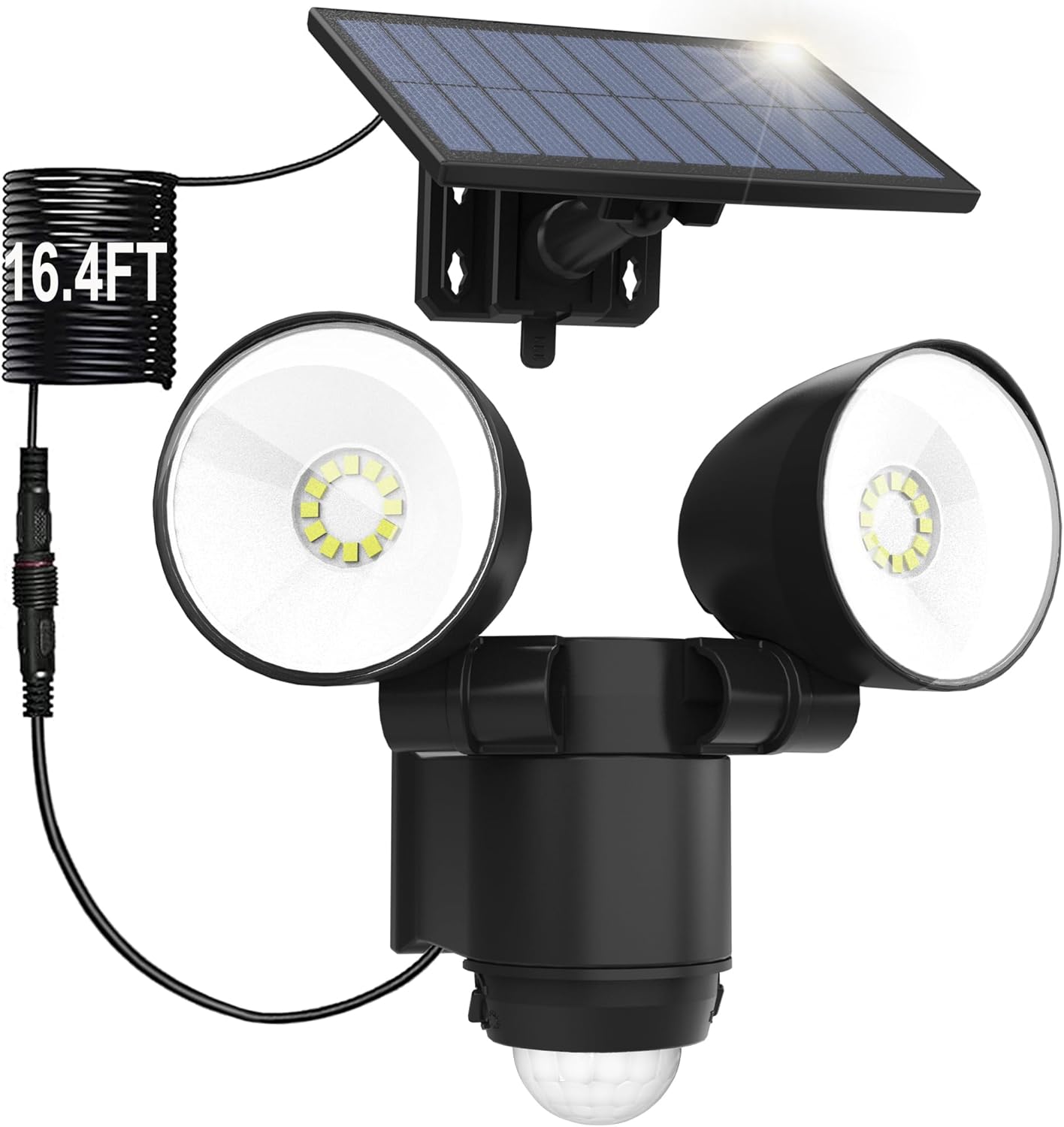

HAARAY Solar Security Light with two adjustable light heads, a motion sensor, and a separate solar panel connected by a 16.4ft cable.

Figure 4.1: Main Product View - Solar Security Light and Solar Panel

Diagram illustrating heat dissipation fins on the back of the light heads.

Figure 4.2: High-Efficiency Heat Dissipation Design

Diagram showing layers of a polycrystalline silicon solar panel with charging time and conversion rate details.

Figure 4.3: Polycrystalline Silicon Solar Panel Technology

5. Орнотуу

The HAARAY Solar Security Light is designed for easy installation. Follow these steps:

  1. Жайгашкан жерди тандаңыз: Select a mounting location for the solar panel that receives maximum direct sunlight throughout the day (6-8 hours recommended). The light unit can be installed separately, up to 16.4 feet away from the solar panel, thanks to the extended cable.
  2. Күн панелин орнотуу: Use the provided wall brackets, screws, and wall plugs to securely mount the solar panel. Adjust its angle to face the sun directly.
  3. Mount the Light Unit: Attach the light unit to your desired location (wall, fence, etc.) using the remaining mounting hardware. Ensure the motion sensor is positioned to cover the desired detection area.
  4. Кабелди туташтыруу: Connect the 16.4ft cable from the solar panel to the light unit. Ensure the connection is secure.
  5. Жарык баштарын тууралоо: Manually adjust the two light heads to direct illumination where needed. Each head can be rotated 90 degrees vertically and 180 degrees horizontally.
Diagram showing the separable solar panel and light unit connected by a 16.4ft cable, with installation examples indoors and outdoors.

Figure 5.1: Separable Design for Flexible Installation

Diagram illustrating the adjustable dual light heads with 90-degree vertical and 180-degree horizontal rotation, and motion sensor detection angle and distance.

Figure 5.2: Adjustable Dual Heads and Motion Detection Area

6. Иштөө нускамалары

The light unit features a Day/Night knob and a Timer knob for customization.

6.1 Day/Night Knob Adjustment

This knob controls when the motion sensor activates the light:

  • Күн сүрөтчөсү: The sensor will activate the light during both day and night when movement is detected.
  • Ай сүрөтчөсү: The sensor will activate the light only at dusk or night when movement is detected.
Diagram showing the Day/Night knob settings: one for working during day and night, and another for working only at dusk or night.

Figure 6.1: Day/Night Knob Settings

6.2 Timer Knob Adjustment

The Timer knob adjusts how long the light stays on after motion is detected. It can be set from 5 seconds to 60 seconds.

  • Rotate towards '-' for shorter duration (minimum 5 seconds).
  • Rotate towards '+' for longer duration (maximum 60 seconds).
Diagram showing the Timer knob and its adjustment range from 5 to 60 seconds.

Figure 6.2: Timer Knob Adjustment

6.3 Жарык режимдери

The HAARAY Solar Security Light offers three distinct lighting modes:

  1. Mode 1 (Motion Activated - Bright): The light remains OFF until motion is detected. Upon detection, it illuminates at 100% brightness and turns OFF approximately 25 seconds after no further motion is detected.
  2. Illustration of Mode 1: Light is off, turns on to 100% brightness when motion is detected, then turns off again.

    Figure 6.3: Mode 1 Operation

  3. Mode 2 (Stay On All Night): The light remains at 30% brightness continuously throughout the night, regardless of motion detection.
  4. Illustration of Mode 2: Light stays on at 30% brightness all night.

    Figure 6.4: Mode 2 Operation

  5. Mode 3 (Dim to Bright Motion Activated): The light stays on at 10% brightness. When motion is detected, it switches to 100% brightness and returns to 10% brightness approximately 25 seconds after no further motion is detected.
  6. Illustration of Mode 3: Light is dim, brightens to 100% when motion is detected, then returns to dim.

    Figure 6.5: Mode 3 Operation

7. Техникалык тейлөө

  • Күн панелин тазалоо: Дайыма күн панелин жумшак менен сүртүп, гamp чаңды, кирди же таштандыларды кетирүү үчүн кездеме. Таза панель оптималдуу кубаттоо натыйжалуулугун камсыз кылат.
  • Байланыштарды текшерүү: Periodically check the cable connection between the solar panel and the light unit to ensure it remains secure and free from damage.
  • Таза тоскоолдуктар: Ensure no trees, buildings, or other objects obstruct direct sunlight from reaching the solar panel.
  • Батареяга кам көрүү: The internal battery is designed for long-term use. If the light's performance significantly degrades over time, it may indicate the battery needs replacement by a qualified technician.
HAARAY Solar Security Light operating in rainy weather, demonstrating its IP65 waterproof, frost-resistant, and heat-resistant features.

Figure 7.1: Weather Resistance of the Solar Security Light

8. Кыйынчылыктарды

КөйгөйМүмкүн себепЧечим
Түнкүсүн жарык күйбөйт.
  • Insufficient solar panel charging.
  • Day/Night knob set incorrectly.
  • Кыймыл сенсору тоскоол же туура эмес.
  • Ensure solar panel receives 6-8 hours of direct sunlight daily. Clean the panel.
  • Adjust the Day/Night knob to the 'Moon' icon for night-only operation.
  • Check for obstructions in front of the motion sensor.
Light stays on continuously or flashes.
  • аныктоо аймагында үзгүлтүксүз кыймыл.
  • Light sensor interference.
  • Relocate the light or adjust the sensor angle to avoid constant triggers.
  • Ensure no other light sources are directly shining on the light sensor.
Кыймыл сенсорунун диапазону начар.
  • Obstructions in detection path.
  • Sensor angle incorrect.
  • Сенсорду тосуп турган бардык нерселерди алып салыңыз view.
  • Adjust the motion sensor's angle to optimize coverage.

9. Техникалык шарттар

ӨзгөчөлүкДеталь
БрендХААРАЙ
Модель номериJY2423
МатериалАкрилонитрил бутадиен стирол (ABS)
Ачык түсАк (7000K)
Power SourceКүн энергиясы
Motion Detection Angle120°
Кыймылды аныктоо диапазону39 метрге чейин
Cable Length (Solar Panel to Light)16.4 фут
Adjustable Lighting Time5 секунддан 60 секундага чейин
Сууга туруктуулук рейтингиIP65
Батарея1 D батарейка (кошулган)
Продукциянын өлчөмдөрүУзундугу 5" x Туурасы 6" x Бийиктиги 7" (болжолдуу)
Элемент Салмагы16 унция (1 фунт)

10. Кепилдик жана колдоо

HAARAY products come with an extended warranty. For specific warranty details, please refer to the warranty card included in your package or contact HAARAY customer support.

If you encounter any issues or have questions regarding your HAARAY Solar Security Light, please contact our customer support team:

  • Онлайн колдоо: Visit the official HAARAY store on Amazon: HAARAY Amazon Store
  • Электрондук почта колдоо: Refer to your product packaging or warranty card for direct email contact information.

Please have your model number (JY2423) and purchase date ready when contacting support.
