Introduction

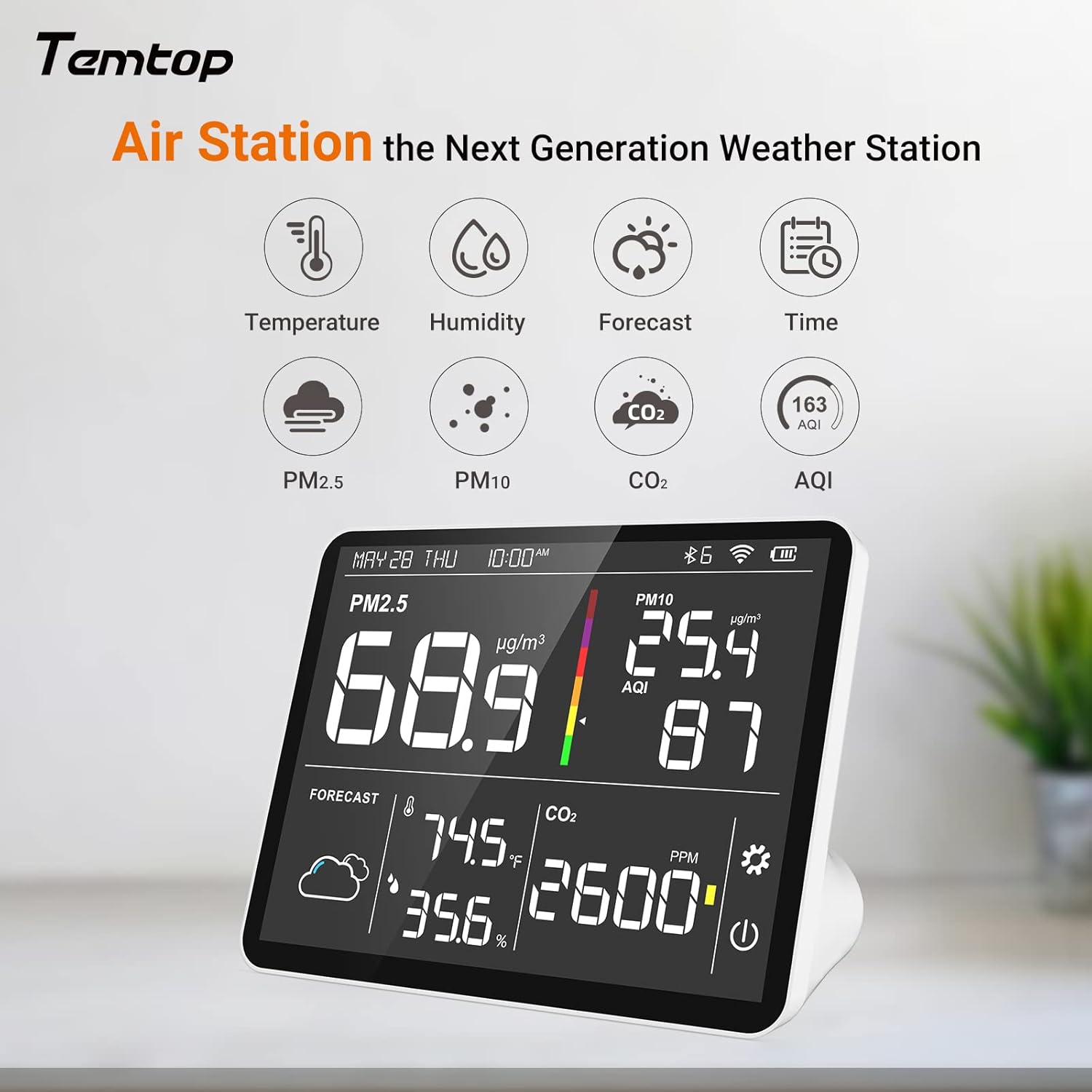

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Temtop M100 Air Quality Monitor. The Temtop M100 is an 8-in-1 smart air quality weather station designed to provide real-time monitoring of indoor air quality, including PM2.5, PM10, CO2, temperature, and humidity, along with weather forecasts and time display.
Продукт бүттүview
Негизги өзгөчөлүктөрү
- Large and clear display with colorful indicators for immediate air quality assessment.
- 8-in-1 monitoring: Measures CO2, PM2.5, PM10, AQI, temperature, humidity, weather forecast, and date/time.
- Supports monitoring and managing up to 8 interconnected sensors via the Temtop dashboard.
- Calibration available for sensors to ensure accuracy.
- Push notifications via app for air quality alerts.
- жөндөмдүүлүгү view graphs and export historical data for analysis.
Кутуда эмне бар
- Temptop M100 аба сапаты монитор
- Instruction Manual
- USB заряддоо кабели (Type-C)
Продукт визуалдык көрүнүштөрү
Расмий продукт Videos
Бул видеодо толук маалымат берилетview of the Temtop Air Quality Monitor M100, showcasing its features, design, and how it can be used to monitor air quality in various environments. It highlights the device's ability to display multiple air quality parameters simultaneously and its sleek design that fits into any style.
Жайгашуу
Баштапкы күйгүзүү жана заряддоо
Before first use, ensure the device is fully charged using the included Type-C USB cable. Connect the cable to the device's charging port and a compatible USB power source. A full charge is recommended for optimal battery performance. Note that some fast chargers may not be supported.
App Installation and Connectivity
The Temtop M100 connects via Wi-Fi to a companion mobile application. Download the official Temtop app from your device's app store (App Store for iOS, Google Play for Android). Follow the in-app instructions to create an account and connect your M100 monitor to your Wi-Fi network. This enables remote control, data tracking, and push notifications.
Сенсор калибрлөө
The sensors support easy calibration to maintain accuracy. For the first use or after long storage, place the device in a well-ventilated environment (indoors or outdoors) for at least 6 hours. This allows the sensors to stabilize and calibrate to the ambient air conditions.
Иштөө нускамалары
Дисплейди түшүнүү
The large color screen displays all measured data simultaneously, including PM2.5, PM10, CO2, AQI, temperature, humidity, weather forecast, and current time/date. The colorful indicator provides a quick visual assessment of air quality. There are typically two on-screen touch buttons: one for power and another for screen brightness/measurement units.
Мобилдик тиркемени колдонуу
The companion app allows for remote monitoring and management. You can:
- Change configuration settings.
- Provide a location for accurate weather forecasts.
- View and graph historical data for air quality, temperature, and humidity measurements over time.
- Receive push notifications when air quality levels are not optimal.
- Export data for further analysis.
Monitoring Multiple Sensors
The Temtop M100 can monitor and manage up to 8 interconnected sensors from a single touch screen. Use the Temtop dashboard within the app to track connectivity, trends, and analyze historical data from all connected devices.
Техникалык тейлөө
Тазалоо
To clean the device, gently wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water. Ensure the sensor vents are clear of dust and debris for accurate readings.
Батареяга кам көрүү
The device is powered by an internal Lithium Ion battery. For continuous operation, it can be left plugged in. To prolong battery life, avoid extreme temperatures and store the device with a partial charge if not used for extended periods.
Проблемаларды чечүү
| Көйгөй | Мүмкүн болгон себеп / Чечим |
|---|---|
| Температуранын так эмес көрсөткүчтөрү | Ensure the device has been calibrated in a well-ventilated environment for at least 6 hours. Avoid placing the device near heat sources or direct sunlight. |
| App Glitches or Connectivity Issues | Ensure your Wi-Fi network is stable. Restart the device and the app. Check for app updates. Verify correct Wi-Fi credentials during setup. |
| Батареянын иштөө мөөнөтү начар | The device's battery life may vary depending on usage. For continuous monitoring, it is recommended to keep the device plugged in. Ensure you are using the provided Type-C cable. |
| Дисплей Viewing Angle Issues | The screen may have a narrow viewing angle. Adjust the device's position to view the display directly for optimal clarity. |
| Device Not Turning Off | Refer to the power button functionality in the operating instructions. If the device remains on, a long press of the power button or a soft reset might be required. Consult the manufacturer's support if the issue persists. |
Техникалык шарттар
| Атрибут | Нарк |
|---|---|
| Модель номери | M100-New |
| Пакеттин өлчөмдөрү | 9 x 6.63 x 3.5 дюйм; 1.75 фунт |
| Батареялар | 1 литий-иондук батарейкалар талап кылынат. (камтылган) |
| Дата биринчи жеткиликтүү | 24-февраль, 2025-жыл |
| Өндүрүүчү | Элитех |
| Бренд | Темптоп |
| Продукт үчүн сунушталган колдонуу | Үй |
| Продукт үчүн атайын колдонуу | Нымдуулук |
| Power Source | Электр зымдары |
| Өзгөчө өзгөчөлүк | Термометр |
| Байланыш технологиясы | Wi-Fi |
| Түс | ак |
| Камтылган компоненттер | Instruction Manual |
Кепилдик жана колдоо
Кепилдик маалыматы жана техникалык колдоо үчүн расмий Temptop'ту караңыз website or contact their customer service. Details regarding product registration and specific warranty terms can typically be found on the manufacturer's official channels.
кире аласыз Temtop Store on Amazon көбүрөөк маалымат жана колдоо булактары үчүн.
