Lemorele Wireless HDMI Transmitter and Receiver

1. Киришүү

The Lemorele R1100 Wireless HDMI Transmission System provides a reliable solution for streaming high-definition audio and video wirelessly. This system supports 1080P Full HD transmission over distances up to 200 meters (656 feet) with low latency, making it suitable for various applications from home entertainment to professional presentations. It features a plug-and-play design for easy setup and supports connecting multiple receivers for expanded monitoring capabilities.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x Зымсыз HDMI өткөргүч (TX)
• 1 x Wireless HDMI Receiver (RX)
• 4 x External 5DB High Gain Wi-Fi Antennas
• 1 x User Manual
• 1 x муздак бут кийим
• 2 x USB-C кабелдери

3. Продукт бүтүп калдыview

The Lemorele R1100 system consists of a Transmitter (TX) and a Receiver (RX) unit, designed for robust wireless video and audio transmission. Both units are compact and feature multiple power options and connectivity ports.

3.1 Негизги өзгөчөлүктөрү

• 5.8G зымсыз берүү: Utilizes 5GHz Wi-Fi for stable and interference-resistant connections.
• Кеңейтилген диапазон: Up to 656 feet (200 meters) transmission distance with low latency (less than 50ms).
• 1080P Full HD: Supports 1080P@60Hz refresh rate for clear video output.
• HDMI Loop-Out: The transmitter includes an HDMI output for local monitoring.
• Көп кабыл алгычты колдоо: One transmitter can connect to up to four receivers (additional receivers sold separately).
• Колдонмо мониторинги: Monitor video feeds on Android and iOS devices using the TuTuPlay app.
• Кош энергия менен камсыздоо: Can be powered via USB-C (5V2A) or NP-F type batteries.

3.2 Компоненттер жана порттор

Familiarize yourself with the ports and controls on both the Transmitter (TX) and Receiver (RX) units:

• Бергич (TX): Features HDMI Input (for source device), HDMI Output (for local monitoring), USB-C Power port, LCD Display, Power Button, and Pairing Button.
• Алуучу (RX): Features HDMI Output (for display device), USB-C Power port, Power Button, Pairing Button, and a battery compartment for NP-F type batteries.
• Антенналар: Both TX and RX units utilize external 5DB high gain Wi-Fi antennas for enhanced signal strength.

4. Орнотуу нускамалары

4.1 Power Supply (Important)

To ensure optimal performance and stable operation of the Wi-Fi module, it is crucial to use a 5V2A Электр энергиясы менен камсыздоо for both the Transmitter and Receiver units. Insufficient power can lead to various issues, including:

• Unsuccessful screen casting
• Connection lags or instability
• Sudden disconnections
• Display interface not showing SSD and password

The units can be powered via the provided USB-C cables connected to a 5V2A power adapter (not included) or by compatible NP-F type batteries (for the Receiver).

4.2 Алгачкы туташуу (плаг жана ойнотуу)

The Lemorele R1100 system is designed for plug-and-play operation, requiring no complex wiring or software configuration for a single TX-RX setup.

1. Өткөргүчтү туташтыруу (TX): Plug the Transmitter into the HDMI output port of your source device (e.g., camera, PC, TV-Box).
2. Алуучуну туташтыруу (RX): Connect the Receiver to the HDMI input port of your display device (e.g., TV, projector, monitor).
3. Күчтү колдонуу: Connect the 5V2A USB-C power supply to both the TX and RX units.
4. Байланышты күтүңүз: The system will automatically establish a connection within 5-10 seconds, and your source content will be displayed on the monitor.

4.3 Pairing Additional Receivers

If you have purchased additional receivers separately, they will need to be manually paired with the transmitter. Refer to the specific instructions provided with your additional receiver units for the pairing process.

5. Иштөө нускамалары

5.1 Wireless Transmission Performance

The R1100 system provides robust wireless transmission with the following characteristics:

• Өткөрүү расстояние: Up to 200 meters (656 feet) for a single transmitter-receiver pair in an open environment.
• Төмөн күтүү: Less than 50ms delay, ensuring near real-time video and audio synchronization.
• HD токтому: Supports 1080P@60Hz refresh rate, delivering clear and smooth visuals.

5.2 Multi-Receiver Support

The R1100 system allows one transmitter to broadcast to multiple receivers simultaneously, expanding your monitoring options. The transmission distance varies with the number of connected receivers:

• 1 Transmitter + 1 Receiver: 200 метрге чейин (656 фут)
• 1 Transmitter + 2 Receivers: 130 метрге чейин
• 1 Transmitter + 3 or 4 Receivers: 100 метрге чейин

5.3 App Monitoring (TuTuPlay)

For additional monitoring flexibility, the Lemorele R1100 system supports the TuTuPlay app, available for Android and iOS devices. This app allows you to monitor the video feed directly on your smartphone or tablet.

5.4 Adaptive Frequency Hopping

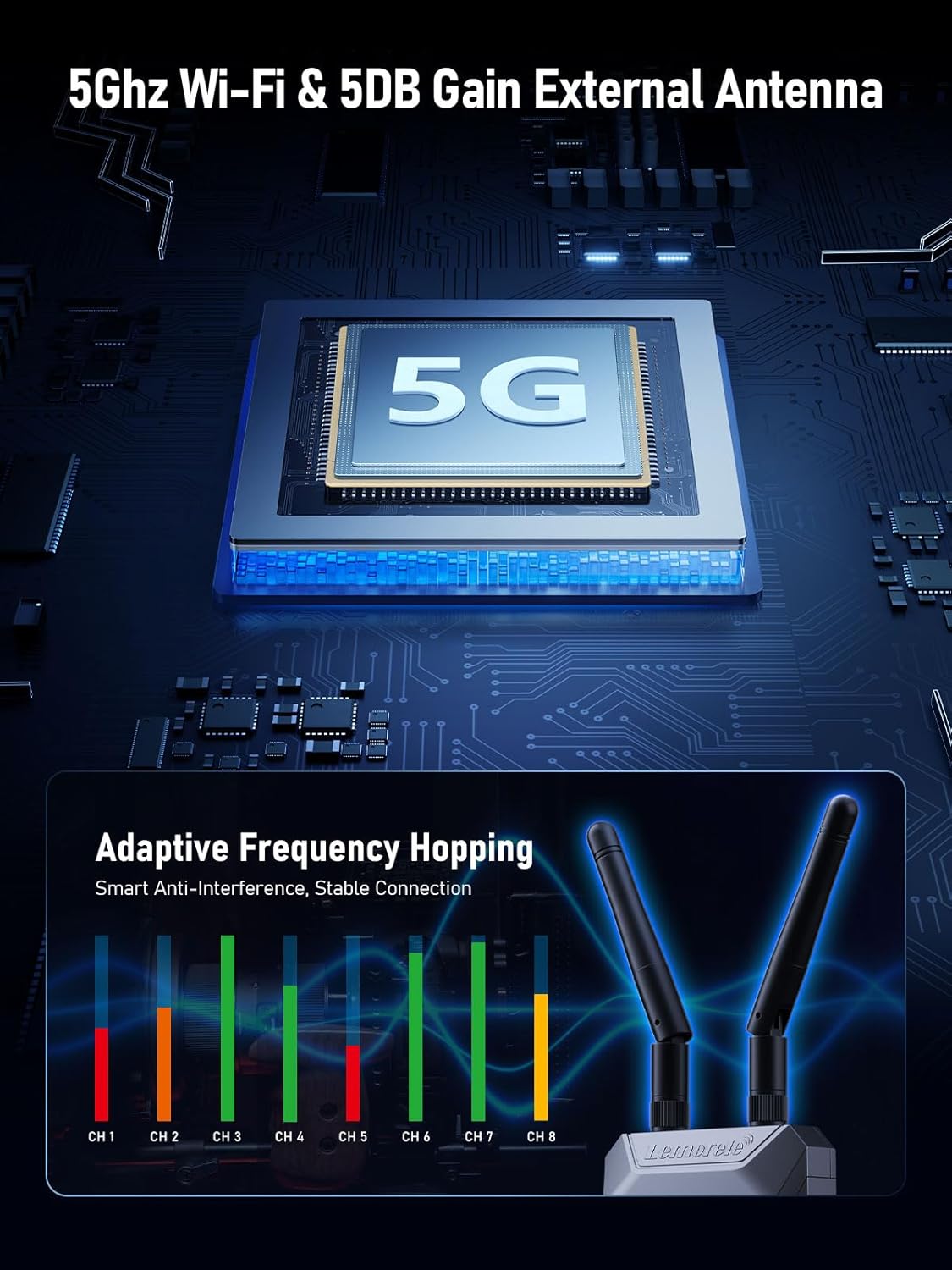

The system incorporates Wi-Fi adaptive frequency hopping technology, utilizing a Realtek high-performance module. This feature ensures a stable connection and minimizes interference, even in environments with numerous wireless signals or large conference settings.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your Lemorele R1100 system, follow these maintenance guidelines:

• Тазалоо: Use a soft, dry cloth to clean the units. Avoid using liquid cleaners or solvents.
• Сактагыч: Түзмөктөрдү күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Антенналар: Handle the external antennas with care to prevent damage. Ensure they are securely attached during use.
• Электр камсыздоо: Always use the recommended 5V2A power supply to prevent damage from insufficient or excessive power.

7. Кыйынчылыктарды

If you encounter issues with your Lemorele R1100 system, refer to the following common problems and solutions:

• No Signal/Unsuccessful Screen Casting:
  • Ensure both TX and RX units are powered correctly with a 5V2A supply.
  • Verify HDMI cables are securely connected to both source and display devices.
  • Check that the input source on your display device is set to the correct HDMI port.
  • Confirm that the TX and RX units are within the effective transmission range.
• Connection Lags/Sudden Disconnection:
  • This is often caused by insufficient power. Ensure a stable 5V2A power supply is used for both units.
  • TX жана RX бирдиктеринин ортосундагы аралыкты азайтыңыз.
  • Minimize obstructions (walls, large objects) between the units.
  • Check for strong Wi-Fi interference from other devices in the vicinity.
• Display Interface Not Showing SSD/Password:
  • This indicates a power issue. Confirm both units are receiving adequate 5V2A power.
  • Restart both the TX and RX units.
• Аудио иштебейт:
  • Ensure the audio output settings on your source device are correct.
  • Check the volume levels on your display device.
  • Verify HDMI cable connections.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or any inquiries regarding your Lemorele R1100 Wireless HDMI Transmitter and Receiver, please refer to the contact information provided on the product packaging or visit the official Lemorele webсайт. Кепилдик дооматтары үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
